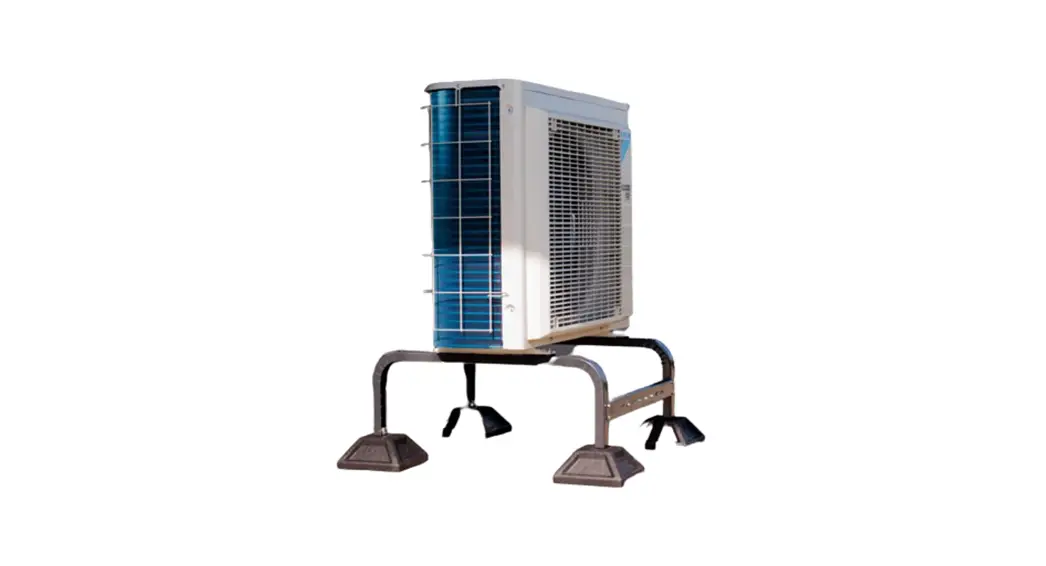

FF-755 FrameFoot Mini Heat Pumps and Air Conditioners
Instructions
Product: FrameFoot MINI
Code: FF-755
Group:
Supporting system for heat pumps and condensers
Application:

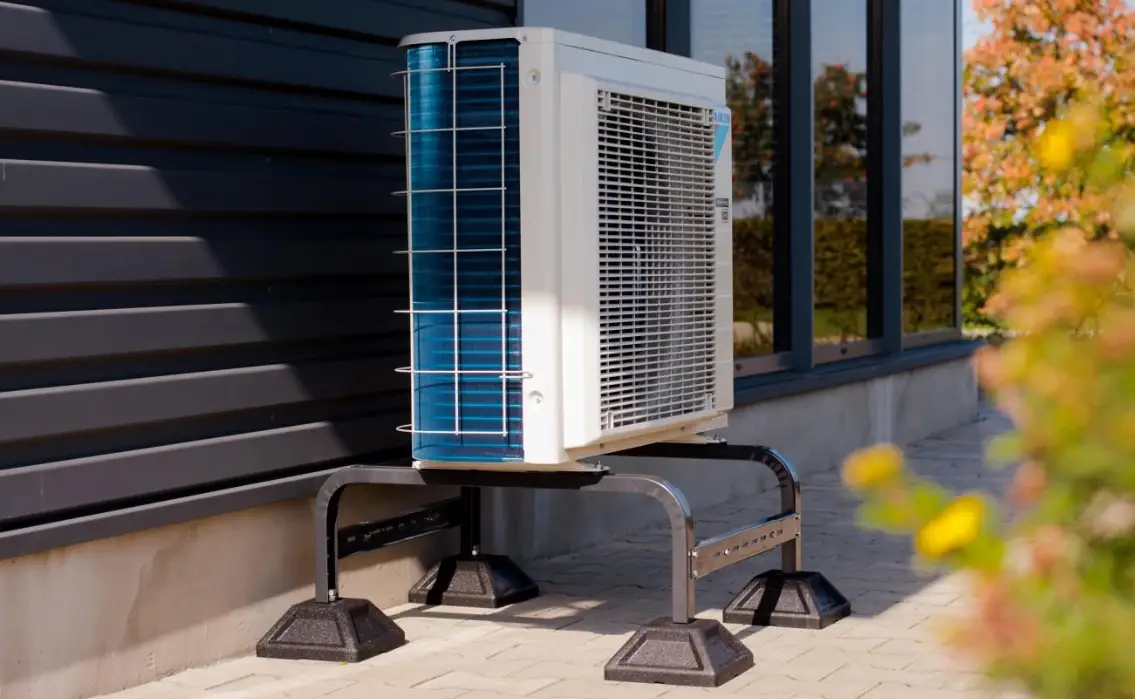

All-in-one box anti-vibration support frame for heat pumps, condensers, and VRF/VRV units installed on the ground or flat roofs with an adjustable slope of a maximum of 5%.

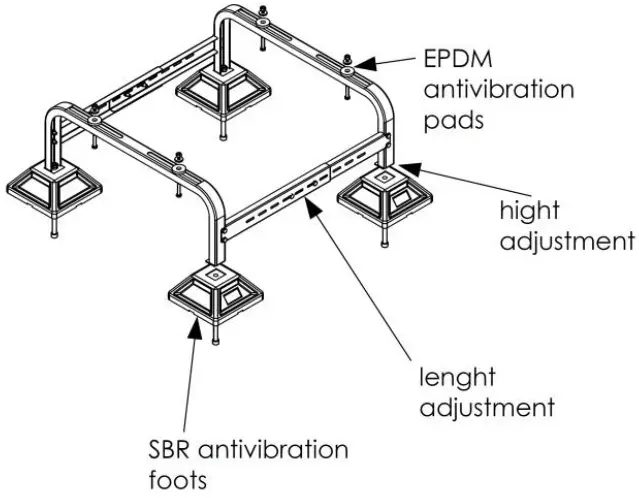

Description:
- For outdoor units with a max dimensions: 755 x 520 mm (width x depth)
- Height adjustment from 330 up to 370 mm with M12 screw
- Horizontal bracket allows easy width regulation from 450 up to 755 mm
- Recycled Rubber feet and pads are strong and very effectively reduce the noise caused by vibrations
- Max load capacity. 360 kg
- Anti-corrosion protection of the frame and INOX fasteners ensure long-lasting protection and aesthetics

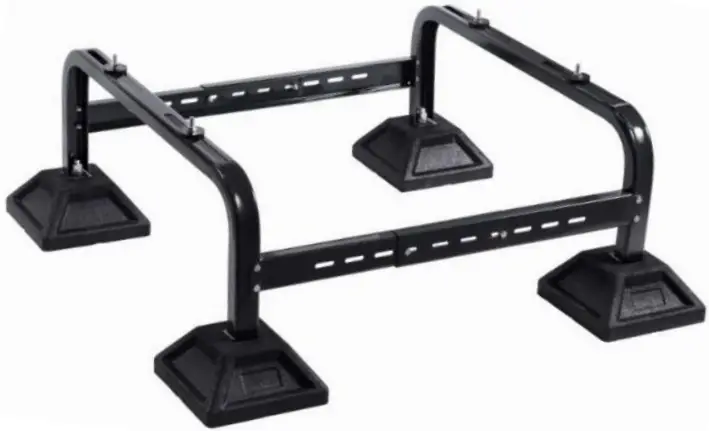

The frame
- Galvanised and powder-coated steel, colored in RAL7021.Other colors on request
- Manufactured according to the standard: EN 1993-4-2:2009, EN 10025
- Only INOX fasteners

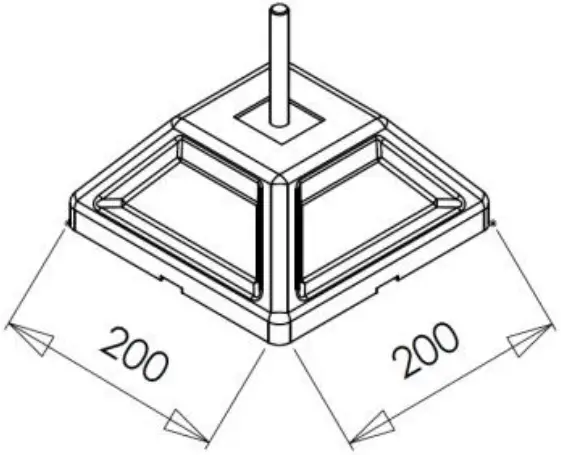

The foot
- SBR Recycled feet with steel insert
- Size 200×200 mm
- UV resistant
- Color: black
- Working temperature: – 40°C – 100°C
- Load capacity: 150 kg /foot
Dimensions:

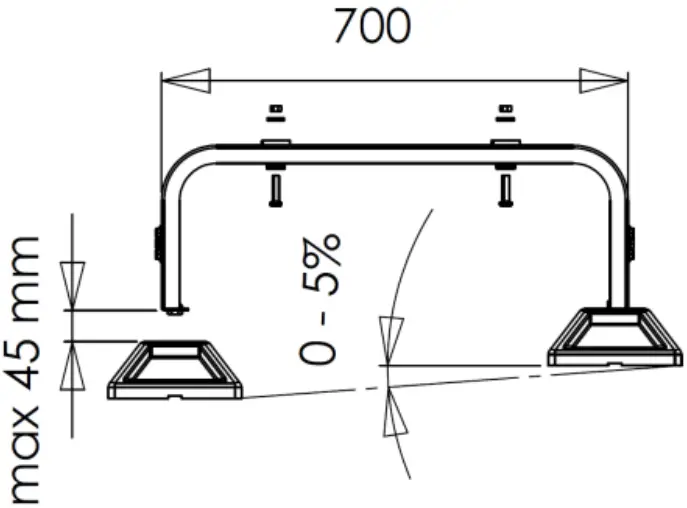

Allows installation on the sloped surface up to 5%:
See also:

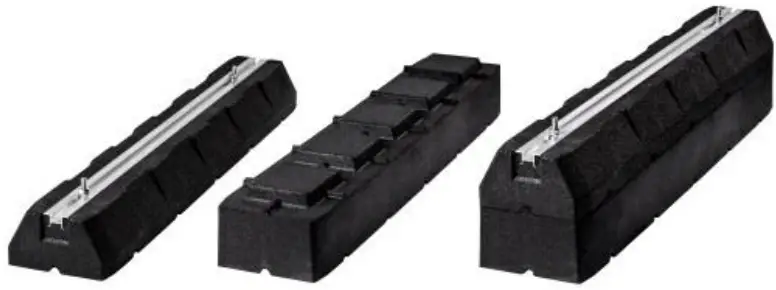

Rubber blocks

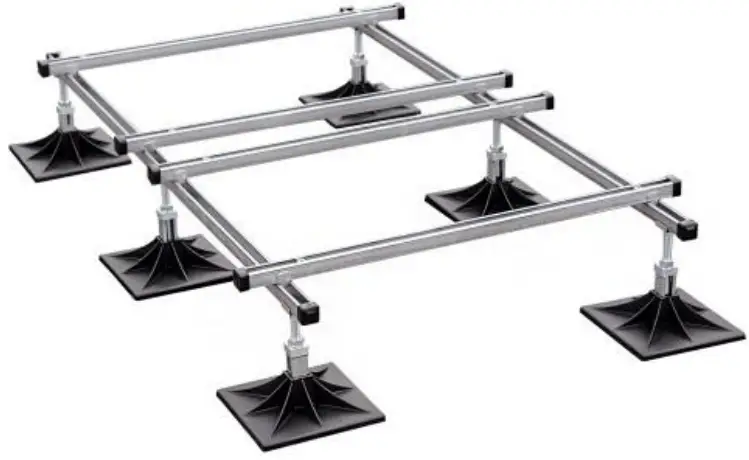

Frame Foot
Important:
v.1.00
