Airtechnic Ahp1 Air Water Heat Pump Instruction Manual (+ PDF)

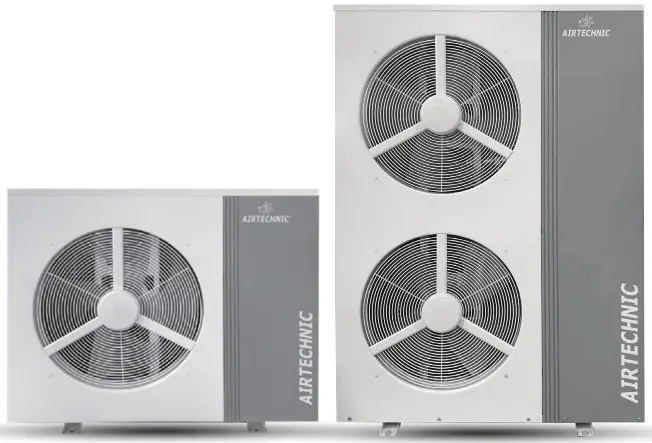

Air-Water Heat Pump
AHP1
Monoblock type for outdoor installation

www.airtechnic.gr
www.facebook.com/Airtechnic.gr
www.instagram.com/airtechnic.chatzoudis

Contents hide

5 EVI TECHNOLOGY TO FURTHER IMPROVE PERFORMANCE

6 FRESH & FAST DOMESTIC HOT WATER

7 LOW NOISE LEVEL

8 NO NEED FOR REFRIGERANT CERTIFICATE

9 CONTROL SYSTEM

10 CLIMATE CURVE

11 COMBINATION OF SEVERAL HEAT PUMPS

12 DIMENSIONS

13 TECHNICAL SPECIFICATIONS

14 Documents / Resources

14.1 References

15 Related Posts

ΑΕΡΑ-ΝΕΡΟΥ

The AIRTECHNIC AHP1 air-water heat pump is designed according the consistent high European performance and design norms:

Equipped with DC inverter and EVI compressor with jet enthalpy technology. This combination provides one of the highest available performance coefficient (COP).
Extremely reliable operation, even in harsh environments (-25 °C or +45 °C).
Compact structure and easy installation.
Hybrid software, suitable for use with gas boilers or solar systems.
Perfect collaboration with fan coil units or underfloor systems.

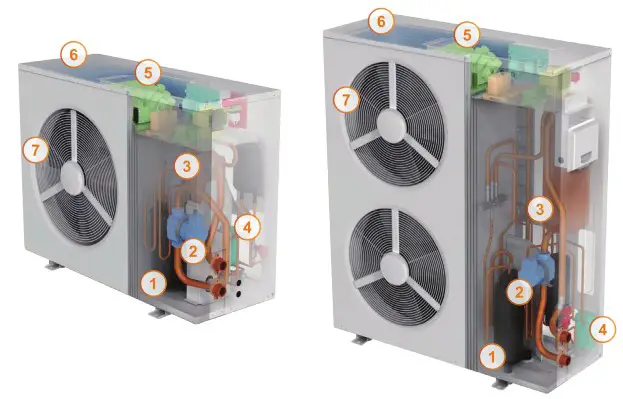

1. Compressor
2. Water pump
3. Condenser
4. EVI HEX

5. DC Inverter for compressor
6. Evaporator
7. Fan

GREATER EFFICIENCY

The AHP1 air to water heat pump is equipped with a powerful EVI compressor and energy control system. It can reach an A++ energy class for the production of water at 55 °C and A+++ for the production of water at 35 °C.

R32 REFRIGERANT

AHP1 heat pump uses the new ecological R32 refrigerant gas, with low global warming potential, in line with the European F-gas Directive, for the progressive reduction of the use of greenhouse gases.
Thanks to its GWP value of 675, which is about one third of the GWP value of R410a, it helps to reduce equivalent CO2 emissions, which are the main causes of global warming.

DC INVERTER

The new design concept uses DC inverter modulations on the compressor, the fan and the water pump. This allows the delivered power to be modulated, according the thermal load and allowing very high efficiencies and significant energy savings.

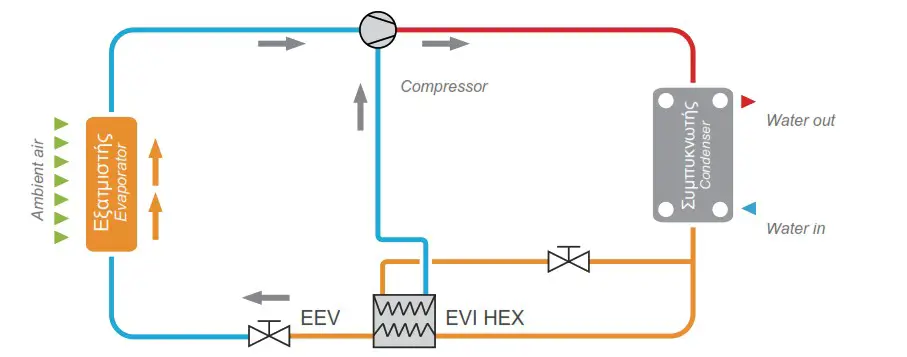

EVI TECHNOLOGY TO FURTHER IMPROVE PERFORMANCE

Adding spraying refrigerant (medium pressure).
20% increase of the refrigerant circulation amount.
Achieve compression twice with one compressor.
Increase cooling & heating efficiency.

FRESH & FAST DOMESTIC HOT WATER

With the help of EVI technology, without auxiliary electric heating, the outlet water temperature can easily reach 60 °C, even if the external temperature is as low as -15 °C. A fast DHW program working together with a fresh water station, provide instant and fresh hot water for the user.

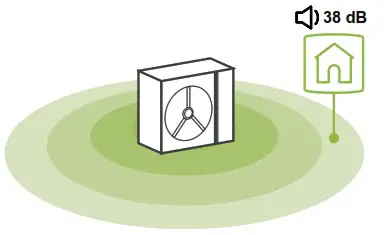

LOW NOISE LEVEL

The compressor with dual vibration reducing design, metallic noise isolating cover and full DC inverter system (compressor, fan and pump) has silent and extra silent mode as standard feature. Users can choose the appropriate silent mode according the time period.

NO NEED FOR REFRIGERANT CERTIFICATE

With the Monoblock type design and the factory filled refrigerant (R32), no refrigerant certificate required by the installer.
ANTI-FREEZING PROTECTION
Mechanically controlled (via temperature) plate exchanger anti-freeze function. It keeps the heat pump from freezing in case of any malfunction.

CONTROL SYSTEM

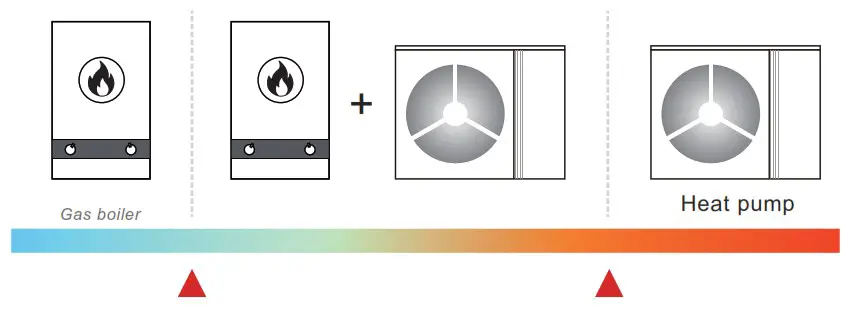

Smart Hybrid System With a Gas boiler.
Easy connection with a gas boiler in order to get a hybrid system. The AHP1 heat pump is equipped with m-source multi-energy management program, which the user can easily manage whether he uses a gas boiler or a wood (pellet) burning boiler as a backup heat source.
Automatic switch between heat pump and gas boiler, or parallel function, in order to ensure an efficient and stable system operation. It is possible to add solar heating to the system for additional energy saving.

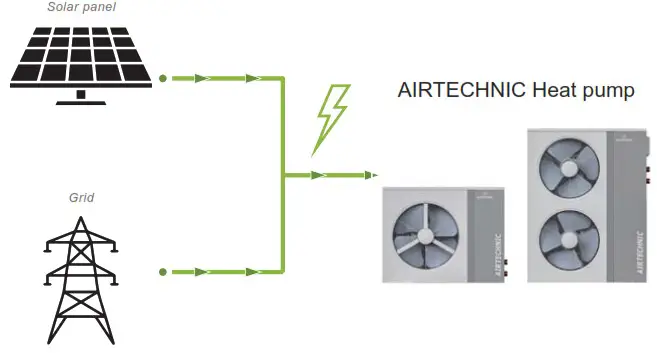

Smart grid ready.
If photovoltaic power supply is enough, the heat pump will operate at its maximum capability, heating the DHW tank to its highest temperature and then storing the heat (cold) to the energy storage tank (PCM).

Phase Change Material (PCM) – Energy Storage Management (optional).

Automatic switch between heat pump and PCM , or parallel operation, for room heating.

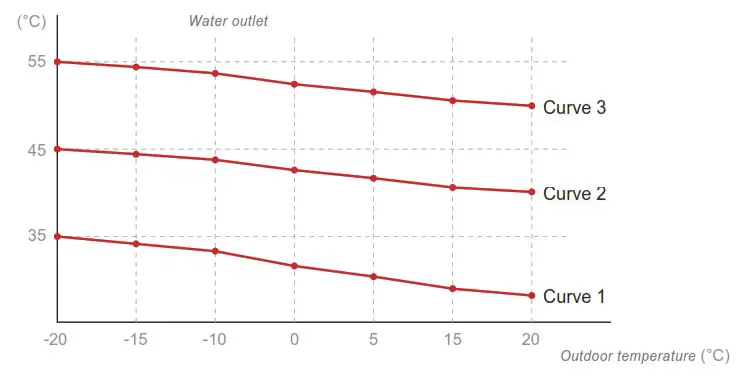

CLIMATE CURVE

The function allows to adjust the water temperature set point according the outside air temperature.

COMBINATION OF SEVERAL HEAT PUMPS

When a large capacity is required, it is possible to use multiple heat pumps in a modular installation and cascade sequence, supported by powerful software. This allows for many design possibilities with not only different combinations of air source heat pump modules, but even a combination of air source heat pump and ground source heat pump modules.

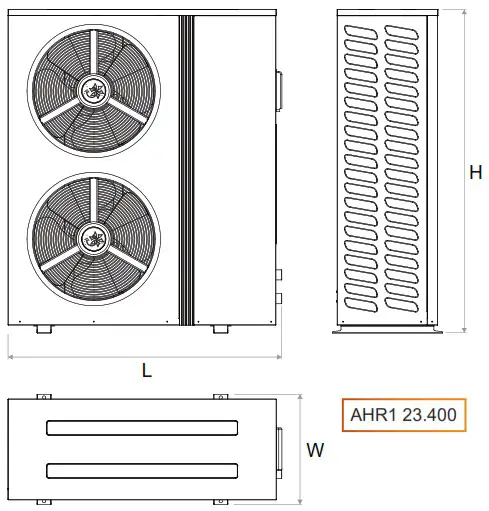

DIMENSIONS

Heat pump	L	W	H
AHR1 07.230	1.055	420	574
AHR1 11.230	1.11	460	855
AHR1 14.230	1.11	460	855
AHR1 17.400	1.15	460	855
AHR1 23.400	1.15	460	1.356

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS		H AHP1 07.230	AHP1 11.230	AHP1 14.230	AHP1 17.400	AHP1 23.400
Electric supply		230V 1P – 50 Hz	230V 1P – 50 Hz	230V 1P – 50 Hz	400V 3P – 50 Hz	400V 3P – 50 Hz
Operating mode		Heating / Cooling / Domestic Hot Water
Compressor type		DC Inverter with EVI
Fans type		DC Brushless
Water pump type		DC Inverter
Refrigerant type		R32
GWP	Kg-CO2 eq.	675
Refrigerant charge	Kg	1,3	1,35	1,35	1,9	2,8
CO2 equivalent	Kg	878	911	911	1.282	1.89
Sound pressure (1)	dB(A)	39	38	39	41	47
Max absorbed current	A	13	19	23	10	14
Hydraulic connections		1”	1”	1”	1 – 1/4”	1 – 1/4”
External dimensions (L x W x H)	mm	1.055 x 420 x 574	1.110 x 460 x 855	1.110 x 460 x 855	1.150 x 460 x 855	1.150 x 460 x 356
Weight	Kg	88	105	110	129	150

HEATING PERFORMANCE

TECHNICAL SPECIFICATIONS			AHP1 07.230	AHP1 11.230	AHP1 14.230	AHP1 17.400	AHP1 23.400
(Floor Heating) (2)	Heating capacity	kW	7,40	11,0	13,6	17,0	22,8
	Absorbed power	kW	1,87	2,60	3,49	4,40	5,76
	COP	W / W	3,95	4,23	3,90	3,87	3,96
	Water flow rate	m³/h	1,27	1,90	2,34	2,93	3,92
	Available circulator head	kPa	70	59	55	43	25
(Low Temp Radiators) (3)	Heating capacity	kW	7,40	11,0	13,6	17,0	22,8
	Absorbed power	kW	2,35	3,489	4,38	5,5	7,23
	COP	W / W	3,15	3,16	3,10	3,08	3,15
	Water flow rate	m³/h	1,27	1,895	2,34	2,93	3,89
	Available circulator head	kPa	70	60	50	43	25
(Radiators) (4)	Heating capacity	kW	7,36	11,1	13,2	16,8	22,7
	Absorbed power	kW	2,79	4,15	5,11	6,42	8,71
	COP	W / W	2,64	2,67	2,58	2,62	2,61
	Water flow rate	m³/h	0,80	1,18	1,46	1,79	2,44
	Available circulator head	kPa	74	74	72	90	64
(Floor Heating) (5)	Heating capactiy	kW	5,87	7,29	9,45	12,05	16,34
	Absorbed power	kW	2,04	2,50	3,27	4,18	5,73
	COP	W / W	2,88	2,91	2,89	2,88	2,85
	Water flow rate	m³/h	1,01	1,25	1,63	2,073	2,81
	Available circulator head	kPa	70	65	60	85	48
(Low Temp Radiators) (6)	Heating capacity	kW	5,87	7,29	9,45	12,05	16,34
	Absorbed power	kW	2,04	2,50	3,27	4,18	5,73
	COP	W / W	2,88	2,91	2,89	2,88	2,85
	Water flow rate	m³/h	1,01	1,25	1,63	2,073	2,81
	Available circulator head	kPa	70	65	60	85	48
(Radiators) (7)	Heating capactiy	kW	6,48	8,05	10,44	13,31	17,15
	Absorbed power	kW	3,00	3,74	4,93	6,334	8,27
	COP	W / W	2,16	2,15	2,12	2,101	2,07
	Water flow rate	m³/h	0,70	0,86	1,12	1,402	1,84
	Available circulator head	kPa	74	72	65	97	85
A-10W55 (8)	Heating capactiy	kW	5,53	7	8,86	11,36	15,2
	Absorbed power	kW	2,05	2,898	3,37	3,943	5,44
	COP	W / W	2,70	2,42	2,63	2,88	2,8
	Water flow rate	m³/h	0,855	1,2	1,52	1,958	2,615
	Available circulator head	kPa	74	65	64	86	60
Seasonal Energy Performance (Medium Temperature Application 35°C)
SCOP(EN14825)			4,52	4,82	4,60	4,86	4,83
ηs			182%	190%	181%	191%	190%
Energy Class			A+++	A+++	A+++	A+++	A+++
A-10W55 (9)	Heating capactiy	kW	5,93	7,36	9,55	12,18	16,82
	Absorbed power	kW	2,82	3,51	4,78	6,24	8,43
	COP	W / W	2,10	2,10	2,00	1,95	1,96
	Water flow rate	m³/h	0,64	0,79	1,03	1,307	1,78
	Available circulator head	kPa	77	72	74	96	85
Seasonal Energy Performance (Medium Temperature Application 55°C)
SCOP(EN14825)			3,46	3,5	3,8	3,49	3,43
ηs			134%	133%	135%	136%	134%
Energy Class			A++	A++	A++	A++	A++
Operating limits in heating mode		-25 °C to +30 °C

Max water temperature		60 °C at -15 °C outdoor temperature

COOLING PERFORMANCE

TECHNICAL SPECIFICATIONS			AHP1 07.230	AHP1 11.230	AHP1 14.230	AHP1 17.400	AHP1 23.400
A35W18 (10)	Cooling capactiy	kW	6,48	8,05	10,44	13,31	17,15
	Absorbed power	kW	3,00	3,74	4,93	6,334	8,27
	EER	W / W	2,16	2,15	2,12	2,101	2,07
	Water flow rate	m³/h	0,70	0,86	1,12	1,402	1,84
	Available circulator head	kPa	74	72	65	97	85
A35W7 (11)	Cooling capactiy	kW	5,53	7	8,86	11,36	15,2
	Absorbed power	kW	2,05	2,898	3,37	3,943	5,44
	EER	W / W	2,70	2,42	2,63	2,88	2,8
	Water flow rate	m³/h	0,855	1,2	1,52	1,958	2,615
	Available circulator head	kPa	74	65	64	86	60
Operating limits in cooling mode			12 °C to +45 °C
Cold water temperature range			7 ~ 20 °C

Performance according to EN14511-2018 at following conditions :

Sound pressure : 5 m from the unit, pen field, directivity 2. Air in 7 °C DB / 6 °C WB, Water in 30 °C / out 35 °C, Waterflow same as P design h.
A7W35 : Air in 7 °C DB / 6 °C WB, Water in 30 °C / out 35 °C.
A7W45 : Air in 7 °C DB / 6 °C WB, Water in 40 °C / out 45 °C.
A7W55 : Air in 7 °C DB / 6 °C WB, Water in 47 °C / out 55 °C.
A-7W35 : Air in -7 °C DB / -8 °C WB, Water in 30 °C / out 35 °C.
A-7W45 : Air in -7 °C DB / -8 °C WB, Water in 40 °C / out 45 °C.
A-7W55 : Air in -7 °C DB / -8 °C WB, Water in 47 °C / out 55 °C.
A-10W35 : Air in -10 °C DB / -11 °C WB, Water in 30 °C / out 35 °C.
A-10W55 : Air in -10 °C DB / -11 °C WB, Water in 47 °C / out 55 °C.
A35W18 : Air in 35 °C DB, Water in 23 °C / out 18 °C.
A35W7 : Air in 35 °C DB, Water in 12 °C / out 7 °C.
