CMA DISHMACHINES CMA-180 VL Single Rack High Temperature Straight Dishwasher

Product Information

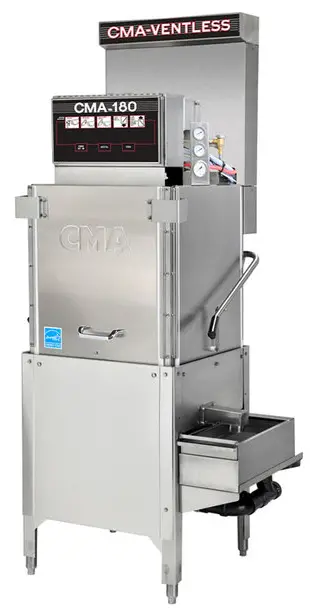

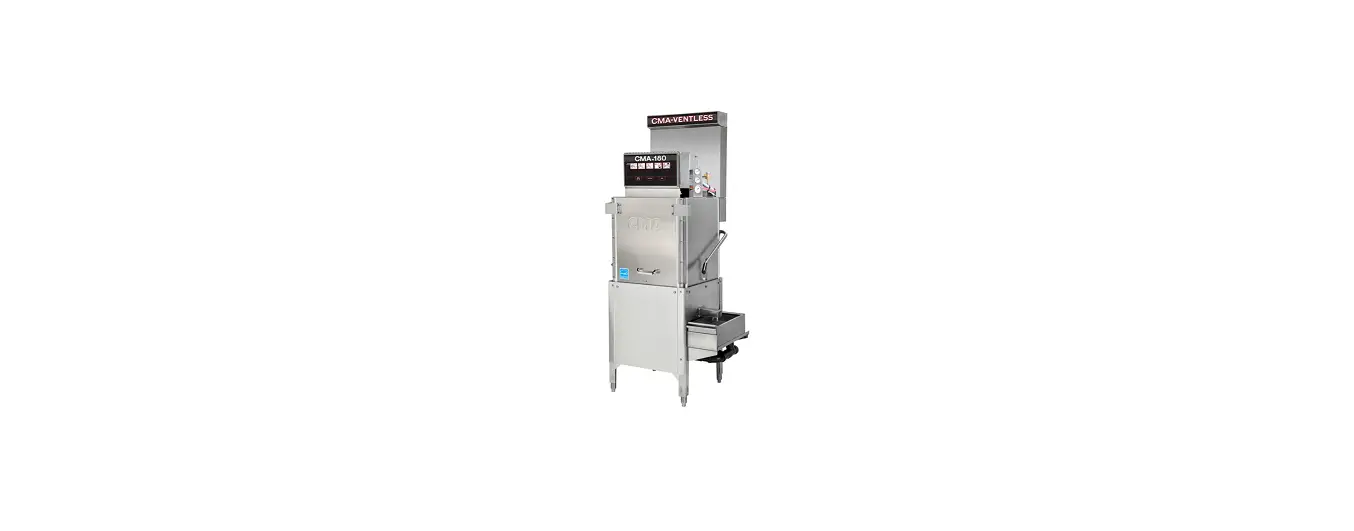

The CMA-180 VL/180 VLTall is a dishwasher machine produced by CMA Dishmachines. It has a parts manual that contains an initial parts kit of 32 items and an exploded view drawing that shows the parts required for assembly. The dishwasher has a straight frame system assembly and a heat recovery system.

Initial Parts Kit #1100.16

Description	Qty
CMA-180 Drain Stopper	1
Pump Assy. 115/220V 60Hz (Open)	1
Pump Seal Kit	1
Rinse Arm w/ Bearings	1
Spray Arm Assy w/bearing & end plugs	1
Spray Base Pull Lock Pin	1
Contactor 208/240V 20 Amp	1
CMA-180VL Timer Assy	1
Micro Switch	1
Illuminated Plug CMA-180/44 P	1
Rocker Switch Auto Fill	1
Power Switch Red 250V	1
Toggle Switch DPDT 15 Amp/Delimer	1
Roller Door Switch	1
Door Spring	1
Ice Cube Relay 220V 12 Amp	1
3/4 Water Solenoid Repair Kit JE	1
1/2 Water Solenoid Repair Kit JE	1
3/4 Vac Breaker Rep Kit Watts	1
Solenoid Coil JE 220V (3/4 & 1/2)	1
Wash Thermometer. (Rinse PN3202.18)	1
Counter – Face Mount 220V/50Hz	1
Toggle Switch (Momentary) Screw Term	1
Contactor 60 Amp 3 Pole	1
Contactor 30 Amp	1
SS Final Rinse Spray Jet SS	1
Heater Thermostat	1
Immersion Heater 240V/12kW T-Flange	1
Liquid Level Switch-Long-D Flat	1
Pressure Gauge(PN13605.45 MFG after Jan 2020)	1
Immersion Heater 6kW208-240V T-Flange	1
Hi Limit Switch 250 Deg	1

Exploded View Drawings

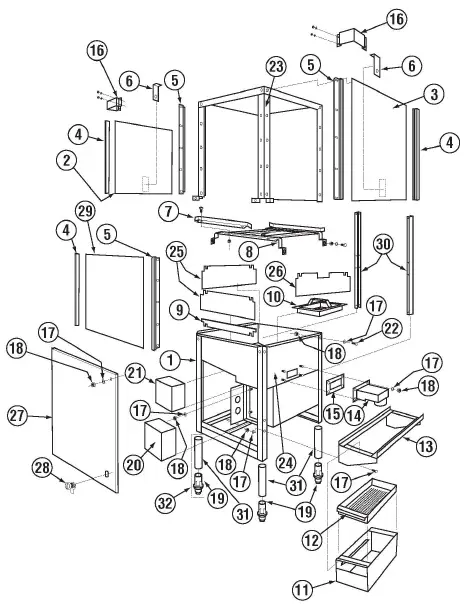

Straight Frame System Assembly

Item No.	No. Req’d	P/N	Description
1	1	17532.18	Frame Stand Left
2	1	17506.37	Door Ventless Right
3	1	17506.38	Door E Z Door Glide
4	6	00636.17	Door Guide
5	6	17554.00	Corner Tray Track Rail
6	2	17552.00	Tray Track (EST/EC/180)
7	1	01505.16	Door Service Splash Guard
8	1	01505.10	Strainer Basket
9	1	17506.65	Scrap Body SS
10	2	17510.00	Scrap Trap Drawer
11	1	17579.00	Scrap Trap Holder Overflow
12	1	17511.00	Overflow Gasket 3-Dr Bracket outside Style

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	17532.18	Frame Stand	17	60	00924.00	¼” SS Washer
2	1	17506.37	Left Door	18	30	00912.00	¼”-20 Nylon Lock Nut
3	1	17506.38	Ventless Right Door	19	4	01310.00	Bullet Feet
4	6	00636.17	E Z Door Glide	20	1	17522.50	Wash Tank Heater Cover
5	6	17554.00	Door Guide	21	1	17522.00	Booster Heater Cover
6	2	17552.00	Door Stop	22	23	00914.10	1/4-20 X 5/8 Hex Bolt
7	1	01505.16	Corner Tray Track Rail	23	1	17591.00	CMA-180 Ventless Wrapper
8	1	01505.10	Tray Track (EST/EC/ 180)	24	1	17531.00	Pan
9	1	17506.65	Door Service Splash Guard	25	2	17506.60	Door Panel Splash Guard
10	2	17510.00	Strainer Basket	26	1	17506.62	180 Splash Shield – lever side
11	1	01579.10	Scrap Body SS	27	1	17546.00	CMA-180VL Skirt
12	1	01579.20	Scrap Trap Drawer	28	1	00449.50	Keyless Lock
13	1	17579.00	Scrap Trap Holder	29	1	17506.36	Front Door
14	1	17511.00	Overflow	30	2	17530.45	Frame Support Bar
15	1	17402.00	Overflow Gasket	31	4	01572.10	SS Leg (A, AH, C, B)
16	1	01516.50	3-Dr Bracket outside Style	32	—	01145.00	Leg Assembly, 10” w/Bullet Foot

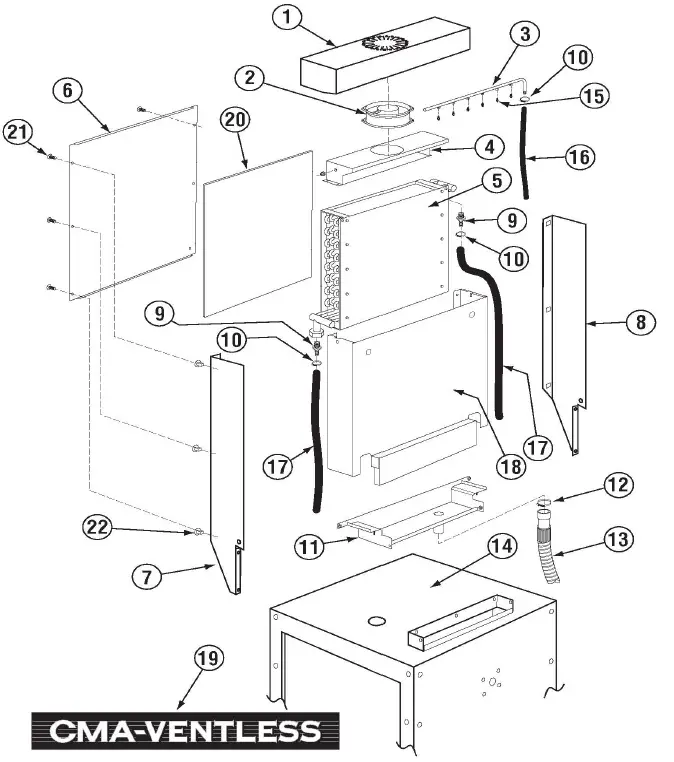

Heat Recovery System

Item No.	No. Req’d	P/N	Description
1	1	17595.00	CMA-180VL Skirt
2	1	02401.01	Keyless Lock
3	1	02401.17	Front Door Frame

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	17595.00	CMA-180 Ventless Top Cover
2	1	02401.01	Motor Fan 230V, 50/60Hz
3	1	02401.17	Battery Self Cleaning Pipe Incl 6-#15
4	1	17593.00	CMA-180 Ventless Fan Mount
5	1	02401.05	Heat Recovery Battery
6	1	17596.00	CMA-180 Ventless Rear Cover
7	1	17598.00	CMA-180 Ventless Support L.H.
8	1	17597.00	CMA-180 Ventless Support R.H.
9	2	40014.00	1/2m x 1/2 Barb Straight
10	3	03101.45	Hose Clamp #4
11	1	17592.00	CMA-180 Ventless Drain Pan

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
12	1	03101.00	Hose Clamp #16 1”
13	1	15605.00	Drain Hose with Goose Neck (9-06)
14	1	17591.00	CMA-180 Ventless Wrapper
15	7	02101.01	Stainless Steel Rinse Nozzle
16	FT	03107.51	Flexible Black Hose 3/8″ Order per foot
17	FT	03107.50	Flexible Black Hose ½” Order per foot
18	1	17594.00	CMA-180 Ventless Shroud
19	1	06231.15	CMA Ventless Label 23.25 x 3.25
20	1	17599.15	Heat Recovery Battery Insulation
21	6	00982.00	Phillips Truss Screws
22	6	00981.00	Nylon Pop-in Nut

Product Usage Instructions

To use the CMA-180 VL/180 VLTall dishwasher machine, follow the below instructions:

Ensure that all required parts are present and in working condition.
Assemble the machine according to the exploded view drawing in the parts manual.
Connect the machine to a power source and ensure that it is grounded.
Turn on the power switch.
Fill the machine with water using the auto fill rocker switch.
Load dishes into the machine and close the door.
Select the appropriate wash cycle using the timer assembly.
Monitor the machine during the wash cycle to ensure that it is operating correctly.
After the wash cycle is complete, open the door and remove the dishes.

Drain System Assembly (Ventless Unit)

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00113.17	Drain Tee Casting
2	1	00114.00	Drain Tee Gasket
3	1	00121.18	Drain Stopper “O” Ring
*4	1	00121.17	Drain Stopper
5	1	17581.00	Drain Linkage
6	1	17580.50	Drain Linkage Spacer
7	1	00912.00	¼-20 Nylon Lock Nut
8	1	17580.00	Drain Lever
9	1	00910.00	¼”-20 x 1 ½” Hex Head Bolt
10	16	00926.00	5/16 S/S Washer
11	6	00901.00	5/16 –18 x 1” Hex Head Bolt
* #00121.17 includes #00121.18

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
12	6	13805.00	5/16-18 Nylon Lock Nut
13	1	01313.00	2” PVC Slip x MIPT Adapter
14	1	05030.17	2” x 4” PVC Tubing
15	1	01312.00	PVC Slip x Slip 90 Elbow
16	1	05030.27	2” x 6” PVC Tubing
17	1	01320.17	2” PVC Tee SxSxS
18	1	05030.10	2” x 3” PVC Tubing
19	1	01315.17	2” No Hub
20	1	50302.42	180VL Drain Hose Fitting
21	1	03101.00	Hose Clamp #16 1”
22	1	15605.00	Drain Hose with Goose Neck

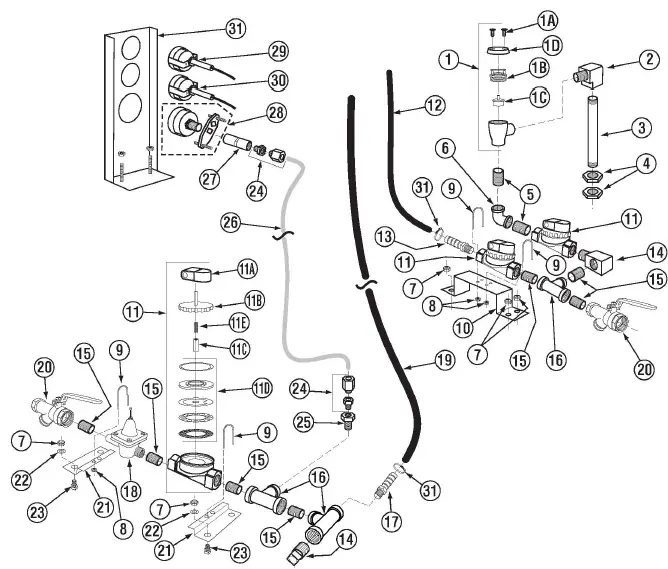

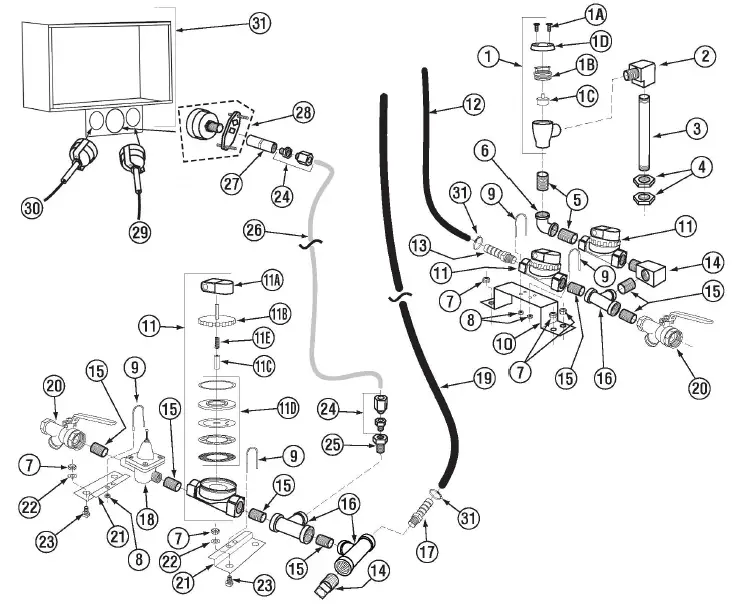

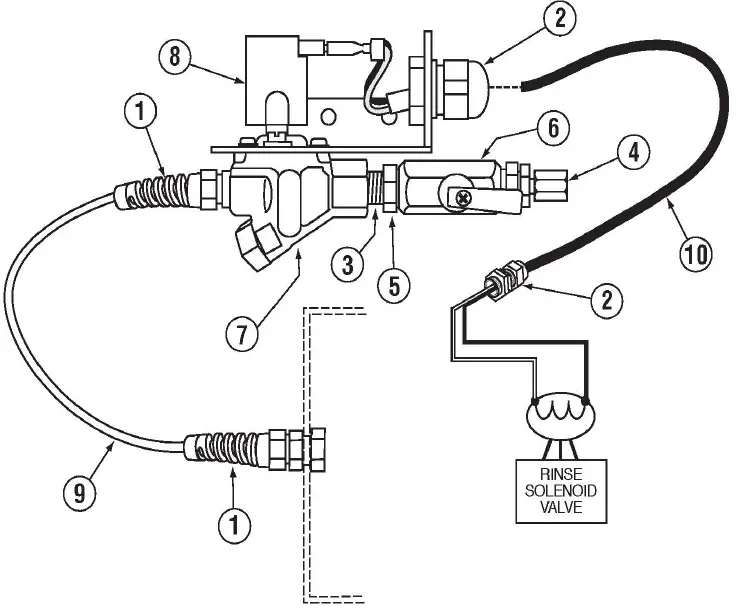

Plumbing System Assembly (January 2020)

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00710.50	Vacuum Breaker ¾” Watts	12	Per FT	03107.51	Flexible Black Hose 3/8”
1A	—	00421.51	Pan Head Screw SS 6-32 x 1/4”	13	1	40014.10	1/2m x 3/8” Barb Straight
1B	—	00735.60	Vacuum Breaker Brass Bonnet ¾”	14	1	13642.00	1/2″ MIP Plug Brass Sq. Head
1C	—	00735.00	Vacuum Breaker Repair Kit ¾”	15	8	03614.00	Nipple Brass 1/2″ Close
1D	—	00739.50	Vacuum Breaker Cap	16	3	00743.10	Tee ½” FxFxF
2	1	00704.00	Street Elbow 3/4″ 90Deg	17	1	40014.00	1/2m x 1/2″ Barb Straight
3	1	13613.00	Nipple ¾” x 5 ½” Brass	18	1	13602.20	Pressure Regulator 1/2
4	2	13606.10	Jamb Lock Nut Thin Pattern	19	Per FT	03107.50	Flexible Black Hose ½”
5	2	13639.00	Nipple SS 3/4 x Close	20	2	41062.00	1/2″ Strainer Ball Valve
6	2	13633.00	3/4 90 Elbow FxF Brass	21	2	01528.00	Plumbing Support Bracket
7	6	00912.00	1/4-20 Nylon Lock Nut	22	2	00924.00	1/4 SS Washer
8	4	00912.00	1/4-20 Nylon Lock Nut	23	2	00906.00	1/4-20 X 1/2 Hexhead Bolt
9	3	01526.10	Plumbing Bracket Strap	24	2	40116.00	1/4 Comp x 1/4 MIP Fitting
10	1	01526.00	Plumbing Support Bracket	25	1	13604.00	1/2 x 1/4 Bushing Brass
11	3	03603.15	1/2 Solenoid Valve JE 240V/60Hz	26	1	00425.24	Chemical Tubing
11A	1	00738.15	Water Sol Valve Coil 220V	27	1	13618.11	Coupling ¼” Brass
11B	—	03603.20	Water Sol Valve Bonnet ½”	28	1	13605.45	Pressure Gauge
11C	—	00786.00	Water Sol Plunger ½” & ¾” w/spring	29	1	03202.00	Wash Thermometer
11D	—	00707.00	Water Sol Repair Kit JE ½”	30	1	03202.18	Final Rinse Thermometer

Plumbing System Assembly

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00710.50	Vacuum Breaker ¾” Watts	13	1	40014.10	1/2m x 3/8” Barb Straight
1A	—	00421.51	Pan Head Screw SS 6-32 x 1/4”	14	1	13642.00	/2″ MIP Plug Brass Sq. Head
1B	—	00735.60	Vacuum Breaker Brass Bonnet ¾”	15	8	03614.00	Nipple Brass 1/2 Close
1C	—	00735.00	Vacuum Breaker Repair Kit ¾”	16	3	00743.10	Tee ½” FXFXF
1D	—	00739.50	Vacuum Breaker Cap	17	1	40014.00	1/2m x 1/2 Barb Straigh
2	1	00704.00	Street Elbow 3/4″ 90Deg	18	1	13602.20	Pressure Regulator 1/2
3	1	13613.00	Nipple ¾” x 5 ½” Brass	19	FT	03107.00	Flexible Black Hose ½”
4	2	13606.10	Jamb Lock Nut Thin Pattern	20	2	41062.00	^1/2 Strainer Ball Valve
5	2	13639.00	Nipple SS 3/4 x Close	21	2	01528.00	Plumbing Support Bracket
6	2	13633.00	^3/4 90 Ell F x F Brass	22	2	00924.00	1/4 SS Washer
7	6	00912.00	1/4-20 Nylon Lock Nut	23	2	00906.00	1/4-20 X 1/2 Hexhead Bolt
8	4	00912.00	1/4-20 Nylon Lock Nut	24	2	40116.00	1/4 Comp x 1/4 MIP Fitting
9	3	01526.10	Plumbing Bracket Strap	25	1	13604.00	1/2 x 1/4 Bushing Brass
10	1	01526.00	Plumbing Support Bracket	26	1	00425.54	Chemical Tubing
11	3	03603.15	1/2 Solenoid Valve JE 240V/60Hz	27	1	13618.11	Coupling ¼” Brass
11A	1	00738.15	Water Sol Valve Coil 220V	28	1	13605.45	Pressure Gauge 180-UC
11B	—	03603.20	Water Sol Valve Bonnet ½”	29	1	03202.00	Thermometer “Wash”
11C	—	00786.00	Water Sol Plunger ½” & ¾” w/spring	30	1	03202.18	Thermometer “Rinse”
11D	—	00707.00	Water Sol Repair Kit JE ½”	31	1	17534.50	Gauge Bracket
12	FT	03107.51	Flexible Black Hose 3/8”

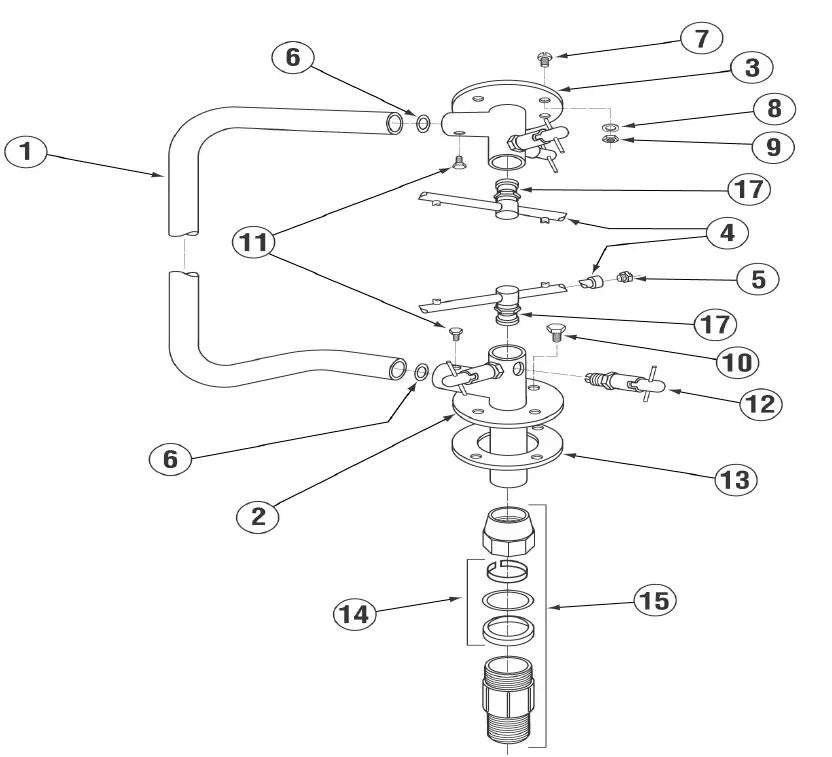

Wash Spray System

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00303.17	Manifold
*2	1	00360.24	Lower Spray Base Assembly
**3	1	00361.10	Upper Spray Base Assembly
4	2	00304.17	Wash Spray Arm
5	4	00308.50	Spray Arm End Plug SS
6	2	00302.51	Spray Base “O” Ring
7	4	00905.00	Truss Head Bolt ¼”-20”x1/2”
8	12	00924.00	SS Washer ¼”

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
9	8	00912.00	Nylon Lock Nut ¼” – 20
10	4	00914.10	Hex Head Bolt ¼”-20”x5/8”
11	2	00966.10	Hex Head SS Bolt 10-32
12	4	00363.00	Spray Base Lock Pin
13	1	00302.00	Spray Base Gasket
14	1	00225.00	Compression Gasket
15	1	00221.20	1” Comp. Fit.x1”MIP SS
16	1	00759.17	Base Quick Release W/Nipple
17	2	00341.00	Spray Arm Bearing

P/N 00361.10 Includes Items 11,12 & 6
P/N 00360.24 Includes Items 11, 12 & 6

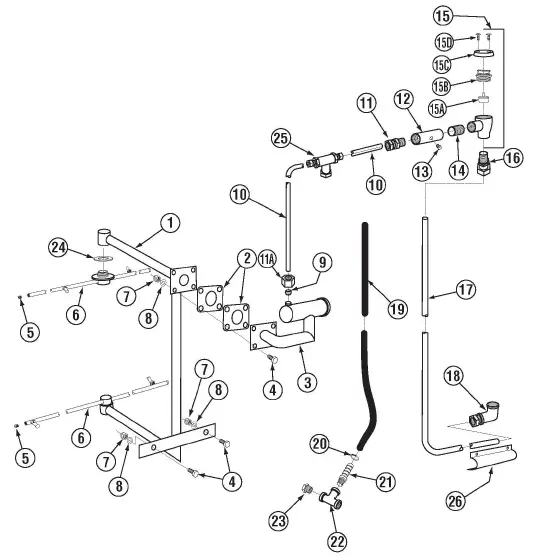

Final Rinse System Assembly

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	17401.00	Final Rinse Manifold	15	1	03624.00	½” Vacuum Breaker
2	2	04306.00	Square Manifold Gasket (CMA-180)	15A	—	03623.00	½” Vacuum Breaker Kit
3	1	13607.40	180VL Final Rinse Pipe Ass.	15B	—	03624.25	½” Brass Bonnet
4	6	00914.00	¼”-20×5/8 Hex Bolt	15C	—	00739.50	¾” Vacuum Breaker Cap
5	4	00308.17	Rinse Arm SS End Plug	15D	—	00421.51	6-32 x ¼” SS Pan Head Screw Phillips
6	2	00304.29	Rinse Arm w/ Bearings (180&180UC)	16	1	00760 .00	5/8 Comp x 1/2 MIP Adapter
7	6	00912.00	¼”-20 Nylon Lock Nut	17	1	13607.44	180VL Rinse Plumbing Line
8	6	00924.00	¼”SS Washer	18	1	17550.11	1/2 90Deg Street Elbow
9	1	13607.20	3/8 Compression Fitting Sleeve	19	FT	03107.00	Flexible Black Hose ½” Order per foot
10	1	05004.11	3/8” SS Tubing	20	1	03101.45	Hose Clamp #4
11	1	00436.20	3/8″ Comp X 1/2″ MIP Fitting	21	1	40014.00	1/2m x 1/2 Barb Straight
11A	1	13607.10	3/8 Compression Fitting Nut	22	1	00743.00	1/2 Tee F x F x F Brass (Plated)
12	1	13669.45	Mixing Chamber SS CMA 180UC	23	1	13642.00	1/2″ Male Plug Brass
13	1	03232.00	1/8 Male Plug	24	1	4305.17	Red Silicone Gasket (CMA-180)
14	1	13629.00	½” S.S. Close Nipple	25	1	13607.55	CMA-180VL F.R. Thermometer Fitting
				26	1	15606.00	Conduit Heat Shield

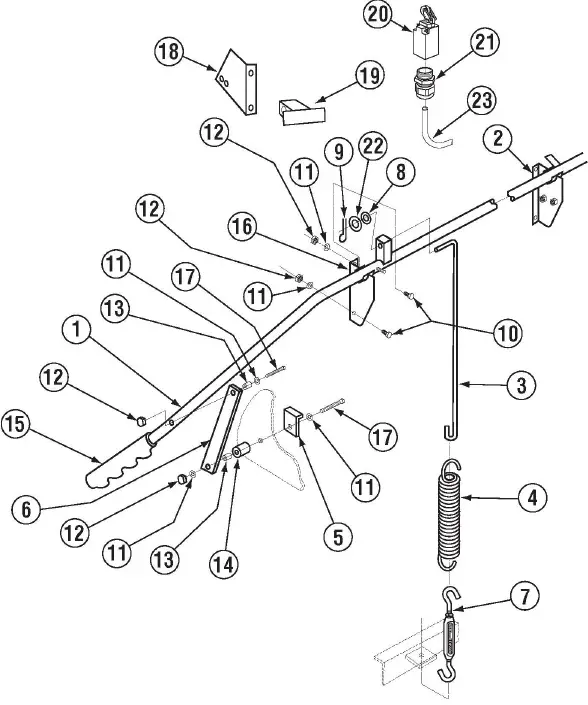

CMA-180 Door Handle Assembly

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00613.32	Door Handle	13	4	00610.00	Door Handle Spacer (Small)
2	1	01556.50	Right Door Handle Support	14	4	00611.00	Door Handle Spacer (Large)
3	2	00603.07	Door Spring Extension Rod	15	2	00607.04	Door Handle Cap
4	2	00602.00	Door Spring	16	1	01555.50	Left Door Handle Support
5	2	17552.00	Door Stop	17	2	00910.00	¼”-20×1/2” Hex Head Bolt
6	2	01553.00	Door Handle Link	18	1	00563.40	Door Switch Bracket (8-08)
7	2	00606.50	Turn Buckle	19	1	00563.42	Door Switch Actuator (8-08)
8	2	00926.00	5/16” SS Washer	20	1	00562.00	Door Roller Switch
9	2	00900.00	Cotter Pin	21	1	00562.60	Connector Door Roller Switch
10	4	00906.00	¼”-20 x ½” Hex Head screw	22	1	00605.30	Door Rod Spacer
11	8	00924.00	¼” SS Washer	23	1	00546.00	18 AWG Switch Cord
12	8	00912.00	¼”-20” Nylon Insert Lock Nut

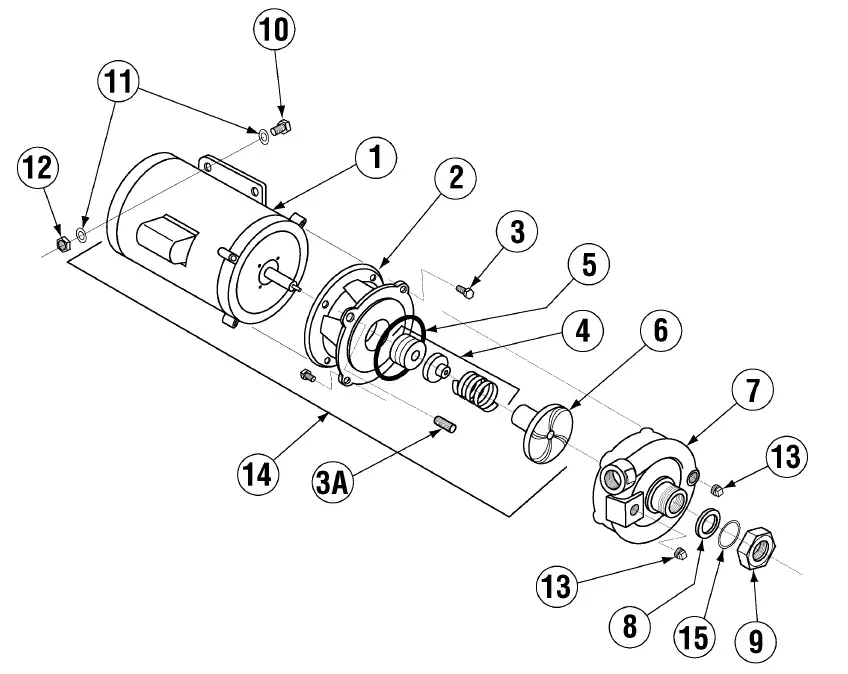

Pump System Assembly

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	00201.00 00201.85	Pump Motor 1 HP115/230V Pump Motor 1 HP230/460V	8	1	00208.40	Slip Joint Nut Gasket
2	1	04207.10	Small Pump Base	9	1	04204.00	Compression Nut (2.5)
3	6	00921.00	3/8”-16 x 34” Hex Head Bolt	10	2	00906.00	¼-20 x 1/2” Hex Bolt
3A	2	00975.00	3/8-16 x 1 ½” Stud	11	2	00924.00	¼” SS Washer
4	1	00206.30	Pump Seal Kit	12	2	00912.00	¼”-20 Nylon Lock Nut
5	1	03226.00	Pump “O” Ring	13	2	00238.00	3/8” Male Plug
6	1	03222.10	Impeller SS	*14	Assy.	00200.10	Pump Assy
7	1	04207.20	Pump Cover	15	1	00208.21	Slip Joint Nut Friction Ring
				*P/N 00200.85 Includes Items 1,2,3,4,5 and 6

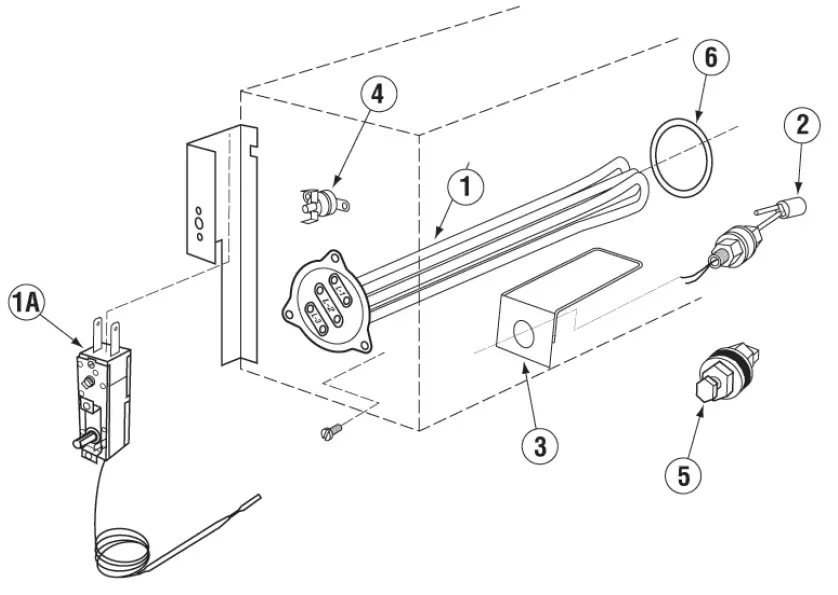

Wash Tank Heater (Triangular Flange)

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	15518.00 13422.76	Heater 6kW 220V Triangular Flange Heater 6kW 480V Triangular Flange
1A	1	13417.92	Heater Thermostat
2	1	13463.14	Liquid Level Switch
3	1	13463.51	Liquid Level Switch Shield
4	1	17523.51	Hi-Limit Switch – Wash 250 Degrees
5	1	13477.20	7/8” Probe Hole Plug
6	1	15518.11	Gasket for Triangular Flange Heater

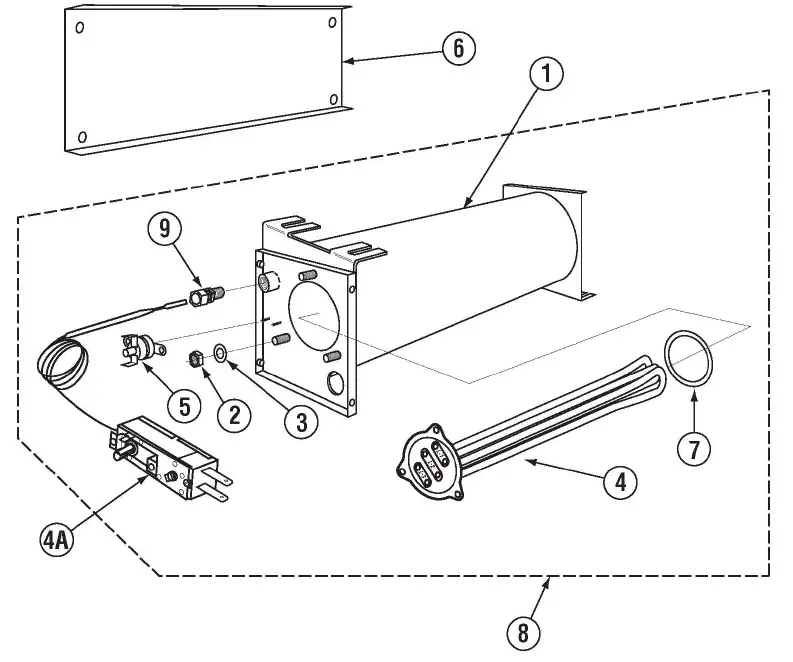

Booster Tank Heater (Triangular Flange)

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	17550.20	Booster Tank
2	3	13805.00	Nylon Lock Nut 5/6”-18
3	3	00926.00	Washer SS 5/16”
4	1	13422.71 13422.75	240V 12KW Triangular Immersion Htr 480V 12 kW Triangular Immersion Htr
4A	1	13417.92	Thermostat 12KW Heater
5	1	17523.51	Hi-Limit Switch-Booster 250 degrees
*6	1	17520.00	Booster Heater Shield*
7	1	15518.11	Gasket for Triangular Flange Heater
8	1	17560.00	Complete Assembly
9	1	40116.00	1/4 Comp x 1/4 MIP Fitting

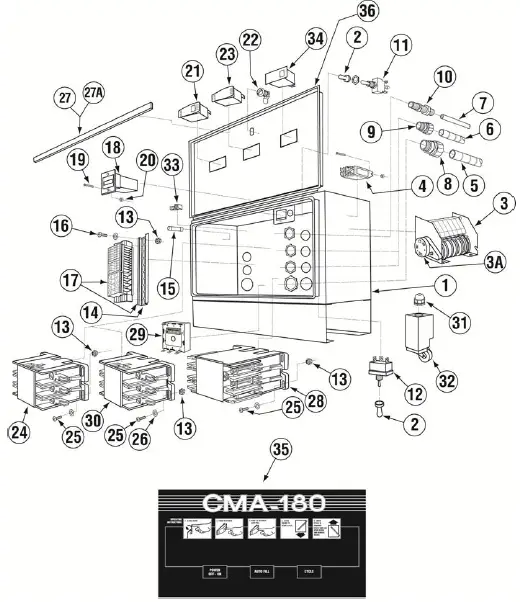

Control Box Assembly

ITEM

NO.

REQ’D

P/N

DESCRIPTION

17503.39

CMA-180 Control Box Body

00470.10

Toggle Switch Rubber Boot

00409.93

Timer CMA-180

00500.20

Timer Motor

1(2*)

00631.05

Ice Cube Relay 220V

6 Ft.

00400.85

Conduit ¾” Sealtite

6 Ft.

00400.10

Conduit ½” Sealtite

2 Ft.

00400.00

Conduit 3/8” Sealtite

00401.85

St-3/4” Straight Connector

00401.10

St-1/2” Straight Connector

00401.00

St-3/8” Straight Connector

00475.70

Delimer Switch DPDT 15A

03470.00

Toggle Switch Momentary (Screw Terminal)

03801.00

Nylon Lock Nut 10-32

17400.06

Mountain Din Rail

13403.26

Fuse 3A/250V Slow Blow

00941.00

Pan Head Screw 10 -32 x 5/8”

17400.17

Terminal Block Assembly

17A

17400.04

30 Amp Terminal Block-Red

17B

17400.03

60 Amp Terminal Block-Black

17C

17400.02

85 Amp Terminal Block-Natural

17D

17400.08

30 Amp Terminal Block-Blue

17E

17400.09

30 Amp Terminal Block-Natural

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
17F	1	17400.07	60 Amp Terminal Block-Green
18	1	03408.55	Counter Face Mount 220V
19	4	00911.00	Pan Head Screw 8-32 x 1/2”
20	4	00927.00	Lock Nut 8-32
21	1	00421.90	Power Switch
22	1	00449.50	Keyless Lock
23	1	00421.89	Rocker Switch Auto Fill
24	1	00404.85	Motor Contactor 208/240V 20A
24	1	13003.55	Motor Contactor 30 Amp
25	6	13825.00	Pan Head Screw 8-31 x 1”
26	6	04806.00	#10 Brass Washer
27	2	17503.17	Control Box Sponge Long
27A	2	17503.18	Control Box Sponge Short
28	1**	13003.17	Contactor 60A 3 Pole 220V
29	1	13418.60	Dip Switch Timer 230V
30	1	13003.55	Heater Contactor 30 Amp
31	1	00562.60	Door Roller Switch Connector
32	1	00562.00	Door Roller Switch
33	1	13426.50	Ground Block
34	1	00421.78	Illuminated Plug
35	1	006231.19	Control Panel Label CMA-180
36	1	17503.29	Control Box Lid

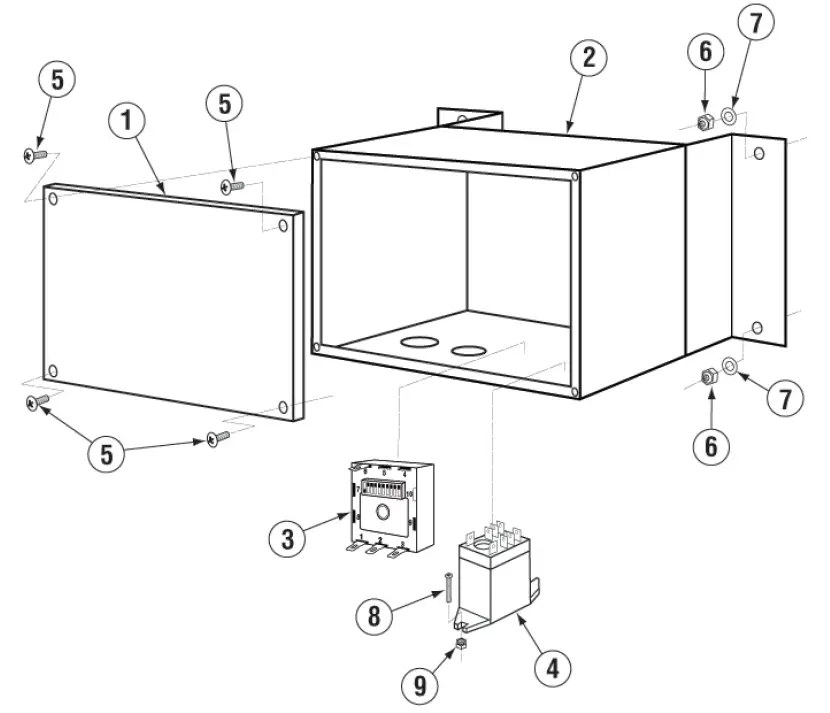

Heat Recovery System Control Box

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	13905.23	Transformer Box Lid
2	1	13905.13	Transformer Box
3	1	13418.60	Dip Switch Timer 230 V
4	1	00631.05	Ice Cube Relay 220V 12 Amp
5	4	00940.50	10-32 X 3/8 Truss Head Screw
6	4	0013805	5/16-18 Nylon Insert Lock Nut
7	4	00926.00	5/16 SS Washer
8	2	00907.00	6-32 X 1/2 SS Panhead Screw
9	2	00965.00	6-32 Nylon Insert Lock Nut

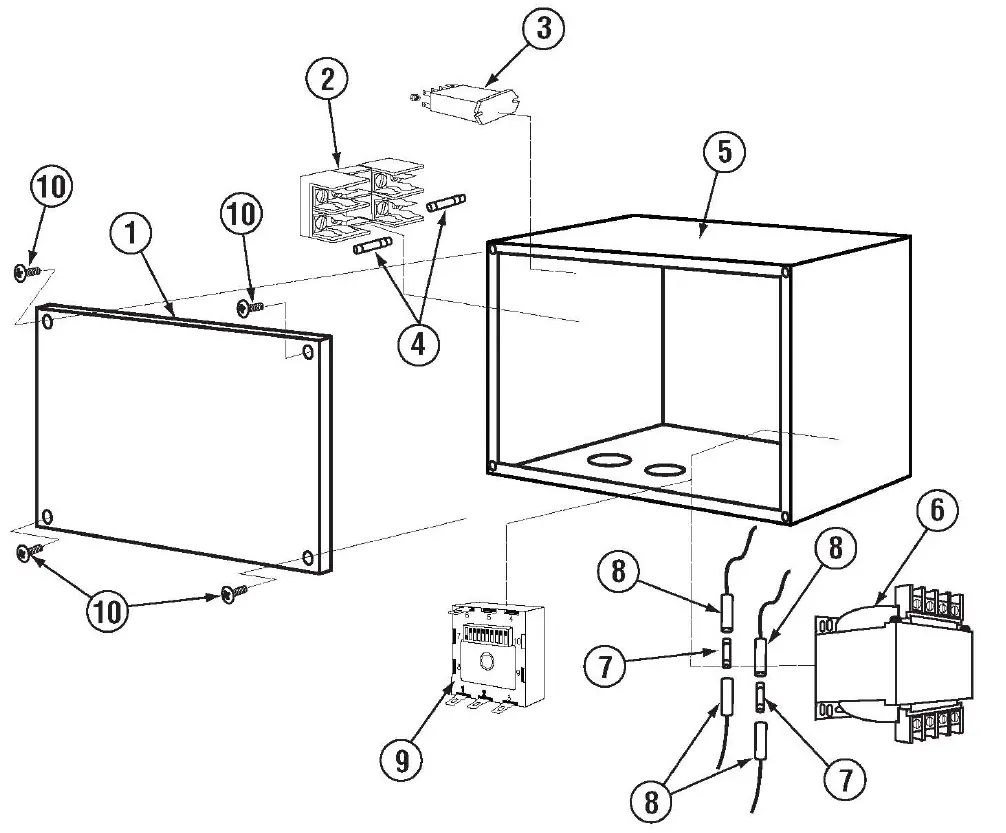

Heat Recovery System Control Box 480V

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	13905.24	Transformer Box Lid 180VL, 480V
2	1	13420.10	Fuse Clip 2-Poll, Pressure Plate
3	1	00631.05	Ice Cube Relay 220V
4	2	13402.10	Fuse 1.50 Amp, 480V Slow Blow
5	1	13905.14	Transformer Box 180VL, 480V
6	1	13423.82	Transformer 480V-240V
7	2	13403.40	Fuse 1.25 Amp, 230V Slow Blow
8	4	13403.21	Fuse Holder – Inline
9	1	13418.60	Dip Switch Timer 230 V
10	4	00940.50	10-32 3/8 Truss Head Screw

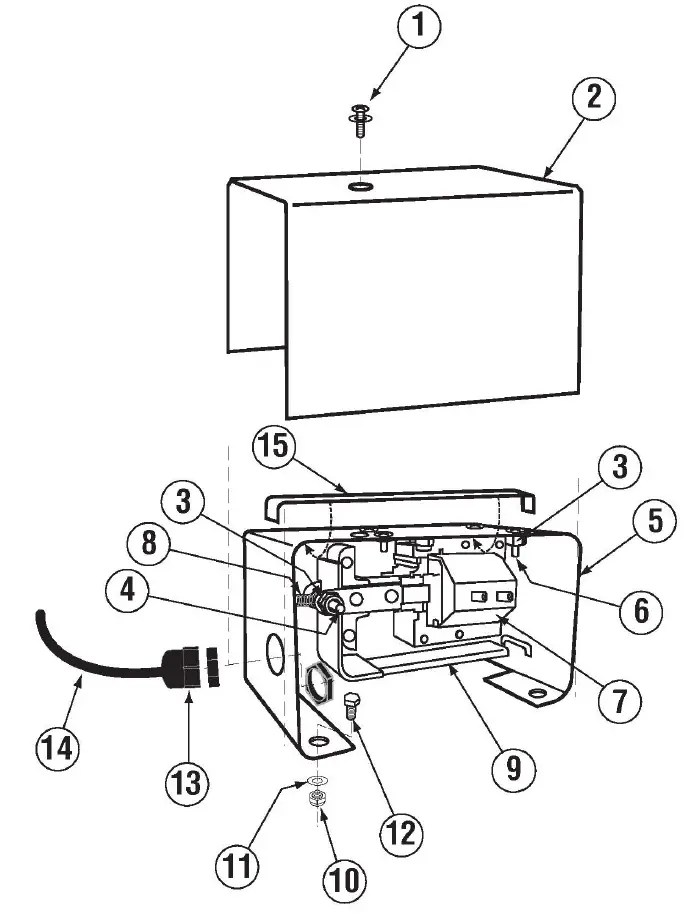

Door Safety Interlock (DSI) Assembly P/N 17712.84

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	03801.40	10-32 x 1/2 Cone Screw	8	1	17712.50	Solenoid Spring
2	1	17712.30	DSI Cover	9	1	17711.11	CMA-180VL Interlock Bar
3	5	00927.00	8-32 Nylon Lock Nut	10	4	00912.00	1/4-20 Nylon Lock Nut
4	1	00902.00	8-32 X 1 1/4 Panhead Bolt	11	4	00924.00	1/4-20 Nut w/ Grip Washer
5	1	17712.35	DSI Mount	12	4	00906.00	1/4-20 X 1/2 Hexhead Bolt
6	4	00970.60	8-32 x 1/2 Flat Screw	13	1	00562.60	Roller Door Switch
7	1	00100.05	Drain Ball Solenoid 240V	14	1	00547.00	Switch Cord 18 AWG
				15	1	01550.00	Solenoid Stop

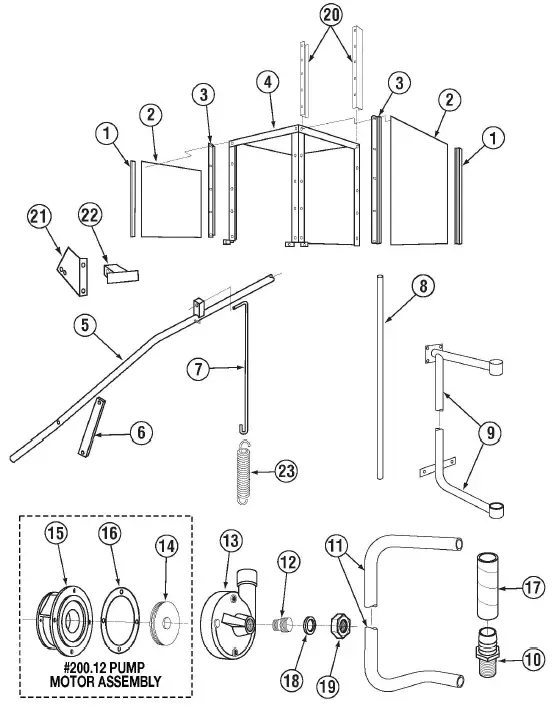

Unique Parts For CMA-180VL-T

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION	ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	6	00636.27	Door Guide 36 1/4″	13	1	00204.00	Pump Cover Large
2	3	17506.20	Scullery Door	14	1	00203.05	Impeller 4-1/2”
3	6	17554.20	Scullery Door Guide	15	1	00202.00	Pump Base
4	1	17530.20	Scullery Wrapper	16	1	00205.00	Pump Gasket
5	1	00613.27	Door Handle S	17	1	03108.60	Transfer Hose 1″ Reinf.
6	2	01553.22	Door Handle Link S	18	1	00208.40	Slip Joint Nut O Ring
7	2	00603.53	Door Spring Extension Rod	19	1	00207.00	Slip Joint Nut 11/2 x 1/4
8	2	05007.27	Booster Water Line	20	1 1	17570.00 17570.10	Wrap Support Brkt-R Wrap Support Brkt-L
9	1	17401.20	Final Rinse Manifold	21	1	00563.40	Door Switch Bracket (8- 08)
10	1	50302.10	1″ MPT x 1″ Barb Brass	22	1	00563.43	Door Switch Actuator CMA-180T (1-10)
11	1	00303.27	Manifold	23	2	00602.20	Door Spring – Heavy Duty
12	1	00212.50	1-1/2”x1-1/4”Adapter

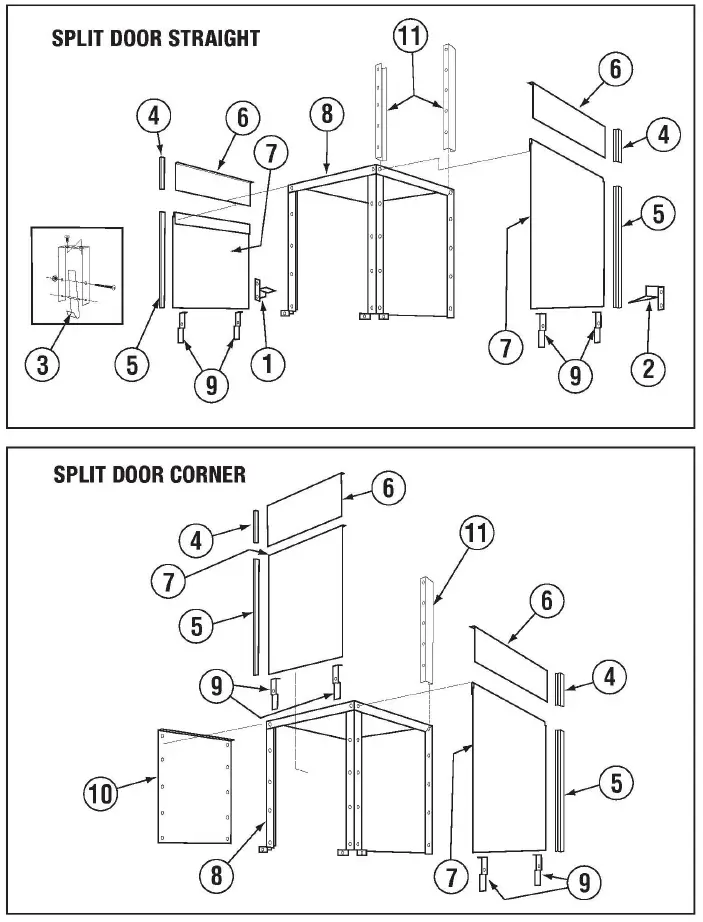

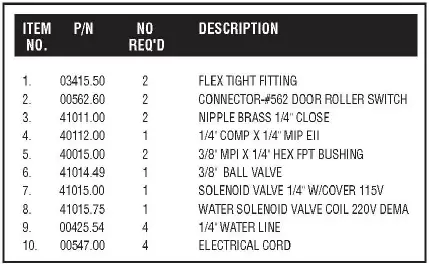

Unique Parts for CMA-180T Split Door

ITEM NO.	NO. STR/COR	P/N	DESCRIPTION	ITEM NO.	NO. STR/COR	P/N	DESCRIPTION
1	1/0	17506.23	Door Safety Brkt. Left	7	3/2	17506.34	Large Door
2	1/0	17506.24	Door Safety Brkt. Right	8	1/1	17530.22	Wrapper
3	1/0	13701.22	Open Door Latch	9	6/4	17552.22	Door Stop
4	6/4	00636.43	EZ Glide Door Gide 8.5”	10	0/1	17530.23	Corner Panel Wrap
5	6/4	00636.42	EZ Glide Door Gide 29.75”	11	1/1 1/0	17570.00 17570.10	Wrap Support Brkt-R Wrap Support Brkt-L
6	3/2	17506.42	Small Door
