MODEL UC65e M3
PARTS MANUAL
Rev 1.00 11-22-2022
Instruction Manual

Contents hide

5 Wash and Rinse Spray Assemblies

6 Hoses and Drain Pump

12 Optional Chemical Alarm

13 Documents / Resources

13.1 References

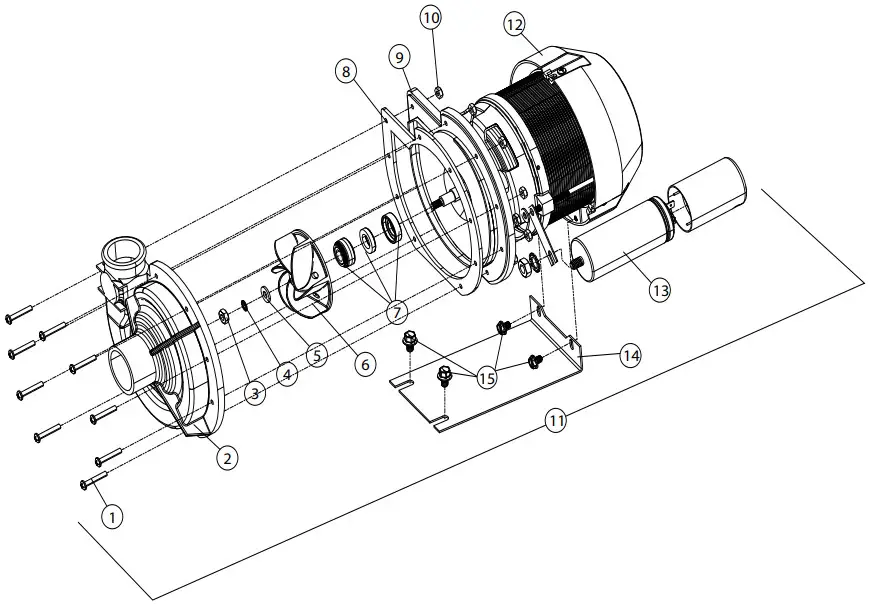

Pump and Motor

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	9	2103.01	Screw, M4, Phil, Pan Head
2	1	2103.02	Impeller Housing Cover
3	1	2107.01	Nut, M6 (Left-hand thread)
4	1	2103.04	1/4″ Lock Washer
5	1	2103.05	17/64″ Plain Washer
6	1	2107.02	Impeller
7	1	2103.07	Pump Seal
8	1	2103.3	Pump Gasket
9	1	2107.03	Pump Backing Plate
10	9	2103.08	Nut, M4
11	1	2103.1	Pump Motor Assm, 220V
12	1	2103.37	Motor Fan Cover
13	1	2103.11	Capacitor, 16 μF
14	1	2107.04	Wash Pump Bracket
15	2	2107.05	Bolt, Hex Flange 1/4-20 X 3/8″ SST
***		2103.1	Motor unavailable as separate part

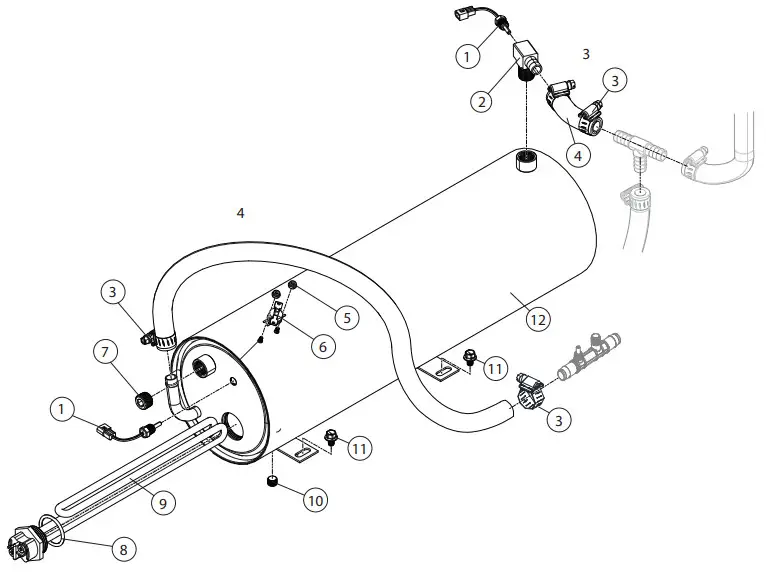

Booster

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2107.82	Thermistor, KΩ, 2 Wire Assm
2	1	2107.11	Tee, Rinse
3	4	2103.21	Clamp, Hose
4	A/R	3107.5	Hose, Rubber 1/2″x0.84″ OD
5	2	965	Nut, Grip 6-32 W/ Nylon Insert SS
6	1	2103.19	Thermostat, High Limit 240f
7	1	3232	Plug, 1/8″
8	1	2103.14	Gasket
9	1	2103.12	4kW 208V 40Rise Element ***
10	1	2107.09	Plug, 1/8 Hex Countersunk SS
11	2	2103.16	Bolt, Hex Flange, 1/4-20×3/8″ SS
12	1	2106.01	Booster Tank, Welded

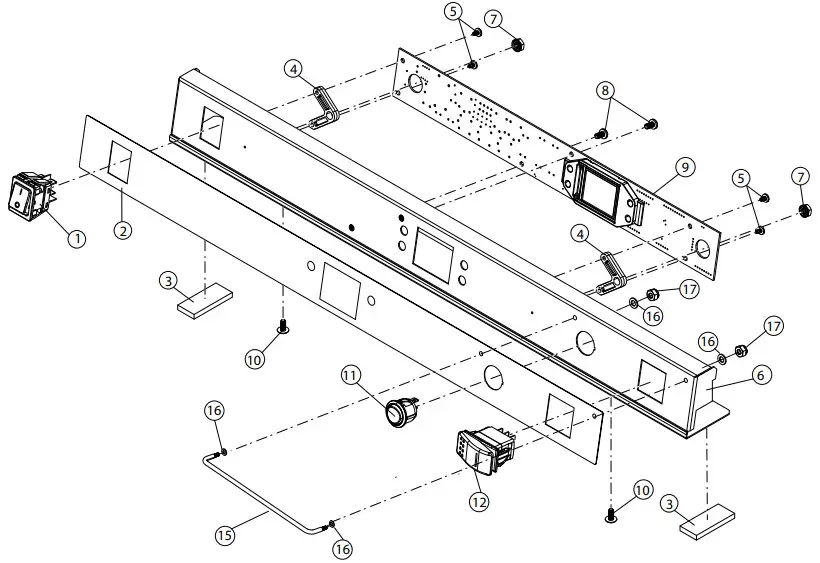

Control Panel

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2107.15	Switch, Rocker DPST 250V Neon
2	1	2106.51	Label, Facia UC65e M3
3	2	2103.58	Gasket, Steam
4	2	2107.17	Standoff, LED Display Board
5	4	2104.91	Screw, 6-18×1/4″ Panhead Phil SS
6	1	2106.52	Panel, Facia UC65e M3
7	2	2104.68	Nut, 10-32
8	2	2107.2	Screw, #8 x 3/8″
9	1	2107.21	Kit, Control Board
10	1	911.1	Screw, 8-32×3/8 Truss HD
11	1	2103.57	Prime Switch
12	1	2103.51	Contact, Switch Momentary (N.O.)
13	1	2103.52	Housing, Push Button Switch
14	1	2103.53	Push Button, Green
15	1	3485	Switch Guard
16	4	4086	#10 Washer
17	2	3801	10-32 Lock Nut
—	1	2107.22	Harness, Switch – NOT SHOWN
—	1	2107.23	Harness, Sensor – NOT SHOWN
—	1	2107.24	Harness, Main – NOT SHOWN

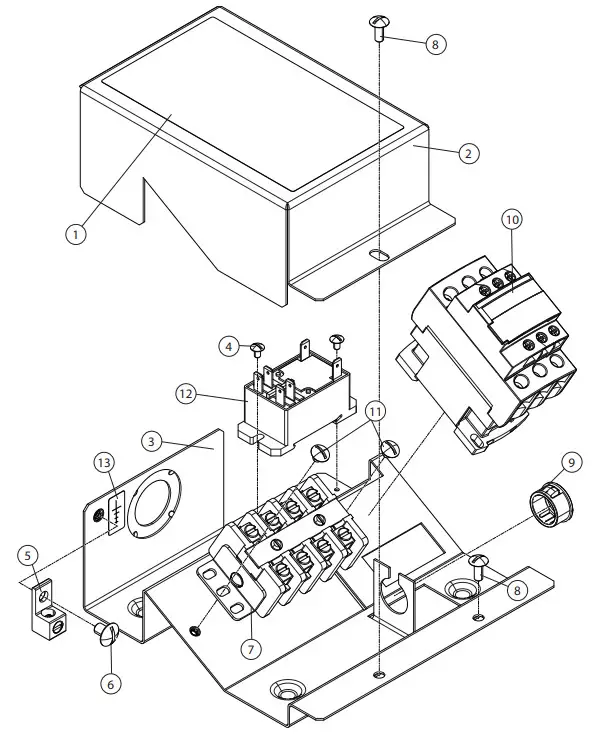

Power Wiring Box

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2106.02	Label, Connection Box
2	1	2106.03	Cover, Box Wiring
3	1	2106.04	Box, Wiring
4	2	421.51	Screw, 6-32 X 1/4″
5	1	13426.5	Lug, Ground
6	1	905.82	Screw, 1/4-20 X 3/8″
7	1	2106.05	Block, Terminal 4-Pole
8	2	940.5	Screw, 10-32 X 3/8″ Truss Head
9	1	2106.15	Bushing, Strain Relief, Small
10	1	2103.48	Contactor, 3-Pole, 25/40A, 120VAC Coil
11	2	940	Screw, 10-32 X 1/4″
12	1	2106.06	Relay, DPDT, 30A, 120VAC Coil
13	1	6202.46	Label, Ground

Main Wiring Harness (Not Shown) PN00000.00 MD PN0513838

Fill Solenoid Valve – Effective October 2022

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	3603.1	Water Valve 1/2″ 115V JE Complete
2	1	738.1	Solenoid Coil, 115VAC
3	1	3603.2	1/2″ Water Solenoid Bonnet
4	1	786	JE Water Valve Plunger & Spring
5	1	707	1/2″ Water Solenoid Valve Repair Kit
6	1	40013	Fitting, Barb Hose
7	1	2106.11	Bracket, Valve, UC65e
8	2	2103.16	Bolt, Hex Flange 1/4-20×3/8″
9	1	3604.5	Fitting, Flow Disc
10	1	3604.1	Washer, Flow Disc

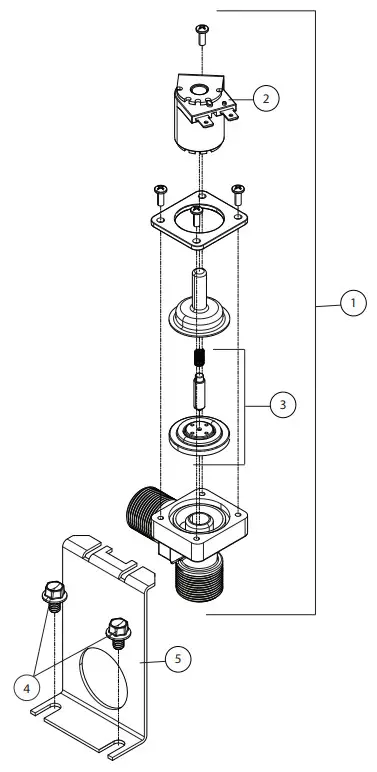

Fill Valve

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2106.53	Water Valve 115V, Incl Items 2 & 3
2	1	2106.54	Coil, 115VAC/60/1, 7W
3	1	2106.55	Solenoid Repair Kit
4	2	906.52	Bolt, Hex Flange, 1/4-20X3/8″ SS
5	1	2106.56	Bracket, Fill Valve

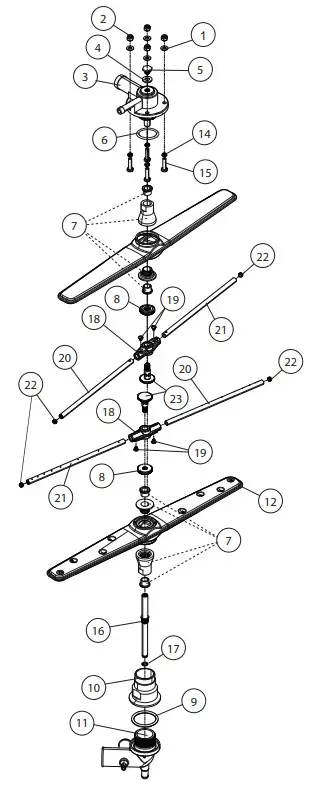

Wash and Rinse Spray Assemblies

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	4	426	Washer, 5/16″ SS
2	4	912	Nut, 1/4-20 Nylon Lock
3	1	2103.77	Hub, Upper Wash Arm
4	1	2103.78	Washer, Packing
5	1	2103.79	Screw, Retaining
6	1	2103.83	O-Ring, 2-1/8″ OD X 1-3/4″ ID X 3/16″
7	2	2103.82	Bearing Assembly
8	2	2103.98	Spacer, Nut
9	1	2103.83	O-Ring, 2-1/8″ OD X 1-3/4″ ID X 3/16″
10	1	2103.84	Hub, Lower Wash Arm
11	1	2103.85	Manifold, Lower FWR
12	2	2103.86	Wash Arm Assm, (Incl Item #7)
14	4	2103.88	Washer, Nylite
15	4	2103.89	Bolt, 1/4-20 X 1″
16	1	2103.9	Shaft, Lower
17	1	2103.91	O-Ring
18	2	2103.92	Hub, Rinse Arm Molded
19	4	2103.93	Screw, Truss Head 8-32 X 1/4″
20	2	2103.94	Arm, Right-Hand Rinse (7 Jets)
21	2	2103.95	Arm, Left-Handed Rinse (8 Jets)
22	4	2103.96	Cap, Rinse Arm, 5/16-24
23	4	2103.97	Spindle, Rinse Arm
—	–	2103.99	Rinse Arm Assm (Incl Items 8, 18-23)

Hoses and Drain Pump

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	2	50109	Clamp, Hose
2	1	2103.81	Hose, Upper Wash Arm
3	8	2103.21	Clamp, Hose Gear-type SS
4	A/R	3107.5	Hose, Rubber 1/2″ ID X 0.84″ OD
5	1	2106.57	Fitting, Molded Rinse
6	1	2103.71	1/2″ Vacuum Breaker
—	—	2103.72	Vacuum Breaker Repair Kit
7	1	721	Lock Nut, 1/2″
8	1	2103.69	Bracket, Vacuum Breaker
9	2	2103.04	Washer, Split 1/4″ SS
10	2	923.5	Nut, Hex 1/4-20 SS
11	1	N/A	Hose, Fill
13	2	2106.58	Barb, Hose 1/2″ X 3/8″ MPT
14	2	50109	Clamp, Hose
15	1	2104.13	Hose, Discharge
16	A/R	2107.71	Hose, 5/8″ ID X 1″ OD
17	2	3101	Clamp, Hose
18	1	2103.18	Hose, Booster Fill
19	1	2106.59	Tee, 3/4″ Poly
20	1	2106.6	Elbow, 1/2MPTx3/8MPT Reduce 90DE
21	1	2106.61	Valve, Check 3/8
22	1	2106.62	Hose Barb, 1/2 x 3/8 MPT
23	1	2106.63	Coupler, 3/4″MPT x 3/4″ Hose Barb
24	1	2104.11	Hose, Suction Wash Pump
25	1	2104.05	Hose, Drain Pump Suction
26	2	2104.1	Clamp, Hose
27	1	2104.34	Elbow, Pump Suction
28	2	3101	Clamp, Hose Gear-Type
29	1	2104.35	Gasket, Pump Suction
30	1	2104.36	Flange, Pump Suction
31	1	2104.07	Pump, Drain
32	2	2107.74	Screw, #8 x 1/2″ Self-Taping
33	2	2103.16	Bolt, Hex Flange 1/4-20 x 3/8″ SS
34	1	2104.06	Bracket, Drain Pump
35	1	3101	Clamp, Hose
36	1	2106.19	Hose, Drain Molded
37&38	—	N/A	Nut & O-Ring
39&40	—	N/A	Ball & Silicon Washer
41	—	N/A	Body, Anti-Siphon
—	1	2106.5	Anti-Siphon Assembly Complete

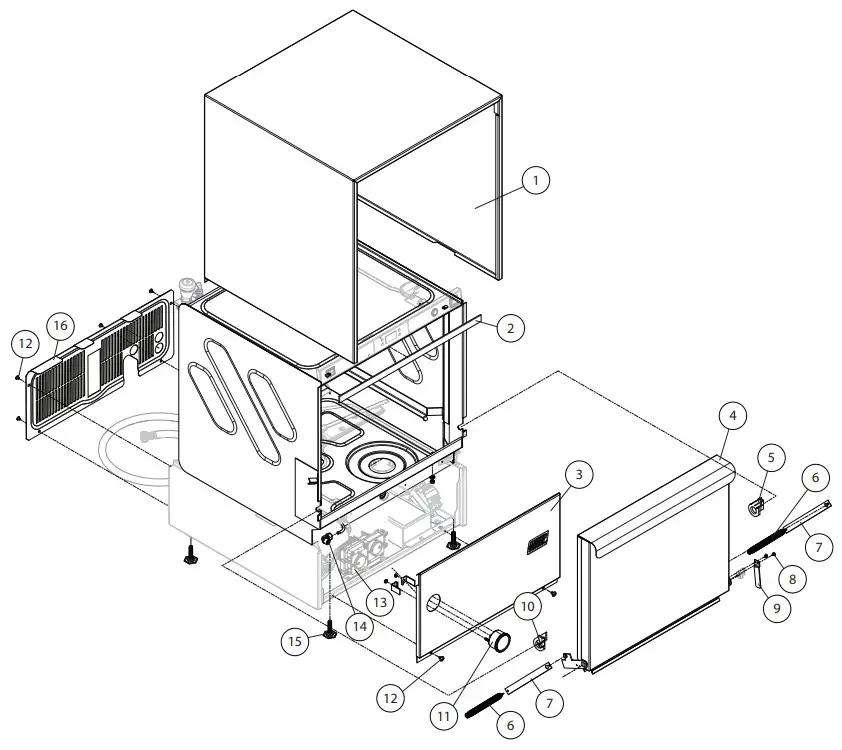

Panels and Door

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2104.69	Wrapper, Outer Panel
2	1	2104.17	Gasket, Door 1/8″ x 7/8″ x 22-5/8″
3	1	2106.64	Panel, Front
4	1	2104.73	Door Welded Assm
5	1	2104.88	Seal, Door Hinge RH
6	2	2104.77	Spring, Door
7	2	2104.76	Arm, Door Spring
8	1	2106.65	Screw, 8-32 x 3/16″ Phil SS
9	1	2104.78	Activator, Door Switch
10	1	2104.87	Seal, Door Hinge LH
11	1	2104.63	Gauge, Pressure 0-60PSI
12	1	940.5	Screw, 10-32×3/8″ Truss Head Phil SS
13	1	425.54	Tubing, 1/4″ Natural
14	1	2106.66	Adaptor, 1/4″x1/8″NPT Female Plastic
15	1	2104.67	Foot, Adjusting
16	1	2106.13	Panel, Rear

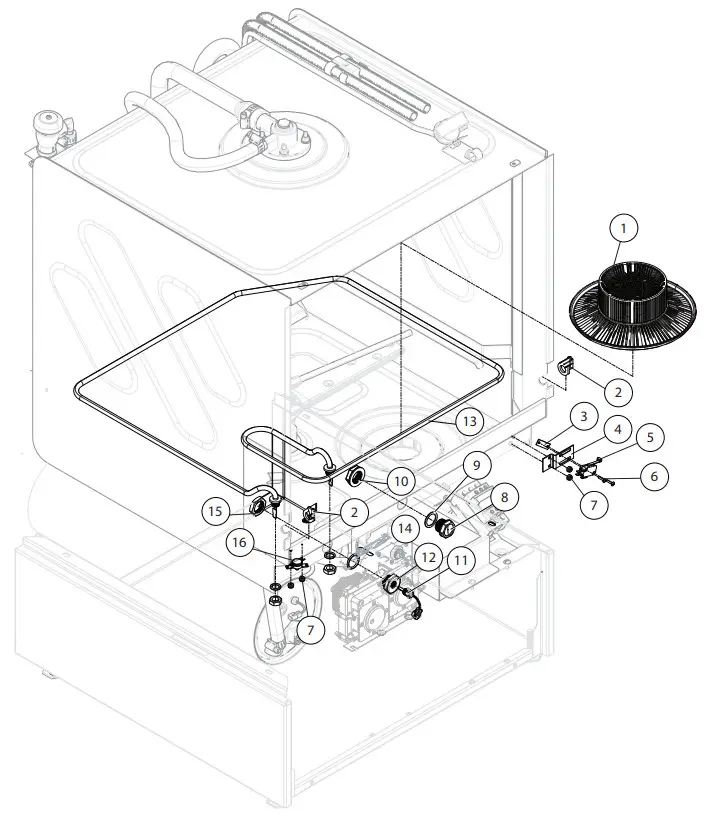

Upper Tank

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	2106.67	Screen, Scrap
2	1	See Pg10	Seal, Door Hinge RH & LH
3	1	2106.68	Plate, Nut 4-40
4	1	2106.69	Bracket, Switch Door
5	1	43019	Switch, Door 15A
6	2	13826	Screw, 4-40×1/2″ Pan Head Phil SS
7	2	965	Nut, Grip 6-32 W/ Nylon Insert SS
8	1	2106.7	Plug, 1/2″
9	1	2106.71	Gasket, Fiber
10	1	2106.72	Nut
11	1	2107.1	Thermister
12	1	2106.73	Adapter, Thermister
13	1	2104.18	Element, Tank 2kW 240VAC
14	1	2106.74	O-Ring
15	1	2106.75	Nut, 1/2″ NP
16	1	2104.28	Thermostat, Fixed Snap, 212°F

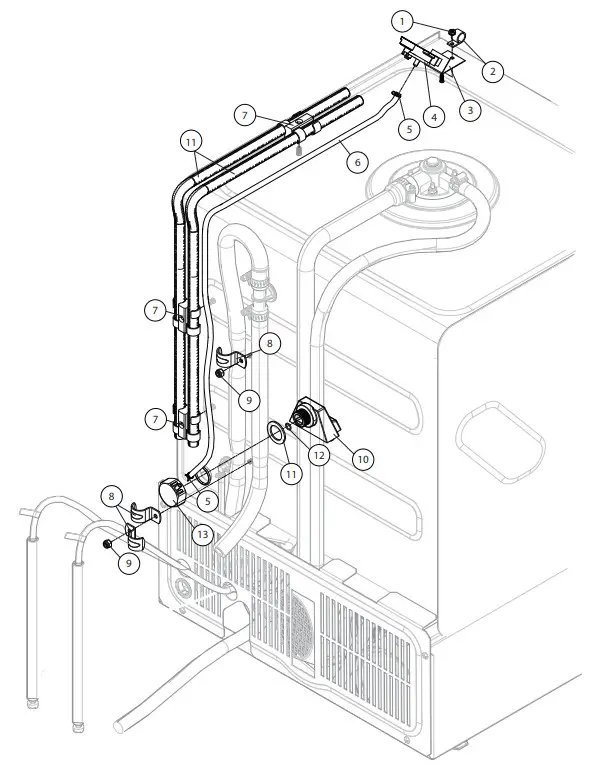

Tank Rear

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	3801	Nut, 10-32 SS
2	1	N/A	Clip
3	1	2106.76	Bracket, Sensor
4	1	2106.77	Sensor, Level
5	1	2104.54	Clamp, Hose
6	2	2104.56	Hose, Air
7	2	N/A	Clamp, Double Conduit
8	1	N/A	Clamp, 3/4″ Plated Strap
9	1	2107.48	Nut, Grip, 1/4-20 W/ Nylon Insert SS
10	1	2104.53	Trap, Air
11	1	2104.55	Gasket, Air Trap
12	1	2104.57	O-Ring
13	1	2104.59	Cover, Air Trap

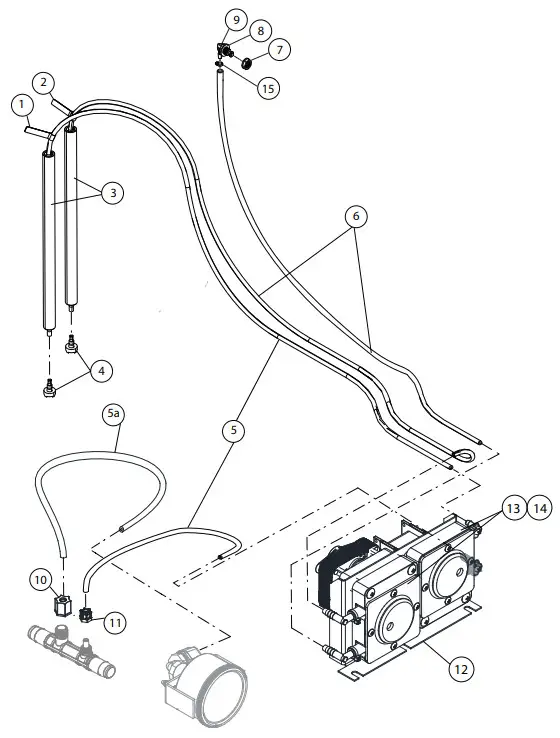

Chemical Pumps

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	43078.08	Label, Rinse Additive
2	1	43078.05	Label, Detergent
3	2	2104.48	Tube Stiffener, 1/2″ x 11-7/8″
4	1	2104.47	Strainer
5	A/R	2106.78	Hose, 4MM ID x 6MM (1/4″) OD PVC
5a	A/R	425.24	Chemical Tubing, White
6	A/R	2104.37	Hose, 1/4″ID x 3/8″OD PVC
7	1	2106.79	Nut
8	1	2104.39	Gasket
9	1	2106.8	Kit, Detergent Fitting
10	1	2106.81	Nut, Compression Rinse
11	1	2106.82	Nut, Chemical Tube
12	1	2107.14	Bracket, Chemical Pump
13	1	415	Rinse Chemical Pump Assembly
14	1	415	Detergent Chemical Pump Assembly
15	1	931	Nylon Zip Tie, 4″

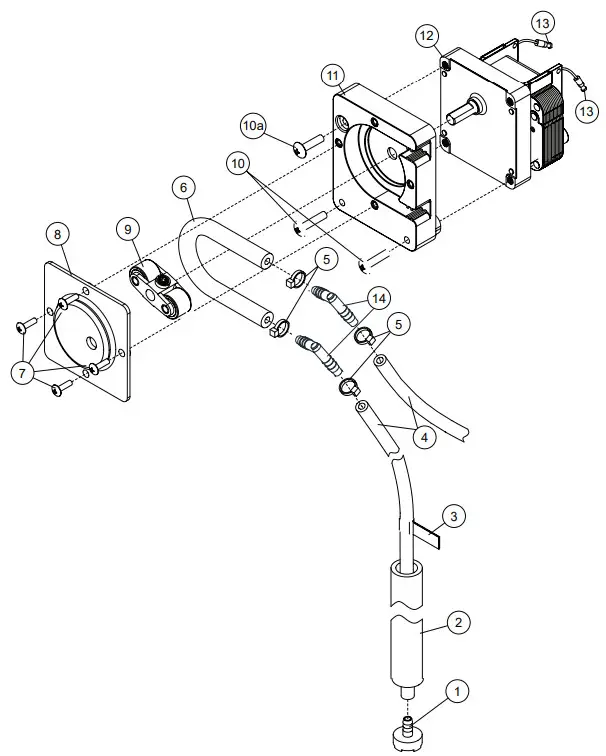

Detergent Pump

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	2	02104.47	Strainer
2	2	02104.48	Tube Stiffener, 1/2″ID x 11-7/8″
3	1	43078.	Label, Detergent
4	A/R	02104.37	Hose, 1/4″ID x 3/8″OD
5	4	00931.00	4.5″ Nylon Cable Tie
6	1	02257.00	Squeeze Tube, Norprene 8″
7	1	00911.00	Screw, 8-32×1/2″ Panhead
8	1	00418.00	Peristaltic Pump Cover
9	1	00419.00	Peristaltic Pump Rotor
10	1	00919.00	Screw, 10-32 x 1-1/2″ Panhead
10a	2	00918.10	Screw, 10-32 x 1-1/2″ Flathead
11	1	00417.10	Peristaltic Pump Block (Black)
12	1	00416.00	Peristaltic Pump Motor 110V/60Hz
13	1	00448.00	Barrel Connector, Male
14	2	02104.52	1/4″ Hose Barb
15	1	00415.20	Peri Pump Assm (Inc! items 6-13)

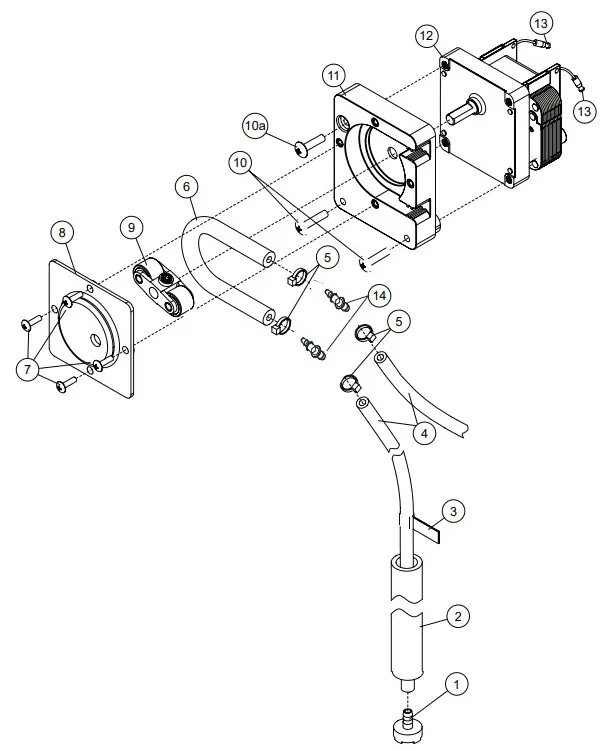

Rinse Pump

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	2	02104.47	Strainer
2	2	02104.48	Tube Stiffener, 1/2″ID x 11-7/8″
3	1	43078.	Label, Rinse Additive
4	A/R	02104.37	Hose, 1/4″ID x 3/8″OD
5	4	00931.00	4.5″ Nylon Cable Tie
6	1	02104.58	Squeeze Tube, Norprene 1/8″
7	1	00911.00	Screw, 8-32×1/2″ Panhead
8	1	00418.00	Peristaltic Pump Cover
9	1	00419.00	Peristaltic Pump Rotor
10	1	00919.00	Screw, 10-32 x 1-1/2″ Panhead
10a	2	00918.10	Screw, 10-32 x 1-1/2″ Flathead
11	1	00417.10	Peristaltic Pump Block (Black)
12	1	00416.00	Peristaltic Pump Motor 110V/60Hz
13	1	00448.00	Barrel Connector, Male
14	2	02106.12	1/8″ Hose Barb
15	1	00415.20	Peri Pump Assm (Inc! items 6-13)

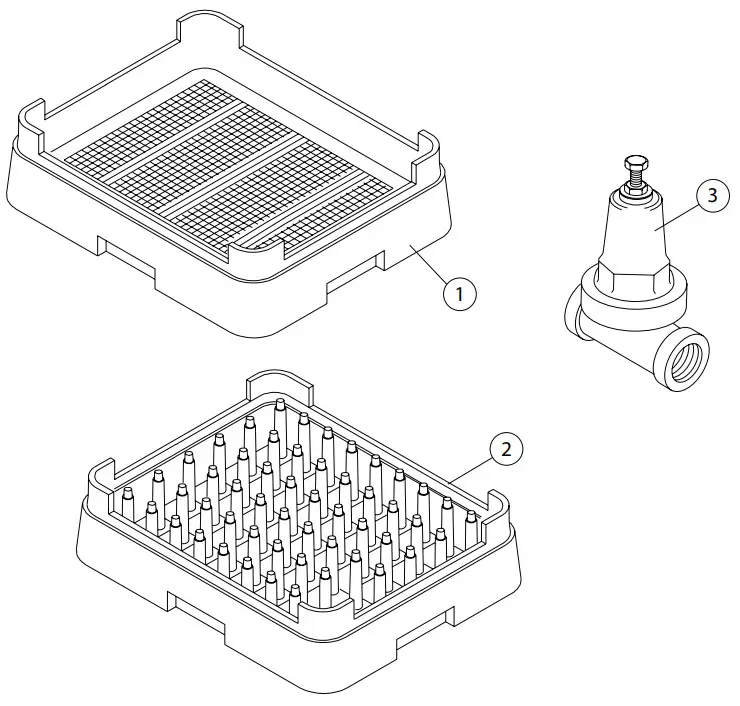

Dish Racks, PRV

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	1	12960.	Dish Rack, Flat
2	1	12960.	Dish Rack, Peg
3	1	13602.20	1/2″ Pressure Regulator, OPTIONAL

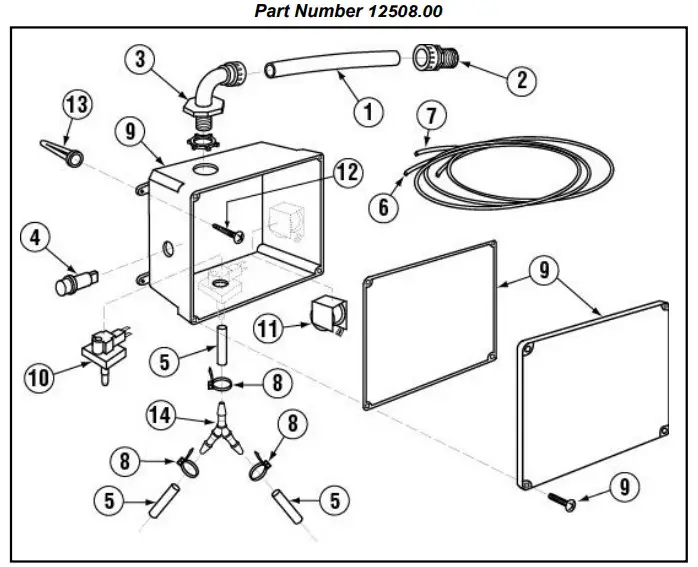

Optional Chemical Alarm

ITEM NO.	NO. REQ’D	P/N	DESCRIPTION
1	3	00400.00	Conduit, 3/8″ Sealtite
2	1	00401.00	S.T. 3/8″ Straight Connector
3	1	00402.00	S.T. 90 Degree 3/8″ Connector
4	1	00406.00	Control Box Light, .5″ Diameter, Red
5	1	00435.00	Squeeze Tube, 8″
6	1	00521.00	Wire, 18 Gauge, Orange, 6 ft.
7	1	00531.00	Wire, 18 Gauge, White, 6 ft.
8	5	00931.00	Wire Tie, Small
9	1	12510.00	Sanitizer Alarm Box Assembly
10	1	12511.00	Sanitizer Low Level Vacuum Switch
11	1	12512.00	Sanitizer Alarm Buzzer, 120 Volts
12	4	40126.10	#10 x 3/4″ Sheet metal Screw
13	4	40127.00	Wall Anchors
14	1	00426.00	Y Hose Connector, 3/16″

CMA DISHM ACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
800- 854- 6417
F A X 7 1 4 – 8 9 5 – 2141
www.cmadishmachines.com
Buy Parts
MODEL UC65e M3 PARTS MANUAL Rev. 1.00
