Quick Start Guide
MS6514

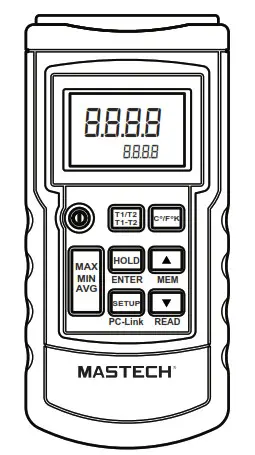

Digital Thermometer
700019261 April 2021 Rev. 1
Specifications are subject to change without notification.
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Use proper measurement category (CAT), voltage, and amperage rated probes, test leads, and adapters for the measurement.
– Do not use or store the device around explosive gas, vapor, or under high temperature and humidity.
– When handling the test probes and crocodile clips, keep your fingers behind the physical guard.
– Examine the measuring test leads (if present) before use. Any element of which the insulation deteriorates (even partially), replace them with proper functional test leads.
– Connect the common test lead before the live test lead and remove the live test lead before the common test lead.
– Before measuring current, make sure the instrument fuses available and disconnect the power supply to the circuit test.
– Remove the batteries if the device is not used for an extended period of time, or if stored in temperatures above 45 °C. If the batteries are not removed, battery leakage can damage the device.

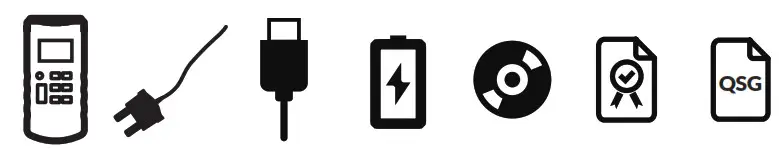

Contents
Specifications
| Range | Accuracy | ||
| Thermocouple Type
| K | -200~1372 ℃ -328~2501 ℉ | K.J.T.E.N type : Above -10 ℃: ±(0.2% + 0.5 ℃) Between -10 ℃~ -200 ℃: ±(0.2% + 1 ℃) Below -200 ℃: ±(0.2% + 1.5 ℃) T-type < -200 ℃ for reference only R.S type : ±(0.2% + 1 ℃) |
| J | -210~1200 ℃ -346~2192 ℉ | ||
| E | -250~400 ℃ -418~752 ℉ | ||
| T | -150~1000 ℃ -238~1832 ℉ | ||
| R | 0~1767 ℃ -32~3212 ℉ | ||
| S | 0~1767 ℃ -32~3212 ℉ | ||
| N | -200~1300 ℃ -328~2372 ℉ | ||
| <1000 >1000 | 0.1 ℃/ 0.1 ℉/ 0.1k 1 ℃/ 1 ℉/ 1k | ||
| Injection Method | Dual | ||
| Channel | T1/ T2 /T1-T2 | ||
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
UNITED KINGDOM
MGL GROUP U.K. LIMITED
14 Weller St, London, SE1 1QU, UK
Tel: +34 985-08-18-70
Email: [email protected]
SKU Number: MS6514CBGLO
1 YEAR
LIMITED WARRANTY
