Quick Start Guide

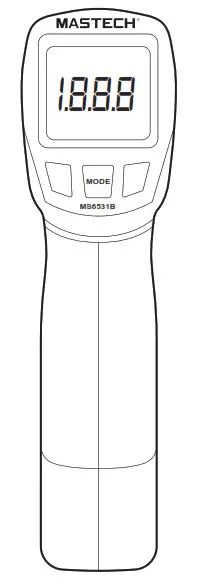

MS6531B
Infrared Thermometer
1 YEAR
LIMITED WARRANTY
700019264 June 2021 Rev. 1
Specifications are subject to change without notification.
USA
MGL AMERICA, INC.
2810 Coliseum Centre Drive,
Ste. 100 Charlotte,
North Carolina 28217 USA
Tel: +1 833-533-5899
Email: [email protected]
UNITED KINGDOM
MGL GROUP U.K. LIMITED
14 Weller St, London, SE1 1QU, UK
Tel: +34 985-08-18-70
Email: [email protected]
http://www.mastech-group.com/support.php?n=0
Special attention should be paid when using the test and measurement instrument because improper usage may cause electric shock and damage the equipment.
– Do not clear the meter using solvents.
– Keep the instrument clean, and do not get dust into detecting holes.
– Do not point laser directly at eye or indirectly off reflective surfaces.
– Laser :Class 2 <1mW/630-670nm
– Laser radiation is classified according to IEC 60825-1: 2014-05, Safety of laser
CAUTION
LASER RADIATION – DO NOT STARE INTO THE BEAM.
AVOID EXPOSURE – LASER RADIATION IS EMITTED FROM THIS APERTURE. MAX OUTPUT<lmW, WAVELENGTH 630-670nm, CLASS 2 LASER PRODUCT
WARNING
Laser radiation -when open do not stare into beam.

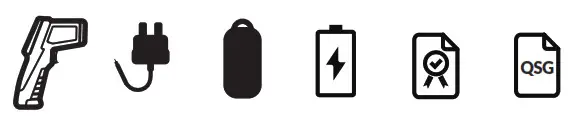

Contents
Specifications
| Range Rango | Accuracy Excited |
| IRT Temperature | -40~0℃/-40~32℉ 0~400℃32~752℉ 400~800℃ 752~1472℉ | ±4℃/ ±7.2℉ ±(1.5%+2℃) ±(1.5%+3.6℉) ±(2.0%+2℃) ±(2.0%+3.6℉) |
| Resolution | <199.9 >199.9 | 0.1℃/0.1℉ 1℃/1℉ |
| Repeatability | ±0.1℃ | |
| Emissivity | 0.10~1.00 | |
| Optical Resolution | 12:1 | |
