MASTECH MS6531C Color LCD Infrared Thermometer
The special attention should be paid when using the test and measurement instrument because the improper usage may cause electric shock and damage the equipment.
- Do not clear the meter using solvents.
- Keep the instrument clean, and do not get dust into detecting hole.

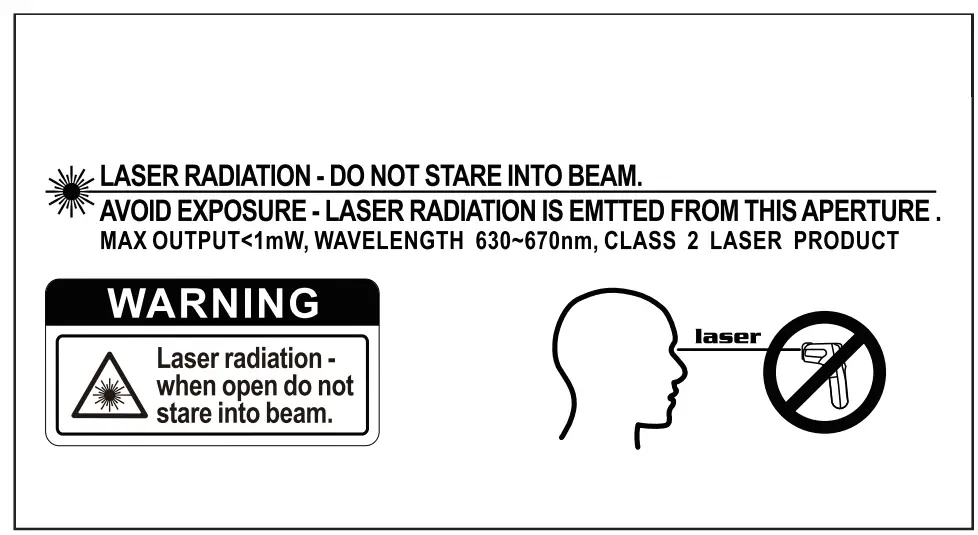

- Do not point laser directly at eye or indirectly off reflective surfaces.
- Laser :class 2 <1mW/630-670nm
- Laser radiation is classified according to IEC 60825-1: 2014-05, Safety of laser
CAUTION
Contents
Specifications
| Range | Accuracy | |
| IRT Temperature | 40~0℃/-40~32℉ 0~400℃ 32~752℉ 400~800℃ 752~1472℉ | ±4℃/ ±7.2℉ ±(1.5%+2℃) ±(1.5%+3.6℉) ±(2.0%+2℃) ±(2.0%+3.6℉)
|

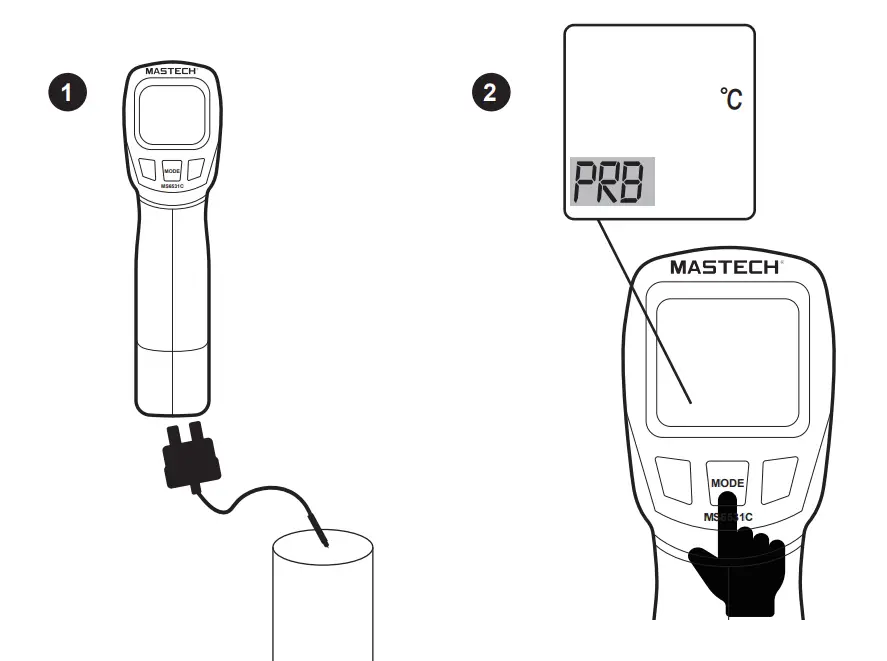

| K-Type Temperature | 40℃~1080℃ -40℉~1976℉ | ±(1.5%+3℃) ±(1.5%+5.4℉) |
| Resolution | <199.9 >199.9 | 0.1℃/0.1℉ 1℃/1℉ |
| Repeatability | ±0.1℃ | |
| Emissivity | 0.10~1.00 | |
| Optical Resolution | 12:1 |

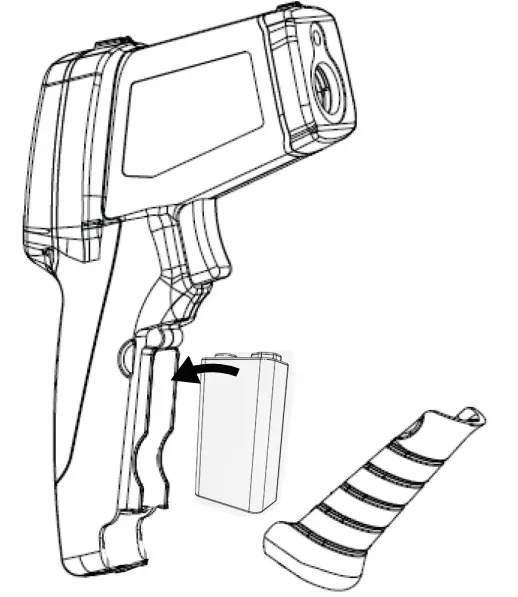

BATTERY CONNECTION
