RS 60-35 L3 SILEO
Item no. 39631
Version: 50 Hz; 400V 3~
Document type: Product card
Document date: 2019-06-25
Generated by: Systemair Online Catalogue
Description
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable

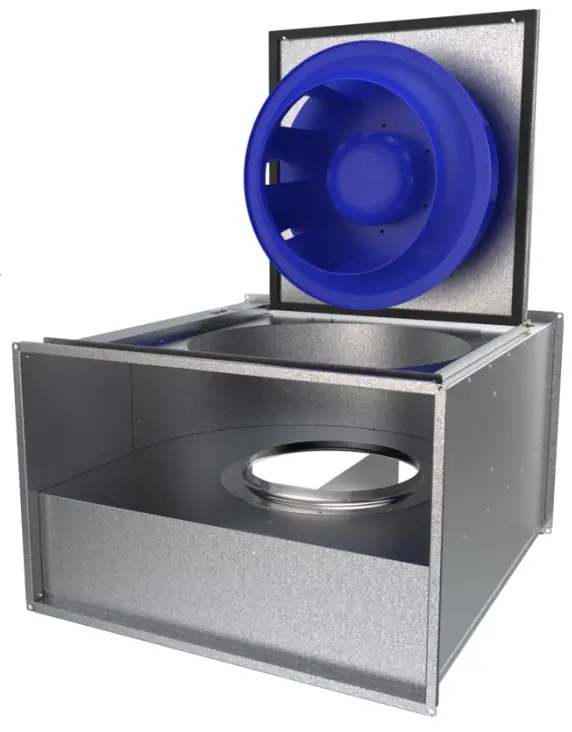

The RS models have impellers with backward-curved blades and external rotor motors. The motor and impeller are mounted on the access cover to facilitate easy maintenance. To protect the motor from overheating the RS has integral thermal contacts with external leads for connection to a motor protection device. The fan can be installed in any position and is easy to connect using the DS flexible connections.
The casing is manufactured from galvanised sheet steel.
Technical parameters
Nominal data
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 ~ |
| Input power (P1) | 537 W |
| Current | 1,25 A |
| Max. airflow | 1,18 m³/s |
| R.p.m. | 1413 r.p.m. |
| Weight | 32 kg |
Temperature data
| Max. temperature of transported air | 70 °C |
| Max. temperature of transported air when speed-controlled | 70 °C |
Sound data
| Sound pressure level at 3 m | 58,7 dB(A) |
Protection / Classification
| Insulation class | F |
| Enclosure class, motor | IP54 |
ErP
| ErP ready | ErP 2018 |

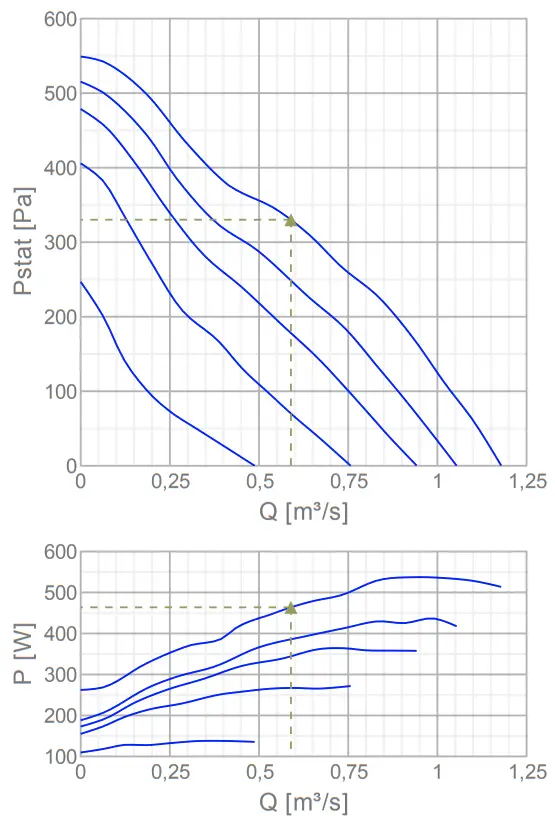

Diagrams
Diagrams
Max efficiency
Hydraulic data
| Working air flow | 0,589 m³/s |
| Working static pressure | 330 Pa |
| Power | 464 W |
| Speed | 1426 r.p.m. |
| Current | 1,18 A |
| SFP | 0,787 W/(l/s) |
| Voltage | 400 V |
Sound power level
| 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | ||
| Inlet | dB(A) | 60 | 72 | 67 | 70 | 68 | 67 | 63 | 55 | 77 |
| Outlet | dB(A) | 63 | 72 | 72 | 75 | 74 | 71 | 66 | 57 | 80 |
| Surrounding | dB(A) | 34 | 64 | 58 | 54 | 55 | 53 | 49 | 39 | 66 |

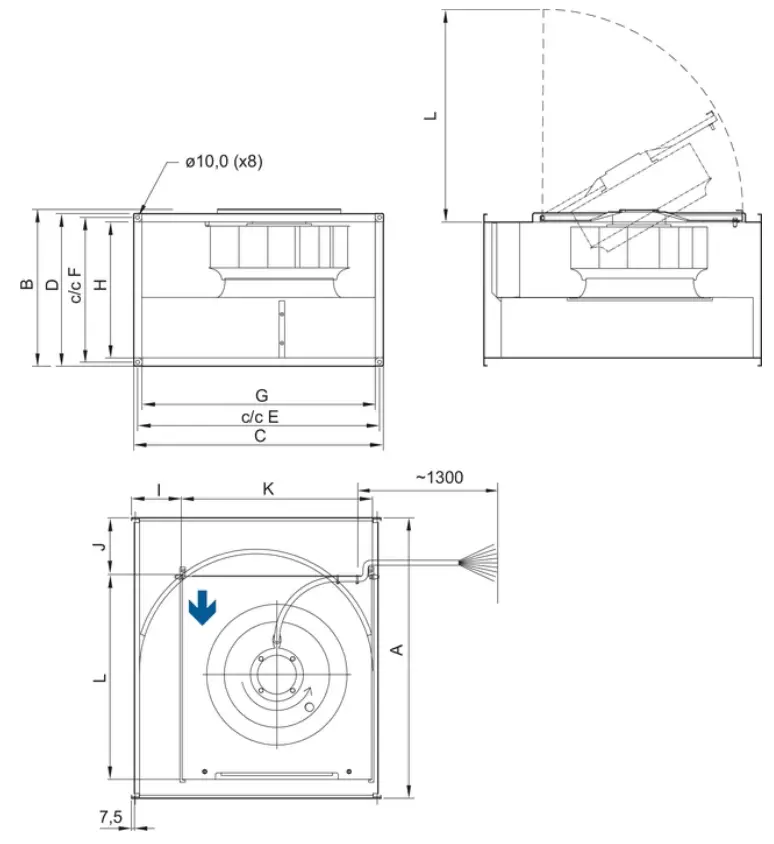

Dimensions
RS
A B C D E F G HIJ K L
60-35 717 402 640 390 620 370 598 348 128 145 490 524

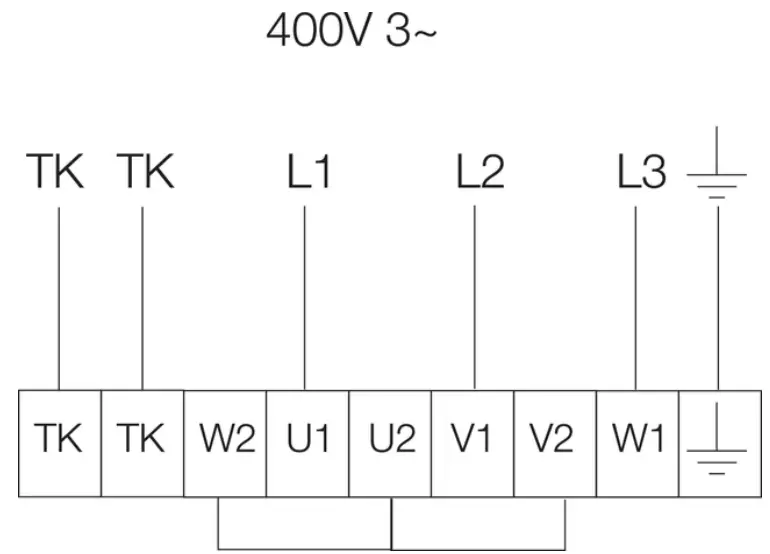

Wiring
Accessories
Electric accessories
RTRD 2 Speed Cont. Systemair (5941)
RTRDU 2 Speed contr. Systemair (5945)
RT 0-30 Room Thermostat (5151)
STDT 16 Motor Protection (5152)
STDT 16E Motor Protection (5153)
CO2RT-R-D Transmitter (6993)
Presence detector/IR24-P (6995)
DTV200 (6261)
REV-5POL/07 ON/OFF (33980)
DTV500A (96807)
Accessories
RBM 60-35/27 400V/3 Duct heate (5454)
PGK 60-35-3-2,0 Duct cooler (6612)
VBR 60-35-2 Water heating batt (5467)
VBR 60-35-4 Water heating batt (5475)
LDR 60-35 Silencer (5073)
FFK 60-35 Filter cassette rect (1761)
DS 60-35 Flexible connection (1549)
GFL 60-35 Counter flange (2709)
VK-60-35 Louvre shutter (5650)
DXRE 60-35-3-2,5 Duct cooler (7956)
RB 60-35/27-2 400V/3 Duct heat (9643)
RB 60-35/45-3 400V/3 Duct heat (9644)
RKT-SYS-600×350-S (43633)
RK-SYS-600×350-S (43656)
Documentation
202341_Fans_Instructions_CE_A010.pdf (1,83MB)
Specification text
Name: RS 60-35 L3 SILEO | Item no.: 39631
Version: 50 Hz; 400V 3~
Document type: Product card | Document date: 2019-06-25
Generated by: Online catalogue
