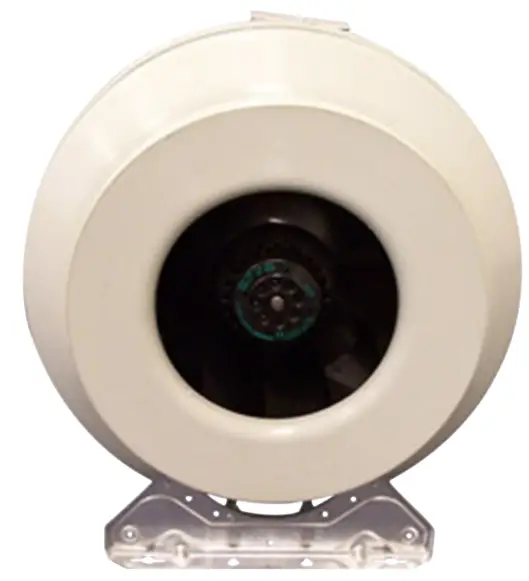

RVK 315E2 SILEO 1PH/230V
Item no. 37789 Version: 50 Hz
Document type: Product card
Document date: 2019-06-24
Generated by: Systemair Online Catalogue
Description
- Speed-controllable
- Integral thermal contacts acc. EN 60335-2-80
- Can be installed in any position
- Inclusive mounting bracket
- Maintenance-free and reliable
The RVK sileo series is designed for installation in ducts. The casing is manufactured from PP fibreglass reinforced plastic which gives the fan a less leckage casing. Duct connected wet room applications of the fan are possible due to the air tight casing and the IP 44 rated terminal box. We recommend a period of continued ventilation with dry air for wet room applications.The fans have high effective backward-curved blades (* BAT with special geometry) and external rotor motors. The FK mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans can be speed-controlled via a stepless thyristor or a 5-step transformer. To protect the motor from overheating the models have integrated thermal contacts with manual reset.
Technical parameters
Nominal data
| Voltage | 230 V |
| Frequency | 50 Hz |
| Phase | 1 ~ |
| Input power (P1) | 222 W |
| Current | 0,971 A |
| Max. airflow | 0,374 m³/s |
| R.p.m. | 2696 r.p.m. |
| Capacitor | 5 µF |
| Weight | 5,2 kg |
Temperature data
| Max. temperature of transported air | 70 °C |
| Max. temperature of transported air when speed-controlled | 70 °C |
Sound data
| Sound data | 45 dB(A) |
Protection / Classification
| Insulation class | B |
| Enclosure class, motor | IP44 |
ErP
| ErP ready | ErP 2016/ErP 2018 |

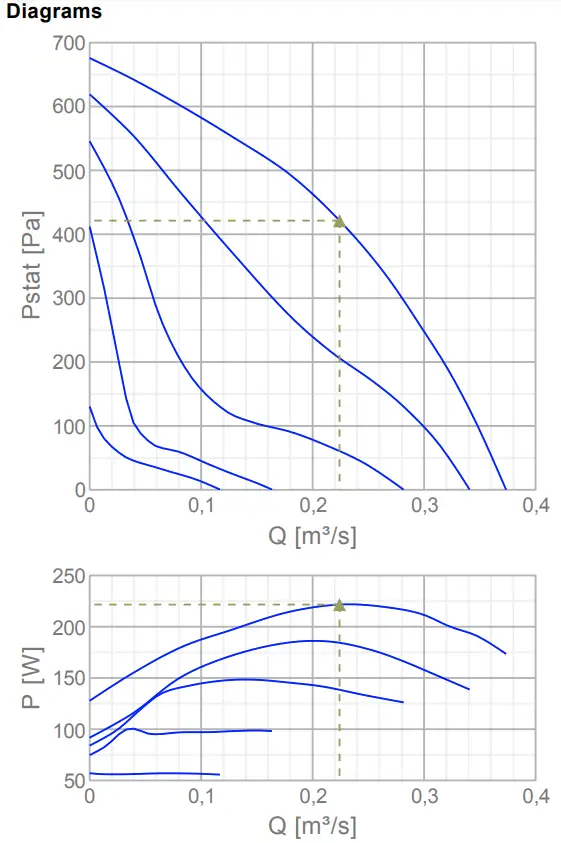

Diagrams
Diagrams
Max efficiency
Hydraulic data
| Working air flow | 0,224 m³/s |
| Working static pressure | 421 Pa |
| Power | 222 W |
| Speed | 2697 r.p.m. |
| Current | 0,97 A |
| SFP | 0,989 W/(l/s) |
| Voltage | 230 V |
Sound power level
| 63 | 125 | 250 | 250 | 1k | 2k | 4k | 8k | Tot | ||
| Inlet | dB(A) | 52 | 60 | 59 | 59 | 65 | 63 | 59 | 53 | 70 |
| Outlet | dB(A) | 57 | 52 | 65 | 65 | 65 | 65 | 59 | 54 | 71 |
| Surrounding | dB(A) | 28 | 31 | 42 | 42 | 46 | 42 | 35 | 31 | 52 |

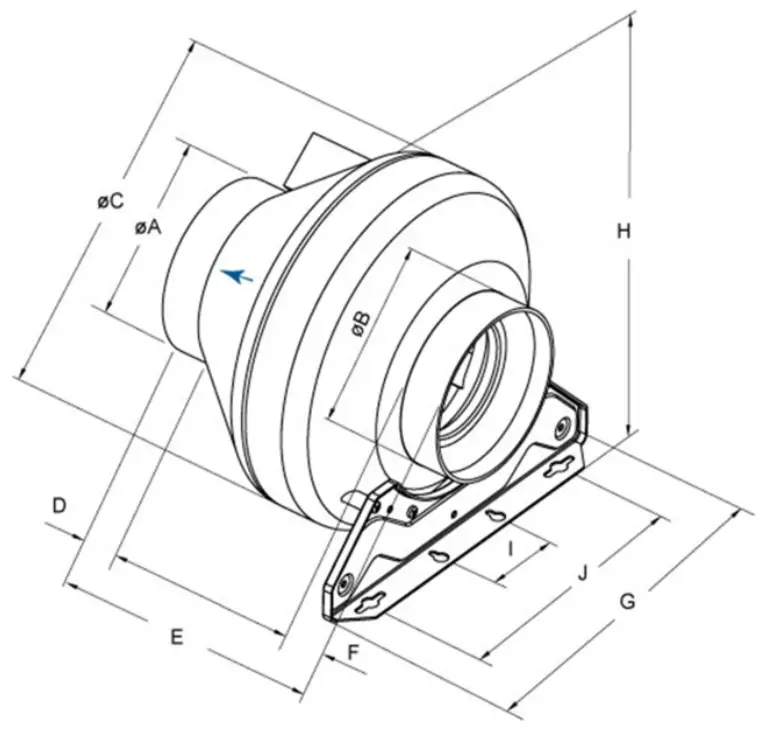

Dimensions
øA øB øC D E F G H
RVK 315 314 314 405 28 265 30 272 430 60 200

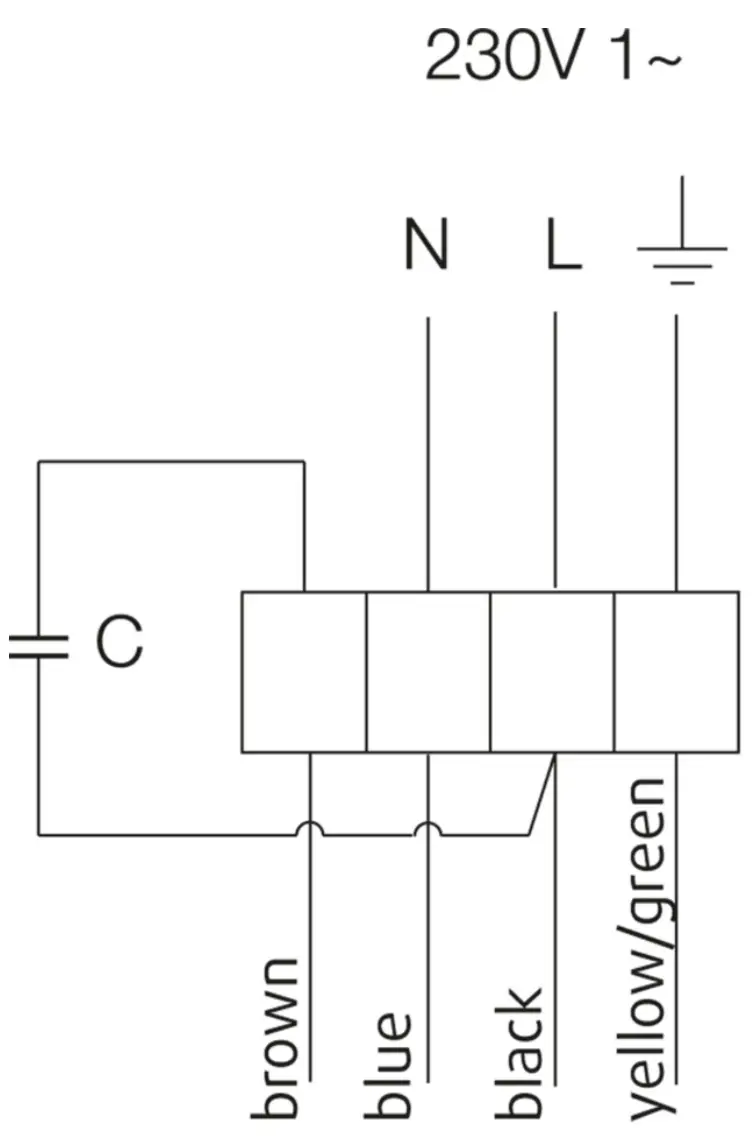

Wiring
Accessories
Electric accessories
RE 1,5 Speed control (5000)
REU 1.5 Speed control (5004)
REE 1 Speed control (5314)
STL 1.5 Speed controller (84251)
REV-3POL/03 ON/OFF (33978)
FRQS-E-6A (37419)
FRQ5S-E-6A (37421)
Accessories
CB 315-9,0 400V/3 Duct heater (5375)
CB 315-3,0 230V/1 Duct heater (5386)
CB 315-12,0 400V/3 Duct heater (5387)
CBM 315-9,0 400V/3 Duct heater (5485)
VBF 315 Water heating battery (1734)
CWK 315-3-2,5 Duct cooler,circ (30025)
VBC 315-2 Water heating batt (5461)
LDC 315-900 Silencer (5197)
FFR 315 Filter cassette (1779)
FGR 315 Filter cassette (1818)
FK 315 Fast clamp (1613)
VKK-315 Back draft damper (1628)
RSK-315 Back draft damper (5604)
SG 315 Protection guard (5611)
VBC 315-3 Water heating batt (9844)
CB 315-6,0 400V/2 Duct heater (5374)
Documentation
manual_rvk_en_002.pdf (3,32MB) eu declaration of conformity_rvk_en_001.pdf (47,90kB)
rvk315_kpl.dxf (387,62kB) PP compound (30% glass fibre content).pdf (133,21kB)
Name: RVK 315E2 SILEO 1PH/230V
Item no.: 37789 | Version: 50 Hz
Document type: Product card | Document date: 2019-06-24
Generated by: Online catalogue
