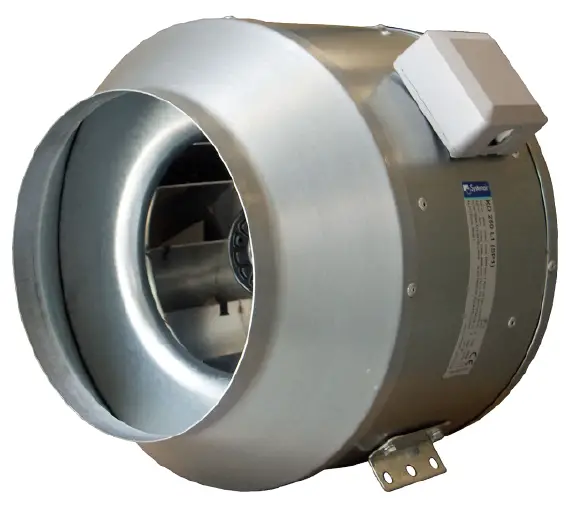

systemair KD 200 L1 Centrifugal Circular Duct Fan
Description
- High efficiency – low noise
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable
The KD series have external rotor motors with a new type of mixed flow impeller which reduces the external dimensions of the fans. These fans have a high capacity in relation to their compact design. Brackets are supplied with the fans to make installation easier. The FK mounting clamp facilitates easy installation and removal and prevents the transfer of vibrations to the duct. To protect the motor from overheating the fan has integral thermal contacts with electrical reset. The casing is manufactured from galvanised sheet steel
Technical parameters
| Nominal data | ||
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 257 | W |
| Current | 1,14 | A |
| Max. airflow | 0,368 | m³/s |
| R.p.m. | 2562 | r.p.m. |
| Capacitor | 6 | µF |
| Weight | 6,8 | kg |
| Temperature data | ||
| Max. temperature of transported air | 55,1 | °C |
| Max. temperature of transported air when speed-controlled | 45,9 | °C |
| Sound data | ||
| Sound pressure level at 3 m | 52,9 | dB(A) |
| Protection / Classification | ||
| Insulation class | F | |
| Enclosure class, motor | IP44 | |

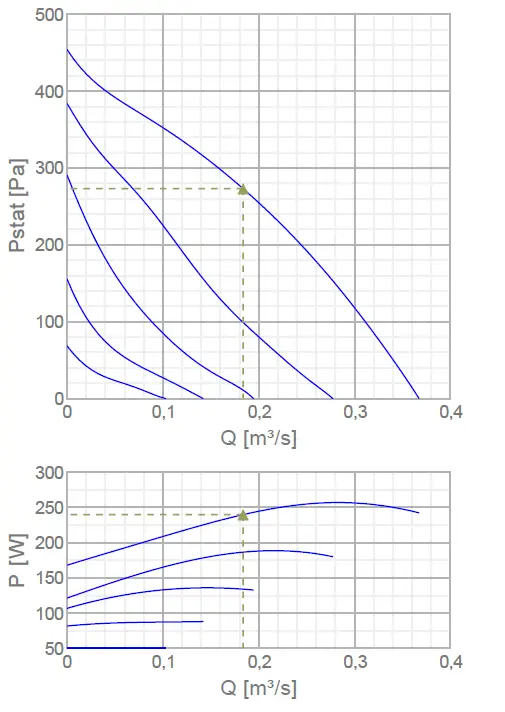

Diagrams
Diagrams
Max efficiency
| Hydraulic data | ||||||||||
| Working air flow | 0,184 | m³/s | ||||||||
| Working static pressure | 273 | Pa | ||||||||
| Power | 240 | W | ||||||||
| Speed | 2611 | r.p.m. | ||||||||
| Current | 1,07 | A | ||||||||
| SFP | 1,31 | W/(l/s) | ||||||||
| Voltage | 230 | V | ||||||||
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 60 | 70 | 71 | 75 | 71 | 64 | 64 | 57 | 79 |
| Outlet | dB(A) | 57 | 71 | 75 | 76 | 77 | 78 | 76 | 73 | 84 |
| Surrounding | dB(A) | 27 | 28 | 46 | 55 | 56 | 53 | 48 | 39 | 60 |

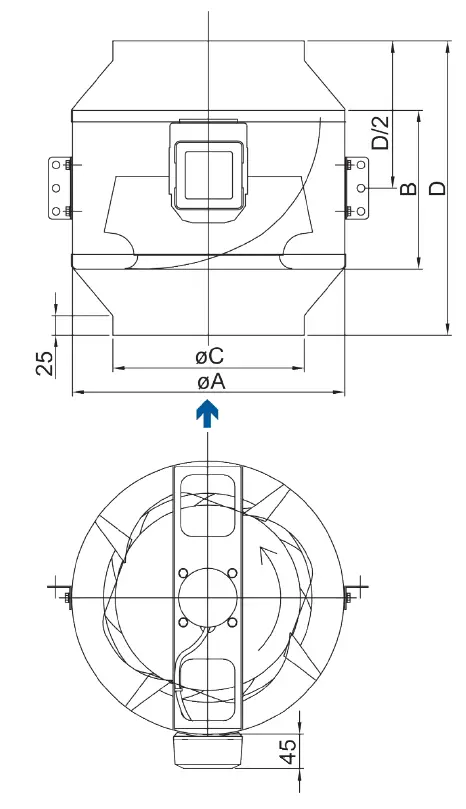

Dimensions
- øA B øC D D/2
- KD 200 L 313 180 198 380 190
- KD 250 M 313 180 248 310 155
- KD 250 L 353 205 248 385 192,5

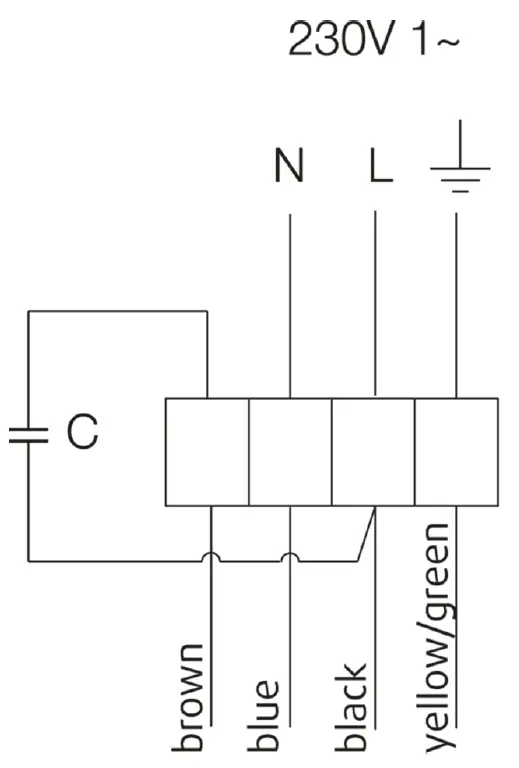

Wiring
- U1 = blue = blau
- U2 = black = schwarz
- Z = brown = braun
- PE = yellow/green = grün-gelb
Accessories
Electric accessories
- RE 1,5 Speed control (5000)
- REU 1.5 Speed control (5004)
- REE 2 Speed control (5316)
- REPT 6 Digital regulator (5698)
- RT 0-30 Room Thermostat (5151)
- CO2RT-R-D Transmitter (6993)
- Presence detector/IR24-P (6995)
- STL 1.5 Speed controller (84251)
- REV-3POL/03 ON/OFF (33978)
- FRQS-E-6A (37419)
- FRQ5S-E-6A (37421)
- DTV500A (96807)
Accessories
- CB 200-3,0 230V/1 Duct heater (5370)
- CB 200-2,1 230V/1 Duct heater (5384)
- CBM 200-5,0 400V/2 Duct heater (5483)
- VBF 200 Water heating battery (1732)
- CWK 200-3-2,5 Duct cooler,circ (30023)
- VBC 200-2 Water heating batt (5459)
- LDC 200-600 Silencer (5194)
- LDC 200-900 Silencer (5195)
- FFR 200 Filter cassette (1773)
- FGR 200 Filter cassette (1812)
- FK 200 Fast clamp (1611)
- VKK-200 Back draft damper (1626)
- IGK-200 Wall Grid (1633)
- RSK-200 Back draft damper (5602)
- SG 200 Protection guard (5609)
- VK-20 Louvre shutter (5639)
- VBC 200-3 Water heating batt (9841)
- LDC 200-300 Silencer (53369)
- THB 200 Hood w.cover pl. black (134465)
- CB 200/S1/3,0KW 400V/2Duct hea (5294)
- CB 200-5,0 400V/2 Duct heater (5371
Documentation
132780_Fans_Instructions_Outside_EU_A002.pdf (1 006,63kB)
