KE 60-30-6 Centrifugal Rectangular Fan
Instructions
KE 60-30-6 REC. FAN
Item no. 19551
Version: 50 Hz
Document type: Product card
Document date: 2019-07-16
Generated by: Systemair Online Catalogue
Description
- Swing-out
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable

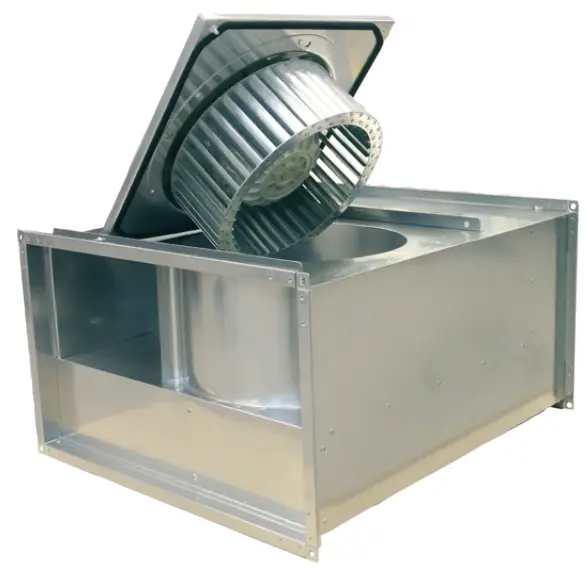

The KE models have impellers with forward-curved blades and external rotor motors. The motor and impeller are mounted on the access cover to facilitate easy maintenance. The casing is manufactured from galvanized sheet steel. To protect the motor from overheating the fans have integral thermal contacts with external leads for connection to a motor protection device. The fans can be installed in any position and are easy to connect using the DS flexible connections. The KE fans have a prewired, integral terminal box.
Technical parameters
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 493 | W |
| Current | 2,3 | A |
| Max. airflow | 0,659 | m³/s |
| R.p.m. | 898 | r.p.m. |
| Min. static back pressure | 0 | Pa |
| Capacitor | 14 | µF |
| Weight | 30,3 | kg |
Temperature data
| Max. temperature of transported air | 70 | °C |
| Max. temperature of transported air when speed-controlled | 70 | °C |
Sound data
| Sound pressure level at 3 m | 54,7 | dB(A) |
Protection / Classification
| Insulation class | F |
| Enclosure class, motor | IP54 |

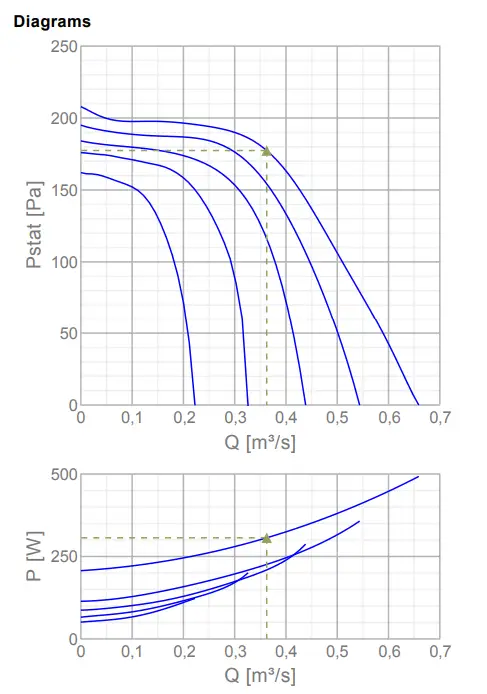

Diagrams
Max efficiency
| Hydraulic data | ||
| Working air flow | 0,362 | m³/s |
| Working static pressure | 177 | Pa |
| Power | 307 | W |
| Speed | 956 | r.p.m. |
| Current | 1,58 | A |
| SFP | 0,846 | W/(l/s) |
| Voltage | 230 | V |
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 64 | 66 | 63 | 60 | 62 | 63 | 59 | 53 | 71 |
| Outlet | dB(A) | 55 | 65 | 62 | 69 | 70 | 67 | 65 | 57 | 75 |
| Surrounding | dB(A) | 56 | 51 | 58 | 50 | 51 | 49 | 44 | 38 | 62 |

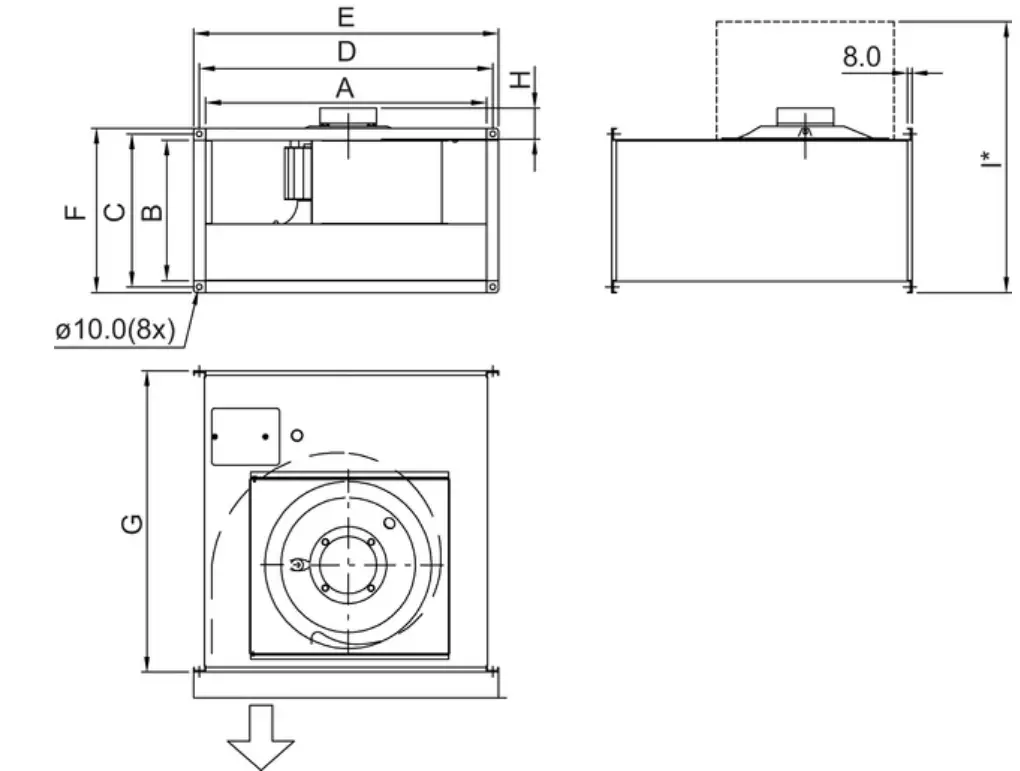

Dimensions
I* = Dimension with a fully open hatch.
| A | B | C | D | E | F | G | H | 1* | ||
| KE | 40-20 | 398 | 198 | 220 | 420 | 440 | 240 | 502 | 32 | 530 |
| KE | 50-25 | 498 | 248 | 270 | 520 | 540 | 290 | 532 | 34 | 610 |
| KE | 50-30 | 498 | 298 | 320 | 520 | 540 | 340 | 562 | 34 | 695 |
| KE | 60-30 | 598 | 298 | 320 | 620 | 640 | 340 | 642 | 47 | 715 |
| KE | 60-35 | 598 | 348 | 370 | 620 | 640 | 390 | 717 | 50 | 805 |

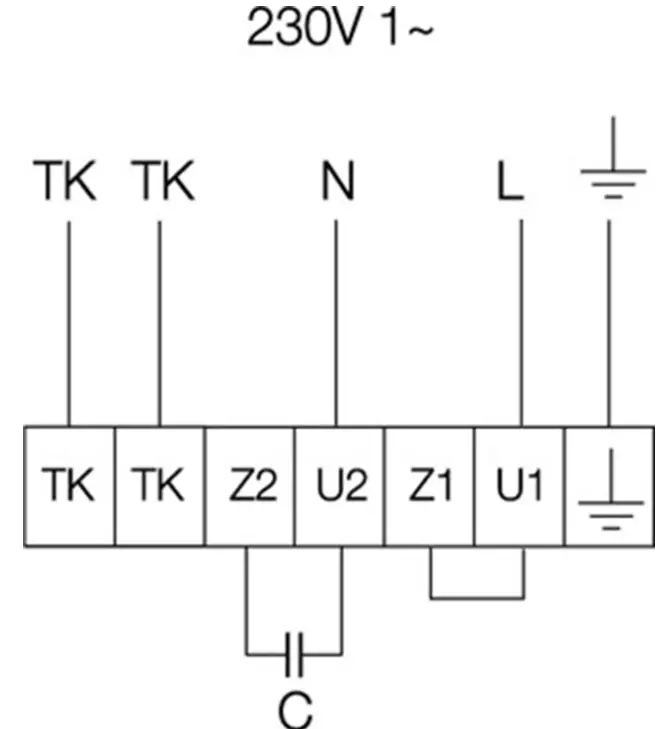

Wiring
Accessories
- Electric accessories
- REU 3 Speed control (5005)
- RTRE 3 Speed control (5009)
- REE 4 Speed control (5317)
- REPT 6 Digital regulator (5698)
- RT 0-30 Room Thermostat (5151)
- S-ET 10 Motor Protection (5154)
- S-ET 10E Motor Protection (5155)
- CO2RT-R-D Transmitter (6993)
- Presence detector/IR24-P (6995)
- RETP 6 Temp/Pressure regulator (32293)
- STL 3 Speed controller (84261)
- REV-5POL/05 ON/OFF (33979)
- FRQS-E-6A (37419)
- FRQ5S-E-6A (37421)
- DTV500A (96807)
- RBM 60-30/27 400V/3 Duct heate (5453)
- PGK 60-30-3-2,0 Duct cooler (6610)
- VBR 60-30-2 Water heating batt (5466)
- VBR 60-30-4 Water heating batt (5474)
- LDR 60-30 Silencer (5072)
- FFK 60-30 Filter cassette rect (1758)
- DS 60-30 Flexible connection (1547)
- GFL 60-30 Counter flange (2708)
- VK-60-30 Louvre shutter (5649)
- SRK 60-30 Class 3 Damper (7023)
- DXRE 60-30-3-2,5 Duct cooler (7955)
- RB 60-30/22-2 400V/3 Duct heat (9638)
- RB 60-30/34-2 400V/3 Duct heat (9641)
- RKT-SYS-600×300-S (43632)
- RK-SYS-600×300-R (43646)
- RK-SYS-600×300-S (43655)
Documentation
132780_Fans_Instructions_Outside_EU_A002.pdf (1 006,63kB)
Specification text
Name KE 60-30-6 REC. FAN
Item no.: 19551
Version: 50 Hz
Document type: Product card
Document date: 2019-07-16
Generated by: Online Catalog
