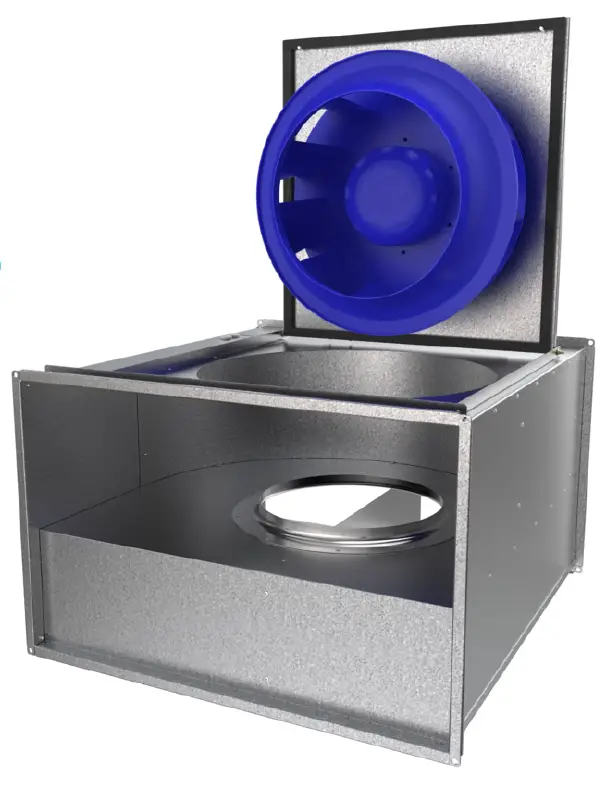

systemair RS 70-40 L1 SILEO Rectangular Dust Fan
Technical parameters
Nominal data
Voltage 230 V
Frequency 50 Hz
Phase 1 ~
Input power (P1) 480 W
Current 2,21 A
Max. airflow 1,19 m³/s
R.p.m. 1329 r.p.m.
Capacitor 12 μF
Weight 34,2 kg
Temperature data
Max. temperature of transported air 70 °C
Max. temperature of transported air when speed-controlled 70 °C
Sound data
Sound pressure level at 3 m 54,1 dB(A)
Protection / Classification
Insulation class F
Enclosure class, motor IP54
ErP
ErP ready ErP 2018

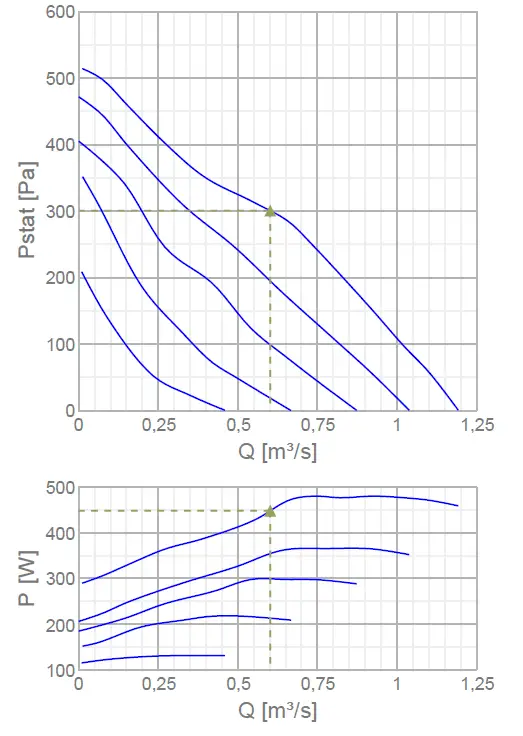

Diagrams
Max efficiency
| Hydraulic data | ||||||||||
| Working air flow | 0,602 | m³/s | ||||||||
| Working static pressure | 301 | Pa | ||||||||
| Power | 448 | W | ||||||||
| Speed | 1347 | r.p.m. | ||||||||
| Current | 2,07 | A | ||||||||
| SFP | 0,744 | W/(l/s) | ||||||||
| Voltage | 230 | V | ||||||||
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 58 | 68 | 64 | 66 | 65 | 63 | 57 | 49 | 73 |
| Outlet | dB(A) | 62 | 69 | 70 | 71 | 72 | 68 | 62 | 53 | 78 |
| Surrounding | dB(A) | 40 | 59 | 56 | 51 | 50 | 45 | 38 | 33 | 61 |

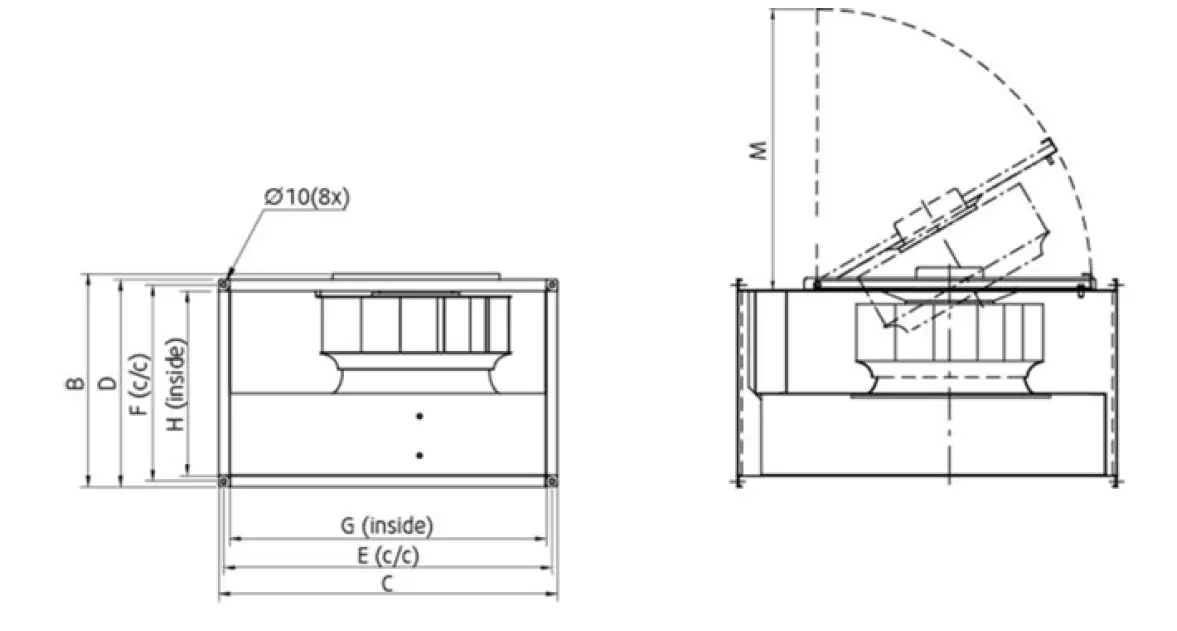

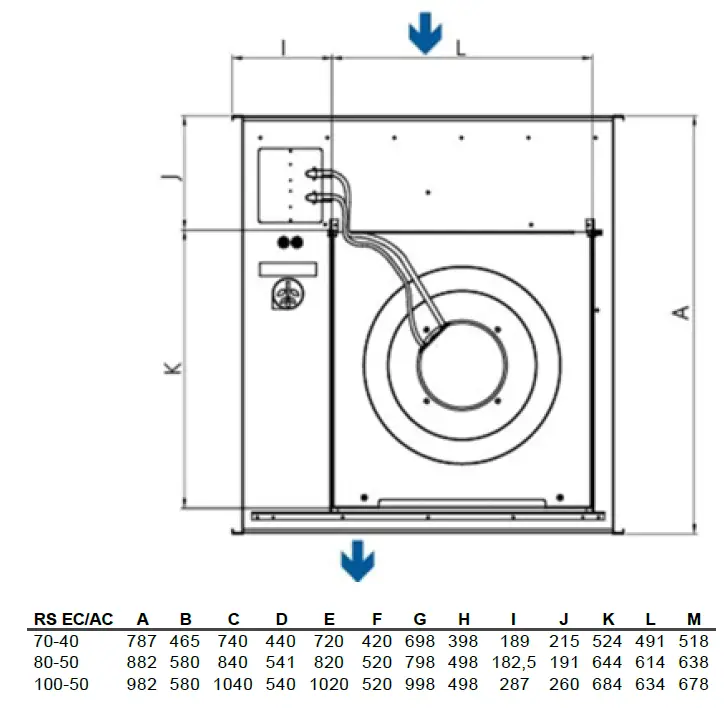

Dimensions

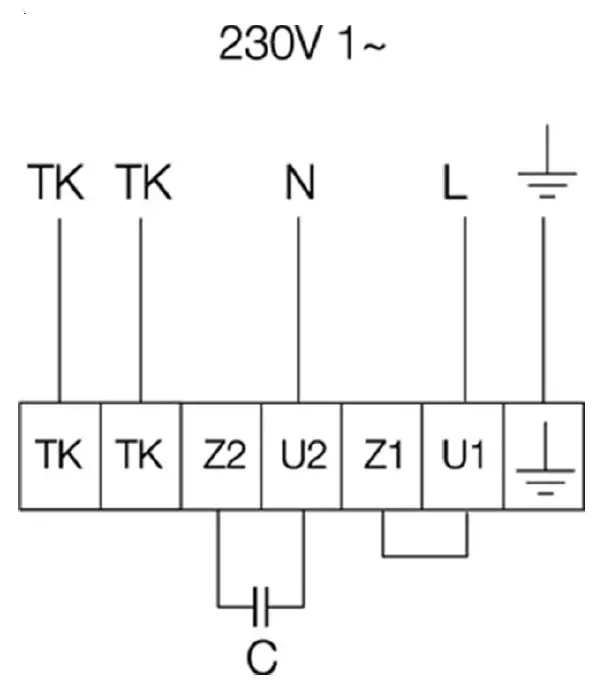

Wiring
Accessories
Electric accessories
REU 3 Speed control (5005)
RTRE 3 Speed control (5009)
REE 4 Speed control (5317)
REPT 6 Digital regulator (5698)
RT 0-30 Room Thermostat (5151)
S-ET 10 Motor Protection (5154)
S-ET 10E Motor Protection (5155)
CO2RT-R-D Transmitter (6993)
Presence detector/IR24-P (6995)
RETP 6 Temp/Pressure regulator (32293)
DTV200 (6261)
STL 5 Speed controller (84271)
REV-5POL/05 ON/OFF (33979)
DTV500A (96807)
RBM 70-40/27 400V/3 Duct heate (5455)
PGK 70-40-3-2,0 Duct cooler (6616)
VBR 70-40-2 Water heating batt (5468)
VBR 70-40-3 Water heating batt (5476)
LDR 70-40 Silencer (5074)
FFK 70-40 Filter cassette rect (1762)
DS 70-40 Flexible connection (1551)
GFL 70-40 Counter flange (2710)
VK-70-40 Louvre shutter (5652)
DXRE 70-40-3-2,5 Duct cooler (7957)
RB 70-40/27-2 400V/3 Duct heat (9645)
RB 70-40/45-3 400V/3 Duct heat (9646)
RKT-SYS-700×400-S (43636)
RK-SYS-700×400-R (43648)
RK-SYS-700×400-S (43657)
Documentation
202341_Fans_Instructions_CE_A010.pdf (1,83MB)
Name: RS 70-40 L1 SILEO | Item no.: 79388
Document type: Product card | Document date: 2019-06-25 | Generated by: Online catalogue
