systemair 39641 RSI 100-50 L3 Sileo Silenced Duct Fan
RSI 100-50 L3 SILEO
Item no. 39641
Version: 400V 3~
Description
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable Maintenance-free and reliable

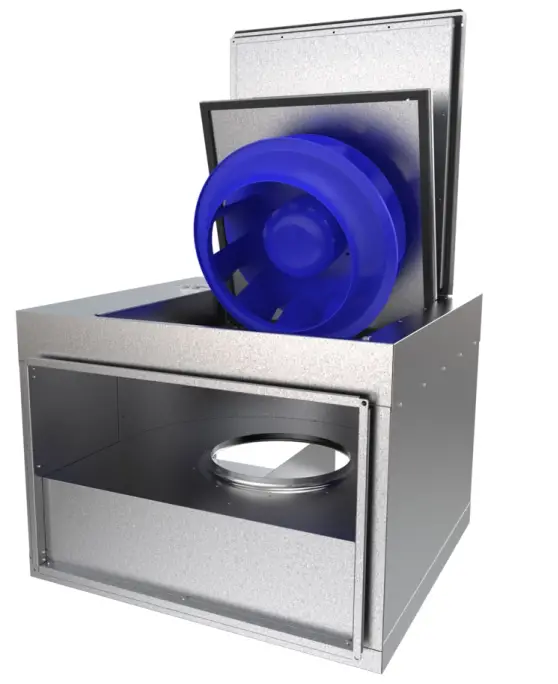

The RSI models have impellers with backward-curved blades and external rotor motors. The motor and impeller are mounted on the access cover to facilitate easy maintenance. The RSI models are thermally and acoustically insulated with 50 mm of mineral wool, with perforated sheet steel on the inner surface. To protect the motor from overheating the RSI fans have integral thermal contacts with external leads for connection to a motor protection device. The fans can be installed in any position and are easy to connect using the DS flexible connections. The casing is manufactured from galvanised sheet steel.
Technical parameters
| Nominal data | ||
| Voltage | 400 | V |
| Frequency | 50 | Hz |
| Phase | 3 | ~ |
| Input power (P1) | 2210 | W |
| Current | 4,27 | A |
| Max. airflow | 3,06 | m³/s |
| R.p.m. | 1368 | r.p.m. |
| Weight | 141 | kg |
| Temperature data | ||
| Max. temperature of transported air | 70 | °C |
| Max. temperature of transported air when speed-controlled | 70 | °C |
| Sound data | ||
| Sound pressure level at 3 m | 64,6 dB(A) | |
| Protection / Classification | ||
| Insulation class | F | |
| Enclosure class, motor | IP54 | |
| ErP ready | ErP 2018 | |

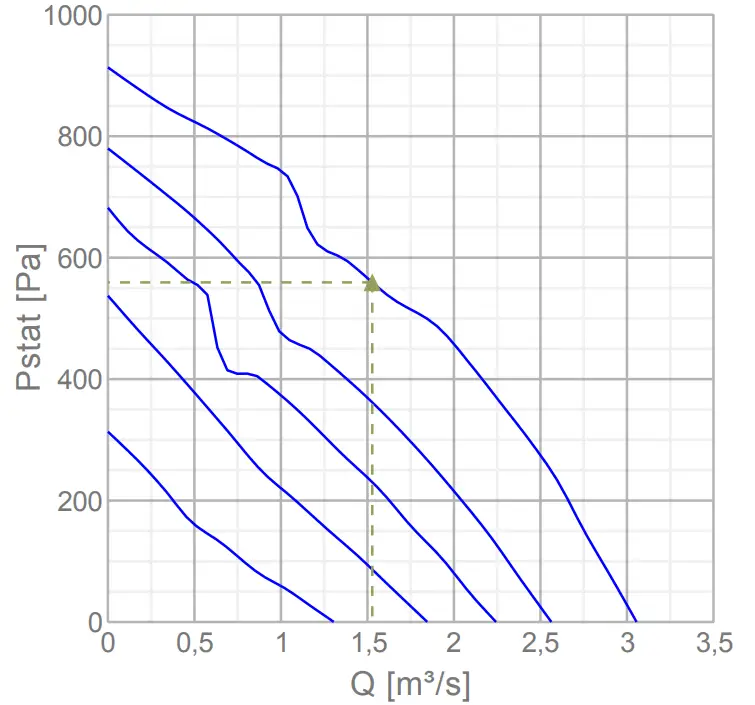

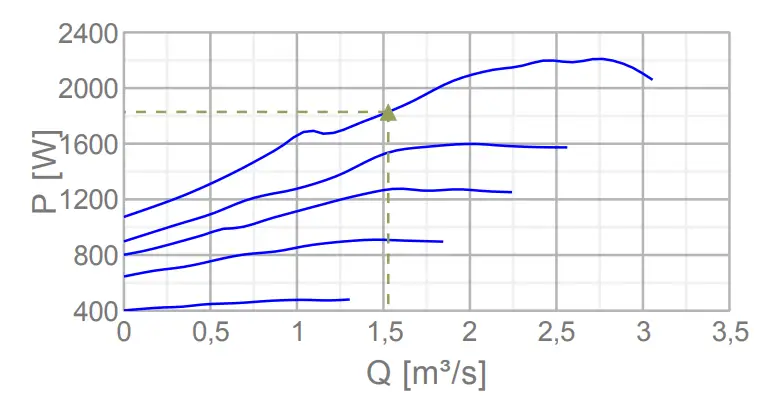

Diagrams
Diagrams
Max efficiency
| Hydraulic data | |
| Working air flow | 1,53 m³/s |
| Working static pressure | 559 Pa |
| Power | 1828 W |
| Speed | 1390 r.p.m |
| Current | 3,76 A |
| SFP | 1,2 W/(l/s |
| Voltage | 400 V |
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 67 | 75 | 71 | 71 | 67 | 64 | 59 | 55 | 79 |
| Outlet | dB(A) | 72 | 81 | 82 | 83 | 84 | 79 | 73 | 64 | 89 |
| Surrounding | dB(A) | 53 | 70 | 65 | 63 | 60 | 56 | 49 | 46 | 72 |

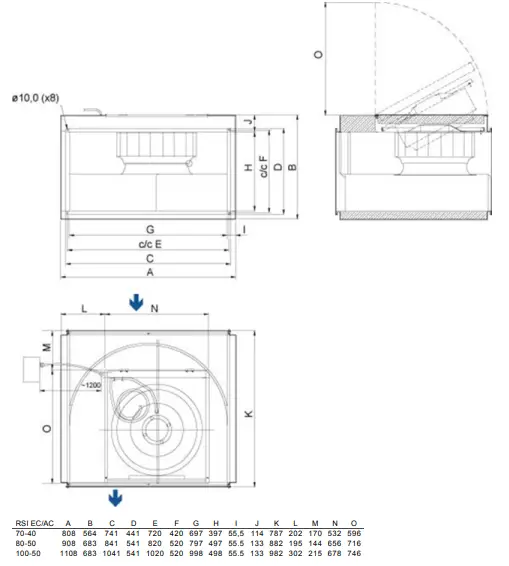

Dimensions
| RSI EC/AC | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O |
| 70-40 | 808 | 564 | 741 | 441 | 720 | 420 | 697 | 397 | 55,5 | 114 | 787 | 202 | 170 | 532 | 596 |
| 80-50 | 908 | 683 | 841 | 541 | 820 | 520 | 797 | 497 | 55.5 | 133 | 882 | 195 | 144 | 656 | 716 |
| 100-50 | 1108 | 683 | 1041 | 541 | 1020 | 520 | 998 | 498 | 55.5 | 133 | 982 | 302 | 215 | 678 | 746 |

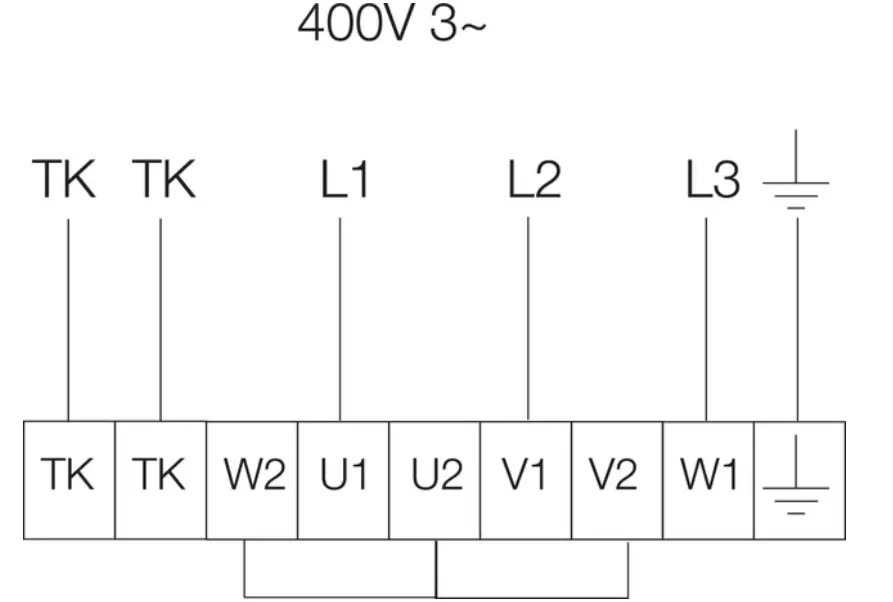

Wiring
Accessories
Electric accessories
RTRD 7 speed control Systemair (5943)
RTRDU 7 Speed contr. Systemair (5947)
RT 0-30 Room Thermostat (5151)
USTDT 16 Motor Protection (5152)
STDT 16E Motor Protection (5153)
CO2RT-R-D Transmitter (6993)
Presence detector/IR24-P (6995)
DTV200 (6261)
REV-5POL/07 ON/OFF (33980)
DTV500A (96807)
Accessories
PGK 100-50-3-2,0 Duct cooler (6601)
VBR 100-50-2 Water heating bat (5470)
VBR 100-50-3 Water heating bat (5478)
LDR 100-50 Silencer (5067)
FFK 100-50 filter cassette (30237)
DS 100-50 Flexible connection (1555)
DXRE 100-50-3-2,5 Duct cooler (7959)
RB 100-50/45-3 400V/3 Duct hea (9649)
RB 100-50/68-4 400V/3 Duct hea (9650)
RB 100-50/80-5 400V/3 Duct hea (9661)
RKT-SYS-1000×500-S (43641)
RK-SYS-1000×500-R (43650)
RK-SYS-1000×500-S (43659)
Documentation
202341_Fans_Instructions_CE_A010.pdf (1,83MB
Name: RSI 100-50 L3 SILEO |
Item no.: 39641 |
Version: 400V 3~
Document type: Product card |
Document date: 2019-06-24 |
Generated by: Online catalogue
