RS 80-50 L3 SILEO
Item no. 39634
Version: 50 Hz; 400V 3~
User Manual
39634 RS 80-50 L3 SILEO Rectangular Duct Fans
Document type: Product card
Document date: 2019-06-25
Generated by: Systematic Online Catalogue
RS 80-50 L3 SILEO
Item no. 39634
Version: 50 Hz; 400V 3~
Description
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable

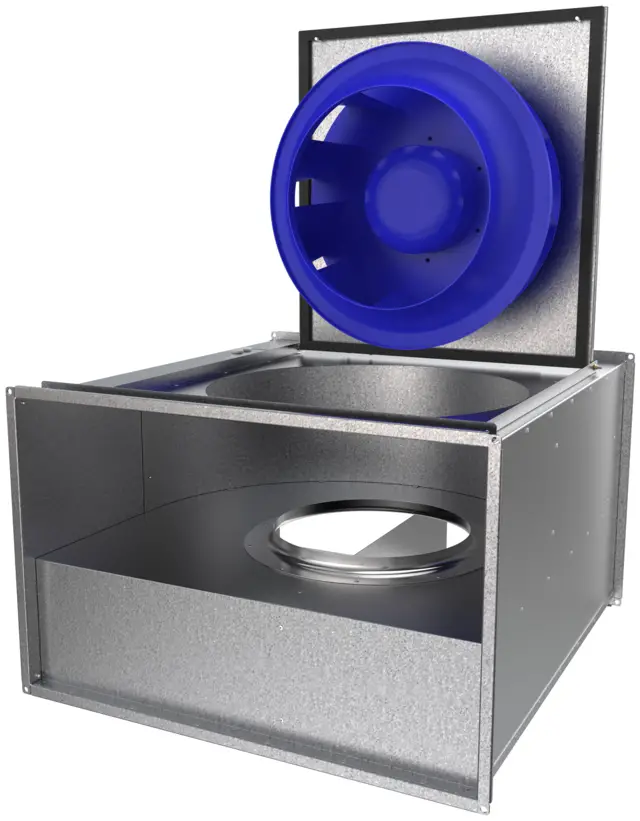

The RS models have impellers with backward-curved blades and external rotor motors. The motor and impeller are mounted on the access cover to facilitate easy maintenance. To protect the motor from overheating the RS has integral thermal contacts with external leads for connection to a motor protection device. The fan can be installed in any position and is easy to connect using the DS flexible connections. The casing is manufactured from galvanized sheet steel.
Technical parameters
| Nominal data | |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 ~ |
| Input power (P1) | 1379 W |
| Current | 3,16 A |
| Max. airflow | 2,35 m³/s |
| R.p.m. | 1420 r.p.m. |
| Weight | 67,4 kg |
| Temperature data | |
| Max. temperature of transported air | 70 °C |
| Max. temperature of transported air when speed-controlled | 70 °C |
| Sound data | |
| Sound pressure level at 3 m | 66,9 dB(A) |
Name: RS 80-50 L3 SILEO|Item no.: 39634|Version: 50 Hz; 400V 3~
Document type: Product card | Document date: 2019-06-25 | Generated by: Online catalogue
| Protection / Classification | |
| Insulation class | F |
| Enclosure class, motor | IP54 |
| ErP | |
| ErP ready | ErP 2018 |

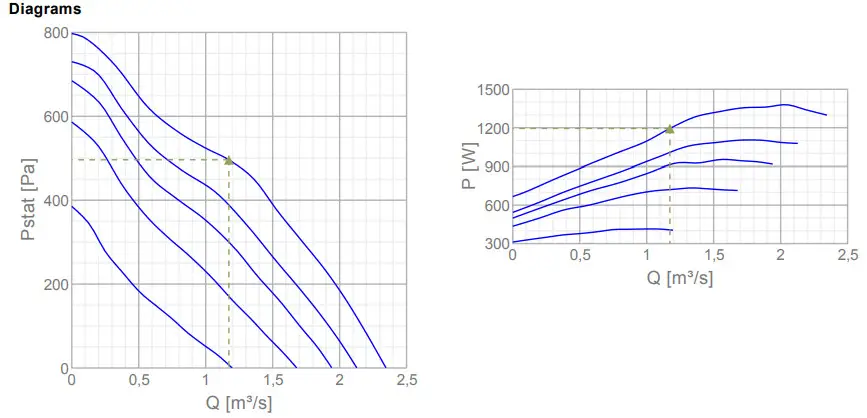

Diagrams
Max efficiency
| Hydraulic data | |
| Working air flow | 1,17 m³/s |
| Working static pressure | 496 Pa |
| Power | 1195 W |
| Speed | 1431 r.p.m. |
| Current | 2,98 A |
| SFP | 1,02 W/(l/s) |
| Voltage | 400 V |
| Sound power level | 63 | 125 | 250 | 250 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 64 | 75 | 74 | 74 | 74 | 74 | 69 | 62 | 82 |
| Outlet | dB(A) | 69 | 78 | 79 | 79 | 82 | 78 | 73 | 64 | 87 |
| Surrounding | dB(A) | 47 | 70 | 67 | 67 | 64 | 63 | 57 | 46 | 74 |

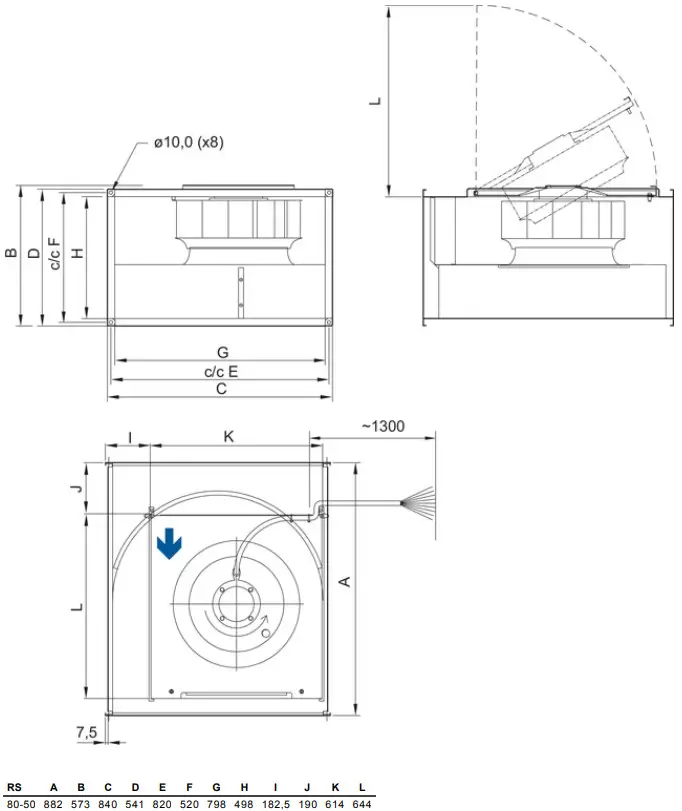

Dimensions

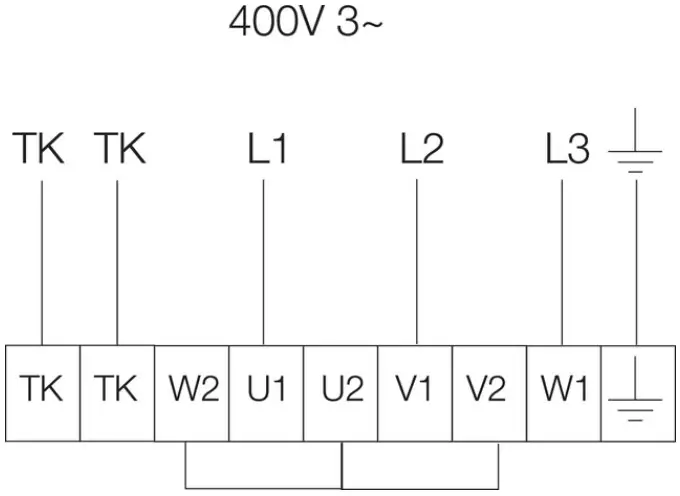

Wiring
Accessories
Electric accessories
RTRD 7 speed control Systematic (5943)
RTRDU 7 Speed contr. Systematic (5947)
RT 0-30 Room Thermostat (5151)
STDT 16 Motor Protection (5152)
STDT 16E Motor Protection (5153)
CO2RT-R-D Transmitter (6993)
Presence detector/IR24-P (6995)
DTV200 (6261)
REV-5POL/07 ON/OFF (33980)
DTV500A (96807)
Accessories
PGK 80-50-3-2,0 Duct cooler (6619)
VBR 80-50-2 Water heating batt (5469)
VBR 80-50-3 Water heating batt (5477)
LDR 80-50 Silencer (5075)
FFK 80-50 filter cassette (30236)
DS 80-50 Flexible connection (1553)
GFL 80-50 Counter flange (2711)
VK-80-50 Louvre shutter (5655)
DXRE 80-50-3-2,5 Duct cooler (7958)
RB 80-50/45-3 400V/3 Duct heat (9647)
RB 80-50/68-4 400V/3 Duct heat (9648)
RKT-SYS-800×500-S (43639)
RK-SYS-800×500-R (43649)
RK-SYS-800×500-S (43658
Documentation
202341_Fans_Instructions_CE_A010.pdf (1,83MB)
Specification text
The box consists of electroplated steel plate. The fans have a radial impeller with backwards- curved impeller vanes witch are pivoting. For making cleaning and attendance asier the fan device is assembled at the folding closure head. The fans can be installed in each fitting position and with the help of the flexible DS connection they are very easy to built in. The actuation is carried out by a floodproofed, maintenance- free and speedcontrolled external rotor motor. For protecting the motor, the production run has built in thermal contacts with manually reset device with completed lines to a motor protection device according to EN 60335-2-80. For annealing the engine is designed inside the air flow. Impeller according to VDI 2060, quality category Q6,3 and dynamically weigh heavy in two levels.
