Puravent 19546 KD 450 XL1 CIRC. Duct Fan
Description
- High efficiency – low noise
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable

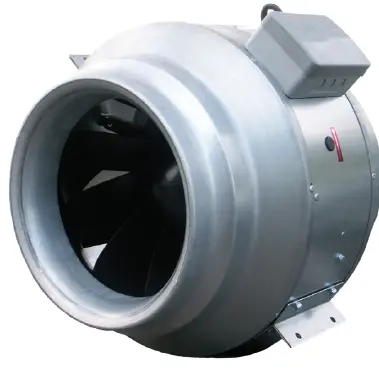

The KD series have external rotor motors with a new type of mixed flow impeller which reduces the external dimensions of the fans. These fans have a high capacity in relation to their compact design. Brackets are supplied with the fans to make installation easier. The FK mounting clamp facilitates easy installation and removal and prevents the transfer of vibrations to the duct. To protect the motor from overheating the fan has integral thermal contacts with leads to a motor protection device. The casing is manufactured from galvanised sheet steel.
Technical parameters
| Nominal data | ||
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 1392 | W |
| Current | 6,16 | A |
| Max. airflow | 2,35 | m³/s |
| R.p.m. | 1289 | r.p.m. |
| Capacitor | 30 | µF |
| Weight | 37 | kg |
| Temperature data | ||
| Max. temperature of transported air | 60 | °C |
| Max. temperature of transported air when speed-controlled | 60 | °C |
| Sound data | ||
| Sound pressure level at 3 m | 60,9 | dB(A) |
| Protection / Classification | ||
| Insulation class | F | |
| Enclosure class, motor | IP54 | |

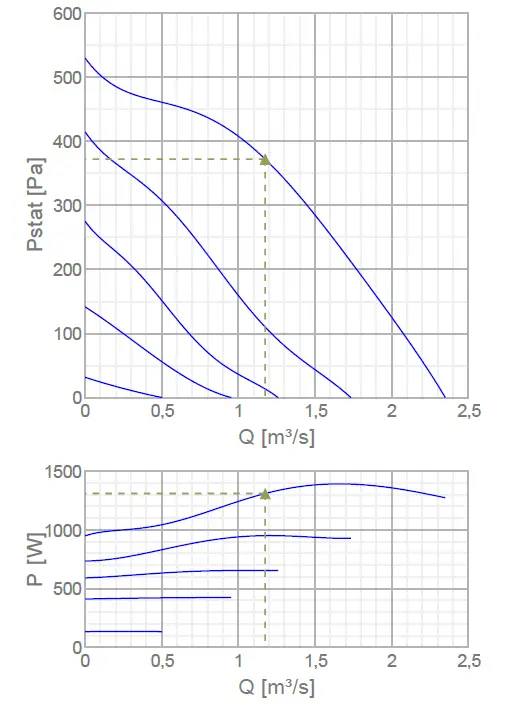

Diagrams
Max efficiency
| Hydraulic data | ||||||||||
| Working air flow | 1,18 | m³/s | ||||||||
| Working static pressure | 372 | Pa | ||||||||
| Power | 1310 | W | ||||||||
| Speed | 1315 | r.p.m. | ||||||||
| Current | 5,75 | A | ||||||||
| SFP | 1,12 | W/(l/s) | ||||||||
| Voltage | 230 | V | ||||||||
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 69 | 76 | 75 | 75 | 74 | 73 | 66 | 59 | 82 |
| Outlet | dB(A) | 69 | 76 | 73 | 76 | 76 | 72 | 67 | 61 | 82 |
| Surrounding | dB(A) | 35 | 54 | 60 | 65 | 61 | 59 | 46 | 40 | 68 |
Dimensions
| øA | B C | øD (x4) | E F G øH | øI | øJ | K | L | |
| KD 400 M | 400 | 40 480 | 10 | 38 59 38 355 | 400 | 503 | 590 | 11 |
| KD 400 XL | 400 | 44 602 | 12 | 33 61 37 400 | 450 | 560 | 662 | 18,5 |
| KD 450 M | 450 | 44 559 | 12 | 33 61 37 400 | 450 | 560 | 662 | 18,5 |
| KD 450 XL | 450 | 46 686 | 12 | 45 76 50 450 | 500 | 660 | 812 | 18,5 |
| KD 500 M | 500 | 46 643 | 12 | 45 76 50 450 | 500 | 660 | 812 | 18,5 |
|
|

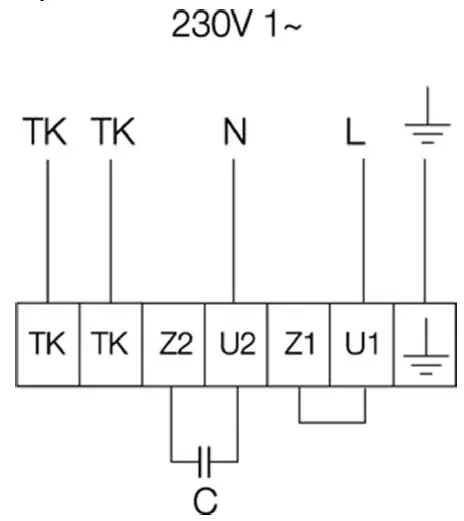

Wiring
Accessories
Electric accessories
- REU 7 Speed control (5007)
- RTRE 7 Speed control (5011)
- S-ET 10 Motor Protection (5154)
- STL 10 Speed controller (84272)
- REV-5POL/05 ON/OFF (33979)
Accessories
- FK 450 Fast clamp (1616)
- SG 450 Protection guard (5614)
- VK-45 Louvre shutter (5645)
- RSK-450 Back draft dmp. (9768)
Documentation
- 132780_Fans_Instructions_Outside_EU_A002.pdf (1 006,63kB)
Name: KD 450 XL1 CIRC. DUCT FAN
Item no.: 19546
Document type: Product card
Document date: 2019-07-16
Generated by: Online catalogue
