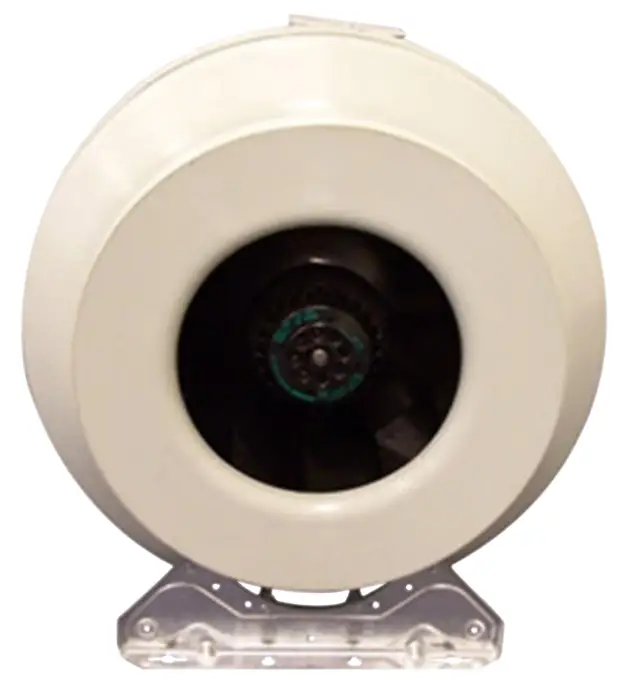

RVK 150E2 SILEO 1PH/230V
Item no. 30336
Version: 50 Hz
Description
- Speed-controllable
- Integral thermal contacts acc. EN 60335-2-80
- Can be installed in any position
- Inclusive mounting bracket
- Maintenance-free and reliable
The RVK sileo series is designed for installation in ducts. The casing is manufactured from PP fibreglass reinforced plastic which gives the fan a less leckage casing. Duc tconnected wet room applications of the fan are possible due to the air tight casing and the IP 44 rated terminal box. We recommend a period of continued ventilation with dry air for wet room applications.The fans have high effective backward-curved blades (* BAT with special geometry) and external rotor motors. The FK mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans can be speed-controlled via a stepless thyristor or a 5-step transformer. To protect the motor from overheating the models have integrated thermal contacts with manual reset.
Technical parameters
Nominal data
| Voltage | 230 V |
| Frequency | 50 Hz |
| Phase | 1 ~ |
| Input power (P1) | 59,6 W |
| Current | 0,262 A |
| Max. airflow | 0,119 m³/s |
| R.p.m. | 2437 r.p.m. |
| Capacitor | 2 µF |
| Weight | 2,7 kg |
Temperature data
| Max. temperature of transported air | 70 °C |
| Max. temperature of transported air when speed-controlled | 70 °C |
| Sound data | |
| Sound pressure level at 3 m | 40,6 dB(A) |
| Protection / Classification | |
| Insulation class | B |
| Enclosure class, motor | IP44 |
| ErP | |
| Energy class, basic unit |  |
| Energy class, basic unit option |  |
| ErP ready | ErP 2016/ErP 2018 |
Energy class label
Energy class, basic unit
Energy class, unit with local demand control
EPS diagrams

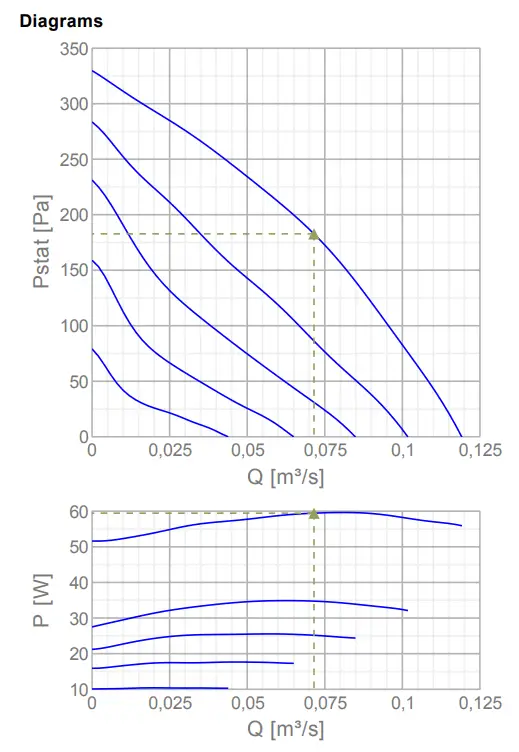

Diagrams
Max efficiency
Hydraulic data
| Working air flow | 0,0715 m³/s |
| Working static pressure | 183 Pa |
| Power | 59,4 W |
| Speed | 2439 r.p.m. |
| Current | 0,261 A |
| SFP | 0,831 W/(l/s) |
| Voltage | 230 V |
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 43 | 53 | 58 | 59 | 60 | 56 | 50 | 39 | 65 |
| Outlet | dB(A) | 43 | 54 | 57 | 56 | 57 | 51 | 47 | 37 | 63 |
| Surrounding | dB(A) | 14 | 10 | 27 | 42 | 44 | 41 | 30 | 21 | 48 |

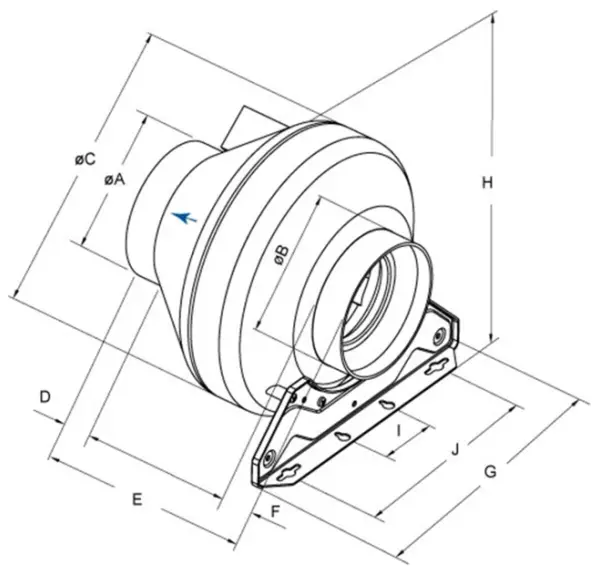

Dimensions
| øA | øB | øC | D | E | F | G | H | I | J | |
| RVK 150 | 149 | 149 | 341 | 30 | 230 | 30 | 272 | 360 | 60 | 200 |

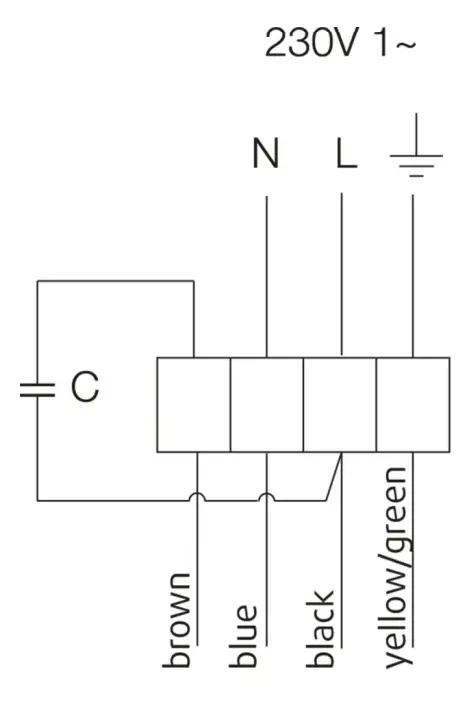

Wiring
Accessories
Electric accessories
RE 1,5 Speed control (5000)
REU 1.5 Speed control (5004)
REE 1 Speed control (5314)
STL 1.5 Speed controller (84251)
REV-3POL/03 ON/OFF (33978)
FRQS-E-6A (37419)
FRQ5S-E-6A (37421)
Accessories
CB 150-1,2 230V/1 Duct heater (5378)
CB 150-2,1 230V/1 Duct heater (5379)
CB 150-2,7 230V/1 Duct heater (5380)
CBM 150-2,1 230V/1 Duct heater (5481)
LDC 150-600 Silencer (5199)
FFR 150 Filter cassette (1769)
FGR 150 Filter cassette (1807)
FK 150 Fast clamp (1609)
IGK-100 Wall Grid (1630)
SG 150 Protection guard (5555)
RSK-150 Back draft damper (5599)
CB 150-5,0 400V/2 Duct heater (5381)
Documentation
 | manual_rvk_en_002.pdf (3,32MB) |
| PP compound (30% glass fibre content).pdf (133,21kB) |
| eu declaration of conformity_rvk_en_001.pdf (47,90kB) |
 | rvk150_kpl.dxf (793,99kB) |
Specification text
RVK 250E2-XL Circular duct fan made of plastic. DN 250, 230V/50Hz, 1~, plastic casing Circular duct fan for easy and direct installation in ducts. The casing is nufactured from polyamide with 10% glass fibre content. Circular connection spigot, length 25mm, acc. to EN1506:1997 Free-running,backward curved centrifugal impeller made of plastic. Balancing made to G 6.3, motor compl. with impeller statically and dynamically balanced in two planes acc. to DIN ISO 1940 T.1. Voltage controllable external rotor motor, maintenance-free, the motor is placed inside the air flow for cooling. Integral thermal contacts with manual reset acc. to EN 60335-2-80, speed-controlled via a 5-step transformer or a stepless thyristor. Silent, long-life ball bearings. Terminal box on the casing Mounting bracket included in delivery (unmounted). For indoor installation. Installation in any mounting position. PRODUCT: SYSTEMAIR TYPE: RVK 250E2-XL Item no. 30901
Name: RVK 150E2 SILEO 1PH/230V | Item no.: 30336 | Version: 50 Hz
Document type: Product card | Document date: 2019-06-24 | Generated by: Online catalogue
