systemair KVK SLIM 500 EC Centrifugal Circular Duct Fan
Description
- Slim design, easy to install
- Easy maintenance, service cover
- Low sound level, insulated cover
- High efficiency and low SFP in a real working point
- Potentiometer included, possible to speed control 0-100%
- Simple to install, mounting brackets included
- Integrated motor protection
- Aluzinc casing, C4 corrosion class

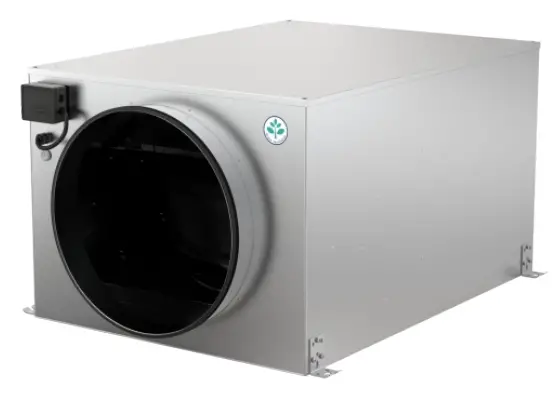

KVK Slim is a box fan with circular duct connections. The lid is insulated to keep a low sound level. The fan can be installed in any position. The casing is manufactured from Aluzinc in corrosion class C4. KVK Slim EC is delivered with integrated motor protection and pre-wired potentiometer (0-10V) that allows you to easily find the desired working point. The fan can be demand controlled via sensors for CO2, temperature, humidity, presence indication and VAV. Size 315-500 also offers the possibility to communication via Modbus. The FK mounting clamp (accessory) facilitates easy installation and removal and prevents the transfer of vibration to the duct.
Technical parameters
| Nominal data | ||
| Voltage | 230 | V |
| Frequency | 50/60 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 779 | W |
| Current | 3,49 | A |
| Max. airflow | 1,74 | m³/s |
| R.p.m. | 1464 | r.p.m. |
| Weight | 53,1 | kg |
| Temperature data | ||
| Max. temperature of transported air | 60 | °C |
| Max. temperature of transported air when speed-controlled | 60 | °C |
| Sound data | ||
| Sound pressure level at 3 m | 61,8 | dB(A) |
| Protection / Classification | ||
| Insulation class | F | |
| Enclosure class, motor | IP54 | |

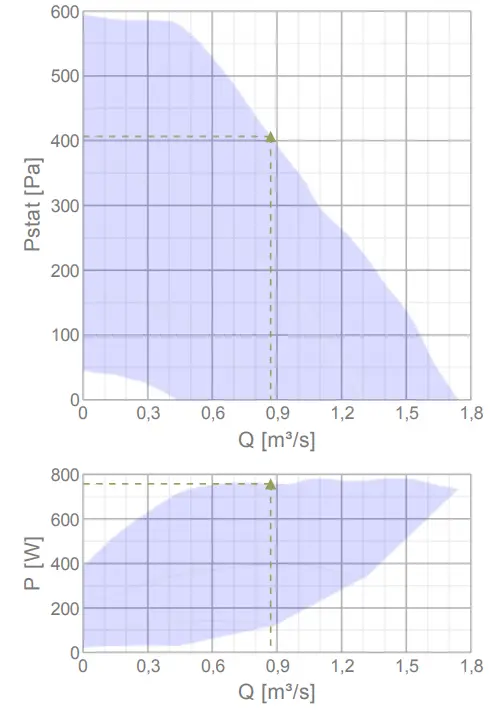

Diagrams
Max efficiency
| Hydraulic data | ||||||||||
| Working air flow | 0,871 | m³/s | ||||||||
| Working static pressure | 406 | Pa | ||||||||
| Power | 757 | W | ||||||||
| Speed | 1488 | r.p.m. | ||||||||
| Current | 3,38 | A | ||||||||
| SFP | 0,87 | W/(l/s) | ||||||||
| Voltage | 230 | V | ||||||||
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 64 | 76 | 74 | 69 | 69 | 68 | 62 | 54 | 80 |
| Outlet | dB(A) | 55 | 72 | 68 | 67 | 73 | 71 | 64 | 55 | 78 |
| Surrounding | dB(A) | 48 | 61 | 65 | 59 | 61 | 62 | 57 | 51 | 69 |

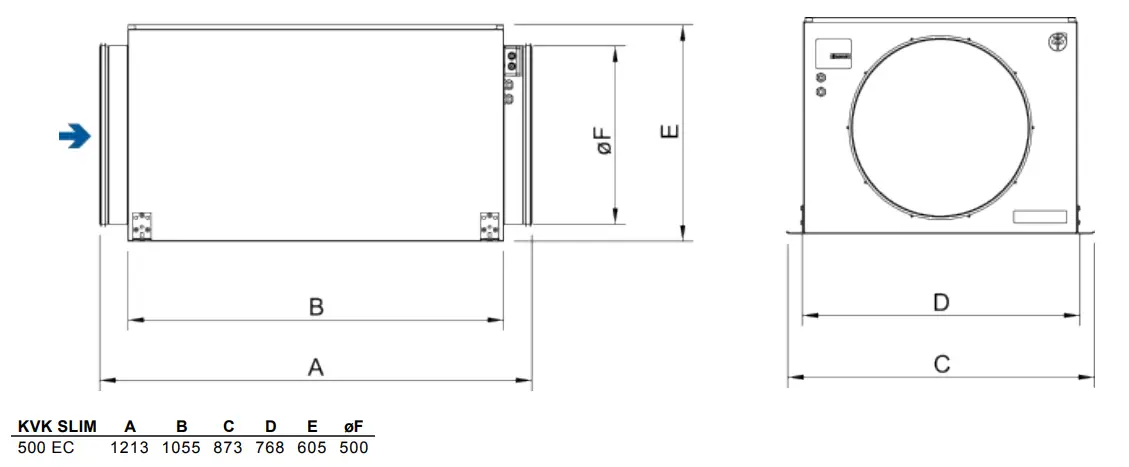

Dimensions
Wiring
- RD Red
- YE Yellow
- BU Blue
- WH White
- GN Green
- BN Brown
- BK Black
Accessories
Electric accessories
- RT 0-30 Room Thermostat (5151)
- CO2RT-R-D Transmitter (6993)
- Presence detector/IR24-P (6995)
- MTV-1/010 Controller 0..10V+ (30650)
- DMD-C Pressure controller (15793)
- MTP 10, 10K, Speed control (32731)
- EC-Vent Room Unit (3018)
- EC-Vent control board (3115)
- REV-3POL/03 ON/OFF (33978)
- MTP 20, on/off, 3-step (310220)
- EC-Basic-H humidity (24807)
- EC-Basic-T temperature (24805)
- EC-Basic-U universal 0-10V (24806)
- EC-Basic-CO2 and temperature (24808)
- EC-Selector (9908)
- CXE/AVC Modbus (37256)
- S-5EC/FRQ (76738)
- PCA 1000D2 Pressure controller (76739)
Accessories
- FK 500 Fast clamp (1617)
- SG 500 Protection guard (5615)
- VK-50 Louvre shutter (5646)
- RSK-500 Back draft damper (73049)
- VBC 500-2 Water heating batt (9837)
Documentation
- MODBUS LITE V5.01 parameter specification.pdf (726,08kB)
- KVK_Silent_Slim_Operating_maintenance_145899_CE_EN_A007.pdf (1,47MB)
