Air Circulator Fan
B07BZQKC5M
User Manual
Welcome Guide
Contents:

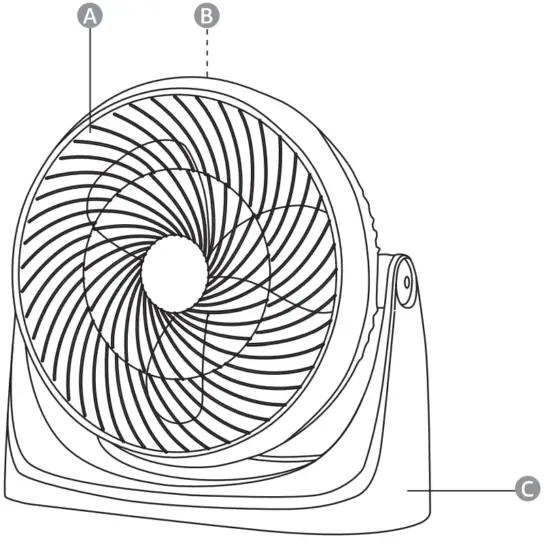

Before getting started, ensure the package contains the following components:
A Front guard
B Stand
C Speed control knob (not shown) 0 – 3 – 2 – 1
Intended Use
- This product is intended to produce a cooling airflow.
- This product is intended for household use only. It is not intended for commercial use.
- This product is intended to be used in dry indoor areas only.
- No liability will be accepted for damages resulting from improper use or non-compliance with these instructions.
Before First Use
- Check for transport damages.
- Clean the product before first use.
DANGER
Risk of suffocation! Keep any packaging materials away from children —these materials are a potential source of danger, e.g. suffocation.
Operation
Turning on/off and setting airflow speed
- Place the product on a level surface.
- Plug the product into a suitable power outlet.
- Set the speed control knob (B) to the desired airflow speed (3 – 2 – 1). A higher number represents a higher speed.
- To turn the product off, set the speed control knob (B) to 0.
Angle adjustment
- The angle of the fan can be adjusted manually. Simply tilt the front guard (A) up or down.
Cleaning and Maintenance
WARNING
Risk of electric shock! To prevent electric shock, unplug before cleaning. WARNING
Risk of electric shock! During cleaning do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.
Cleaning
- To clean, wipe with a soft, slightly moist cloth.
- Regularly remove the dust and dirt from the guards/blades using a vacuum cleaner.
- Dry the product after cleaning.
- Never use corrosive detergents, wire brushes, abrasive scourers, or metal or sharp utensils to clean the product.
Maintenance
- Store in a cool and dry place away from children and pets, ideally in original packaging.
- Avoid any vibrations and shocks.

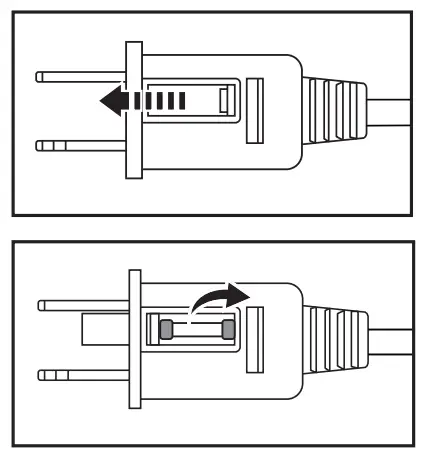

Fuse replacementNOTICE
The product requires a 2.5 A 1.25 V fuse.
- Unplug the product from the power outlet.
- Open the fuse compartment.
- Remove the old fuse and then insert a replacement fuse.
- Close the fuse compartment.
Troubleshooting
| Problem | Solution |
| The product cannot be switched on. | • Check if the power plug is connected to a suitable power outlet. Check if the power outlet is powered. • Clear any air obstructions. • Check the fuse in the power plug. Replace if blown. |
| The product vibrates. | • Place the product on a level surface. • Clean the blades. |
Specifications
| Voltage/frequency: | 120 V—, 60 Hz |
| Power consumption: | 55 W |
| Product dimensions (W x H x D): | approx. 7.68 x 14.76 x 14.17 inch (195 x 375 x 360 mm) |
| Product net weight: | approx. 4.7 lbs (2.1 kg) |
| Rated working ambient temperature: | 32-104 °F (0-40 °C) |
| Protection class: | Class II |
Feedback and Help
We would love to hear your feedback. To ensure we are providing the best customer experience possible, please consider writing a customer review. Scan the QR Code below with your phone camera or QR reader:
https://www.amazon.com/review/review-your-purchases/listing/?ref=187625_UM_CR
If you need help with your Amazon Basics product, please use the website or number below.
amazon.com/gp/help/customer/contact-us
0 +1 877-485-0385
amazon.com/Amazon Basics
MADE IN CHINA
V2-10/21
