Iris Ohyama Pcf-mkm18 Circulator Fan User Manual

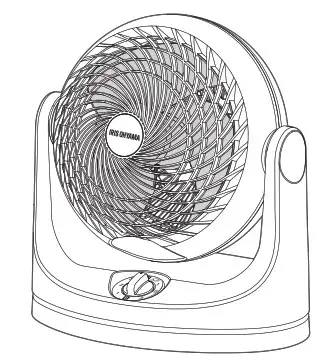

Circulator Fan
PCF-MKM18
User Manual

Safety precautions

In order to avoid injuries to you and others as well as unnecessary damage to properties, be sure to read and follow the below ‘Safety Precautions” carefully. Here. Safety Precautions are described in two aspects: Warnings and Notices. Warnings and Notices are important contents for safe use. Be sure to follow them.

Explanation of warnings and notices sign

	Represents contents to be noted
	Represents contents to be prohibited
	Represents contents that must be performed

Warning

Precautions on a faulty operation may cause death or serious injury.

• Do not disassemble, maintain and transform, so as not to cause fire, electric shock, injury and other accidents Please consult the shop where you have purchased or IRIS OHYAMA customer service center for maintenance.
• In case of exception and failure, please immediately stop using, turn off the power and disconnect the power plug from the power socket, so as not to cause smoking, fire, and electric shock

Exception examples

• The smell of burning, abnormal sound in operation
• Abnormal heating of power plug and power cord
• Intermittent power on when moving the power cord
• Frequent stop in operation
• Numb feeling of electric shock when touching

Please immediately stop using, consult the shop where you have purchased or call the IRIS OHYAMA customer service center.

• Do not use spray (insecticide, hair spray, lubricating oil, etc.)
• Do not use this product near kerosene, Prthbeed gasoline, thinner and other flammable liquids as well as objects with sparks and combustible dust, so as not to cause fire

  Correct use power plug and power cord

• Please regularly clean dust on the power plug
  So as not to cause fire and electric shock due to poor insulation resulting from dust accumulation.
• Be sure to firmly
  Insert the power plug Into the socket So as not to cause fire and electric shock due to short circuit.
• If the power cord Is damaged
  It must be replaced by the professionals 0 the manufacturers ‘minknom department or the similar department in order to avoid danger.

Be sure to disconnect the power plug before product cleaning
Maintenance, inspection, and movement, so as not to cause UM ibli electric shock and injury. e

Do not Insert and disconnect the power plug by wet Chand So as not to cause electric shock and injury.

• Do not use a power supply beyond 220-240V-So as not to cause electric shock and fire.
• Do not use a damaged power cord
  Portable Power plug and loose socket, so as not to cause electric shock and fire due to short circuits.
• Do not break the power cord
• Do not damage
  Process and forcibly bend the power cord or place the heavy object on the power cord. so as not to cause fire and electric shock due to a broken power cord.
• Do not power on In the bundling state of the power cord
  So as not to cause a fire.
• Do not pull the power cord when moving
  So as not to cause electric shock and fire.

• Do not point this product at the furnace and other heating equipment So as not to cause spark flying. carbon monoxide poisoning and Prohdted fire resulting from lilosiolete combustion of the furnace. etc.
• Do not use this product outdoors
• Do not use this product around the curtain or in the places blocking air circulation
• Do not use this product when it is covered with cloth, paper or plastic bag

• Do not use this product in places full of dust and metal powder So as not to cause ignition and fire.
• Do not use this product near a water source, bathroom and another damp place
• Do not spray water on the body or immerse the body into water So as not to cause fire and electric shock.
  * This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety *Children should be supervised to ensure that they do not play with the appliance •If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

Warning
Precautions on a faulty operation that may cause injury or product damage.

• Do not blow against persons
  The air circulating fan compared to a normal fan has relatively high air power. Do not blow against children and the aged to avoid affecting health.
• Do not blow against pets and plants to avoid affecting pet’s health and affect plant growth

• Do not use this product when the fan guard and blades are not installed
  So as to avoid injury, electric shock and fire caused by motor rotation.

•  Please place this product on the flat surface
  So as not to cause injury or product failure due to drop.
• Do not apply strong force to this product
  So as not to cause electric shock, failure or damage.

• Do not ride or lean on this product
  So as not to cause electric shock and injury.
•  Be sure to hold the power plug part when disconnecting it
  Do not pull the power cord, so as not to cause electric shock, short circuit, and fire due to damage to the power cord.
• Be sure to disconnect the power plug if this product is not used
  So as not to cause electric shock and fire due to insulation aging.

• Do not use this product near the curtain etc.
  So as to avoid damaging surrounding articles and causing injury.
• Do not drag this product
  So as not to scratch the floor.

Precautions on using places

• Do not place It near direct sunlight places, electric heater
  Furnace or refrigeration equipment, to avoid product distortion, discoloration and operation exception.
• Keep this product away from TV Radio and other devices, to avoid electromagnetic interference.

Using places

Please place this product on the flat surface or ground with any obstacles.

1. When using cooling equipment
   Turn the circulating fan back to the air conditioner, so that the cool air is fully circulated from top to bottom.
2. When using heating equipment
   Blow towards the air conditioning direction or blow downwards from the high furniture, so that the hot air at the upper part is circulated.
3. When circulating Blow towards the ceiling, ro that air is circulating in the room.
4. When ventilating
   Exhaust indoor air while sucking outdoor air.
5. Circulation in two rooms
   Circulates air in two connected rooms.

Part name

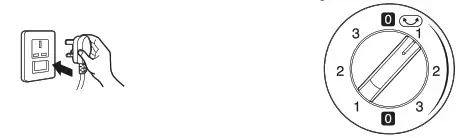

Operation method

•  Insert the power plug into the socket
  • Be sure to insert the power plug into the socket firmly.

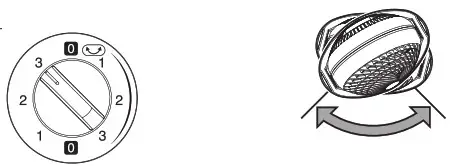

• Swing head
  Left and right head swing
  • Turn the power switch to the swing head direction.

• Start running
  • Turn the power switch to select the required air force.

• Stop running
  • Turn the power switch to 0.

• Do not manually adjust the left and right swinging angle; make sure to use the head swing switch to swing the head
• Stop to adjust the wind direction.
  Upper and lower head swing (manually)
• The PCF-MKM18 can be adjusted in 7 positions from -20° to 90°.
• The PCF-MKM15 can be adjusted in 6 positions from -22.5° to 90°.

Cleaning and maintenance

Warning

Please regularly clean, so as not to cause failure due to dust accumulation.

• Be sure to turn off the power and disconnect the power plug from the socket before cleaning.
• Clean and maintain when the motor is fully cooled, as it may keep high temperature after use.
• Do not wipe this product with thinner, ethyl alcohol, volatile oil, alkaline detergent, bleaching agent, etc., so as to avoid discoloration, distortion, deterioration, and surface breakage or failure.

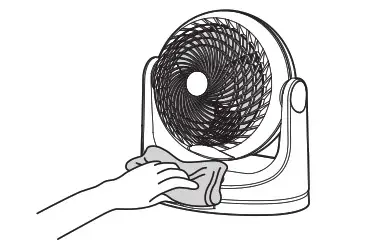

Cleaning

• Please wipe with a soft rag. When it is not easy to clean, repeatedly wipe with a rag dipped with neutral detergent after the rag is fully wrung.

Storage method

• When the circulating fan is not used for a long time, please pack it in the plastic bag, and store it in a cool, ventilated, and dry place.

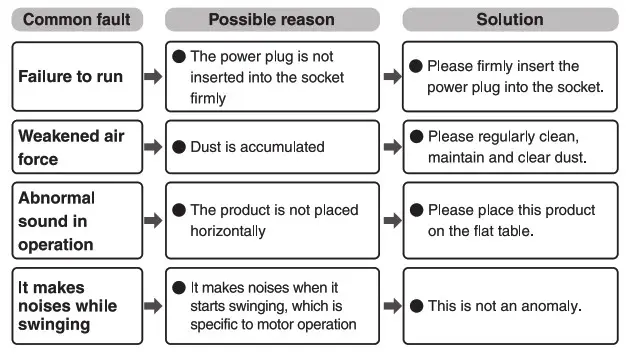

Troubleshooting

Before getting the product repaired, please carefully read this operating manual, and inspect whether the malfunction is caused by the following reasons.

If the fault cannot be rectified yet
Please consult the shop where you have purchased it or call the IRIS OHYAMA customer service center.

Warning

• Do not disassemble, repair, and transform this product at all.

About long-term use

When this product is used for a long time, malfunction may be caused by the aging of interior components due to the effects of high temperature, moisture, dust, etc. If the following cases occur In use, turn off the power, disconnect the power plug, and contact the shop where you have purchased.

• The fan blades do not rotate when the switch Is turned on.
• An abnormal sound is made when the fan blades rotate.
• The rotation frequency of the fan blades is Irregular.
• The power cord is broken, bent or aged.
• The fan blades suddenly rotate or stop rotating when the power cord is touched.
• There is the smell of burning.

Warning

There may be various reasons to have bad effects on the product during use, resulting in product failure or use deterioration. Be sure to immediately stop using In event of the above exceptions, and consult the shop where you have purchased or call IRIS OHYAMA customer service center.

X The product specification is subject to change without notice.
X The applicable floor area is the approximate value. This can differ depending on the room temperature, environment, and structure of the building.

Warranty and after-sales service

Be sure to carefully read the following contents.

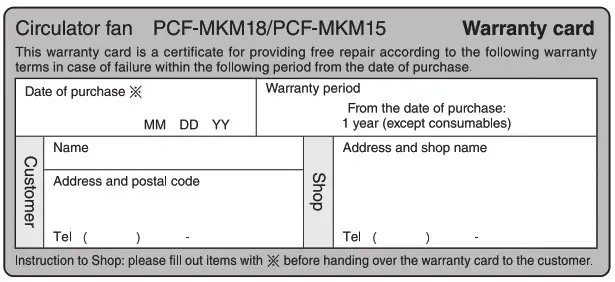

• Warranty card
  Be sure to get the warranty card from the shop where you purchase, and confirm that the relevant items have been filled out. If the warranty card cannot be shown within the warranty period, the maintenance cost will be paid. So please properly keep it.
• Within the warranty period
  Within the warranty period one year from the date of purchase. The company will maintain for free according to Warranty Terms if a failure occurs.
• Beyond the warranty period
  Please consult the shop where you purchase. It is necessary to pay the relevant maintenance cost.
•  About the warranty period for components
  The warranty period for the important components of the product shall be one year after the company suspends production.
• About after-sales service
  For other after-sales services not mentioned here, please consult the shop where you purchase.

Carry-in warranty terms

1. This carry-in warranty starts on the date of purchase and expires in ONE (1) year to cover manufacturing defects caused during a normal use according to the operating manual as well as the precautions stated on the product and packaging.
2. To claim the carry-in warranty service, customers should bring the complete unit and accessories to our service center in Singapore and Malaysia during the operational hours together with this warranty card and dated original receipt/invoice.
3. If the product is confirmed to be defective by the distributor’s authorized personnel, the company at its own discretion may repair or replace the complete or part of the product at no cost.
4. Carry-in Warranty claim will be invalid and repair cost shall be paid by the customer in the following situations.
   (a) Failure and damage caused by improper use and unauthorized maintenance.
   (b) Failure and damage caused by careless drop after purchase.
   (c) Failure and damage caused by fire, earthquake or other natural disasters.
   (d) Failure and damage caused when the product is used for commercial purposes such as used in an industry for a long time, or in a vehicle or a ship.
   (e) Failure and damage caused by handling, transportation, and other processes.
   (f) Failure to show the warranty card and dated original receipt/invoice.
   (g) Date of purchase, customer name, shop name not indicated on the warranty card or altered.
5. The carry-in warranty services are applicable only for products purchased in Singapore and Malaysia.

Brand Principal: IRIS Ohyama Inc.,
Address: 2-12-1, Itsutsubashi, Aoba-Ku, Sendalshi, Miyagiken, Japan
Manufacturer: IRIS HOME PRODUCTS (GUANGZHOU) CO., LTD.
Address: 1 TONGJI ROAD, HUANGPU DISTRICT, GUANGZHOU GUANGDONG P.R.CHINA
