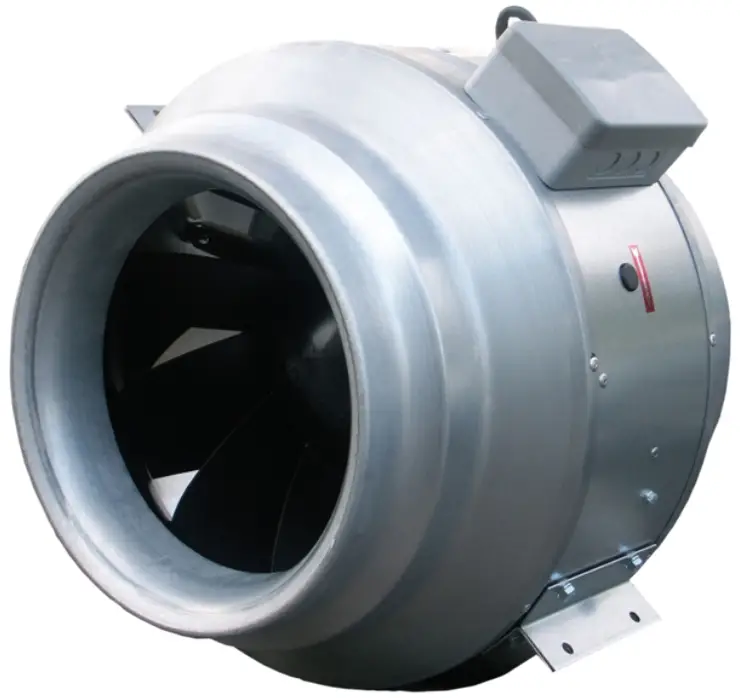

systemair KD 400 XL1 Circular Dust Fans
Description
- High efficiency – low noise
- Speed-controllable
- Integral thermal contacts
- Can be installed in any position
- Maintenance-free and reliable
The KD series have external rotor motors with a new type of mixed flow impeller which reduces the external dimensions of the fans. These fans have a high capacity in relation to their compact design. Brackets are supplied with the fans to make installation easier. The FK mounting clamp facilitates easy installation and removal and prevents the transfer of vibrations to the duct. To protect the motor from overheating the fan has integral thermal contacts with leads to a motor protection device. The casing is manufactured from galvanised sheet steel.
Technical parameters
| Nominal data | ||
| Voltage | 230 | V |
| Frequency | 50 | Hz |
| Phase | 1 | ~ |
| Input power (P1) | 855 | W |
| Current | 4,24 | A |
| Max. airflow | 1,62 | m³/s |
| R.p.m. | 1298 | r.p.m. |
| Capacitor | 16 | µF |
| Weight | 26,5 | kg |
| Temperature data | ||
| Max. temperature of transported air | 64,9 | °C |
| Max. temperature of transported air when speed-controlled | 64,9 | °C |
| Sound data | ||
| Sound pressure level at 3 m | 63,5 | dB(A) |
| Protection / Classification | ||
| Insulation class | F | |
| Enclosure class, motor | IP54 | |

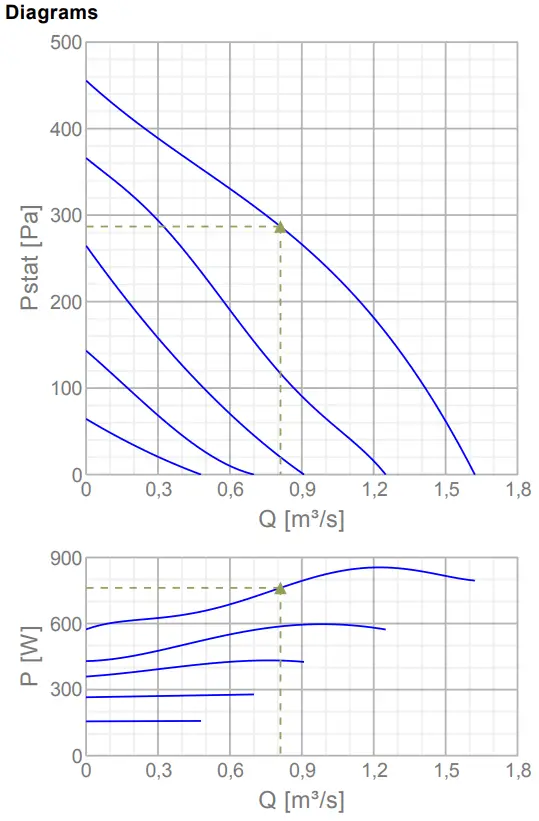

Diagrams
Max efficiency
| Hydraulic data | ||
| Working air flow | 0,811 | m³/s |
| Working static pressure | 287 | Pa |
| Power | 762 | W |
| Speed | 1329 | r.p.m. |
| Current | 3,79 | A |
| SFP | 0,939 | W/(l/s) |
| Voltage | 230 | V |
| Sound power level | 63 | 125 | 250 | 500 | 1k | 2k | 4k | 8k | Tot | |
| Inlet | dB(A) | 55 | 79 | 78 | 77 | 71 | 68 | 66 | 58 | 83 |
| Outlet | dB(A) | 54 | 79 | 80 | 79 | 75 | 71 | 69 | 60 | 85 |
| Surrounding | dB(A) | 21 | 62 | 64 | 68 | 59 | 54 | 52 | 41 | 70 |

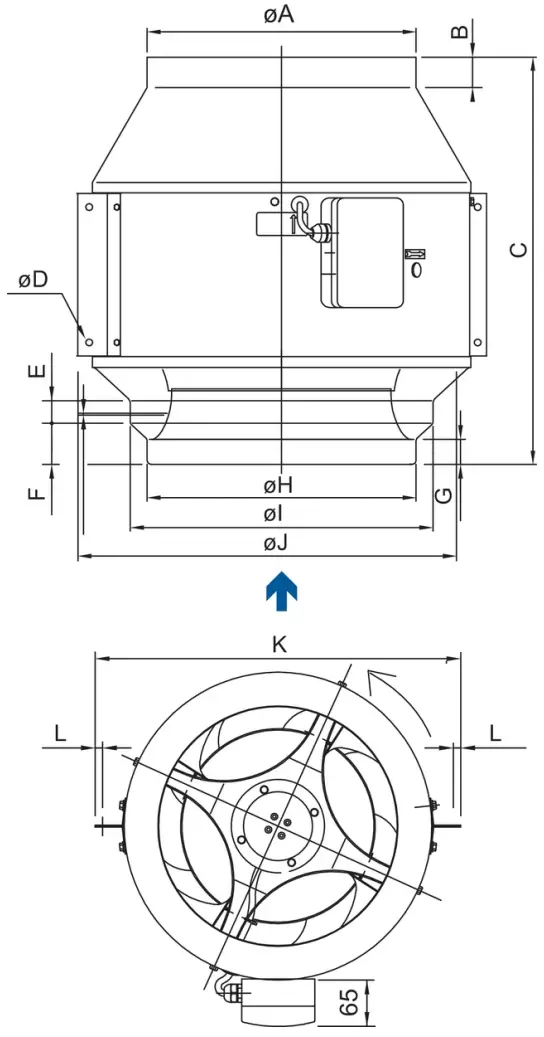

Dimensions
| øA | B C | øD (x4) | E F G øH | øI | øJ | K | L | |
| KD 400 M | 400 | 40 480 | 10 | 38 59 38 355 | 400 | 503 | 590 | 11 |
| KD 400 XL | 400 | 44 602 | 12 | 33 61 37 400 | 450 | 560 | 662 | 18,5 |
| KD 450 M | 450 | 44 559 | 12 | 33 61 37 400 | 450 | 560 | 662 | 18,5 |
| KD 450 XL | 450 | 46 686 | 12 | 45 76 50 450 | 500 | 660 | 812 | 18,5 |
| KD 500 M | 500 | 46 643 | 12 | 45 76 50 450 | 500 | 660 | 812 | 18,5 |
Wiring
Accessories
Electric accessories
- REU 5 Speed control (5006)
- RTRE 5 Speed control (5010)
- REPT 6 Digital regulator (5698)
- RT 0-30 Room Thermostat (5151)
- S-ET 10 Motor Protection (5154)
- S-ET 10E Motor Protection (5155)
- CO2RT-R-D Transmitter (6993)
- Presence detector/IR24-P (6995)
- STL 5 Speed controller (84271)
- REV-5POL/05 ON/OFF (33979)
- FRQS-E-6A (37419)
- FRQ5S-E-6A (37421)
- DTV500A (96807)
Accessories
- CB 400-9,0 400V/3 Duct heater (5392)
- CB 400-12,0 400V/3 Duct heater (5393)
- CBM 400-9,0 400V/3 Duct heater (5487)
- VBF 400 Water heating battery (1736)
- CWK 400-3-2,5 Duct cooler,circ (30026)
- VBC 400-2 Water heating batt (5462)
- LDC 400-900 Silencer (5198)
- FFR 400 Filter cassette (1783)
- FGR 400 Filter cassette (1823)
- FK 400 Fast clamp (1615)
- VKK-400 Back draft damper (1629)
- SG 400 Protection guard (5613)
- VK-40 Louvre shutter (5643)
- RSK-400 Back draft dmp. (9973)
- VBC 400-3 Water heating batt (9845)
- CB 400-6,0 400V/2 Duct heater (5391)
Documentation
132780_Fans_Instructions_Outside_EU_A002.pdf (1 006,63kB)- KD 400XL1_3.dxf (187,99kB)
132780_Fans_Instructions_Outside_EU_A002.pdf (1 006,63kB)
KD 400XL1_3.dxf (187,99kB)Specification text
KD 400XL1 Circular duct fan DN 400, 230V/50Hz, 1~, galv. steel sheet Centrifugal circular duct fan designed for easy and direct installation in ducts. Casing is manufactured from folded and galvanised sheet steel. Free-running diagonal, backward curved mixed flow impeller made of composite material. Balancing made to G 6.3, motor compl. with impeller statically and dynamically balanced in two planes acc. to DIN ISO 1940 T.1. High efficiency and low noise level. Voltage controllable external rotor motor (IP44), maintenance-free, the motor is placed inside the air flow for cooling.
Integral thermal contacts acc. to EN 60335-2-80 with leads to a motor protection device, speed-controlled via a transformer. Terminal box (IP55) on the casing. Pre-mounted mounting brackets for easy installation. Installation in any mounting position. For indoor installation. PRODUCT:
SYSTEMAIR TYPE: KD 400XL1 Item no. 1301
Name: KD 400 XL1** | Item no.: 93290 | Version: 50 Hz
Document type: Product card | Document date: 2019-07-16 | Generated by: Online catalogue
