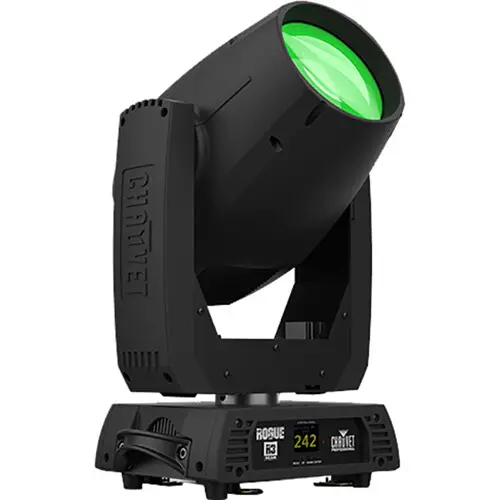

CHAUVET PROFESSIONAL Rogue R3 Beam 30W Moving Head Spot Light
About This Guide
The Rogue R3 Beam Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- DO NOT open this product. It contains no user-serviceable parts.
- DO NOT look at the light source when the product is on.
- DO NOT leave any flammable material within 8 in (20 cm) of this product while operating or connected to power.
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (IP20).
- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product’s housing may be hot when lights are operating.
- USE a safety cable when mounting this product overhead.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket or the handles to carry this product. Do not carry by the moving head.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 26.2 ft (8 m) is not expected.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced with a special cable or cord exclusively available from the manufacturer or its service agent.
- The light source contained in this luminaire shall only be replaced by the manufacturer, its service agent, or a similarly qualified person.
- The luminaire is intended for professional use only.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
- Rogue R3 Beam
- Neutrik powerCON® power cord
- 2 Omega brackets with mounting hardware
- Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
It is possible to link up to 3 Rogue R3 Beam products at 120 V, 6 products at 208 V, or 7 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately from Chauvet.
AC Plug
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live | Black | Brown | Yellow/Brass |
| AC Neutral | White | Blue | Silver |
| AC Ground | Green/Yellow | Green/Yellow | Green |
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it..
Replacing the Fuse
- Disconnect the product from power.
- Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
- Remove blown fuse and replace with a good fuse of the same type and rating.
- Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Rogue R3 Beam will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available at www.chauvetprofessional.com.
DMX Connection
The Rogue R3 Beam uses a 3- or 5-pin DMX data connection for its DMX personalities: 16CH and 19CH. See the User Manual for information about connecting and configuring the product for DMX operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer, as not all DMX controllers have this capability. The Rogue R3 Beam supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.
Mounting Diagram
Control Panel Description
| Button | Function |
| <MENU> | Exits from the current menu or function |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
| <UP> | Navigates upwards through the menu list and increases the numeric value when in a function |
| <DOWN> | Navigates downwards through the menu list and decreases the numeric value when in a function |
Menu Map
Refer for the Rogue R3 Beam product page on www.chauvetprofessional.com for the latest menu map.
| Main Level | Programming Levels | Description | ||||||||||
| Address | 001–512 | Sets the starting address | ||||||||||
| Run Mode | DMX | 16CH | Selects the DMX personality | |||||||||
| 19CH | ||||||||||||
| Auto Test | Auto test all functions | |||||||||||
| Manual Test | Pan | 000–255 | Manually control and test all settings through the control panel | |||||||||
| Pan Fine | ||||||||||||
| Tilt | ||||||||||||
| Tilt Fine | ||||||||||||
| P/T Speed | ||||||||||||
| Dimmer | ||||||||||||
| Dimmer Fine | ||||||||||||
| Shutter | ||||||||||||
| Color | ||||||||||||
| Gobo | ||||||||||||
| Prism1 | ||||||||||||
| Prism1 Rot | ||||||||||||
| Prism2 | ||||||||||||
| Prism2 Rot | ||||||||||||
| Frost | ||||||||||||
| Focus | ||||||||||||
| P/T Macro | ||||||||||||
| P/T Ma. Speed | ||||||||||||
| Special Function | ||||||||||||
|
Setup | Pan Reverse | NO | Normal pan | |||||||||
| YES | Reversed pan | |||||||||||
| Tilt Reverse | NO | Normal tilt | ||||||||||
| YES | Reversed tilt | |||||||||||
| Screen Reverse | NO | Normal screen display | ||||||||||
| YES | Inverted screen display | |||||||||||
| Pan Angle | 540 | 540° pan range | ||||||||||
| 360 | 360° pan range | |||||||||||
| 180 | 180° pan range | |||||||||||
| Tilt Angle | 270 | 270° tilt range | ||||||||||
| 180 | 180° tilt range | |||||||||||
| 90 | 90° tilt range | |||||||||||
| BL. O. P/T Move | YES | Blackout while panning/tilting | ||||||||||
| NO | Do not blackout while panning/tilting | |||||||||||
| BL. O. Color Move | YES | Blackout while color wheel is moving | ||||||||||
| NO | Do not blackout while color wheel is moving | |||||||||||
| BL. O. Gobo Move | YES | Blackout while gobo wheels are moving | ||||||||||
| NO | Do not blackout while gobo wheels are moving | |||||||||||
| Setup (cont.) | Lamp Settings | On/Off | ON | Turns lamp on/off | ||||||||
| OFF | ||||||||||||
| State/ Power On | ON | Defines the status of lamp when powering up product | ||||||||||
| OFF | ||||||||||||
| Off via DMX | YES | Turns off the unit via DMX controller | ||||||||||
| NO | ||||||||||||
| On if DMX On | YES | Turns lamp on when DMX signal is detected | ||||||||||
| NO | ||||||||||||
| Off if DMX Off | YES | Turns lamp off when DMX signal is lost | ||||||||||
| NO | ||||||||||||
| Ignition Delay | 000–255 | Selects duration of delay between product power on and lamp power on | ||||||||||
| Low Power Delay | 000–255 | Selects the duration of delay when shutter is closed and lamp enters lower power state | ||||||||||
| Reset Lamp Time | YES | Resets lamp timer to 0 | ||||||||||
| NO | Leaves lamp time unchanged | |||||||||||
| Maintenance Timer | Interval | 000–250 | Defines amount of hours between maintenance | |||||||||
| Remaining Time | NO | Shows amount of time remaining in maintenance cycle | ||||||||||
| RESET | Resets the time back to the beginning | |||||||||||
| Reset Function | Pan/Tilt |
YES/NO |
Reset individual functions or all functions from start-up | |||||||||
| Shutter/ Prism | ||||||||||||
| Color | ||||||||||||
| Gobo | ||||||||||||
| Frost/ Focus | ||||||||||||
| All | ||||||||||||
| Factory Settings | YES | Reset to factory default settings | ||||||||||
| NO | ||||||||||||
| Sys Info | System Information | Ver | V_ | Shows firmware version | ||||||||
| Running Mode | _ _ _ | Shows current running mode | ||||||||||
| DMX Address | _ _ _ | Shows current DMX address | ||||||||||
| Temperature | _ _ _ | Displays the product’s temperature in °C | ||||||||||
| Lamp On Time | _ _ _ _ | Displays the amount of time the lamp has been on (provided the counter has been reset upon installation of new lamp) | ||||||||||
| Remain Time | _ _ _ _ _ | Shows amount of time remaining in maintenance cycle | ||||||||||
| UID | _ _ _ _ _ | Shows product UID | ||||||||||
| Fan1 Speed | _ _ _ _ _ | Shows speed of Fan 1 | ||||||||||
| Fan2 Speed | _ _ _ _ _ | Shows speed of Fan 2 | ||||||||||
DMX Values 19CH
| Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000 255 | 0–100% |
| 2 | Pan fine | 000 255 | Fine control (16-bit) |
| 3 | Tilt | 000 255 | 0–100% |
| 4 | Tilt fine | 000 255 | Fine control (16-bit) |
| 5 | Pan/tilt speed | 000 255 | Fast to slow |
| 6 | Dimmer | 000 255 | 0–100% |
| 7 | Dimmer fine | 000 255 | Fine control (16-bit) |
| 000 007 | Closed | ||
| 008 015 | Open | ||
| 016 131 | Synchronized strobe, slow to fast | ||
| 8 | Strobe | 132 167 168 203 | Fast close, slow open (slow to fast) Slow close, fast open (slow to fast) |
| 204 239 | Pulse strobe, slow to fast | ||
| 240 247 | Random strobe, slow to fast | ||
| 248 255 | Open | ||
| 000 004 | Open | ||
| 005 008 | Red | ||
| 009 012 | Orange | ||
| 013 016 | Cyan | ||
| 017 020 | Light green | ||
| 021 024 | Light yellow | ||
| 025 028 | Lavender | ||
| 029 032 | Pink | ||
| 033 036 | Yellow | ||
| 9 | Color wheel | 037 040 | Magenta |
| 041 044 | Light blue | ||
| 045 048 | Amber | ||
| 049 052 | CTO 5600K | ||
| 053 056 | CTO 6500K | ||
| 057 060 | UV | ||
| 061 127 | Split colors | ||
| 128 189 | Clockwise color scroll, fast to slow | ||
| 190 193 | Stop | ||
| 194 255 | Counterclockwise color scroll, slow to fast | ||
| Channel | Function | Value | Percent/Setting |
| 000 003 | Open | ||
| 004 006 | Gobo 1 | ||
| 007 009 | Gobo 2 | ||
| 010 012 | Gobo 3 | ||
| 013 015 | Gobo 4 | ||
| 016 018 | Gobo 5 | ||
| 019 021 | Gobo 6 | ||
| 022 024 | Gobo 7 | ||
| 025 027 | Gobo 8 | ||
| 028 030 | Gobo 9 | ||
| 031 033 | Gobo 10 | ||
| 034 036 | Gobo 11 | ||
| 037 039 | Gobo 12 | ||
| 040 042 | Gobo 13 | ||
| 043 045 | Gobo 14 | ||
| 046 048 | Gobo 15 | ||
| 049 051 | Gobo 16 | ||
| 052 055 | Gobo 17 | ||
| 056 059 | Open | ||
| 10 | Static gobo wheel | 060 063 | Gobo 1 shaking, slow to fast |
| 064 067 | Gobo 2 shaking, slow to fast | ||
| 068 071 | Gobo 3 shaking, slow to fast | ||
| 072 075 | Gobo 4 shaking, slow to fast | ||
| 076 079 | Gobo 5 shaking, slow to fast | ||
| 080 083 | Gobo 6 shaking, slow to fast | ||
| 084 087 | Gobo 7 shaking, slow to fast | ||
| 088 091 | Gobo 8 shaking, slow to fast | ||
| 092 095 | Gobo 9 shaking, slow to fast | ||
| 096 099 | Gobo 10 shaking, slow to fast | ||
| 100 103 | Gobo 11 shaking, slow to fast | ||
| 104 107 | Gobo 12 shaking, slow to fast | ||
| 108 111 | Gobo 13 shaking, slow to fast | ||
| 112 115 | Gobo 14 shaking, slow to fast | ||
| 116 119 | Gobo 15 shaking, slow to fast | ||
| 120 123 | Gobo 16 shaking, slow to fast | ||
| 124 127 | Gobo 17 shaking, slow to fast | ||
| 128 189 | Clockwise gobo scroll, fast to slow | ||
| 190 193 | Stop | ||
| 194 255 | Counterclockwise gobo scroll, slow to fast | ||
| 11 | Prism 1 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 12 | Prism 1 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 13 | Prism 2 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 14 | Prism 2 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 15 | Frost | 000 255 | 0–100% |
| 16 | Focus | 000 255 | 0–100% |
| Channel | Function | Value | Percent/Setting |
| 000 003 | Open | ||
| 004 006 | Gobo 1 | ||
| 007 009 | Gobo 2 | ||
| 010 012 | Gobo 3 | ||
| 013 015 | Gobo 4 | ||
| 016 018 | Gobo 5 | ||
| 019 021 | Gobo 6 | ||
| 022 024 | Gobo 7 | ||
| 025 027 | Gobo 8 | ||
| 028 030 | Gobo 9 | ||
| 031 033 | Gobo 10 | ||
| 034 036 | Gobo 11 | ||
| 037 039 | Gobo 12 | ||
| 040 042 | Gobo 13 | ||
| 043 045 | Gobo 14 | ||
| 046 048 | Gobo 15 | ||
| 049 051 | Gobo 16 | ||
| 052 055 | Gobo 17 | ||
| 056 059 | Open | ||
| 10 | Static gobo wheel | 060 063 | Gobo 1 shaking, slow to fast |
| 064 067 | Gobo 2 shaking, slow to fast | ||
| 068 071 | Gobo 3 shaking, slow to fast | ||
| 072 075 | Gobo 4 shaking, slow to fast | ||
| 076 079 | Gobo 5 shaking, slow to fast | ||
| 080 083 | Gobo 6 shaking, slow to fast | ||
| 084 087 | Gobo 7 shaking, slow to fast | ||
| 088 091 | Gobo 8 shaking, slow to fast | ||
| 092 095 | Gobo 9 shaking, slow to fast | ||
| 096 099 | Gobo 10 shaking, slow to fast | ||
| 100 103 | Gobo 11 shaking, slow to fast | ||
| 104 107 | Gobo 12 shaking, slow to fast | ||
| 108 111 | Gobo 13 shaking, slow to fast | ||
| 112 115 | Gobo 14 shaking, slow to fast | ||
| 116 119 | Gobo 15 shaking, slow to fast | ||
| 120 123 | Gobo 16 shaking, slow to fast | ||
| 124 127 | Gobo 17 shaking, slow to fast | ||
| 128 189 | Clockwise gobo scroll, fast to slow | ||
| 190 193 | Stop | ||
| 194 255 | Counterclockwise gobo scroll, slow to fast | ||
| 11 | Prism 1 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 12 | Prism 1 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 13 | Prism 2 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 14 | Prism 2 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 15 | Frost | 000 255 | 0–100% |
| 16 | Focus | 000 255 | 0–100% |
| 000 007 | No function | ||
| 008 015 | Effect 1 | ||
| 016 023 | Effect 2 | ||
| 024 031 | Effect 3 | ||
| 032 039 | Effect 4 | ||
| 040 047 | Effect 5 | ||
| 048 055 | Effect 6 | ||
| 056 063 | Effect 7 | ||
| 064 071 | Effect 8 | ||
| 072 079 | Effect 9 | ||
| 080 087 | Effect 10 | ||
| 088 095 | Effect 11 | ||
| 096 103 | Effect 12 | ||
| 104 111 | Effect 13 | ||
| 112 119 | Effect 14 | ||
| 17 | Movement macros | 120 127 128 135 | Effect 15 Effect 16 |
| 136 143 | Effect 17 | ||
| 144 151 | Effect 18 | ||
| 152 159 | Effect 19 | ||
| 160 167 | Effect 20 | ||
| 168 175 | Effect 21 | ||
| 176 183 | Effect 22 | ||
| 184 191 | Effect 23 | ||
| 192 199 | Effect 24 | ||
| 200 207 | Effect 25 | ||
| 208 215 | Effect 26 | ||
| 216 223 | Effect 27 | ||
| 224 231 | Effect 28 | ||
| 232 239 | Effect 29 | ||
| 240 247 | Effect 30 | ||
| 248 255 | Effect 31 | ||
| 18 | Movement macro speed | 000 255 | 0–100% |
| 000 069 | No function | ||
| 070 079 | Enable pan/tilt blackout | ||
| 080 089 | Disable pan/tilt blackout | ||
| 090 099 | Enable blackout while color wheel is moving | ||
| 100 109 | Disable color wheel blackout | ||
| 110 119 | Enable blackout while gobo wheels are moving | ||
| 120 129 | Disable gobo wheel blackout | ||
| 130 139 | Lamp on | ||
| 140 149 | Pan/tilt reset | ||
| 19 | Control | 150 159 | Color wheel reset |
| 160 169 | Gobo wheel reset | ||
| 170 179 | Shutter/prism reset | ||
| 180 189 | No function | ||
| 190 199 | Focus reset | ||
| 200 209 | All reset | ||
| 210 219 | Enable blackout all function during pan/tilt | ||
| 220 229 | Disable blackout all function during pan/tilt | ||
| 230 239 | Lamp off | ||
| 240 255 | No function | ||
16CH
| Channel | Function | Value | Percent/Setting |
| 1 | Pan | 000 255 | 0–100% |
| 2 | Pan fine | 000 255 | Fine control (16-bit) |
| 3 | Tilt | 000 255 | 0–100% |
| 4 | Tilt fine | 000 255 | Fine control (16-bit) |
| 5 | Pan/tilt speed | 000 255 | Fast to slow |
| 6 | Dimmer | 000 255 | 0–100% |
| 000 007 | Closed | ||
| 008 015 | Open | ||
| 016 131 | Synchronized strobe, slow to fast | ||
| 7 | Strobe | 132 167 168 203 | Fast close, slow open (slow to fast) Slow close, fast open (slow to fast) |
| 204 239 | Pulse strobe, slow to fast | ||
| 240 247 | Random strobe, slow to fast | ||
| 248 255 | Open | ||
| 000 004 | Open | ||
| 005 008 | Red | ||
| 009 012 | Orange | ||
| 013 016 | Cyan | ||
| 017 020 | Light green | ||
| 021 024 | Light yellow | ||
| 025 028 | Lavender | ||
| 029 032 | Pink | ||
| 033 036 | Yellow | ||
| 8 | Color wheel | 037 040 | Magenta |
| 041 044 | Light blue | ||
| 045 048 | Amber | ||
| 049 052 | CTO 5600K | ||
| 053 056 | CTO 6500K | ||
| 057 060 | UV | ||
| 061 127 | Split colors | ||
| 128 189 | Clockwise color scroll, fast to slow | ||
| 190 193 | Stop | ||
| 194 255 | Counterclockwise color scroll, slow to fast | ||
| 000 003 | Open | ||
| 004 006 | Gobo 1 | ||
| 007 009 | Gobo 2 | ||
| 010 012 | Gobo 3 | ||
| 013 015 | Gobo 4 | ||
| 016 018 | Gobo 5 | ||
| 019 021 | Gobo 6 | ||
| 022 024 | Gobo 7 | ||
| 025 027 | Gobo 8 | ||
| 028 030 | Gobo 9 | ||
| 031 033 | Gobo 10 | ||
| 034 036 | Gobo 11 | ||
| 037 039 | Gobo 12 | ||
| 040 042 | Gobo 13 | ||
| 043 045 | Gobo 14 | ||
| 046 048 | Gobo 15 | ||
| 049 051 | Gobo 16 | ||
| 052 055 | Gobo 17 | ||
| 056 059 | Open | ||
| 9 | Static gobo wheel | 060 063 | Gobo 1 shaking, slow to fast |
| 064 067 | Gobo 2 shaking, slow to fast | ||
| 068 071 | Gobo 3 shaking, slow to fast | ||
| 072 075 | Gobo 4 shaking, slow to fast | ||
| 076 079 | Gobo 5 shaking, slow to fast | ||
| 080 083 | Gobo 6 shaking, slow to fast | ||
| 084 087 | Gobo 7 shaking, slow to fast | ||
| 088 091 | Gobo 8 shaking, slow to fast | ||
| 092 095 | Gobo 9 shaking, slow to fast | ||
| 096 099 | Gobo 10 shaking, slow to fast | ||
| 100 103 | Gobo 11 shaking, slow to fast | ||
| 104 107 | Gobo 12 shaking, slow to fast | ||
| 108 111 | Gobo 13 shaking, slow to fast | ||
| 112 115 | Gobo 14 shaking, slow to fast | ||
| 116 119 | Gobo 15 shaking, slow to fast | ||
| 120 123 | Gobo 16 shaking, slow to fast | ||
| 124 127 | Gobo 17 shaking, slow to fast | ||
| 128 189 | Clockwise gobo scroll, fast to slow | ||
| 190 193 | Stop | ||
| 194 255 | Counterclockwise gobo scroll, slow to fast | ||
| 10 | Prism 1 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 11 | Prism 1 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 12 | Prism 2 | 000 004 005 255 | No function Prism index |
| 000 127 | Prism index | ||
| 13 | Prism 2 rotation | 128 189 190 193 | Clockwise rotation, fast to slow Stop |
| 194 255 | Counterclockwise rotation, slow to fast | ||
| 14 | Frost | 000 255 | 0–100% |
| 15 | Focus | 000 255 | 0–100% |
| 000 069 | No function | ||
| 070 079 | Enable pan/tilt blackout | ||
| 080 089 | Disable pan/tilt blackout | ||
| 090 099 | Enable blackout while color wheel is moving | ||
| 100 109 | Disable color wheel blackout | ||
| 110 119 | Enable blackout while gobo wheels are moving | ||
| 120 129 | Disable gobo wheel blackout | ||
| 130 139 | Lamp on | ||
| 140 149 | Pan/tilt reset | ||
| 16 | Control | 150 159 | Color wheel reset |
| 160 169 | Gobo wheel reset | ||
| 170 179 | Shutter/prism reset | ||
| 180 189 | No function | ||
| 190 199 | Focus reset | ||
| 200 209 | All reset | ||
| 210 219 | Enable blackout all function during pan/tilt | ||
| 220 229 | Disable blackout all function during pan/tilt | ||
| 230 239 | Lamp off | ||
| 240 255 | No function | ||
