CHAUVET PROFESSIONAL Rogue Outcast 3 Spot Compact IP65 LED Moving Head

About This Guide

The Rogue Outcast 3 Spot Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 16.4 ft (5 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.
DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
DO NOT look at the light source when the product is on.
CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
DO NOT leave any flammable material within 20 cm of this product while operating or connected to power.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
USE a safety cable when mounting this product overhead.
DO NOT submerge this product (IP65). Regular outdoor operation is fine.
Not for permanent outdoor installation in locations with extreme environmental conditions.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket to carry this product.
In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

Rogue Outcast 3 Spot
Seetronic Powerkon IP65 power cord
omega brackets with mounting hardware
Quick Reference Guide

AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking
It is possible to link up to 2 Rogue Outcast 3 Spot products at 100 V, 3 products at 120 V, 5 products at 208 V, 6 products at 230 V, or 6 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect the product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Rogue Outcast 3 Spot will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue Outcast 3 Spot uses a 5-pin DMX data connection for its DMX personalities: 20CH and 25CH. See the User
Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue Outcast 3 Spot supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least 2 mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

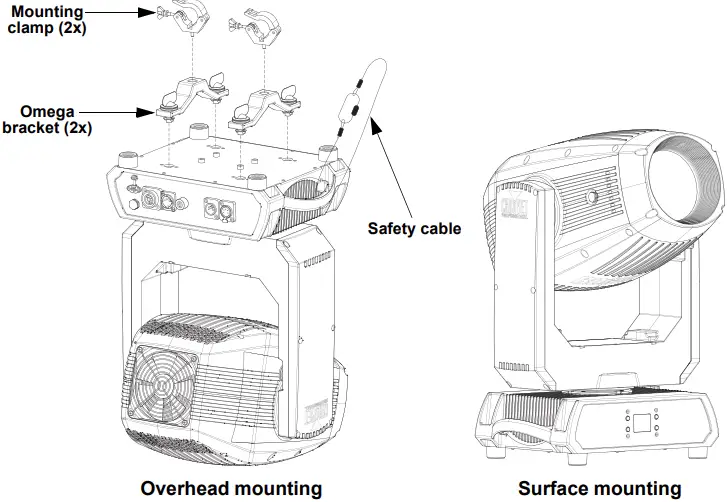

Mounting Diagram

Control Panel Description

Button Function

<MENU>: Exits from the current menu or function
<ENTER>: Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>: Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>: Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Refer to the Rogue Outcast 3 Spot product page on www.chauvetprofessional.com for the latest menu map

Main Level	Programming Levels			Description
Address	001–512			Sets the starting address
Run Mode	DMX	20CH		Selects the DMX personality
		25CH
	Auto Test			Auto test all functions
	Manual Test	Pan Pan Fine Tilt Tilt Fine P/T Speed Dimmer Dimmer Fine Shutter Virtual Shaking Color1 Color2 Gobo2 Gobo Gobo Rotate Gobo Index Gobo2 Focus Focus Fine Auto Focus Zoom Zoom Fine Prism Prism Rotate Iris Frost Special Function	0–255	Manually control and test all settings through the control panel
Setup	Pan Reverse	NO		Normal pan
		YES		Reversed pan
	Tilt Reverse	NO		Normal tilt
		YES		Reversed tilt
	Screen Reverse	NO		Normal screen display
		YES		Inverted screen display
		AUTO		Automatic screen orientation
	Pan Angle	540		540° pan range
		360		360° pan range
		180		180° pan range
	Tilt Angle	270		270° tilt range
		180		180° tilt range
		090		90° tilt range
	BL.O.P/T Move	NO		Enable/disable blackout while panning/ tilting
		YES

Main Level	Programming Levels			Description
Setup (cont.)	BL.O. ColorMove	NO		Enable/disable blackout while color wheel is moving
		YES
	BL.O. GoboMove	NO		Enable/disable blackout while gobo wheels are moving
		YES
	Backlight Timer	30S		Display turns off after 30 seconds
		1M		Display turns off after 1 minute
		5M		Display turns off after 5 minutes
		ON		Display stays on
	Swap XY	NO		Do not swap pan and tilt
		YES		Pan controls tilt, tilt controls pan
	Loss of Data	Hold		Holds last signal received
		Close		Blacks out fixture
	Fans	Auto		Fan speed set by product temperature
		ECO		Quiet mode
		Full		Fan speed set on high
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
		Linear2
	PWM Option	600Hz		Sets the PWM frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	USB Update	NO		Update firmware via USB C
		YES
	Reset	Pan/Tilt	NO YES	Reset individual functions or all functions from start-up
		Prism
		Color/Iris
		Gobo/Gobo2
		Frost
		All
	Factory Set	NO		Reset to factory default settings
		YES
Sys Info	Ver	V_		Shows firmware version
	Running Mode	_ _ _		Shows current running mode
	DMX Address	_ _ _		Shows current DMX address
	Temperature	_ _ _		Shows the product temperature in °C
	Fixture Hours	_ _ _ _ _		Shows time product has been on
	LED Hours	_ _ _ _ _		Shows time LED has been on
	UID	_ _ _ _ _ _ _ _		Shows UID information
	_Fan______ (x3)	_ _ _ _ _		Shows speeds of fans
	Base Fan1	_ _ _ _ _		Shows speed of base fan

DMX Values

20CH	25CH	Function	Value	Percent/Setting
1	1	Pan	000 ó 255	0–100%
2	2	Fine pan	000 ó 255	Fine control (16-bit)
3	3	Tilt	000 ó 255	0–100%
4	4	Fine tilt	000 ó 255	Fine control (16-bit)
5	5	Pan/tilt speed	000 ó 255	Fast to slow
6	6	Dimmer	000 ó 255	0–100%
–	7	Fine dimmer	000 ó 255	Fine control (16-bit)
			000 ó 003	Off
			004 ó 007	On
7	8	Strobe	008 ó 076 077 ó 145	Synchronized strobe, slow to fast Pulse strobe, slow to fast
			146 ó 215	Random strobe, slow to fast
			216 ó 255	On
			000 ó 001	No function
8	9	Virtual shaking	002 ó 128	Shaking effect, slow to fast
			129 ó 255	Fade effect, slow to fast
			000 ó 006	Open
			007 ó 013	Yellow
			014 ó 020	Light blue
			021 ó 027	Green
			028 ó 034	Red
9	10	Color wheel 1	034 ó 041 042 ó 048	Magenta Dark blue
			049 ó 059	Orange
			060 ó 187	Color wheel indexing
			188 ó 219	Color scroll, fast to slow
			220 ó 223	Stop
			224 ó 255	Reverse color scroll, slow to fast
			000 ó 006	Open
			007 ó 013	CTO 3200K
			014 ó 020	CTO 5600K
			021 ó 027	Green
			028 ó 034	UV
10	11	Color wheel 2	034 ó 041 042 ó 048	Orange Pink
			049 ó 059	Light blue
			060 ó 187	Color wheel indexing
			188 ó 219	Color scroll, fast to slow
			220 ó 223	Stop
			224 ó 255	Reverse color scroll, slow to fast

20CH	25CH	Function	Value	Percent/Setting

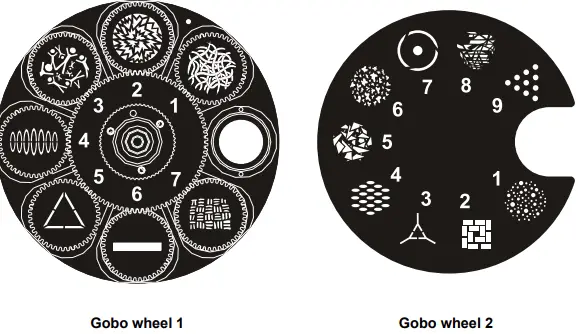

11	12	Gobo wheel 1 (see Gobo Wheels)	001 ó 007 008 ó 015 016 ó 023 024 ó 031 032 ó 039 040 ó 047 048 ó 055 056 ó 063 064 ó 071 072 ó 079 080 ó 087 088 ó 095 096 ó 103 104 ó 111 112 ó 119 120 ó 127 128 ó 191 192 ó 255	Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 7 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 1 shaking, slow to fast Open Gobo scroll, slow to fast Reverse gobo scroll, slow to fast
12	13	Gobo wheel 1 rotate	000 ó 063 064 ó 145 146 ó 149 150 ó 231 232 ó 255	Gobo index Rotation, fast to slow Stop Reverse rotation, slow to fast Alternating clockwise/counterclockwise rotation, short to long
–	14	Fine gobo rotation	000 ó 255	Fine control (16-bit)
13	15	Gobo wheel 2 (see Gobo Wheels)	000 ó 005 006 ó 011 012 ó 017 018 ó 023 024 ó 029 030 ó 035 036 ó 041 042 ó 047 048 ó 053 054 ó 063 064 ó 069 070 ó 075 076 ó 081 082 ó 087 088 ó 093 094 ó 099 100 ó 105 106 ó 111 112 ó 117 118 ó 127 128 ó 191 192 ó 255	Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8 Gobo 9 Gobo 9 shaking, slow to fast Gobo 8 shaking, slow to fast Gobo 7 shaking, slow to fast Gobo 6 shaking, slow to fast Gobo 5 shaking, slow to fast Gobo 4 shaking, slow to fast Gobo 3 shaking, slow to fast Gobo 2 shaking, slow to fast Gobo 1 shaking, slow to fast Open Gobo scroll, slow to fast Reverse gobo scroll, slow to fast
14	16	Focus	000 ó 255	0–100%

20CH	25CH	Function	Value	Percent/Setting
–	17	Fine focus	000 ó 255	Fine control (16-bit)
–	18	Auto focus	000 ó 010 011 ó 030 031 ó 050 051 ó 070 071 ó 090 091 ó 110 111 ó 130 131 ó 150 151 ó 170 171 ó 190 191 ó 210 211 ó 255	No function 0-5 meters 6 meters 7 meters 8 meters 9 meters 10 meters 12.5 meters 15 meters 17.5 meters 20-60 meters Auto detect distance
15	19	Zoom	000 ó 255	0–100%
–	20	Zoom fine	000 ó 255	Fine control (16-bit)
16	21	Prism	000 ó 004 005 ó 255	No function Prism insert
17	22	Prism rotate	000 ó 127 128 ó 189 190 ó 193 194 ó 255	Prism index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast
18	23	Iris	000 ó 063 064 ó 127 128 ó 191 192 ó 255	Big to small Auto change, slow to fast Slow open, fast close, slow to fast Fast open, slow close, slow to fast
19	24	Frost	000 ó 255	0–100%

20CH

25CH

Function

Value

Percent/Setting

Control

(3 second hold)

000 ó 007

008 ó 015

016 ó 023

024 ó 031

032 ó 039

040 ó 047

048 ó 055

056 ó 095

096 ó 103

104 ó 111

112 ó 119

120 ó 127

128 ó 135

136 ó 143

144 ó 151

152 ó 159

160 ó 167

168 ó 175

176 ó 183

184 ó 191

192 ó 199

200 ó 215

216 ó 255

No function

Blackout during pan/tilt

Blackout while color wheels are moving Blackout while gobo wheels are moving Blackout during pan/tilt/color wheel Blackout during pan/tilt/gobo wheels

Blackout during pan/tilt/color wheel/gobo wheels No function

Pan reset Tilt reset

Color wheels reset Gobo wheels reset No function

Prism reset No function All reset Iris reset Frost reset Zoom reset Fan ECO Fan Full Fan Auto

No function
