Chauvet Dj Spot 360x Ip Led Moving Head User Manual

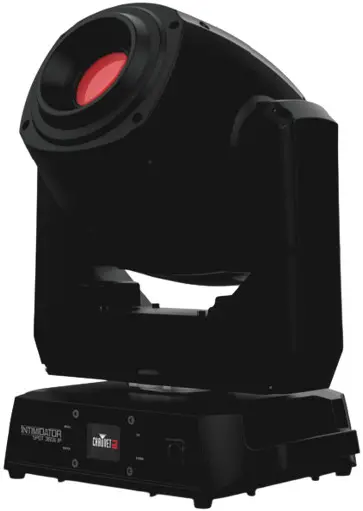

LED Moving Head
User Manual

Before You Begin

What Is Included

• Intimidator Spot 360X IP
• Hanging bracket
• Power cable
• Quick Reference Guide

Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate the claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions

Symbols

Symbol	Meaning
	Electrical warning. Not following these instructions may cause electrical damage to the product, accessories, or the user.
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.
	Useful information.

Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com.
Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.
©Copyright 2023 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and Intimidator Spot 360X IP are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

Safety Notes
These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• Not for permanent outdoor installation in locations with extreme environmental conditions.
  This includes, but is not limited to:
  – Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
  – Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
  – Locations that are prone to flooding or being buried in snow.
  – Other areas where the product will be subject to extreme radiation or caustic substances.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document.

Introduction

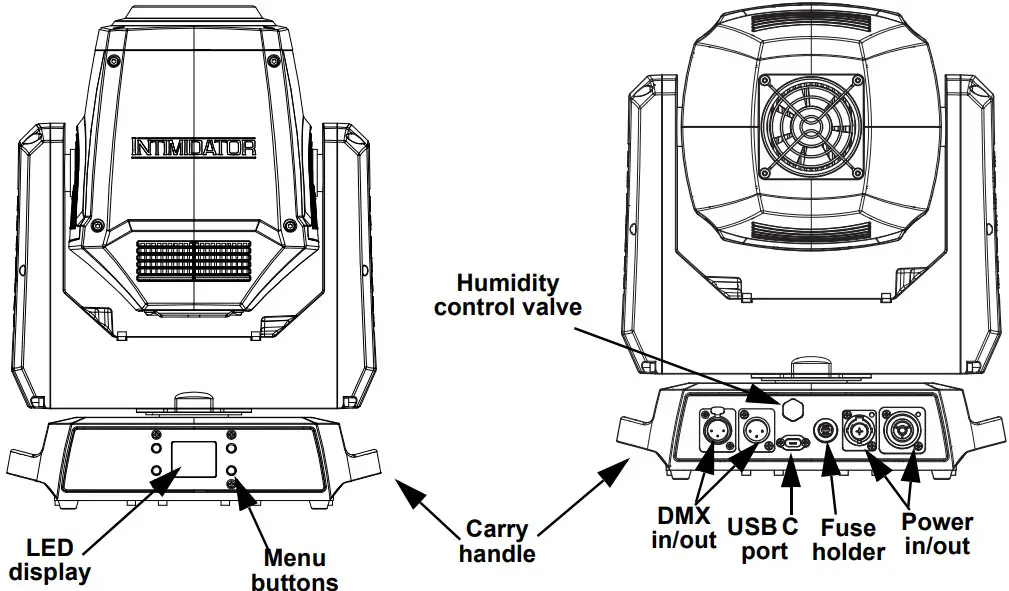

Product Overview WARNING! DO NOT plug anything other than a data connection into the USB C port. Doing so may cause damage to the product.

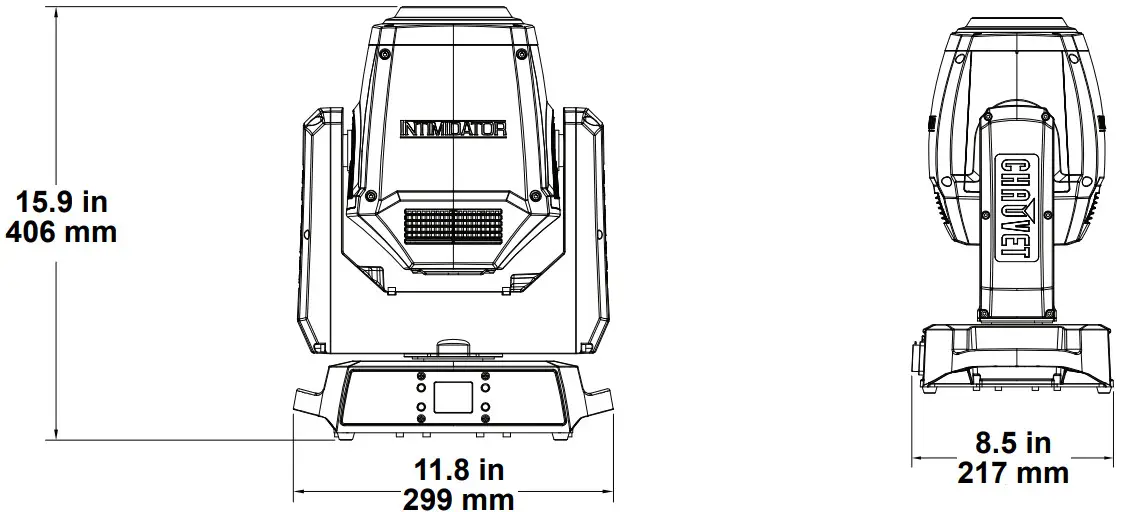

Product Dimensions

Setup

AC Power
The Intimidator Spot 360X IP has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. Screw the fuse holder cap back in place and reconnect power.

Disconnect the product from the power outlet before replacing the fuse.

Power Linking
The product provides power linking via the outlet located in the back of the product. See the diagram below for further explanation.
Power Linking Diagram It is possible to power link up to 5 Intimidator Spot 360X IP products on 120 VAC or up to 9 Intimidator Spot 360X IP products on 230 VAC.
The power linking diagram corresponds to the North American version of the product ONLY!
If using the product in other markets, consult with the local Chauvet distributor as power linking connectors and requirements may differ by country or region.

Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Intimidator Spot 360X IP may be mounted in any position; however, make sure adequate ventilation is provided around the product.
Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which the product is being mounted can support the product’s weight. (see the Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to reach.
• When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.

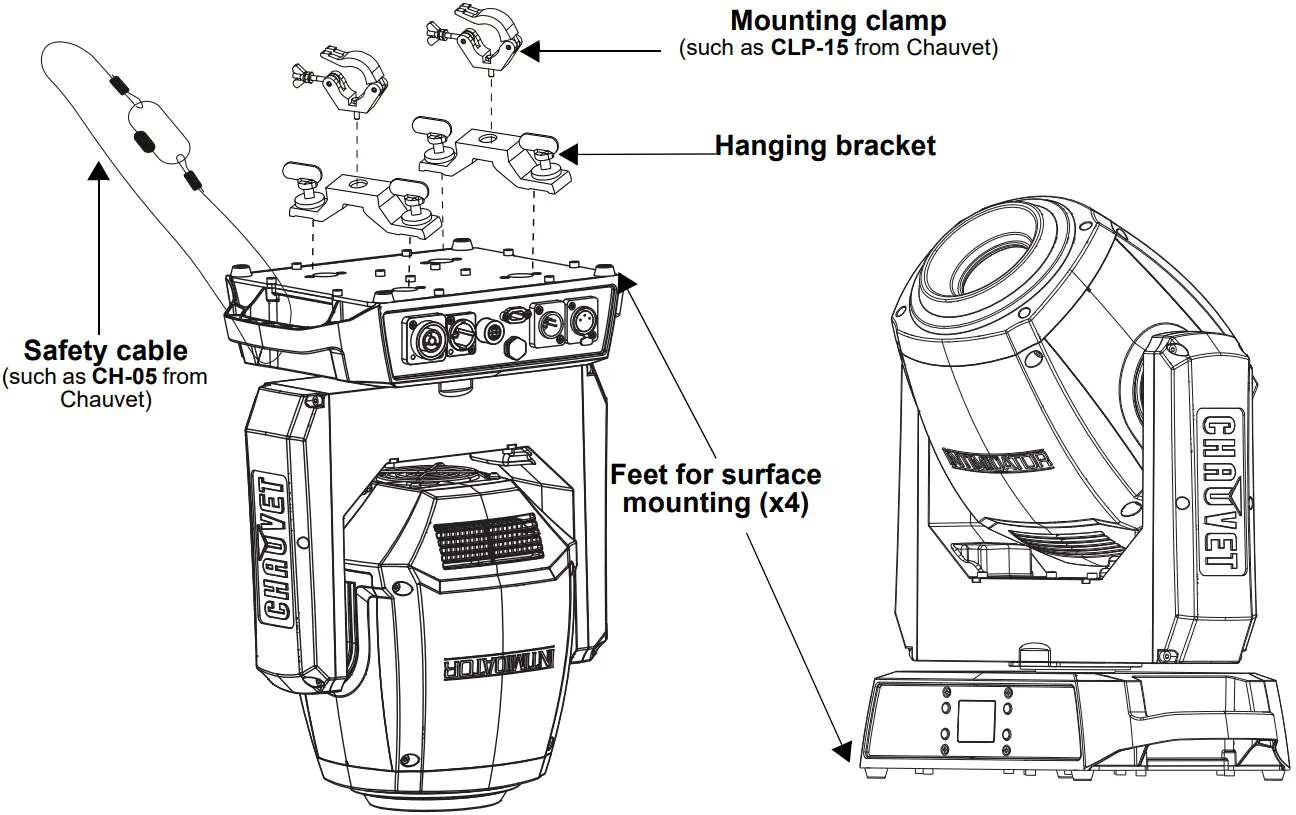

Mounting Diagram

Operation

Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel.

Menu Map
Refer to the Intimidator Spot 360X IP product page on www.chauvetdj.com for the latest menu map.

Configuration (DMX)
The Intimidator Spot 360X IP works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. If choosing a starting address that is too high, this could restrict the access to some of the product’s channels.
The Intimidator Spot 360X IP uses up to 14 DMX channels, which defines the highest recommended address to 499.
If not familiar with the DMX protocol, download the DMX Primer from www.chauvetdj.com.
To select the starting address, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Address.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select the starting address, from 001–512.
5. Press <ENTER>.

DMX Personalities
The Intimidator Spot 360X IP has two DMX personalities, a 14-channel personality, and a 08-channel personality.
To choose which DMX personality to use, follow the steps below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select DMX.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select the DMX personality, from 14CH or 08CH.
7. Press <ENTER>.

DMX Channel Assignments and Values 08CH/14CH

08CH	14CH	Function	Value	Percent/Setting
1	1	Pan	000 255	0–540°
–	2	Pan fine	000 255	Fine control of panning
2	3	Tilt	000 255	0–270°
–	4	Tilt fine	000 255	Fine control of tilting
–	5	Pan/tilt speed	000 255	Pan/Tilt speed, fast to slow
3	6	Color wheel	000 006	White
			007 013	Red
			014 020	Orange
			021 027	Yellow
			028 034	Green
			035 041	Blue
			042 048	CTO
			049 055	Cyan
			056 062	Magenta
			063 064	White
			065 189	Color indexing
			190 221	Color cycling rainbow, fast to slow
			222 223	Stop
			224 255	Reverse color cycling rainbow, slow to fast
4	7	Gobo wheel (see Gobos)	000 007	Open
			008 015	Gobo 1
			016 023	Gobo 2
			024 031	Gobo 3
			032 039	Gobo 4
			040 047	Gobo 5
			048 055	Gobo 6
			056 063	Gobo 7
			064 071	Gobo 7 shake, slow to fast
			072 079	Gobo 6 shake, slow to fast
			080 087	Gobo 5 shake, slow to fast
			088 095	Gobo 4 shake, slow to fast
			096  103	Gobo 3 shake, slow to fast
			104 111	Gobo 2 shake, slow to fast
			112 119	Gobo 1 shake, slow to fast
			120 127	Open
			128 189	Cycle effect, slow to fast
			190 193	Stop
			194 255	Reverse cycle effect, slow to fast
5	8	Gobo rotation	000 063	Gobo indexing
			064 145	Gobo rotation, slow to fast
			146 149	Stop
			150 231	Reverse gobo rotation, slow to fast
			232 255	Gobo bounce, short to long, slow to fast
6	9	Pris	000 003	No function
			004 006	3-facet prism
			007 065	Prism rotation, slow to fast
			066 123	Reverse prism rotation, slow to fast
			124 127	3-facet prism
			128 131	No function

08CH	14CH	Function	Value	Percent/Setting
6 (cont.)	9 (cont.)	Prism (cont.)	132 134	5-facet prism
			135 193	Prism rotation, slow to fast
			194 251	Reverse prism rotation, slow to fast
			252 255	5-facet prism
7	10	Focus	000 255	Focus
–	11	Dimmer	000 255	0–100%
8	12	Strobe	000 003	Off
			004 007	On
			008 076	Strobe, slow to fast
			077 145	Pulse strobe, slow to fast
			146 215	Random strobe, slow to fast
			216 255	On
–	13	Function	000 007	No function
			008 015	Blackout on pan/tilt movement
			016 023	Blackout on color wheel movement
			024 031	Blackout on gobo wheel movement
			032 039	Blackout on pan/tilt/color wheel movement
			040 047	Blackout on pan/tilt/gobo wheel movement
			048 055	Blackout on pan/tilt/color wheel/gobo wheel movement
			056 095	No function
			096 103	Pan reset
			104 111	Tilt reset
			112 119	Color wheel reset
			120 127	Gobo wheel reset
			128 135	No function
			136 143	Prism reset
			144 151	Focus reset
			152 159	All reset
			160 255	No function
–	14	Movement macros	000 007	No function
			008 023	Movement macro 1
			024 039	Movement macro 2
			040 055	Movement macro 3
			056 071	Movement macro 4
			072 087	Movement macro 5
			088 103	Movement macro 6
			104 119	Movement macro 7
			120 135	Movement macro 8
			136 151	Sound-active movement macro 1
			152 167	Sound-active movement macro 2
			168 183	Sound-active movement macro 3
			184 199	Sound-active movement macro 4
			200 215	Sound-active movement macro 5
			216 231	Sound-active movement macro 6
			232 247	Sound-active movement macro 7
			248 255	Sound-active movement macro 8

Configuration (Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

Automatic Programs
To run the Intimidator Spot 360X IP in automatic mode, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Auto.
5. Press <ENTER>.

Sound-Active Mode
To run the Intimidator Spot 360X IP in sound-active mode, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sound.
5. Press <ENTER>.

Sound Sensitivity
To set the sound sensitivity on the Intimidator Spot 360X IP, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sensitivity.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to increase or decrease the sound sensitivity, from 001–100.
7. Press <ENTER>.

The product will only respond to low frequencies of music (bass and drums).

Manual Mode
To operate the Intimidator Spot 360X IP manually through the menu, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Manual.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Pan, Tilt, Color, Gobo, Gobo Rotate, Prism, Focus, Dimmer, or Shutter.
7. Press <ENTER>.
8. Use <UP> or <DOWN> to increase or decrease the value of the selected function, from 000–255.
9. Press <ENTER>.
10. Repeat steps 6-9 until the product is set as desired.

Configuration (Settings)
Pan Reverse
To set the pan orientation on the Intimidator Spot 360X IP, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal pan orientation) or ON (reverse pan orientation).
7. Press <ENTER>.

Tilt Reverse
To set the tilt orientation on the Intimidator Spot 360X IP, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal tilt orientation) or ON (reverse tilt orientation).
7. Press <ENTER>.

Screen Reverse
To set the display orientation on the Intimidator Spot 360X IP, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Screen Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select AUTO, NO (normal display orientation) or YES (reverse display orientation).
7. Press <ENTER>.

Pan Angle
To set the pan angle range on the Intimidator Spot 360X IP, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°).
7. Press <ENTER>.

Tilt Angle
To set the tilt angle range on the Intimidator Spot 360X IP, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 260 (260°), 180 (180°), or 90 (90°).
7. Press <ENTER>.

Totem Mode
To activate the Totem mode, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Totem Mode.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal range of motion), UP (upward tilt range), or DOWN (downward tilt range).
7. Press <ENTER>.

USB Update
To enable or disable the USB update function, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select USB Update.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select NO (disabled) or YES (enabled).
7. Press <ENTER>.

RF Bind
To view the RF Bind on the Intimidator Spot 360X IP, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select RF BIND.
5. Press <ENTER>.
6. Follow the prompt on the screen.

Reset
To reset all functions on the Intimidator Spot 360X IP, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Reset.
5. Press <ENTER>.

Factory Reset
To restore the Intimidator Spot 360X IP to factory default settings, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Factory Set.
5. Press <ENTER>.

System Information
To view the system information on the Intimidator Spot 360X IP, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Sys Info.
3. Press <ENTER>

Master/Slave Mode
The Master/Slave mode allows a single Intimidator Spot 360X IP product (the “master”) to control the actions of one or more Intimidator Spot 360X IP products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in standalone mode, while the slave products will be set to operate in slave mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Slave.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Slave1, Slave2, Slave3, or Slave4.
   •Select Slave1 for 100% synchronized actions.
   •Select Slave2, Slave3, and/or Slave4 for delayed actions, creating a wave effect.
7. Press <ENTER>.
8. Connect the DMX input of the first slave product to the DMX output of the master product.
9. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
10. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode.
2. Make the master product the first product in the DMX daisy chain.
   • Configure all the slave products before connecting the master to the daisy chain.
   • Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.
   • Do not connect more than 31 slaves to the master.

Zero Adjust Mode
The Intimidator Spot 360X IP contains a passcode protected mode which allows the user to calibrate and adjust several of the product’s operating parameters.
In order to access this mode, do the following:

1. Press and hold <MENU> for at least 3 seconds.
2. Use <UP> (increases the selected value) and <DOWN> (selects the next value) to enter the passcode: 2323.
3. Press <ENTER>.

In this mode, the zero positions and levels for the following can be adjusted:

To adjust the zero position or level of one of these parameters, follow the instructions below:

1. Access the Zero Adjust mode.
2. Use <UP> or <DOWN> to select the parameter to be adjusted.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to increase or decrease the selected value, from 000–255.
5. Press <ENTER>.

Maintenance

Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean the lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.

Always dry the transparent surfaces carefully after cleaning them.
Do not spin the cooling fans using compressed air because it they could be damaged.

Technical Specifications

Dimensions and Weight

Note: Dimensions in inches are rounded.
Power

Light Source

Photometrics

Thermal

DMX

Ordering

Contact Us

Warranty & Returns
For warranty terms and conditions and return information, please visit our website.
For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Intimidator Spot 360X IP User Manual Rev. 2

References

• DJ Lighting Equipment, DJ Lights Setup | CHAUVET DJ
• DJ Lighting Equipment, DJ Lights Setup | CHAUVET DJ
• DJ Lighting Equipment, DJ Lights Setup | CHAUVET DJ
• Warranty Registration – Chauvet Lighting
• Chauvet Lighting
