Blizzard Hype 150 Moving Head Led Spot User Manual

Blizzard Hype 150 Moving Head LED Spot

Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2022

GETTING STARTED

What’s In The Box?

• HYPE™ 150 Moving Head
• Power Cord
• 2x Mounting Brackets
• This Lovely User Manual

Getting It Out Of The Box
Congratulations on purchasing the HYPE™ 150. Now that you’ve got your fixture, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch – Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for your local power supply. See the label on the fixture or refer to the fixture’s specifications chart for more information. A fixture’s listed current rating is its average current draw under normal conditions. Check the fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line voltage applied. Damage to your fixture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All fixtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com/support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. We reserve the right to update the existing, or create a new document to correct any errors or omissions. You can download the latest version of this document from www.blizzardpro.com.

Safety Instructions

Please read these instructions carefully. They include important information about the installation, usage and maintenance of this product.

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the de-cal or rear panel of the fixture.
• This product is intended for indoor use only.
• To prevent risk of fire or shock, do not expose fixture to rain or moisture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized tech-nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
  Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support.

MEET THE HYPE™ 150

Main Features

• 150W, 8500K white LED light source, 50,000 hours
• Pan: 540°/tilt: 270° (8-16 bit resolution)
• Optional pan/tilt invert function
• Smooth linear dimming & electronic focus (0%-100%)
• 16° beam angle
• Rotating gobo wheel with 6 gobos +open
• Static gobo wheel with 8 gobos +open
• Color wheel with 7 colors plus +open & split colors
• +5V USB to power SoC-It™ wireless unit (not included)
• Bidirectional rainbow color effects
• 3-facet circular prism with variable speed and direction
• Built-in auto & sound active programs
• 1-15Hz strobe effects
• 3/5-pin XLR male and female DMX in/out
• powerCON™ TRUE1 compatible power input/output

Control

• Protocol: USITT DMX-512, RDM
• DMX Channels: 12/15-channels
• 4-button control panel with colored LCD display
• Operating modes: DMX512, M/S, auto, and sound active

DMX Quick Reference (12/15-Channel Modes)

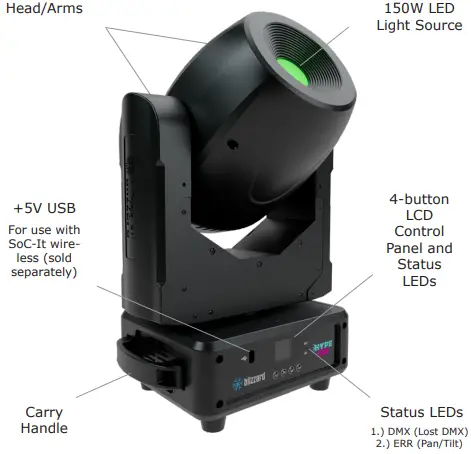

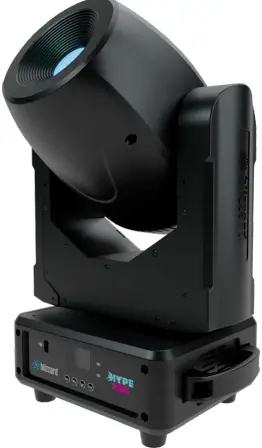

Figure 1: HYPE™ 150 Pin-Up Picture

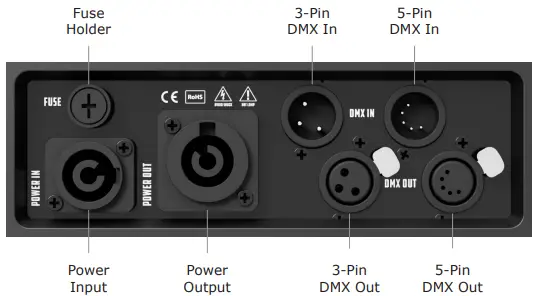

Figure 2: Rear Connections

SETUP

Before replacing a fuse, disconnect the power cord. ALWAYS replace with the same type and rating of fuse.

Fuse Replacement
Remove the fuse holder from of its housing. Then take out the damaged fuse from its holder and replace with exact same type of fuse. Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of HYPE™ 150 Fixtures
You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
Fixtures on a serial data link must be daisy chained in a single line. Also, con-necting more than 32 fixtures on one serial data link without the use of an optically-isolated DMX splitter may result in deterioration of DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft).

Data/DMX Cabling
To link fixtures together you’ll need data cables. You should use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485 applica-tions. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms

Disclaimer: The power connectors fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-tor on the other end. (Duh!)

A Word on Termination
DMX is a resilient communication protocol, however errors still occasionally occur. Termination reduces signal errors, and therefore best practices include use of a terminator in all circumstances. If you are experiencing problems with erratic fixture behavior, especially over long signal cable runs, a terminator may help improve performance.

To build your own DMX Terminator
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last fixture. They are also readily available from specialty retailers.
CAUTION: Do not allow contact between the common and the fixture’s chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

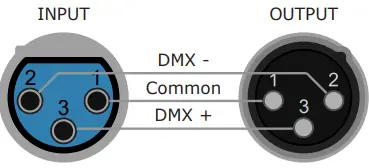

3-Pin??? 5-Pin??? Huh?!?
This fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted pair cable designed for RS-485 and 3/5-pin XLR connectors to connect the controller to the fixture, or the fixture to another fixture.

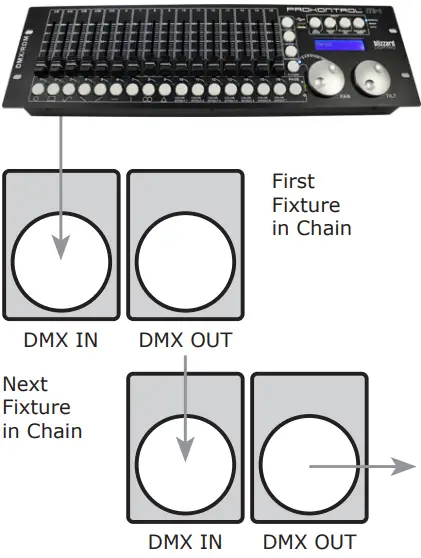

Take It To The Next Level: Setting Up DMX Control

• Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller.
• Step 2: Connect the female connector of the DMX cable to the first fixture’s male connector (input).
  Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on.
• Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication.

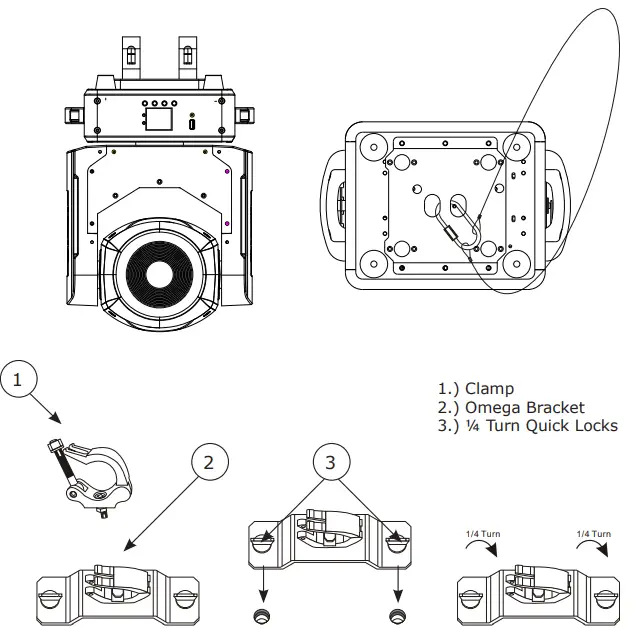

Mounting & Rigging
This fixture provides a mounting bracket assembly that secures the bottom of the base, the omega brackets, and the safety cable rigging point together. When mounting this fixture to truss, be sure to secure an appropriately rated clamp to the omega bracket.

Securing the Fixture
Regardless of the rigging option you choose for your fixtures always be sure to secure your fixture with a safety cable. Be sure to only use the designated rigging point found on the underside of the base assembly for the safety cable. Never secure a safety cable to a carrying handle.

OPERATING ADJUSTMENTS

The Control Panel
All the features and different modes possible with the HYPE™ 150 are accessed by using the control panel on the rear of the fixture. There are 4 control but-tons under to the LCD display which allow you to navigate through the various control panel menus.

• <MENU>
  Is used to navigate to the previous higher-level menu item.
• <UP>
  Scrolls through menu items and numbers in ascending order.
• <DOWN>
  Scrolls through menu items and numbers in descending order.
• <ENTER>
  Is used to select and confirm/store the current selection.



• The control panel LCD display shows the menu items you select from the menu map on page #11. When a menu function is selected, the display will show im-mediately the first available option for the selected menu function. To select a menu item, press <ENTER>.
• Use the <UP> and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button.

Control Panel Menu Structure

• Starting DMX Address
  • Navigate the menu to reach DMX Address, and press <ENTER>.
  • Use the <UP/DOWN> buttons to select a value from 001-512, and press <ENTER> to confirm.
• DMX Channel Mode
  • Navigate the menu to reach Mode, and press <ENTER>
  • Highlight <DMX>, and press <ENTER>.
  • Use <UP/DOWN> to select either 12Ch or 15Ch, and press <ENTER>.
• Auto & Sound Active Modes
  • Navigate the menu to reach Mode, and press <ENTER>.
  • Highlight <Auto> or <Sound>, & press <ENTER>. Press <ENTER> again, then use <UP/DOWN> to highlight any program (Pr) from 0-3 and press <ENTER>.
  • Now you can change the program speed (slow to fast) or the mic sensitivity by either altering its speed (Sp), or mic sensitivity (Se) value settings.

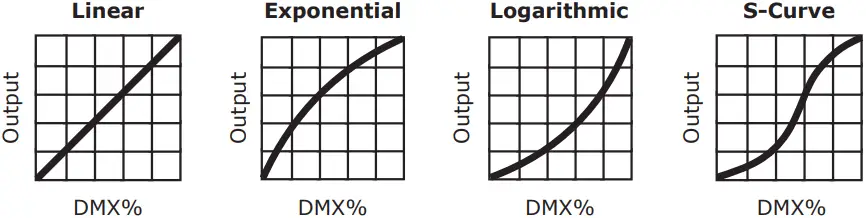

• Dimming Curves
  • Navigate the menu to reach Settings, and press <ENTER>.
  • Use the <UP/DOWN> buttons to select Dimmer Curve. Press <ENTER>.
  • Then highlight either Linear, Exp, Log, S-Curve, and press <ENTER>.

DMX Values In-Depth (12/15-Channel Modes)

DMX Values In-Depth (12/15-Channel Modes)

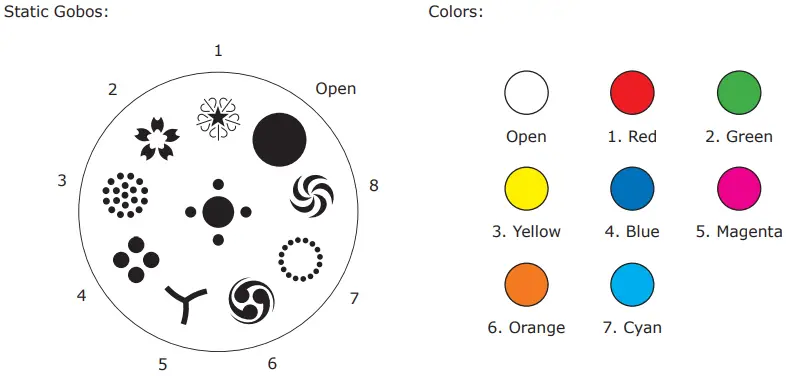

Gobo and Color Wheels

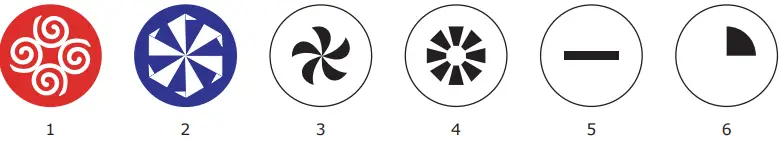

Rotating Gobos

APPENDIX

Keeping Your HYPE™ 150 As Good As New
The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, you’ll need to take care of it if you want it to operate as designed. You should keep the fixture clean, especially if you are using it in an environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep the fixture running cool and prevent damage from overheating.
In transit, keep the fixtures in cases. You wouldn’t throw a prized guitar, drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light fixtures.
Common sense and taking care of your fixtures will be the single biggest thing you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client’s satisfaction and “wow factor.” That’s what it’s all about, after all!

Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while, something doesn’t go as planned. If you find yourself with a fixture that isn’t behaving like a good little fixture should, you’ll need to obtain a Return Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully pack the fixture for transit, and whenever possible, use the original box & packing for shipping.
When returning your fixture for service, be sure to include the following:

1. Your contact information (Name, Address, Phone Number, Email address).
2. The RA# issued to you
3. A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the fixture. Please remember that any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

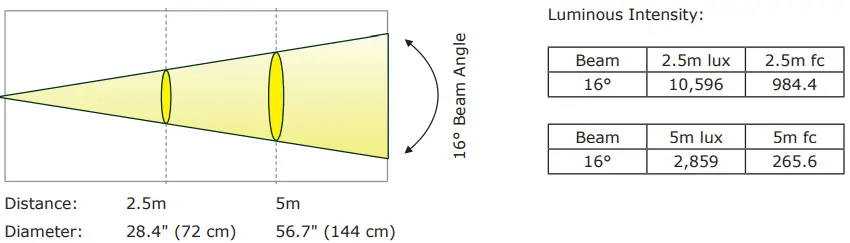

Tech Specs!

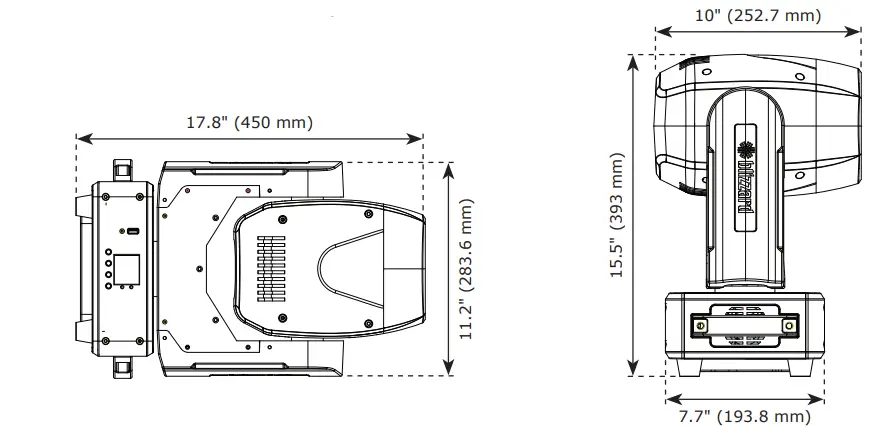

Dimensional Drawings

Enjoy your product!
Our sincerest thanks for your purchase! –The team @ Blizzard Lighting
