blizzard Stiletto Ray Z Professional LED Moving Head Fixture

GETTING STARTED

What’s In The Box?

• Stiletto™ Ray-Z
• An Ever-So-Handy Power Cord
• 1 x Set of Mounting Brackets
• 1 x DMX Cable
• 1 x Safety Cable
• This Lovely User Manual

Getting It Out Of The Box
Congratulations on purchasing the Stiletto™ Ray-Z professional LED moving head fixture! Now that you’ve got your Stiletto™ Ray-Z, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch – Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for your local power supply. See the label on the fixture or refer to the fixture’s specifications chart for more information. A fixture’s listed current rating is its average current draw under normal conditions. Check the fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line voltage applied. Damage to your fixture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All fixtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us
If something goes wrong, please visit www.blizzardpro.com/support and open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardpro.com.

SAFETY INSTRUCTIONS

Note: Please read these instructions carefully. They include important information about the installation, usage and maintenance of this product.

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the de-cal or rear panel of the fixture.
• This product is intended for indoor use only.
• To prevent risk of fire or shock, do not expose fixture to rain or moisture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized tech-nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support.

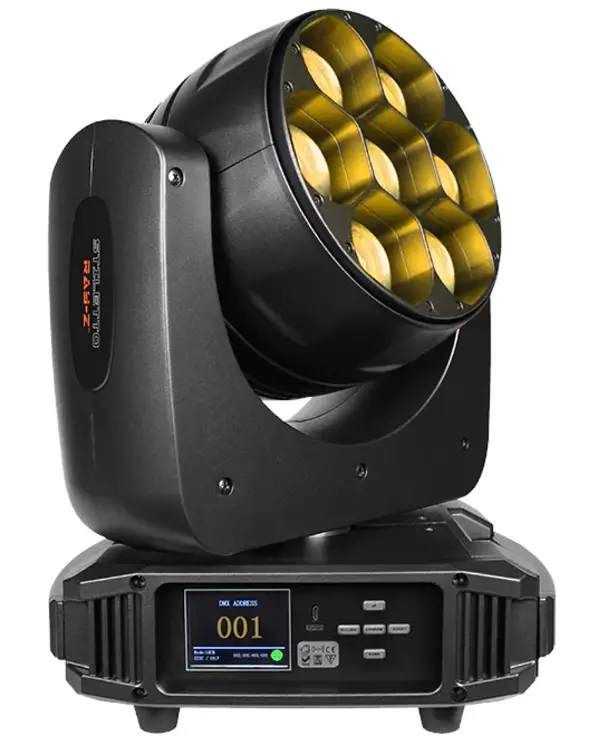

MEET THE STILETTO™ RAY-Z

MAIN FEATURES

• 7* 40W OSRAM™ RGBW flicker-free LEDs, 100,000 hours
• Beam angle: 4.5°-36° with electronic zoom
• RGBW color mixing + pixel effects
• Smooth electronic dimming with 16-bit control
• 8/16 bit smooth and precise pan and tilt resolution
• Pan: 540°/ Tilt: 200° with ultra-fast 3-phase motors
• Built-in color macros & 1-25Hz strobe effects
• Individual pixel control in extended 38-channel DMX mode
• 2x RJ45 Ethernet input/output data connections
• 5-pin DMX input/output connections
• PowerCON™ compatible AC power input/output

CONTROL:

• Protocols: DMX-512, RDM, Art-Net, Kling-Net, and sACN
• DMX channels: 15/18/38-channel modes
• Easy-to-use 5-button control panel with LCD color display
• Operating modes: DMX512, master/slave, auto, & sound active mode

DMX Quick Reference (15/18/38-Channel Modes)

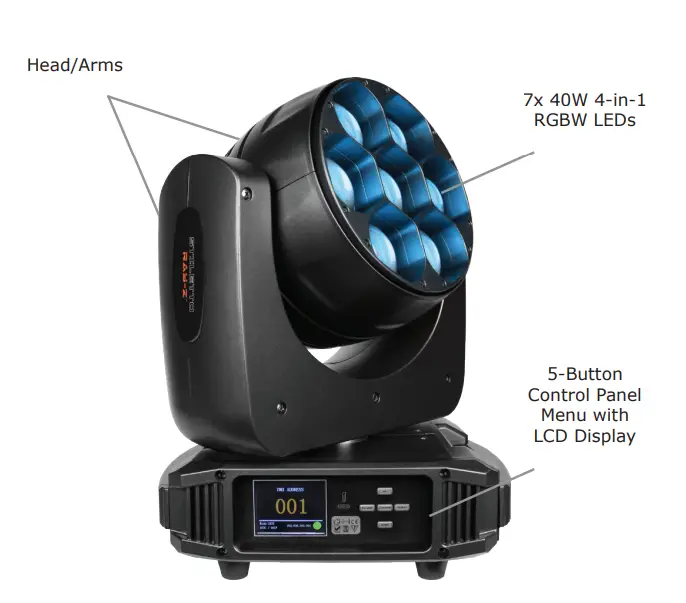

Figure 1: The Stiletto™ Ray-Z Pin-Up Picture

Figure 2: The Rear Connections

SETUP

Note: Before replacing the fuse, disconnect the power cord. ALWAYS replace it with the same type and rating.

Fuse Replacement
Remove the fuse holder from of its housing. Then take out the dam-aged fuse from its holder and replace with exact same type of fuse. Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of Stiletto™ Ray-Z Fixtures
You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas-ter/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fix-tures the data link can support.
Fixtures on a serial data link must be daisy chained in one single line. Also, connecting more than 32 fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run dis-tance is 500 meters (1640 ft). The maximum recommended number of fixtures on a serial data link is 32 fixtures.

Data/DMX Cabling
To link fixtures together you’ll need data cables. You should use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485 applications. Standard microphone cables will “probably” be OK, but note that they cannot transmit DMX data as reliably over long distanc-es. In any event, the cable should have the following characteristics:

• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms

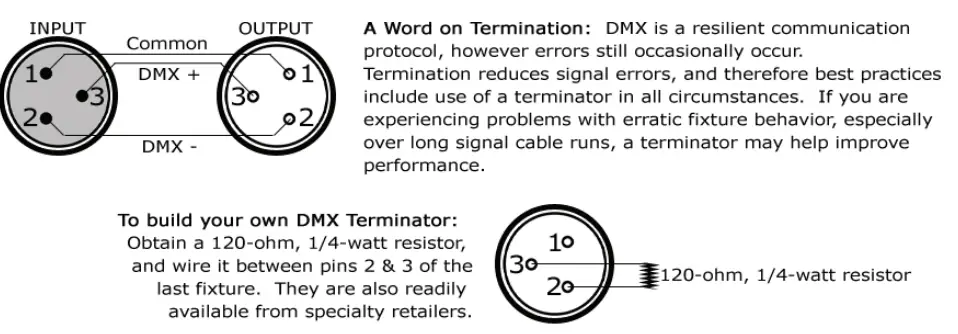

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connec-tor on the other end. (Duh!)

CAUTION: Do not allow contact between the common and the fixture’s chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-pin??? 5-Pin??? Huh?!?
If you use a controller with only a 3-pin DMX output connector, you will need to use a 3-pin to 5-pin adapter. They are widely available over the internet and from specialty retailers. If you’d like to build your own, the chart below details a proper cable conversion:

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller.
Step 2: Connect the female connector of the DMX cable to the first fixture’s male connector (input). Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on.
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication.

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 5-pin connec-tor to the input connector of the next fixture con-sisting of a (male) 5-pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on.

A quick note: Often, the setup for Master-Slave and Standalone operation requires that the first fixture in the chain be initialized for this purpose via either settings in the control panel or DIP-switches. Secondarily, the fixtures that follow may also re-quire a slave setting.
Check the “Operating Adjustments” section in this manual for com-plete instructions for this type of setup and configuration.

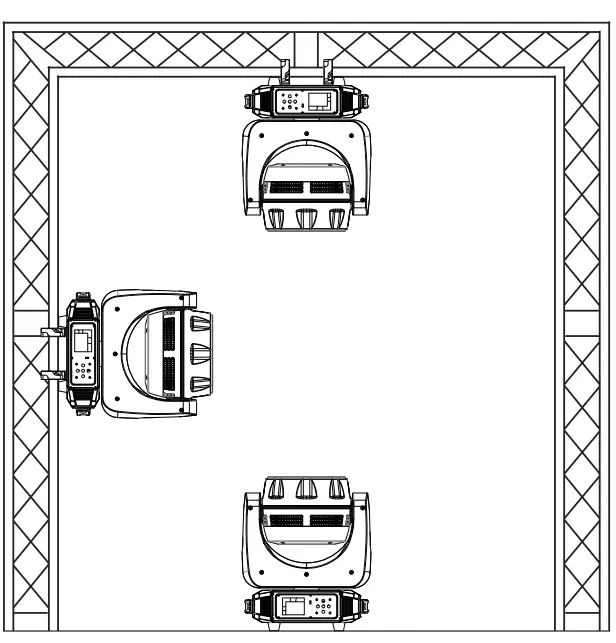

Mounting & Rigging

This fixture may be mounted in any SAFE position provided there is enough room for ventilation.
It is important never to obstruct the fan or vents pathway. Mount the fixture using a suitable “C” or “O” type clamp. The clamp should be rated to hold at least 10x the fixture’s weight to ensure structural sta-bility. Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead.
Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance.
• Safety cables MUST ALWAYS be used.
• Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation.

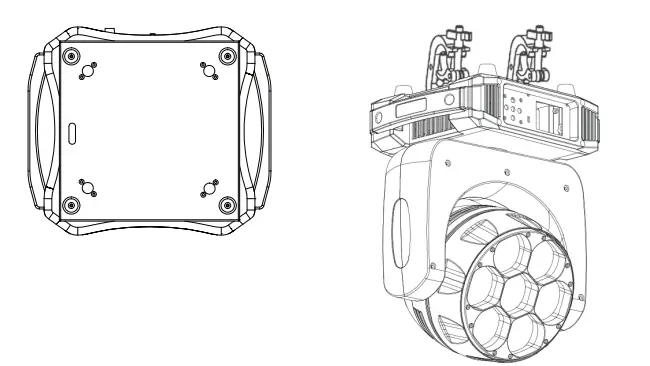

Mounting Points
Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

Caution!
Please be aware, you should have a qualified electrician performing all of your electrical connection needs.
Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

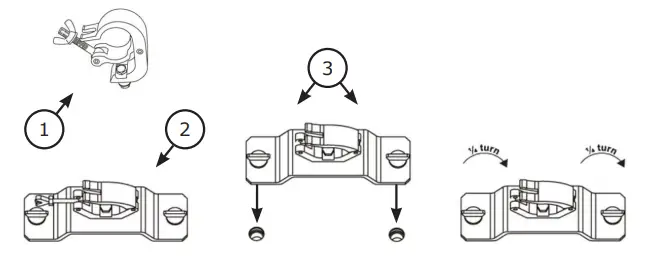

Clamp Mounting
This fixture provides a mounting bracket assembly that secures the bottom of the base, omega brackets, and the safety cable rigging point together. When mounting this fixture to truss, be sure to secure appropriately rated clamps to the brackets using an M10 screw fitted through the center holes of the brackets.

1. Clamp
2. Omega Bracket
3. ¼ Turn Quick Lock Fasteners

Securing the Fixture
For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. Loop the safety cable through the hole located under the base of the fixture.

OPERATING ADJUSTMENTS

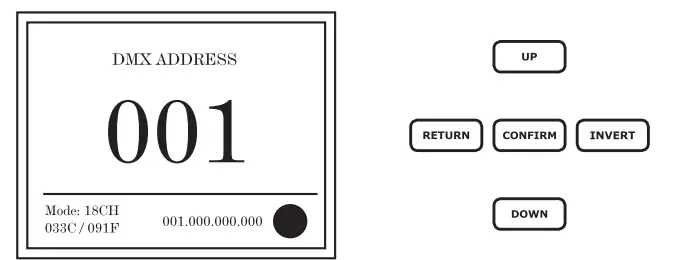

The Control Panel
All the goodies and different modes possible with this fixture are accessed by using the control panel on the front of the fixture. There are 5 control buttons next to the LCD display which allow you to navigate through the various control panel menus.

<INVERT> (Right)
From the main menu screen, can be used to rotate the display by 180°. Also used for right navigation in certain menu items such as network settings.

<UP>
Scrolls through menu items and numbers in ascending order.

<DOWN>
Scrolls through menu items and numbers in descending order.

<CONFIRM>
Is used to confirm and save any changes made to a menu setting.

<RETURN> (Left)
Press to exit without saving a value change, or press repeatedly to go back to the main display screen.

The control panel LCD display shows the menu items you select from the menu map on page #13. When a menu function is selected, the display will show im-mediately the first available options for the selected menu function. To select a menu item, press <CONFIRM>.
Use the <UP>, <DOWN>, <CONFIRM>, and <RIGHT> buttons to navigate the options. Press the <CONFIRM> button to enable a menu option. To save a changed value, press <CONFIRM>, or to return to the previous option or menu without changing the value, press the <RETURN> button.

Control Panel Menu Structure

DMX Mode

Allows the unit to be controlled by any universal DMX controller.

Select the Starting DMX Address

1. Navigate the main menu to reach DMX Address, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to choose a starting DMX address ranging from 001-512, then press <CONFIRM> to save, or <RETURN> to exit.

DMX Channel Mode Selection

1. Navigate the main menu to reach Fixture, and press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight DMX Mode, press <CONFIRM>. 3.) Now use the <UP/DOWN> buttons to highlight BAC (15CH), STD (18CH), or EXT (38CH), and then press <CONFIRM> to save, or <RETURN> to exit.

Run Mode (DMX, Master/Slave, Auto, Sound Active)

1. Navigate the main menu to reach Fixture, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight Run Mode, press <CONFIRM>.
3. Now use the <UP/DOWN> buttons to highlight DMX (DMX Mode), Sound (Sound Active), or Host (M/S Mode), and then press <CONFIRM> to save.
4. In M/S mode, the first fixture in the DMX chain is the master fixture, and the following units will operate in unison with the master.
5. Note: If the fixture is set to Host but is not connected with other fixtures to run as master/slave, Auto Mode will be activated.

Pan/Tilt Invert

1. Navigate the main menu to reach Fixture, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight either Pan Invert or Tilt Invert, then press <CONFIRM>.
3. The default setting of the parameter is Close. To invert the Pan or Tilt, set the parameter to Open, and press <CONFIRM> to save, or <RETURN> to exit.

Manual Adjustments
Allows individual adjustments to be made via the control panel menu.

1. Navigate the main menu to reach Manual, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight any function, press <CONFIRM>.
3. Now use the <UP/DOWN> buttons change any values and press <CONFIRM> to save, or <RETURN> to exit (see DMX Values In-Depth).
4. Note: The available selections will change depending on the options that are in the currently active DMX mode.

Information

Selecting this option allows access to the following information:

Time

1. Time: Shows the current running time.
2. Total Time: Shows the total running time of the fixture.
3. Power Count: Shows the number of times the fixture has been powered on.

Sensor

1. This menu item will give you information on the operating status of the Pan, Tilt, and Zoom motors, as well as the Temperature and Fan sensors. When the operating correctly TRUE is displayed, otherwise FALSE will be displayed.

Temperature

1. Head Temp: Internal temperature of the moving head.
2. Fan Speed: Shows the speed of the fan when it is active (in RPM).

Software Version

1. This menu item will give you information on the currently installed software versions of Motor, Dimmer, and Network.

Factory
Selecting this menu item allows access to the following calibration options. All of the set values will be maintained each time the fixture is turned on, and he password must be entered each time to enable modification of the values.

1. Password: The password is: 158
2. Pan/Tilt/Zoom: 0-255 (these default values are 127)
3. Red/Green/Blue/White: 0-255 (these default values are 255)

Fixture Reset

Selecting this menu item allows access to the following options:

Motor Reset

1. This function is set to OFF by default. Switching to Run by using the <UP/DOWN> buttons, then pressing the <CONFIRM> button will reset the Pan, Tilt, and Zoom motors.

Factory

1. This function is set to OFF by default. Switching to Run by using the <UP/DOWN> buttons, then pressing the <CONFIRM> button will reset all values and functions to the factory default settings.

Display

Selecting this menu item allows access to the following options:

Language
Selects the display language between English and Chinese.

Display Flip
When this selection is set to Normal, the display is in the normal position, when Reverse is set, the display is rotated by 180°.

Display Mode
When this selection is set to Show, the display will always remain on, when 60s is set, the display will turn off after 60 seconds of inactivity.

Network

This menu item allows you to select the protocols of sACN, Art-Net, KlingNet, and adjust the settings for Universe, IP Address, and Subnet Mask.

Art-Net/sACN Modes

1. Navigate the main menu to reach Network, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight Protocol, press <CONFIRM>.
3. Now highlight either Art-Net or sACN, and press the <CONFIRM> button.
4. For Art-Net protocol setting the IP Address value and Subnet Mask is not required. For sACN protocol, be sure the IP Address set to: 000.000.000.000.

KlingNet Mode

1. Navigate the main menu to reach Network, press <CONFIRM>.
2. Use the <UP/DOWN> buttons to highlight KlingNet, press <CONFIRM>.
3. Now highlight Enable, and press the <CONFIRM> button.

DMX Values In-Depth (15/18/38-Channel Modes)

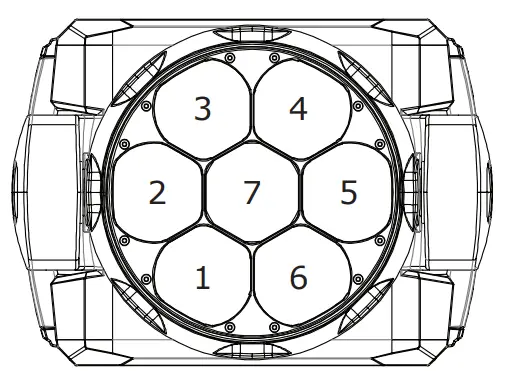

Pixel ID

The 7* R/G/B/W pixels available from the menu & 38-channel mode (CH11-CH38) are as shown on the right:

38-Channel Mode, CH11-CH38

APPENDIX

Keeping Your Stiletto™ Ray-Z As Good As New
Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep the fixture running cool and prevent damage from overheating.
In transit, keep the fixtures in cases. You wouldn’t throw a prized guitar, drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn’t even think about doing it with your shiny new light fixtures.

Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equip-ment designed and built by humans, once in a while, something doesn’t go as planned. If you find yourself with a fixture that isn’t behaving like a good little fixture should, you’ll need to obtain a Return Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a support ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully pack the fixture for transit, and whenever possible, use the original box & packing for shipping.
When returning your fixture for service, be sure to include the following:

1. Your contact information (Name, Address, Phone Number, Email address).
2. The RA# issued to you
3. A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the fixture. Please remember that any shipping damage which occurs in transit to us is the customer’s responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt.

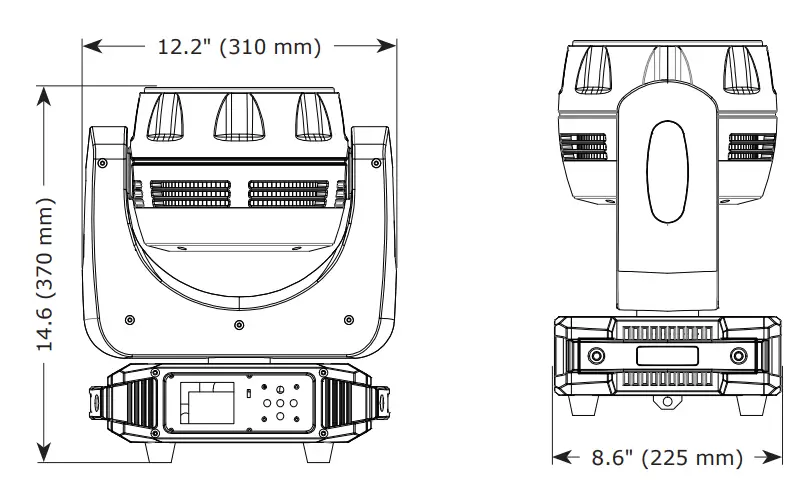

Dimensional Drawings

Tech Specs!

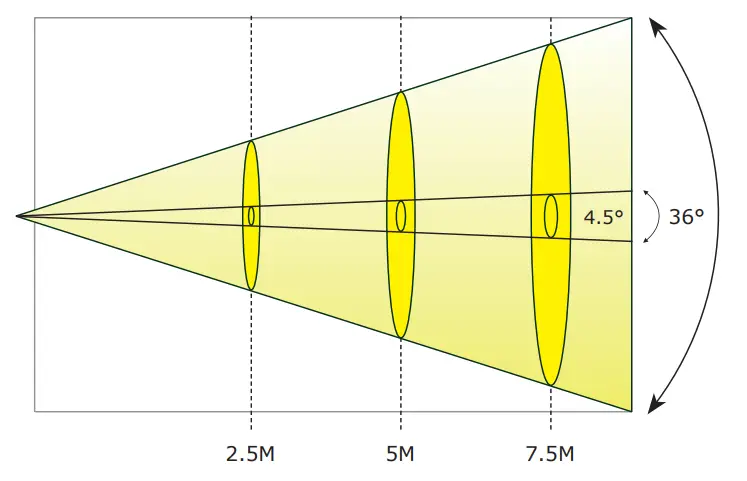

Photometric Data

4.5° Beam Diameter:

1. 2.5m: 8 in. (20.25 cm)
2. 5m: 16 in. (40.5 cm)
3. 7.5m: 2 ft. (60.75 cm)
4. 10m: 2.7 ft. (81 cm)

36° Beam Diameter:

1. 2.5m: 5.4 ft. (162 cm)
2. 5m: 10.7 ft. (324 cm)
3. 7.5m: 16 ft. (486 cm)
4. 10m: 21.3 ft. (648 cm)

Luminous Intensity:

DISCLAIMER:
The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power-CON® are registered trademarks of Neutrik AG.

Enjoy your product!
Our sincerest thanks for your purchase! –The team @ Blizzard Lighting
