ROBUS RCM12530AS COSMIC 125W Cool Asymmetric LED Flood Light

COSMIC 125W/170W LED FLOOD LIGHT

IP65, BLACK, 3000K/4000K, ASYMMETRIC

PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES. ! Electrical products can cause death or injury, or damage to property. The Installation must be carried out by a qualified electrician.
Note:
The luminaire must be disconnected before carrying out any insulation resistance testing. Product technical information and specification may change over time without prior notification. For the latest technical information please visit our web site www.robus.com.au and
www.robusled.co.nz

• 20°C < Ta < +40°C, 220-240V ~ 50/60Hz, Class I, IP65 Luminaire is non-dimmable

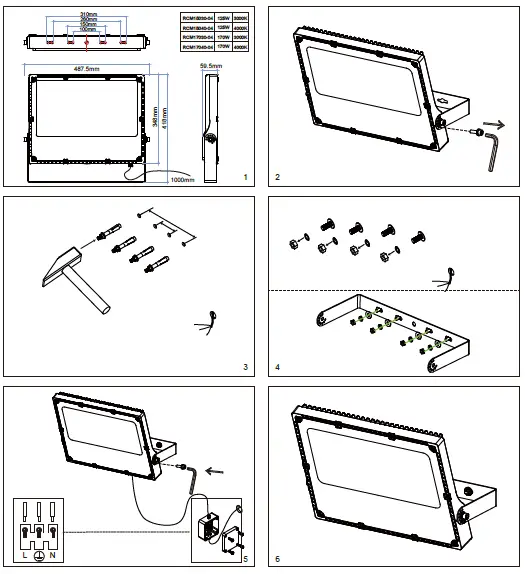

Installation

1. Ensure mains supply is switched off before commencing work.
2. Select suitable location for luminaire.
3. Mark wall with appropriate fixing positions. Before drilling, ensure that the hole does not impinge on pipe work, cables or other building services.
4. Attach luminaire and fix bracket by tighten screws, then adjust to desired angle. Ensure that it is secure.
5. The luminaire is supplied with 1m of rubber cable. Using suitable IP rated enclosure terminate Brown (Live), Blue (Neutral) and
   serviceable parts. If any part is damaged, disconnect from mains and discontinue use.

Note: No “fixings screws provided’, please use appropriate fixing screws.

LED Group Australia Pty Limited
Suite B, 2 Pittwin Road Tel: 07 3890 5444
Capalaba Fax: 07 3890 4777
Queensland 4157 Email: [email protected]
Australia Website: www.robus.com.au
