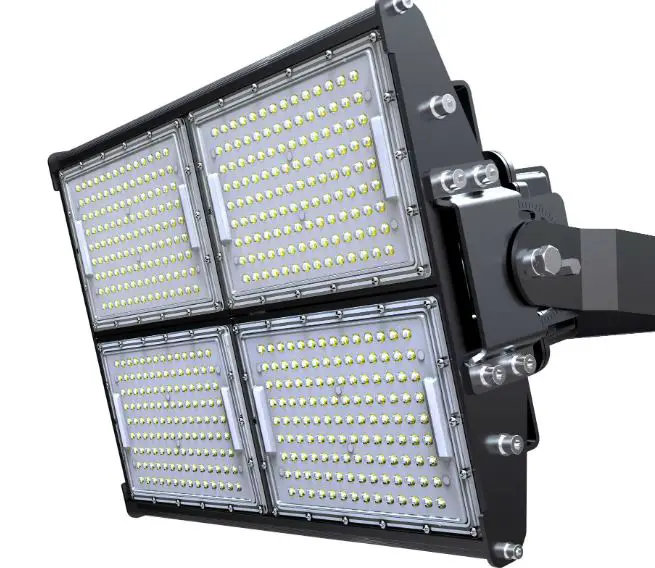

LEDISONS 480W LED Ultra Flood Light

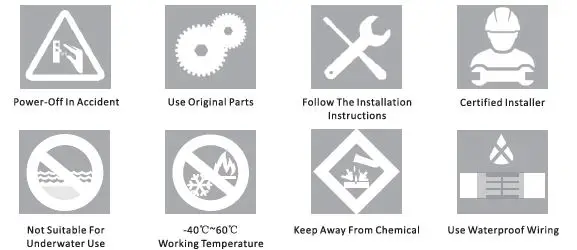

Warning
Technical Parameters
| CCT | 2700-6500K | Power Factor | > 0.95 |
| Working | -40’C -60’C | Working Life | 50,000 hours |
| Beam Angle | 10· / 30• /60 • /90′ /12 o· | Input Voltage | AC 100-240V 277V~, 50/60Hz |
| LAMP 165LM /W ± 5% (60″/90’/120′) LUMINOUS 15 SLM /W ± 5% (30 ‘) FLUX | 165LM /W ± 5% (60″/90’/120′) LUMINOUS 15 SLM /W ± 5% (30 ‘) FLUX 120LM/W±5%(10’) | CRI | IP66 |
| IP Grade | Ra>70/80 |

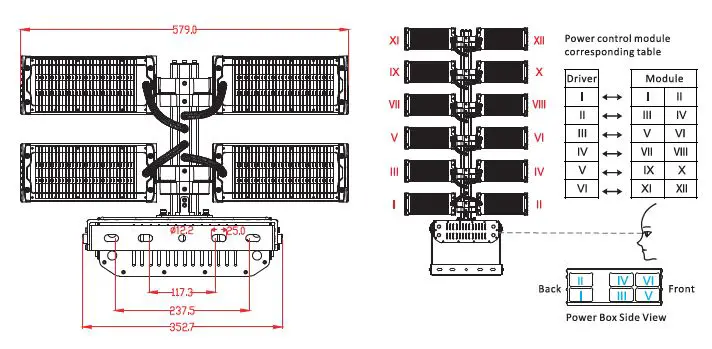

| Lamp Power | Lamp Size(mm) | Lamp Luminous Flux | Net Weight(kg) |
| 480W | 536x165x579 | 84,000LM | 12.0kg±5% |
| 720W | 691x202x579 | 126,800LM | 16.0kg±5% |
| 960W | 846x202x579 | 168,000LM | 19.6kg±5% |
| 1200W | 1001x277x579 | 210,000LM | 24.0kg±5% |
| 1440W | 1156x277x579 | 252,200LM | 28.0kg±5% |
Trouble Shooting
- Please don’t disassemble light without being authorized staff only.
- Please report us the abnormality in time.
| Problem | Possible Cause | Solution |
| LEDs stop working | The power line/plug properly connected. | Reconnect the power cabla/plug. |
| Power failure. | Ch eek the It. | |
| Fault with LED driver. | Replace with new driver. | |
| Damage to LED chips. | Replace with new LEDs board. | |
| LEDs flash on and off
| The output of the driver is abnormal. | Replace with new driver. |
| The LED chip breaks down. | Replace with new LED board. | |
| Voltage instability. | Powar-off and check tha power supply. |

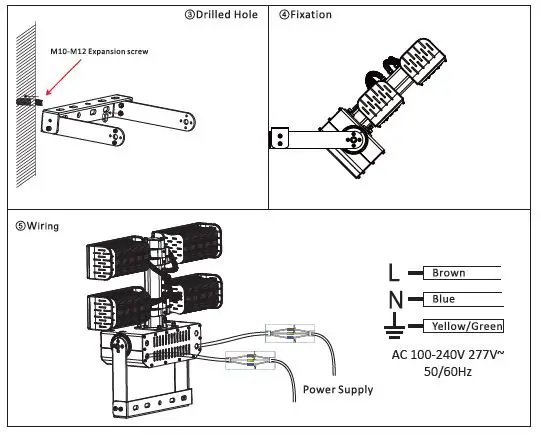

Installation Steps

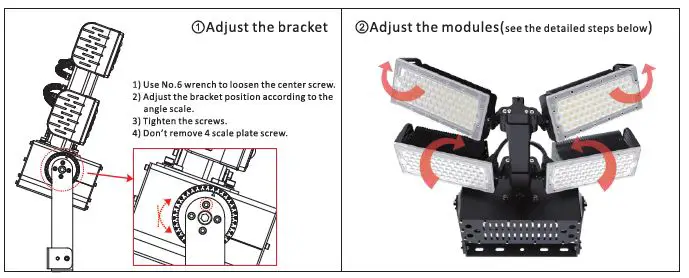

140° Adjustment
- Use No.6 wrench to loosen the Hexagon screws.
- Adjustment module direction.
- Tighten the screws.

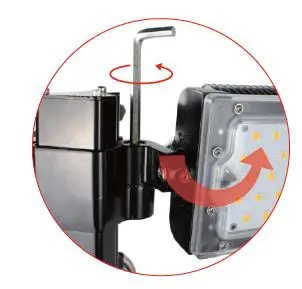

360° Adjustment
- Use No.Z.5 wrench to loosen the set screw.
- Adjustment module direction.
- Tighten the screws.
Tips: Hole 123 must fix with screws.
