Chauvet Dj Spot 360 10w Led Moving Head User Guide

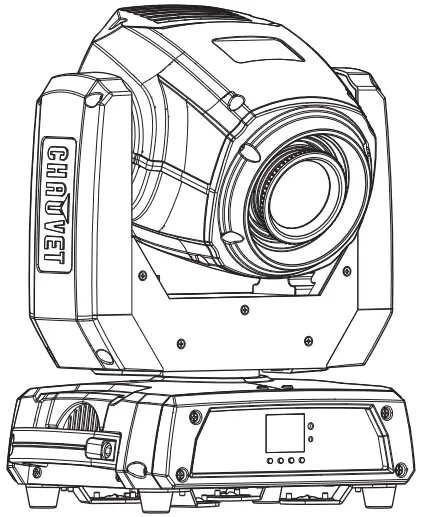

INTIMIDATOR SPOT 360

About This Guide

The Intimidator Spot 360 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,  Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• ONLY connect this product to a grounded and protected circuit. • DISCONNECT from power before cleaning or replacing the fuse. • DO NOT look at the light source when the product is on. • Make sure the power cord is not crimped or damaged. • Never disconnect this product from power by pulling on the cord. • When mounting this product overhead, ALWAYS use a safety cable. • DO NOT allow flammable materials close to the product when it is operating. • DO NOT touch the product’s housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the \decal or rear panel of the product. • This product is for indoor use only! (IP20) To prevent the risk of fire or shock, do not expose this product to rain or moisture. • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces. • Be sure that no ventilation slots on the unit’s housing are blocked. • Never connect this product to a dimmer or rheostat. • Replace the fuse with the same type and rating. • Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product. • The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures. • In the event of a serious operating problem, stop using immediately. • DO NOT open this product. It contains no user-serviceable parts. • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.

Contact
Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Intimidator Spot 360
• Power Cord
• Hanging Bracket
• Quick Reference Guide

To Begin
Unpack your Intimidator Spot 360 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.

Power Linking
For the maximum number of Intimidator Spot 360 products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace it with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

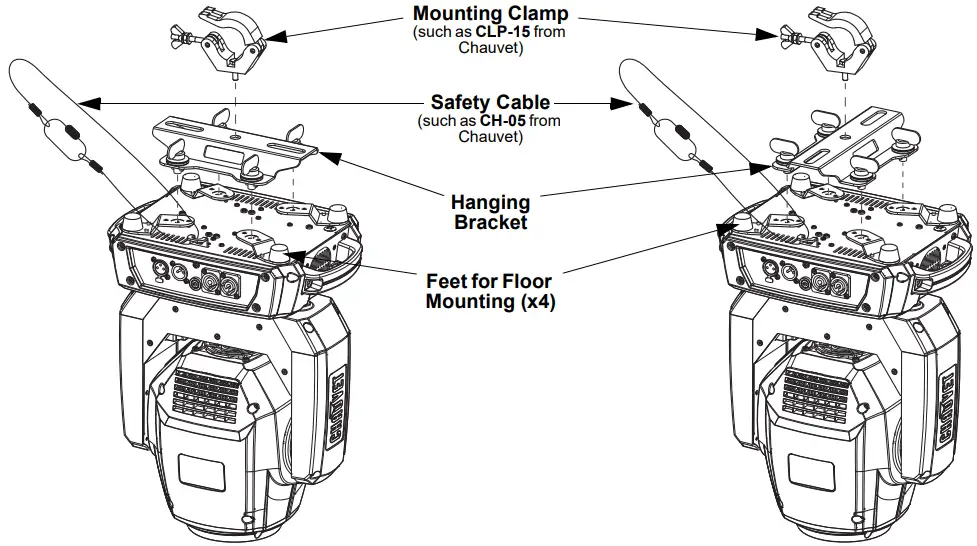

Mounting Diagram

Control Panel Description

Menu Map

DMX Linking

The Intimidator Spot 360 can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 499.

Master/Slave Connection
The Intimidator Spot 360 uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Spot 360 for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

IRC-6 (Infrared Remote Control)
The Intimidator Spot 360 can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the Intimidator Spot 360 User Manual from www.chauvetdj.com.

DMX Values

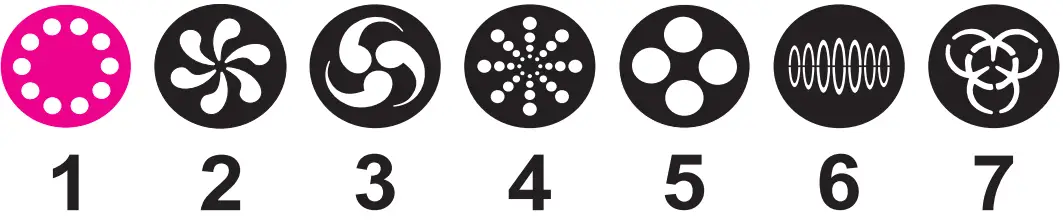

Gobos

14CH

Channel	Function	Value	Percent/Setting
1	Pan	000  255	0–540°
2	Fine Pan	000  255	Fine control of panning
3	Tilt	000 255	0–270°
4	Fine Tilt	000  255	Fine control of the tilting
5	Pan/Tilt Speed	000  255	Pan/Tilt speed, fast to slow
6	Color Wheel	000  006	White
		007  013	Orange
		014  020	Lime Green
		021  027	Cyan
		028  034	Red
		035  041	Green
		042  048	Magenta
		049  055	Yellow
		056  062	Dark Blue
		063  064	White
		065  189	Color indexing
		190  221	Color cycling rainbow, fast to slow
		222  223	Stop
		224  255	Reverse color cycling rainbow, slow to fast
7	Gobo Wheel (see Gobos)	000 007	Open
		008 015	Gobo 1
		016 023	Gobo 2
		024 031	Gobo 3
		032 039	Gobo 4
		040 047	Gobo 5
		048 055	Gobo 6
		056 063	Gobo 7
		064 071	Gobo 7 shake, slow to fast
		072 079	Gobo 6 shake, slow to fast
		080 087	Gobo 5 shake, slow to fast
		088 095	Gobo 4 shake, slow to fast
		096   103	Gobo 3 shake, slow to fast
		104 111	Gobo 2 shake, slow to fast
		112 119	Gobo 1 shake, slow to fast
		120 127	Open
		128 189	Cycle effect, slow to fast
		190 193	Stop
		194 255	Reverse cycle effect, slow to fast
8	Gobo Rotation	000  063	Gobo indexing
		064  145	Gobo rotation, slow to fast
		146  149	Stop
		150  231	Reverse gobo rotation, slow to fast
		232  255	Gobo bounce, short to long
9	Prism	000  003	No function
		004  006	3-facet prism (round)
		007 065	Prism rotation, slow to fast
		066  123	Reverse prism rotation, slow to fast
		124  127	3-facet prism (round)
		128  131	No function
		132  134	5-facet prism (linear)
		135  193	Prism rotation, slow to fast
		194  251	Reverse prism rotation, slow to fast
252 255	5-facet prism (linear)
10	Focus	000  255	0–100%
11	Dimmer	000  255	0–100%
12	Shutter	000  003	Off
		004  007	On
		008  076	Strobe, slow to fast
		077  145	Pulse strobe, slow to fast
		146  215	Random strobe, slow to fast
		216  255	On
13	Control	000  007	No function
		008  015	Blackout on pan/tilt movement
		016  023	Blackout on color wheel movement
		024  031	Blackout on gobo wheel movement
		032  039	Blackout on pan/tilt/color wheel movement
		040  047	Blackout on pan/tilt/gobo wheel movement
		048  055	Blackout on pan/tilt/color/gobo wheel movement
		056 095	No function
		096  103	Pan reset
		104  111	Tilt reset
		112  119	Color wheel reset
		120  127	Gobo wheel reset
		128  135	No function
		136  143	Prism reset
		144  151	Focus reset
		152  159	Reset all
		160  255	No function
14	Movement Macros	000  007	No function
		008  023	Movement macro 1
		024  039	Movement macro 2
		040  055	Movement macro 3
		056  071	Movement macro 4
		072  087	Movement macro 5
		088 103	Movement macro 6
		104  119	Movement macro 7
		120  135	Movement macro 8
		136  151	Sound-active movement macro 1
		152  167	Sound-active movement macro 2
		168  183	Sound-active movement macro 3
		184  199	Sound-active movement macro 4
		200  215	Sound-active movement macro 5
		216  231	Sound-active movement macro 6
		232  247	Sound-active movement macro 7
		248  255	Sound-active movement macro 8

08CH

Channel	Function	Value	Percent/Setting
1	Pan	000  255	0–540°
2	Tilt	000  255	0–270°
3	Color Wheel	000  006	White
		007  013	Orange
		014  020	Lime Green
		021  027	Cyan
		028  034	Red
		035  041	Green
		042  048	Magenta
		049  055	Yellow
		056  062	Dark Blue
		063  064	White
		065 ó 189	Color indexing
		190  221	Color cycling rainbow, fast to slow
		222  223	Stop
		224  255	Reverse color cycling rainbow, slow to fast
4	Gobo Wheel (see Gobos)	000  007	Open
		008  015	Gobo 1
		016  023	Gobo 2
		024  031	Gobo 3
		032  039	Gobo 4
		040  047	Gobo 5
		048  055	Gobo 6
		056  063	Gobo 7
		064  071	Gobo 7 shake, slow to fast
		072  079	Gobo 6 shake, slow to fast
		080  087	Gobo 5 shake, slow to fast
		088  095	Gobo 4 shake, slow to fast
		096  103	Gobo 3 shake, slow to fast
		104  111	Gobo 2 shake, slow to fast
		112  119	Gobo 1 shake, slow to fast
		120  127	Open
		128  189	Cycle effect, slow to fast
		190  193	Stop
		194  255	Reverse cycle effect, slow to fast
5	Gobo Rotation	000  063	Gobo indexing
		064  145	Gobo rotation, slow to fast
		146  149	Stop
		150  231	Reverse gobo rotation, slow to fast
		232  255	Gobo bounce, short to long
6	Prism	000  003	No function
		004  006	3-facet prism (round)
		007  065	Prism rotation, slow to fast
		066  123	Reverse prism rotation, slow to fast
		124  127	3-facet prism (round)
		128  131	No function
		132  134	5-facet prism (linear)
		135  193	Prism rotation, slow to fast
		194  251	Reverse prism rotation, slow to fast
252  255	5-facet prism (linear)
7	Focus	000  255	0–100%
8	Shutter	000  003	Off
		004  007	On
		008  076	Strobe, slow to fast
		077  145	Pulse strobe, slow to fast
		146  215	Random strobe, slow to fast
		216  255	On

Contact Us

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, France, Germany, Benelux or Mexico, contact the dealer of record.

Intimidator Spot 360 QRG Rev. 5 ML6
© Copyright 2021 Chauvet
All rights reserved.
