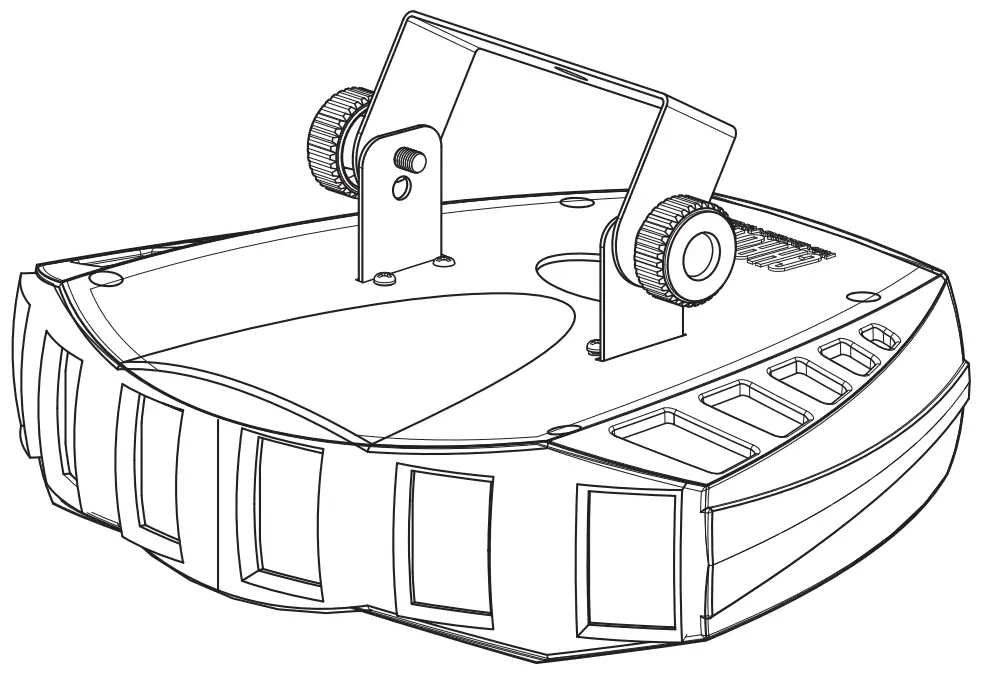

DJ Derby X LED Strobe Lighting Effect
User Guide

About This Guide

The Derby X Quick Reference Guide (QRG) has basic product information such as mounting, control options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www. Chauvet lighting. eu/warranty-registration. Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult your local distributor.

 Safety Notes

 These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cord. Use only the hanging bracket to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.

Contact
Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Derby X
• X-Bracket
• Power Cord
• Quick Reference Guide

To Begin
Unpack your Derby X and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

 To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.
Power Linking
For the maximum number of Derby X products that you can power link at each voltage, see the User Manual or the sticker on the product.
Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace it with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting
Before mounting this product, read the Safety Notes. For more information on using the optional X-Bracket, download the User Manual from www.chauvetdj.com.

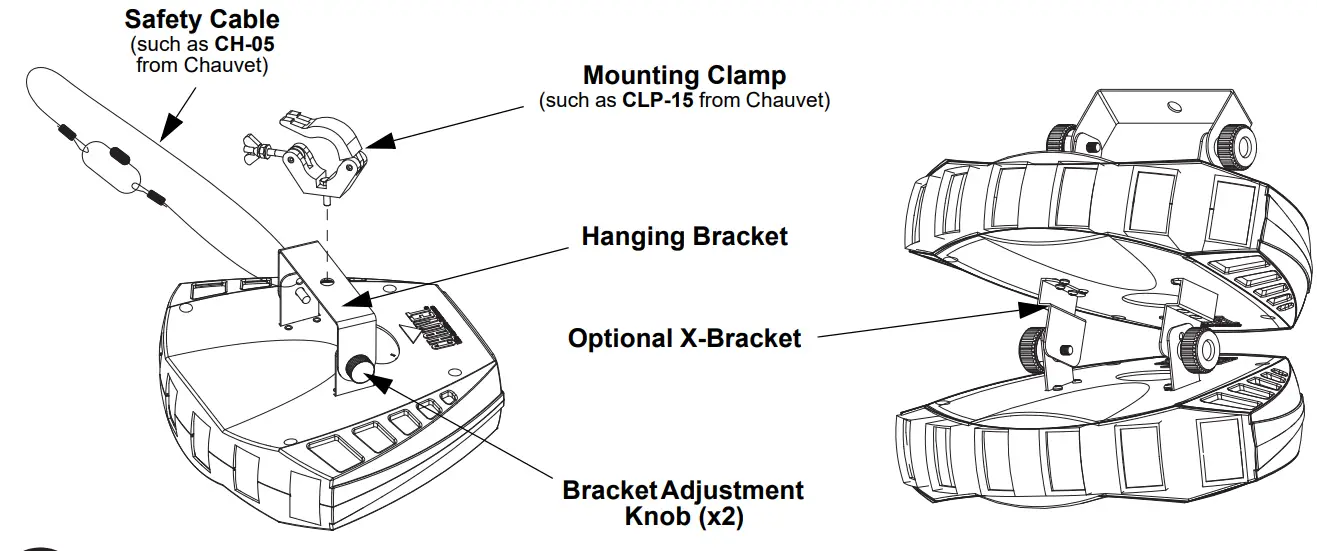

Mounting Diagram

 A maximum of 4 products can be stacked with the optional X-Bracket.
Control Panel Description

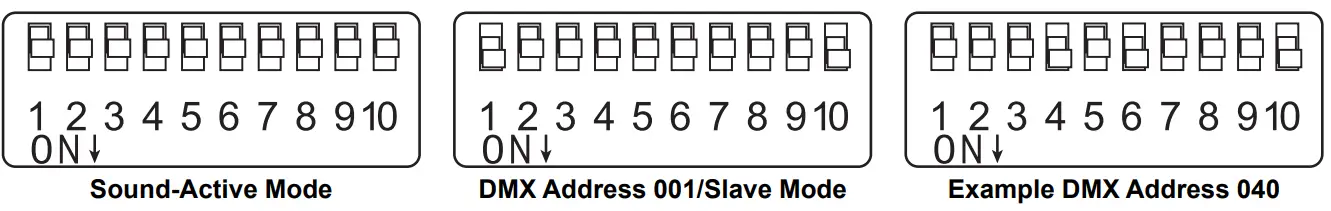

The Derby X uses 10 DIP switches to select from 3 operating modes: DMX, Slave, and Sound-Active.

• Set all DIP switches to Off for Sound-Active mode.
• Set DIP switch 10 to ON for DMX mode, then use DIP switches 1­9 to set the starting address as a binary number.
• 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128, 9=256.
• Set DMX address 001 for Slave mode (DIP switch 1 and 10 ON, DIP switches 2­9 Off).

DMX Linking
The Derby X can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 505.
Master/Slave Connection
The Derby X uses the DMX data connection for its Master/Slave mode. Information about configuring the Derby X for Master/Slave operation is in the User Manual, which is available from the Chauvet website.
DMX Values

Contact Us
General Information……………………… Technical Support

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.
Follow the instructions to request support or to return a product.
Visit our website for contact details.
Derby X QRG Rev. 1 ML6
© Copyright 2018
Chauvet All rights reserved
