Qtx 151.605uk Derby 9 Led Light Effect User Manual

Item ref: 151.605UK
User Manual

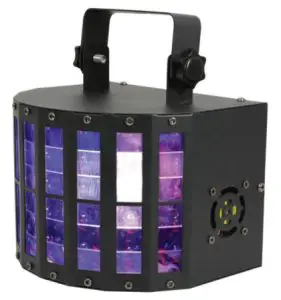

Derby 9
LED Light Effect
Please read through this manual thoroughly before use, any damage caused by misuse of the product will not be covered by warranty.

Thank you for choosing the Derby 9, a classic multi-color derby effect with multiple beams twisting information. Nine different colored 3 Watt LEDs deliver vivid colored patterns, split through precision optics for wide area coverage.
Control via DMX512 or infra-red remote control for an auto program or sound activation offers versatile operation modes for mobile discos, stage shows may form part of a larger lighting installation.

In the box:

Your Derby 9 should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket, 1x remote control, 1 x UK IEC mains lead, and 1 x manual.

Warning:

To prevent the risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.

Please do not open the cover, contains high voltage. This product is not serviceable or repairable by the end-user.
Please refer to qualified personnel for service and repair.

www.avsl.com
151.605UK User Manual

Placement:

• Use the included mounting bracket to fix to a stand or lighting truss
• Use secondary safety fixings if mounting overhead
• Keep away from damp or dusty environments
• Ensure adequate air-flow around the fixture housings
  Ensure adequate access to controls and connections

Cleaning:

• Use a soft cloth with a neutral detergent to clean the casing as required
• Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
• Do not use strong solvents for cleaning the unit

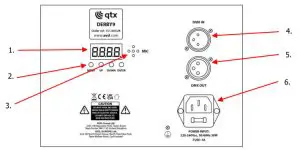

Rear panel controls:

1.  LCD display
2. Manual control buttons
3. Microphone
4. DMX input
5. DMX output
6. IEC mains socket

Manual control menu:

Press the “MENU” button to enter the settings menu.
Press the “UP” and “DOWN” buttons to navigate through various setting functions.
Press the “ENTER” button to save the desired setting.

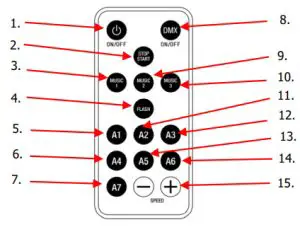

Remote control:

The Derby 9 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This must be aimed at the front of the unit where there is a remote receiver and has a maximum range of approximately 4m.
Controls are listed on the layout drawing below.

1. Main unit on/off
2. The motor on/off
3. Sound show mode 1
4. Strobe on/off
5. Red/blue/warm white color group
6. 9 Colour jump change
7.  Gradual change 2
8. DMX on/off
9.  Sound show mode 2
10. Sound show mode 3
11. Orange/white/yellow color group
12. Green/purple/UV color group
13. 3 Colour jump change
14. Gradual change 1
15. +/- Increase/decrease speed

DMX mode:

The Derby 9 can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit.
To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER” to confirm.
This unit has 7 DMX channels as indicated in the table below:

Specifications:

Troubleshooting:

This product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.
