PAR100
3in1 LED PAR Can
Item ref: 151.030UK
User Manual
Please read through this manual thoroughly before use, any damage caused by misuse of the product will not be covered by warranty.

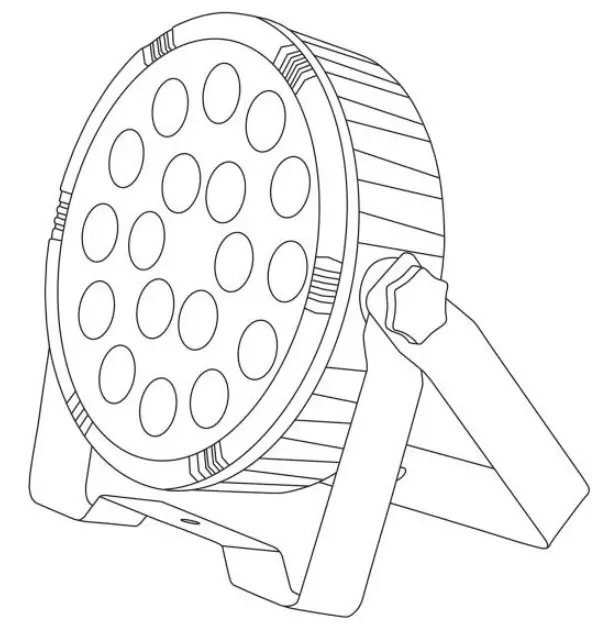

Thank you for choosing the PAR100, A lightweight and compact LED PAR that Can fit with 18 3-in-1 RGB LEDs. This unit can be controlled by auto, sound-to-light, master/slave programs or via DMX. A great value solution for background washes illumination.
In the box:
Your PAR100 should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket and screws, 1x remote control, 1 x UK IEC mains lead and 1 x manual.
Warning:
To prevent the risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.
Please do not open the cover, contains high voltage. This product is not serviceable or repairable by the end-user. Please refer to qualified personnel for service and repair.
Placement:
- Use the included mounting bracket to fix to a stand or lighting truss
- Keep away from damp or dusty environments
- Ensure adequate airflow around the fixture housings
- Ensure adequate access to controls and connections
Cleaning:
- Use a soft cloth with a neutral detergent to clean the casing as required
- Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
- Do not use strong solvents for cleaning the unit

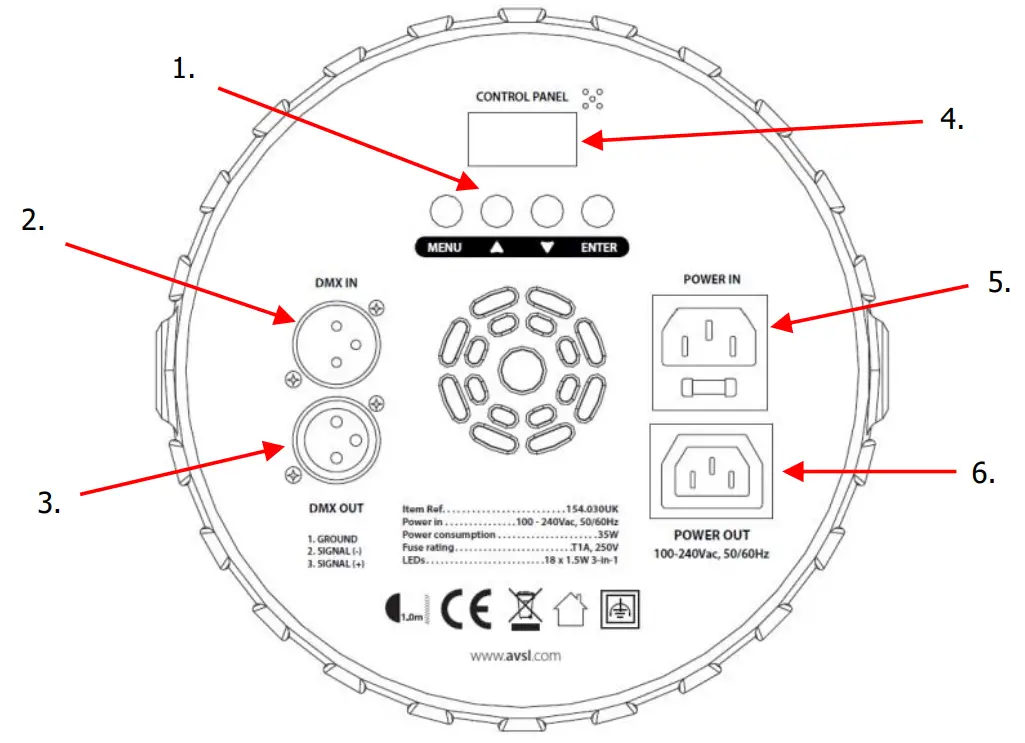

Rear panel controls:
- Manual control buttons
- DMX Signal in
- DMX signal out
- LED display
- IEC power in (fused)
- IEC power out
Manual control menu:
Press the “MENU” button to enter the settings menu.
Press the “UP” and “DOWN” buttons to navigate through various setting functions.
Press the “ENTER” button to save the desired setting.
| Menu | Number range | Function and description |
| A001 | A001-A512 | DMX512 address settings |
| ADYEN | ADYE or ADno | DMX512 Master on or off (Slave) |
| Reye | Reye or REno | Remote control on or off |
| AU01 | AU01-AU07 | Manual colour selection |
| FF00 | FFOO-FF99 | Colour jump setting (speed slow to fast) |
| EE00 | EE00-EE99 | Colour fade setting (speed slow to fast) |
| CCOO | CCOO-CC99 | Colour pulse setting (speed slow to fast) |
| F0 | F000-F255 | Strobe setting (speed slow to fast) |
| SOUND | SOUND | Sound to light white strobe setting |
| SUND | SUND | Sound to light colour change setting |
| r000 | r000-r255 | Red dimming (0-100%) |
| G000 | G000-G255 | Green dimming (0-100%) |
| b000 | b000-B255 | Blue dimming (0-100%) |
Remote control:

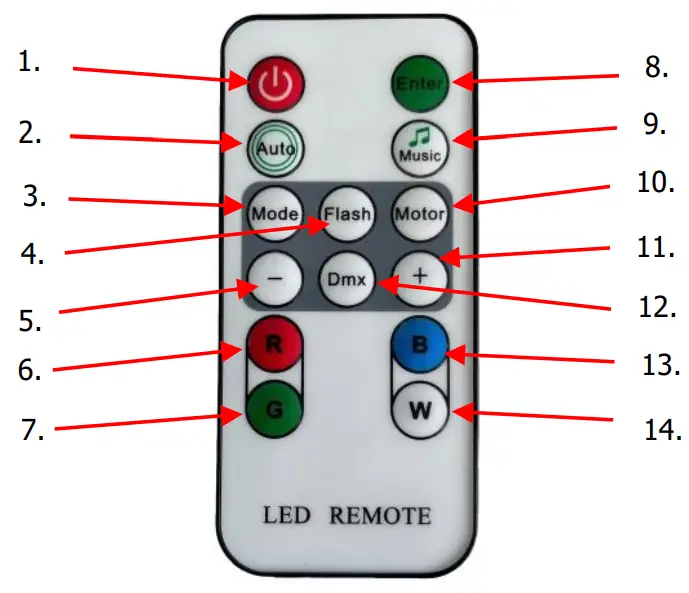

The PAR100 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This must be aimed at the front of the unit where there is a remote receiver and has a maximum range of approximately 4-5m. Controls and functions are listed on the diagram below:
| 1. Power = Remote on/off 2. Auto = Colour jump open/off 3. Mode = Colour fade open/off 4. Flash = Strobe open/off 5. — = Decrease option setting 6. R = Red open/off 7. G = Green open/off | 8. Enter = Save option setting 9. Music = Sound to light colour change open/off 10. Motor = Manual colour select 11. + = Increase option setting 12. Dmx = DMX512 open/off 13. B = Blue open/off 14. W = No function on this model (achieve white by opening red, green and blue concurrently) |
DMX mode:
The PAR100 can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER” to confirm. This unit has 7 DMX channels as indicated in the table below:
| Channel | Value | Function | Setting |
| CHI | 0-255 | Master dimming (0-100%) | Available in all modes |
| CH2 | 0-255 | Red dimming (0-100%) | Dimming modes only |
| CH3 | 0-255 | Green dimming (0-100%) | |
| CH4 | 0-255 | Blue dimming (0-100%) | |
| CH5 | 0-255 | Strobe (speed slow to fast) | Available in all modes |
| CH6 | 0-50 | Open CHI-CH5 | |
| 51-100 | Colour select | ||
| 101-150 | Colour jump setting |
| CH6 (cont’d) | 151-200 | Colour fade setting | |
| 201-250 | Colour pulse setting | ||
| 251-255 | Open sound to light setting | ||
| CH7 | 0-255 | Speed from slow to fast | Available in all modes |
Specifications:
| Power supply | 110-240Vac, 50/60Hz (IEC) |
| Power consumption | 35W |
| Fuse rating | T1.0A |
| LED quantity | 18 x 1.5W 3-in-1 |
| DMX channels | 7 |
| Illuminance | 1700Iux @ 2m |
| Beam angle | 25° |
| Projection distance | 10m (approx.) |
| Dimensions | 200x200x78mm (without Bracket) |
| Weight | 1.17kg |
Troubleshooting:
| No power (mains) | Check mains voltage is correct, and outlet is switched on |
| Check IEC lead and fuse (if fuse continually blows, refer to your dealer) | |
| No light output | Check control panel mode settings |
| Check DMX settings from the controller (dimmer levels, blackout etc.) | |
| Unresponsive to DMX | Check that unit is in DMX mode and ensure DMX address remains lit to confirm receiving DMX signal |
| Check DMX controller is not set to blackout | |
| Check DMX controller is on correct fixture/page | |
| Check master dimmer value | |
| Check correct DMX address is set | |
| Check DMX connection and leads | |
| Overheating/ cutting out | Ensure adequate ventilation and unit is not too close to a heat source |
This product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
