PAR54
4in1 LED PAR Can
Item ref: 154.035UK User Manual
Please read through this manual thoroughly before use, any damage
Caused by misuse of product will not be covered by warranty.

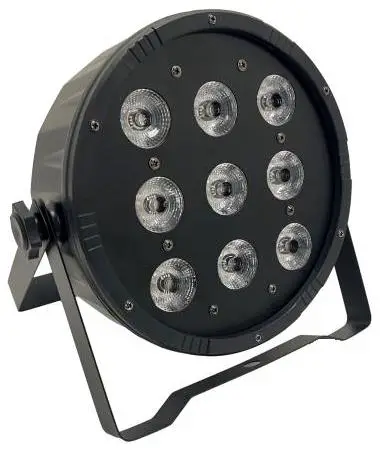

PAR54 4 In 1 LED PAR Can
Thank you for choosing the PAR54, a lightweight and compact LED PAR Can fitted with 9x 6W 4-in-1 RGBW LEDs. This unit can be controlled by auto, sound-to-light, master/slave programs or via 8 channel DMX. A versatile and value solution for background wash illumination requirements.
In the box:
Your PAR54 should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket and screws, 1x remote control, 1 x UK IEC mains lead and 1 x user guide.
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.
Please do not open cover, contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service and repair.
Placement:
- Use the included mounting bracket to fix to a stand or lighting truss
- Keep away from damp or dusty environments
- Ensure adequate airflow around the fixture housings
- Ensure adequate access to controls and connections
Cleaning:
- Use a soft cloth with a neutral detergent to clean the casing as required
- Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
- Do not use strong solvents for cleaning the unit

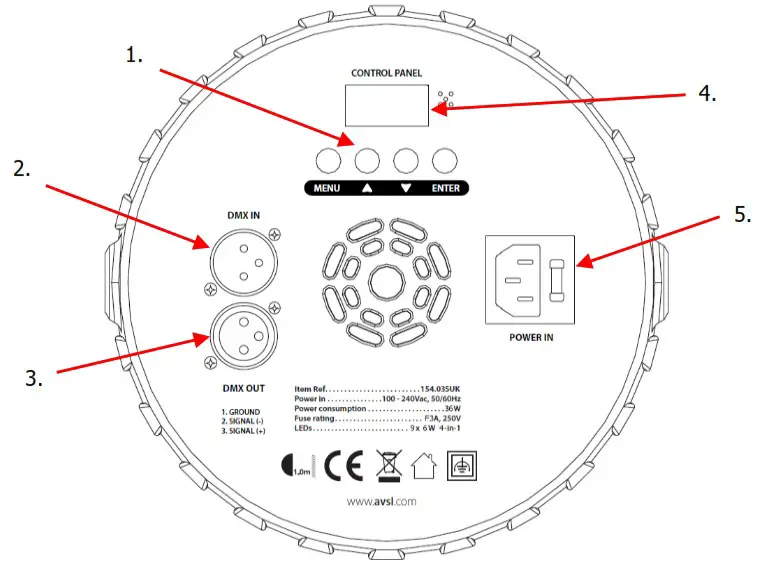

Rear panel controls:
- Manual control buttons
- DMX Signal in
- DMX signal out
- LED display
- IEC power in (fused)
Press the “MENU” button to enter the settings menu.
Press “UP” and “DOWN” buttons to navigate through various setting functions.
Press “ENTER” button to save the desired setting.
| Menu | Number range | Function and description |
| A001 | A001-A512 | DMX512 address setting |
| IrYE | IrYE or Irno | IR remote control on or off |
| AU01 | AU01-AU07 | Manual colour selection |
| FF00 | FF00-FF99 | Colour jump setting (speed slow to fast) |
| EE00 | EE00-EE99 | Colour fade setting (speed slow to fast) |
| CC00 | CC00-CC99 | Colour pulse setting (speed slow to fast) |
| F000 | F000-F255 | Strobe setting (speed slow to fast) |
| SoUD | SoU0-SoU9 | Sound to light colour jump setting (sensitivity high to low) |
| SUnD | SUn0-SUn9 | Sound to light colour pulse setting (sensitivity high to low) |
| r000 | r000-r255 | Red dimming (0-100%) |
| G000 | G000-G255 | Green dimming (0-100%) |
| b000 | b000-b255 | Blue dimming (0-100%) |
| u000 | u000-u255 | White dimming (0-100%) |
| o000 | o000-o255 | IR remote control dimming (dark to bright) |
Remote control:

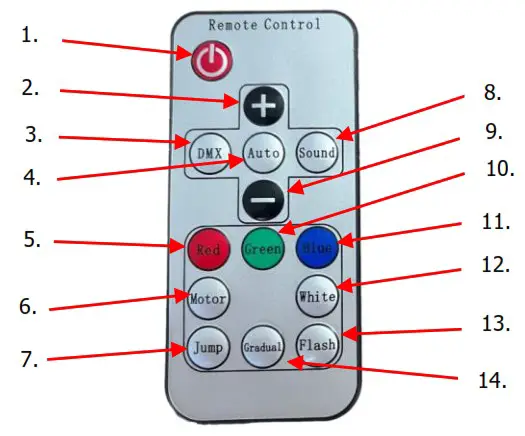

The PAR54 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This has a maximum range of approximately 4-5m and must be aimed towards the front of the unit. Controls and functions are listed on the diagram below:
| 1. Power = Remote on/off | 8. Sound = Sound activated mode |
| 2. + = Increase option setting | 9. — = Decrease option setting |
| 3. DMX = DMX512 open/off | 10. Green = Green open/off |
| 4. Auto = Automatic mode | 11. Blue = Blue open/off |
| 5. Red = Red open/off | 12. White = White open/off |
| 6. Motor = Manual colour select | 13. Flash = Strobe open/off |
| 7. Jump = Colour jump mode | 14. Gradual = Colour fade mode |
DMX mode:
The PAR54 can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the “UP” and “DOWN” buttons and “ENTER” to confirm. This unit has 8 DMX channels as indicated in the table below:
| Channel | Value | Function |
| CH1 | 0-255 | Master dimming (0-100%) |
| CH2 | 10-255 | Strobe (speed slow to fast) |
| CH3 | 0-50 | CH1-CH6 control |
| 051-100 | Manual colour selection | |
| 101-150 | Colour jump | |
| 151-200 | Colour fade | |
| 201-250 | Colour pulse | |
| CH4 | 0-255 | Function speed control (slow to fast) |
| CH5 | 0-255 | Red dimming (0-100%) |
| CH6 | 0-255 | Green dimming (0-100%) |
| CH7 | 0-255 | Blue dimming (0-100%) |
| CH8 | 0-255 | White dimming (0-100%) |
Specifications:
| Power supply | 110-240Vac, 50/60Hz (IEC) |
| Power consumption | 36W |
| Fuse rating | F3A |
| LED quantity | 9 x 6W RGBW |
| DMX channels | 8 |
| Beam angle | 45° |
| Dimensions | 205 x 205 x 80mm |
| Weight | 955g |
Troubleshooting:
| No power (mains) | Check mains voltage is correct, and outlet is switched on |
| No light output | Check IEC lead and fuse (if fuse continually blows, refer to your dealer) |
| Unresponsive to DMX | Check control panel mode settings |
| Check DMX settings from controller (dimmer levels, blackout etc.) | |
| Check that unit is in DMX mode and ensure DMX address remains lit to confirm receiving DMX signal | |
| Check DMX controller is not set to black out | |
| Check DMX controller is on correct fixture/page | |
| Check master dimmer value | |
| Check correct DMX address is set | |
| Check DMX connection and leads | |
| Overheating/cutting out | Ensure adequate ventilation and unit is not too close to a heat source |
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
