Behringer Eurolight Led Dsl1 Dual-mode Derby Effect And Strobe Light User Guide

Quick Start Guide

EUROLIGHT LED DSL1
Dual-Mode Derby Effect and Strobe Light

Important Safety Instructions

Terminals marked with this symbol carry an electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼” TS or twist-locking plugs pre-installed. All other installations or modifications should be performed only by qualified personnel.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.
Caution
To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user-serviceable parts inside. Refer servicing to qualified personnel.
Caution
To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Caution
These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Use only attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
17. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office or your household waste collection service.
18. Do not install in a confined space, such as a bookcase or similar unit.
19. Do not place naked flame sources, such as lighted candles, on the apparatus.
20. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed of at a battery collection point.
21. This apparatus may be used in tropical and moderate climates up to 45°C.
22. The remote control contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
23. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly on or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances, and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone, Aston Microphones, Aston Microphones, and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty.

Additional Safety Instructions

1. When opening the package, take all the accessories out, and place the device on a table for inspection. First, check whether the accessories are complete, then inspect the device carefully for any damage. If there is any damage, please contact your dealer as soon as possible.
2. AC Power: Check that the local power supply is in accordance with the requirements of the rated voltage of the device.
3. The device is only suitable for an indoor working environment. It should be kept in a dry environment, and away from any moisture, overheating or dust. Do not allow the device to come into contact with water, moisture, or other liquids, in order to prevent or reduce the risk of electric shock or fire.
4. Please do not install the device directly onto, or close to, combustible surfaces or materials.
5. Personnel who install, operate, and maintain the device must be professionally licensed and authorized to do so.
6. If the device appears to be malfunctioning, stop using the device immediately. Do not try to repair the device, but contact the nearest authorized technical assistance center. If parts are damaged, always use identical authorized replacement parts.
7. Do not touch any electrical wiring in the process of operation, to prevent the risk of electric shock.
8. Make sure the device is used in a working environment temperature, that does not exceed 40ºC or below – 20ºC.
9. In normal operation, the highest temperature of the device housing may reach 80ºC, please do not touch it.
10. The device should only be used in a grounded power system, and the ground wire must connect with the ground wire of the power supply system. The ground/earth sign of the device should be connected to the installing fixtures.
11. Do not use the device if there is damage to the power cord insulation, and also do not run the power cord so it overlaps other wires in your system.
12. When not in use or when cleaning the device, please disconnect the power cord to the device.
13. There are no user-serviceable components inside the device. Before the operation of the device, please make sure the device is secure and all assembly screws and fittings are fitted. If the device’s outer case is open or loose, the device must not be used.
14. Regular checks must be conducted by qualified personnel to ensure that the system remains in a secure and stable condition.
15. Make sure that, where the product is suspended, the area underneath the product is free of human traffic. Do not suspend the product in areas that can be entered or used by members of the public.

Secondary Safeties
All lighting units installed in theatres, studios, or other places of work and entertainment shall, in addition to the principle load-bearing means of suspension, be provided with an independent, properly rated, and securely attached secondary safety. The additional safety device must be mounted in a way that the lighting unit is caught by the safety device without any drop and swing in the event that the primary suspension fails.

Product Care and Cleaning
Please pay attention to the following points when using and inspecting this product:

• All screws and components of the installed product must be tightly connected and not rusty or damaged
• The outer casing, lens, fixing parts, and installation location (such as ceiling, hanger, truss, etc.) cannot be deformed
• The power cord must not be damaged The installation and use of the product must be carried out by trained professional technicians and must be protected against potential safety hazards.

WARNING: Please unplug the power cord before doing product maintenance!
Before disconnecting the device or starting maintenance work, make sure that the device is disconnected. It is very important to keep the device clean and clean. If it is kept clean, this not only keeps the output at the maximum brightness, but it also prolongs its service life. Use high-quality professional glass cleaner and clean with a soft rag. Under no circumstances should alcohol or chemical solvents be used. The interior of the device and the fan should be cleaned at least quarterly using a vacuum cleaner.

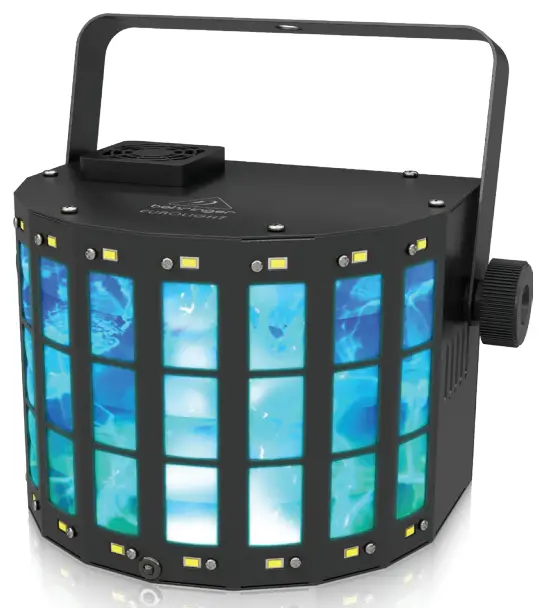

Features

Features

• Professional Dual-Mode LED Derby with 4 RGBW 3-Watt LEDs and Strobe with 16 white 0.5-Watt LEDs
• Ideal for portable live performances, events, DJ shows, and fixed installations
• The system can be operated via DMX console, master/slave, integrated display and remote control (included)
• Onboard sound-to-light mic module for creating a light show from house music
• Standalone operation for 3 AUTO and 20 strobes preprogrammed automated shows
• IRC1 Infrared remote control Included for up to 33 ft (10 m) range of wireless freedom
• Bracket included for ceiling or truss-mount applications
• Rugged metal construction ensures long-term reliability

Display

Display Functions

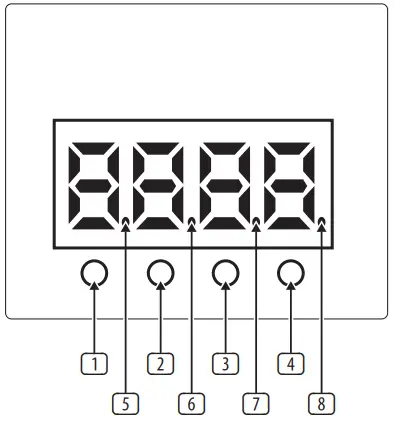

Press the MENU button to access menu options, keep pressing MENU to toggle menu items. Press the ENTER button to access desired functions and the display will flash, then use the UP/DOWN buttons to navigate and select the desire setting. Press ENTER to save and confirm, or press MENU to go back without saving.
The main functions are as follows:

Controlling the Device

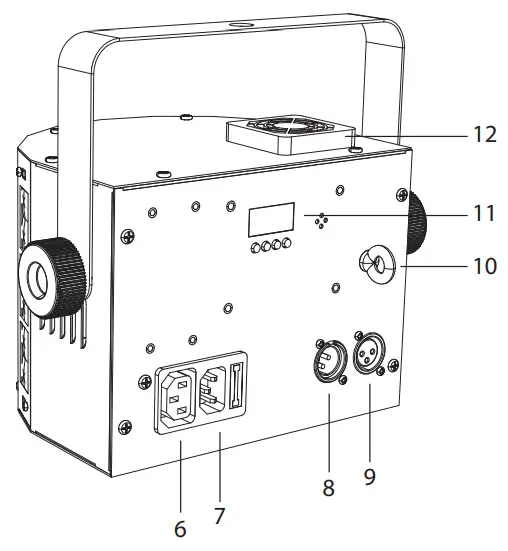

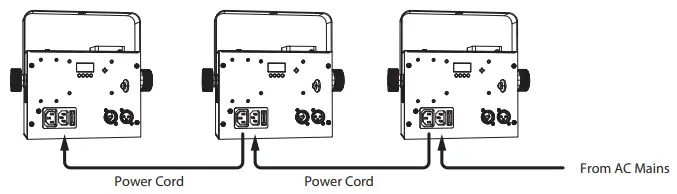

AC Power Connections

The Lighting device uses an IEC AC power input receptacle with an in-line fuse holder.
WARNING:
Make sure that all AC power is turned off before making power connections.
Make sure the total current draw from all units does not exceed the capacity of the AC Mains supply.
Do not use with Dimmers
The AC mains power supply must be grounded, and the mains connection to the Lighting unit must use a 3-pin power cord.
The power must be disconnected before checking or replacing the in-line fuse.

Controlling the Device
The device can be controlled in the following ways:

1. Stand Alone
2. Master/slave
3. DMX control
4. IR Remote Control

Stand Alone
The device can be used on its own, without a DMX controller

1. Use the AUTO menu to select from 3 different automatic show modes
2. Use the STRO menu to select from 20 stroboscopic shows
3. Use the DERB menu to select a customized color and strobe frequency for the derby
4. Use the SOUN menu to select sound activation of the internal shows

Master/Slave Control

1. Connect the device(s) with DMX cable(s) as shown in the DMX Control section. Note: In order to prevent interference, connect less than or equal to 32 units at one time.
2. Set the master unit:
   2.1. Press MENU of the first device and select MASL
   2.2. Press ENTER
   2.3. Use UP and DOWN to select MAST
   2.4. Press ENTER (now the first unit is the master)
   2.5. Press MENU and select any AUTO, STRO, DERB, or SOUN mode
   2.6. Press ENTER
   2.7. After 5-10 seconds of inactivity, the show mode will be activated
3. Set the slave unit(s):
   3.1. Press MENU and select MASL (use the same operation on all slave units)
   3.2. Press ENTER
   3.3. Use UP and DOWN to select SLAV
   3.4. Press ENTER to confirm

DMX Control
To use a DMX controller to control the devices, the ADDRESS menu is used to set the DMX address code of each device (the address code range is between 1-512) so that the devices can receive the DMX signal. The DMX operation can be 2 or 6 Channels.

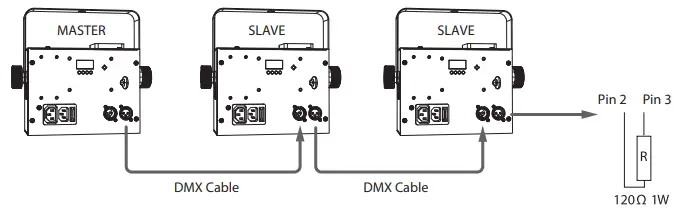

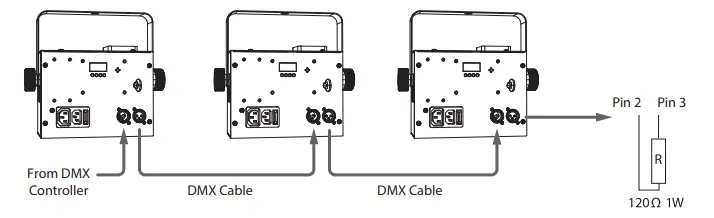

1. Connect the output port of your DMX Controller to the DMX input port of the first device, and connect the DMX output port to the DMX input port of the second device, and so on, until all units are connected
2. In the ADDR menu for each device, enter the address code that matches your DMX controller
3. In the CHAN menu, select from 2 or 6 channels, depending on your controller or preference
4. The DMX Controller can now control the devices

DMX connection requires a terminal (loop connection)
During the installation process, if the signal line is laid a long distance, or in a noisy environment, such as a dance hall, it is recommended to use a DMX terminal (loop connection). This can reduce any interference to the digital control signal by electrical noise.

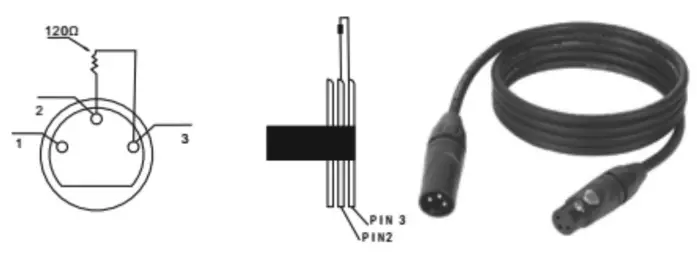

The DMX terminator consists of a simple XLR connector with pins 2 and 3 connected to a 120 Ω resistor. Please insert the terminator into the XLR output port of the last device, please refer to the figure below.

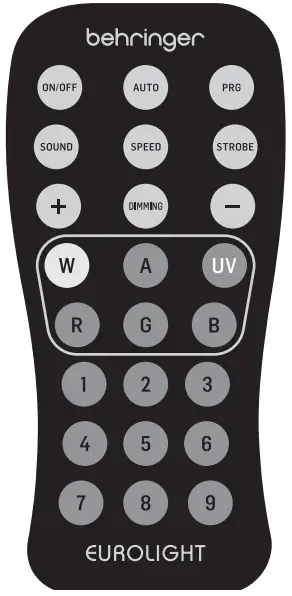

IR Remote Control
When using the remote control, the space between the device and the remote control should be kept free of obstacles. The remote control has a range of 10 meters.

Remote Control Battery

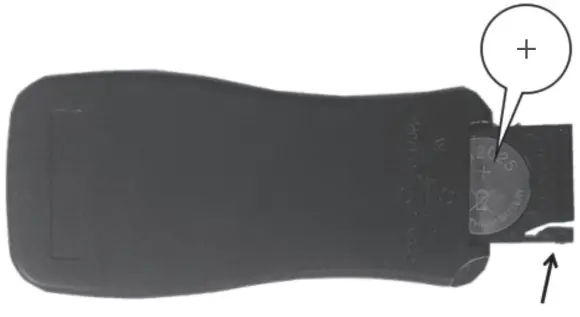

1. The battery positive (+) should face as shown below.
2. The arrow indicates the plastic lock.

DMX Channel Mode
DMX channel (choose default code)
DMX Channel (2CH)

DMX Channel (6CH)

DMX Channel (6CH) continued

Specifications

Important information

1. Register online.
   Please register your new Music Tribe equipment right after you purchase it by visiting musictribe.com. Registering your purchase using our simple online form helps us to process your repair claims more quickly and efficiently. Also, read the terms and conditions of our warranty, if applicable.
2. Malfunction.
   Should your Music Tribe Authorized Reseller not be located in your vicinity, you may contact the Music Tribe Authorized Fulfiller for your country listed under “Support” at musictribe.com. Should your country not be listed, please check if your problem can be dealt with by our “Online Support” which may also be found under “Support” at musictribe.com. Alternatively, please submit an online warranty claim at musictribe.com BEFORE returning the product.
3. Power Connections.
   Before plugging the unit into a power socket, please make sure you are using the correct mains voltage for your particular model. Faulty fuses must be replaced with fuses of the same type and rating without exception.


Hereby, Music Tribe declares that this product is in compliance with Directive 2014/35/EU, Directive 2014/30/EU, Directive 2011/65/EU and
Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.
The full text of the EU DoC is available at https://community.musictribe.com/
EU Representative: Music Tribe Brands DK A/S
Address: Ib Spang Olsens Gade 17, DK – 8200 Aarhus N, Denmark
We Hear You

References

• Music Tribe
• Support - Music Tribe Community
• Music Tribe
