SABER2
3-in-1LED Effect with Derby (RGBW), UV, and Strobe
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version 1.0 (revised 5 November 2020)
www.event-lighting.com.au
Safety Instructions
Warning
- Do not open this device, there are no user-serviceable parts inside. Risk of electric shock.
- Do not look directly at the light source from close range. · Avoid contact with the unit during operation, as the housing may become hot. Allow the fixture to cool for at least 15 minutes after turning off before touching.
- Install this device in a location with adequate ventilation, at least 50cm from adjacent surfaces.
- Do not operate this device, or connect this device to power, within 50cm of any flammable material.
- Use a safety chain when mounting this device overhead.
- Do not operate this device outdoors where excessive dust, heat, water, or humidity may affect it.
- Do not operate this device if the housing, lenses, or cables appear damaged.
- Do not connect this device to a dimmer or rheostat.
- Do not operate this device at temperatures higher than 40°C (104°F).
- Only connect this device to a grounded and protected circuit.
- Only use the hanging bracket to carry this device.
- Stop using this device immediately if a serious operating problem becomes apparent.
Product Installation
SABER2 can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting SABER2 overhead.

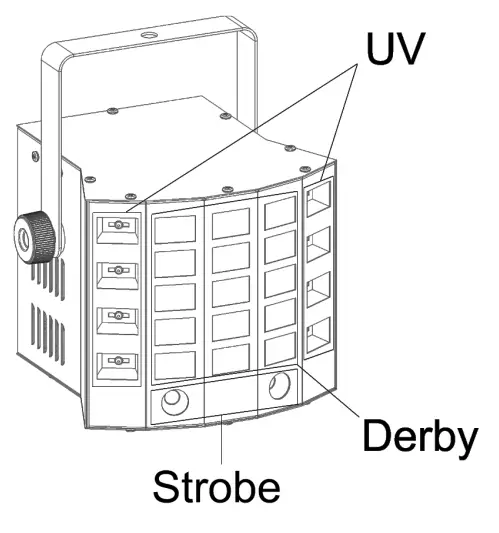

Overview

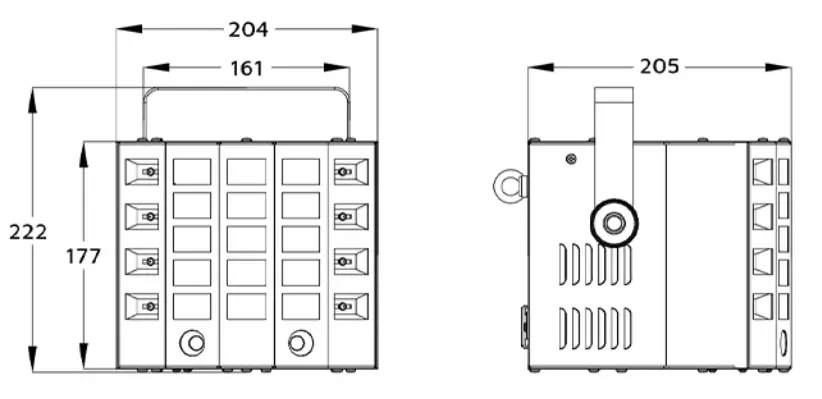

Dimensions

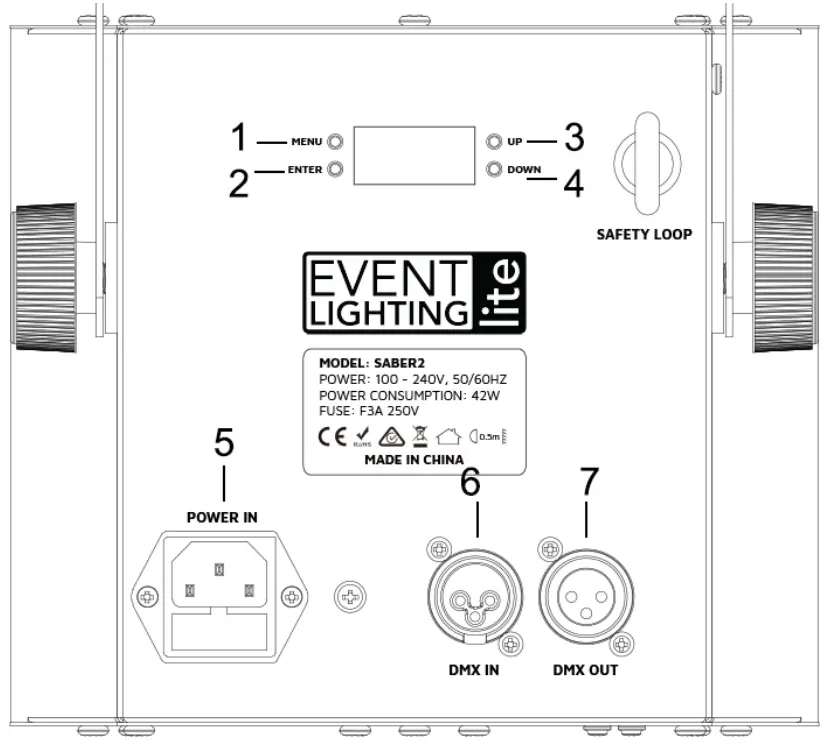

Control Panel
Buttons
- MENU- Select program functions.
- ENTER - Confirm the selected function.
- UP – Increase parameters.
- DOWN - Decrease parameters.
Input and Output - IEC power in.
- 3-pin DMX in.
- 3-pin DMX out.
| Display | Function | Value/Description |
| Addr | DMX Address | A001-A512 |
| SLAV | Master/Slave | No/Yes |
| A1-1 — A1-9 | Derby effects | Red, 1-9 to adjust the motor speed. |
| A2-1 — A2-9 | Derby effects | Green, 1-9 to adjust the motor speed. |
| A3-1 — A3-9 | Derby effects | Blue, 1-9 to adjust the motor speed. |
| A4-1 — A4-9 | Derby effects | White, 1-9 to adjust the motor speed. |
| A5-1 — A5-9 | Derby auto mode | 1-9 to adjust run speed. |
| A6-1 — A6-9 | UV effects | No function. Manual UV control only allows one level. |
| A7-1 — A7-9 | Strobe effects | 1-9 to adjust strobe speed. |
| A8-1 — A8-9 | Combined Auto mode | 1-9 to adjust autorun speed. |
| S1-1 — S1-9 | Sound mode 1 | Derby effect, 1-9 to adjust the sound sensitivity. |
| S2-1 — S2-9 | Sound mode 2 | The 3-in-1 effect, Blackout when without sound, 1-9 to adjust the sound sensitivity. |
| S3-1 — S3-9 | Sound mode 3 | The 3-in-1 effect, Light up when without sound, 1-9 to adjust the sound sensitivity. |
DMX Chart
| CH | Function | Value | Description |
| 1 | Derby Motor rotation | 000-127 | Directional rotation |
| 128-255 | Rotate automatically, fast to slow | ||
| 2 | Derby Motor rotation range | 000-255 | 0 to 340 degrees |
| 3 | Derby Master dimmer | 000-255 | Dimmer 0-100% |
| 4 | Derby Strobe | 000-010 | No Strobe |
| 011-255 | Strobe, slow to fast | ||
| 5 | Derby effect | 000-255 | Red dimmer, 0-100% |
| 6 | Derby effect | 000-255 | Green dimmer, 0-100% |
| 7 | Derby effect | 000-255 | Blue dimmer, 0-100% |
| 8 | Derby effect | 000-255 | White dimmer, 0-100% |
| 9 | Derby Auto mode | 000-255 | Derby Effect autorun |
| 10 | Derby Speed Adjust | 000-255 | Autorun speed, slow to fast |
| 11 | UV effect | 000-255 | UV dimmer, 0-100% |
| 12 | UV strobe | 000-255 | UV strobe, slow to fast |
| 13 | Strobe effect | 000-255 | White dimmer, 0-100% |
| 14 | Strobe Speed | 000-010 | No strobe |
| 011-255 | Strobe, slow to fast | ||
| 15 | Macros | 000-050 | Control with channels 1 to 14 |
| 051-100 | Sound mode 1, derby effect | ||
| 101-200 | Sound mode 2, 3-in-1, blackout when no sound | ||
| 201-255 | Sound mode 3, 3-in-1 auto-run when no sound |
Technical Specifications
Photometrics
- Light Source:
• Derby: 2pcs 4-in-1 8W RGBW LEDs.
• Strobe: 2pcs 10W White LEDs.
• UV: 8pcs 3W UV LEDs - LED Lifespan: 50,000 hours.
Effects
- Dimming: 0-100%, 8-bit. · Strobe: 1-20 Hz.
Power
- Input Voltage: 100~240V AC, 50/60 Hz. · Power Consumption: 42W. · Connection: IEC in.
Control
- Protocol: DMX512.
- Operation modes: DMX, auto, manual, sound active, master/slave
- DMX Channels: 15
- Interface: 3-pin DMX in/out.
- Display: LED Display with 4-button control.
Housing
- Finishing: Matte Black.
- Net Weight: 2.15kg
- Dimensions: 260x260x250 mm (packaging).
Warranty
Please refer to your local dealer or contact Event Lighting.
