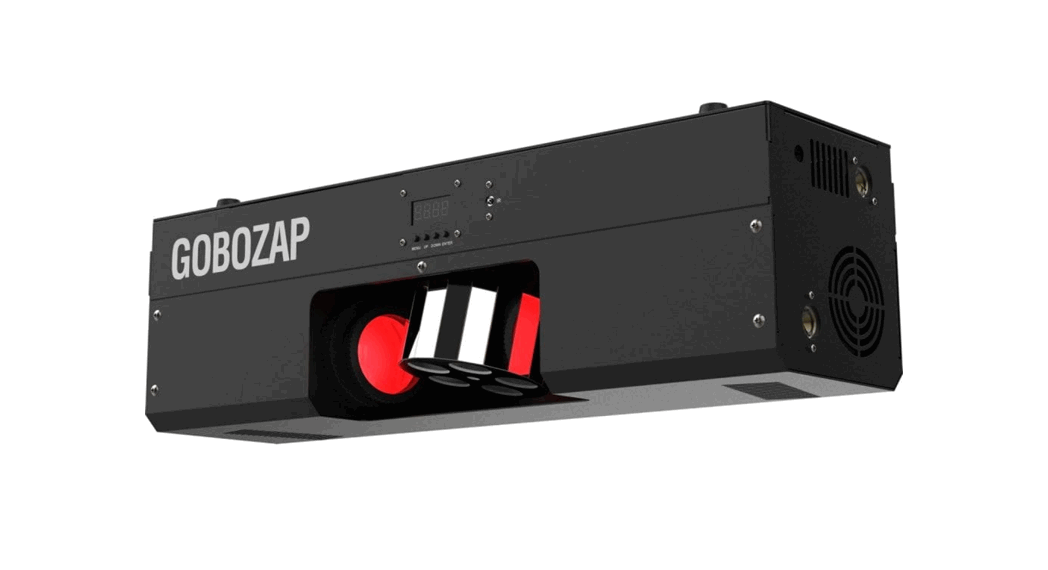

CHAUVET DJ Gobozap 2x90w LED In-Air Gobo Sweeping Lighting Effect User Guide
About This Guide
The Gobozap Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany::www.chauvetlighting.eu/warranty-registration/
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
Always connect the product to a grounded circuit.- Make sure the power cord is not crimped or damaged.
- Always disconnect the product from the power source before cleaning it or replacing the fuse.
- Never disconnect the product from the power source by pulling or tugging on the cord.
- If mounting the product overhead, make sure there is adequate support for the product’s weight and always secure the product using a safety cable.
- Make sure there are no flammable materials close to the product when it is operating.
- Avoid direct eye exposure to the light source while the product is on.
- Do not touch the product’s housing when the product is operating because the housing can be very hot.
- The product is not intended for permanent installation.
- The product is for indoor use only. It is rated at IP20.
- Do not expose the product to rain or moisture.
- Always connect the product to a power source that is within the voltage range stated on the label or rear panel of the product.
- Never connect the product to a dimmer or rheostat.
- Make sure to replace the fuse with another of the same type and rating.
- Always install the product in a location with adequate ventilation.
- Always leave at least 20 in (50 cm) between the product and adjacent surfaces.
- Be sure that no ventilation slots on the product’s housing are blocked.
- Do not operate the product at an ambient temperature higher than 104 °F (40 °C).
- Never carry the product by the power cord or any moving part.
- Always use the mounting/hanging bracket to lift the product.
- If there is a serious operating problem, stop using the product immediately.
- Never try to repair the product. Repairs carried out by untrained people can lead to damage or bmalfunction.
- To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.
Always connect the product to a grounded circuit.Contact
Outside the U.K., Ireland, Benelux, France, or Germany, contact your distributor to request support or return a product. Visit Contact Us for contact information.

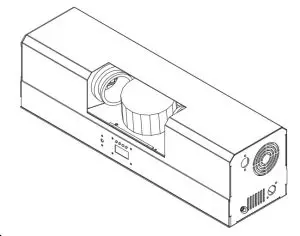

What is Included

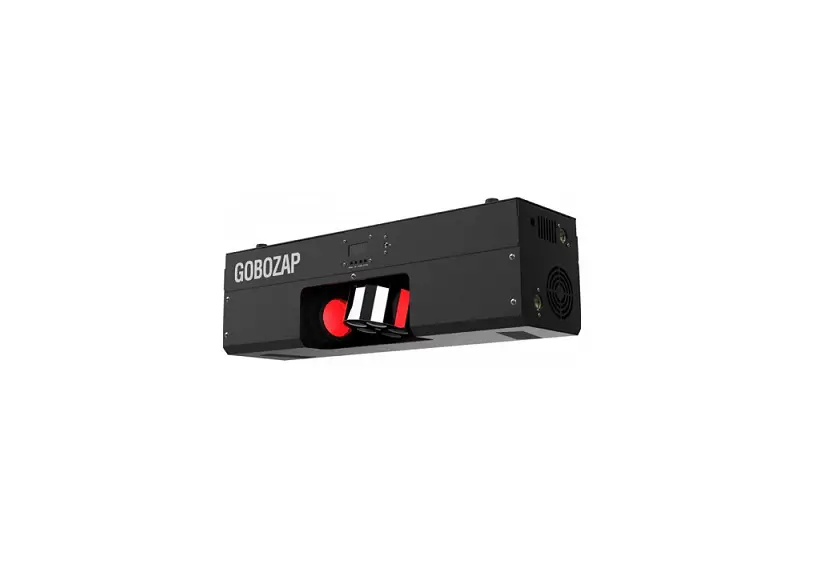

- Gobozap
- Power cord
- Hanging bracket
- Quick Reference Guide
To Begin
Unpack your Gobozap and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
! product from power via breaker or by unplugging it.
Power linking
It is possible to link up to 6 Gobozap products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.
Fuse replacement
- Disconnect the product from power.
- Wedge the tip of a flathead screwdriver into the slot of the fuse holder.
- Pry the safety cap out of the housing.
- Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes. Make sure the mounting clamps used are capable of supporting the weight of the product.
Mounting diagram
DMX Linking
The Gobozap can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from https://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.
Starting address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 512. Master/Slave connection
The Gobozap uses the DMX data connection for its Master/Slave mode. Information about configuring the Gobozap for
Master/Slave operation is in the User Manual available from the Chauvet website.
IRC-6 (Infrared Remote Control)
The Gobozap can be operated with the CHAUVET IRC-6.
| Button | Function | |
| <BLACK OUT> | Black out | |
| <AUTO> | Automatic mode | |
| <SOUND> | Sound mode | |
| <SPEED> | Auto speed (press button <+> / <–> to increase or decrease the speed of the program) | |
| <STROBE> | Auto speed (press button <+> / <–> to increase or decrease the speed of the program) | |
| <SENSITIVITY> | Auto speed (press button <+> / <–> to increase or decrease the speed of the program) | |
| <0–9> | Manual color control (press any number between <0> and <9> to choose a specific color of the LED. The colors should match the colors on the remote.) | |
| <0> | LED intensity (press <0> to set LED at full intensity) |
Control Panel Description
| Button | Function |
| <MENU> | Exits from the current menu or function |
| <UP> | Navigates upwards through the menu list and increases the numeric value when in a function |
| <DOWN> | Navigates downwards through the menu list and decreases the numeric value when in a function |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
Refer to the Gobozap product page on www.chauvetdj.com for the latest menu map.
| Mode | Programming Levels | Description | |
| Address | 2Ch | d001–512 | Sets the DMX personality |
| 7Ch | |||
| 11Ch | |||
| Auto programs | P– | auto | Auto programs |
| Auto speed | S– | 001–100 | Auto programs speed |
| Sound-active mode | Snd | BO | Blackout when no sound |
| SLOW | Rotate slow when no sound | ||
| Sound sensitivity | SENV | 001–100 | Adjusts sound sensitivity |
| Infrared mode | SET | on | Turns infrared on or off |
| off | |||
| Master/Slave mode | SLV | SLV1 | Copies the master unit |
| SLV2 | Slave unit for coordinated show | ||
|
Motor |
mot | on | Reverses motor rotation |
| off | Normal motor rotation | ||
| 000–100 | Overrides mirror dish rotation speed for auto/sound only. If this is set to 000, this setting has no effect on anything. When set to 050, the mirror dish or gobo will rotate at 50% speed, and the auto or sound program speed control will adjust the colors and gobos only. | ||
DMX Values 11Ch
| Channel | Function | Value | Percent/Setting |
| 1 | Auto programs | 001 ó 127 128 ó 255 | Auto mode Sound mode |
| 2 | Auto speed | 000 ó 255 | Slow to fast (activates when Channel 1 is on auto mode) |
| Sound sensitivity | 000 ó 255 | 0–100% (activates when Channel 1 is on sound mode) | |
| 3 | Dimmer 1 | 000 ó 255 | 0–100% |
| 4 | Dimmer 2 | 000 ó 255 | 0–100% |
| 5 | Shutter 1 | 000 ó 255 | Strobe speed, slow to fast |
| 6 | Shutter 2 | 000 ó 255 | Strobe speed, slow to fast |
|
7 |
Colour wheel 1 | 001 ó 004 005 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 034 035 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 079 080 ó 084 085 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 109 110 ó 114 115 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 197 198 ó 255 | White Red Green Blue Yellow Amber Pink Lime green Light blue Magenta Cyan Orange UV Dark pink Dark pink + white UV + dark pink Orange + UV Cyan + orange Magenta + cyan Light blue + magenta Lime green + light blue Pink + lime green Amber + pink Yellow + amber Blue + yellow Green + blue Red + green White + red Clockwise scroll, fast to slow Counterclockwise scroll, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 001 ó 004 | White | ||
| 005 ó 009 | Red | ||
| 010 ó 014 | Green | ||
| 015 ó 019 | Blue | ||
| 020 ó 024 | Yellow | ||
| 025 ó 029 | Amber | ||
| 030 ó 034 | Pink | ||
| 035 ó 039 | Lime green | ||
| 040 ó 044 | Light blue | ||
| 045 ó 049 | Magenta | ||
| 050 ó 054 | Cyan | ||
| 055 ó 059 | Orange | ||
| 060 ó 064 | UV | ||
| 065 ó 069 | Dark pink | ||
| 8 | Colour wheel 2 | 070 ó 074 075 ó 079 | Dark pink + white UV + dark pink |
| 080 ó 084 | Orange + UV | ||
| 085 ó 089 | Cyan + orange | ||
| 090 ó 094 | Magenta + cyan | ||
| 095 ó 099 | Light blue + magenta | ||
| 100 ó 104 | Lime green + light blue | ||
| 105 ó 109 | Pink + lime green | ||
| 110 ó 114 | Amber + pink | ||
| 115 ó 119 | Yellow + amber | ||
| 120 ó 124 | Blue + yellow | ||
| 125 ó 129 | Green + blue | ||
| 130 ó 134 | Red + green | ||
| 135 ó 139 | White + red | ||
| 140 ó 197 | Clockwise scroll, fast to slow | ||
| 198 ó 255 | Counterclockwise scroll, slow to fast | ||
| 001 ó 009 | Gobo 1 | ||
| 010 ó 019 | Gobo 2 | ||
| 020 ó 029 | Gobo 3 | ||
| 030 ó 039 | Gobo 4 | ||
| 040 ó 049 | Gobo 5 | ||
| 050 ó 059 | Gobo 6 | ||
| 060 ó 069 | Gobo 7 | ||
| 9 | Gobo wheel 1 | 070 ó 079 080 ó 089 | Gobo 8 Gobo 9 |
| 090 ó 099 | Gobo 10 | ||
| 100 ó 109 | Gobo 11 | ||
| 110 ó 119 | Gobo 12 | ||
| 120 ó 129 | Gobo 13 | ||
| 130 ó 139 | Gobo 14 | ||
| 140 ó 197 | Clockwise scroll, fast to slow | ||
| 198 ó 255 | Counterclockwise scroll, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 001 ó 009 | Gobo 1 | ||
| 010 ó 019 | Gobo 2 | ||
| 020 ó 029 | Gobo 3 | ||
| 030 ó 039 | Gobo 4 | ||
| 040 ó 049 | Gobo 5 | ||
| 050 ó 059 | Gobo 6 | ||
| 060 ó 069 | Gobo 7 | ||
| 10 | Gobo wheel 2 | 070 ó 079 080 ó 089 | Gobo 8 Gobo 9 |
| 090 ó 099 | Gobo 10 | ||
| 100 ó 109 | Gobo 11 | ||
| 110 ó 119 | Gobo 12 | ||
| 120 ó 129 | Gobo 13 | ||
| 130 ó 139 | Gobo 14 | ||
| 140 ó 197 | Clockwise scroll, fast to slow | ||
| 198 ó 255 | Counterclockwise scroll, slow to fast | ||
| 001 ó 042 | Stop | ||
| 043 ó 086 | Counterclockwise rotation, slow to fast | ||
| 087 ó 129 | Stop | ||
| 11 | Barrel rotation | 130 ó 173 | Clockwise rotation, slow to fast |
| 174 ó 217 | Stop | ||
| 218 ó 255 | Alternating clockwise-counterclockwise rotation, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 1 | Auto programs | 001 ó 127 128 ó 255 | Auto mode Sound mode |
| 2 | Auto speed | 000 ó 255 | Slow to fast (activates when Channel 1 is on auto mode) |
| Sound sensitivity | 000 ó 255 | 0–100% (activates when Channel 1 is on sound mode) | |
| 3 | Dimmer | 000 ó 255 | 0–100% |
| 4 | Shutter | 000 ó 255 | Strobe speed, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 001 ó 004 | White | ||
| 005 ó 009 | Red | ||
| 010 ó 014 | Green | ||
| 015 ó 019 | Blue | ||
| 020 ó 024 | Yellow | ||
| 025 ó 029 | Amber | ||
| 030 ó 034 | Pink | ||
| 035 ó 039 | Lime green | ||
| 040 ó 044 | Light blue | ||
| 045 ó 049 | Magenta | ||
| 050 ó 054 | Cyan | ||
| 055 ó 059 | Orange | ||
| 060 ó 064 | UV | ||
| 065 ó 069 | Dark pink | ||
| 5 | Colour wheel | 070 ó 074 075 ó 079 | Dark pink + white UV + dark pink |
| 080 ó 084 | Orange + UV | ||
| 085 ó 089 | Cyan + orange | ||
| 090 ó 094 | Magenta + cyan | ||
| 095 ó 099 | Light blue + magenta | ||
| 100 ó 104 | Lime green + light blue | ||
| 105 ó 109 | Pink + lime green | ||
| 110 ó 114 | Amber + pink | ||
| 115 ó 119 | Yellow + amber | ||
| 120 ó 124 | Blue + yellow | ||
| 125 ó 129 | Green + blue | ||
| 130 ó 134 | Red + green | ||
| 135 ó 139 | White + red | ||
| 140 ó 197 | Clockwise scroll, fast to slow | ||
| 198 ó 255 | Counterclockwise scroll, slow to fast | ||
| 001 ó 009 | Gobo 1 | ||
| 010 ó 019 | Gobo 2 | ||
| 020 ó 029 | Gobo 3 | ||
| 030 ó 039 | Gobo 4 | ||
| 040 ó 049 | Gobo 5 | ||
| 050 ó 059 | Gobo 6 | ||
| 060 ó 069 | Gobo 7 | ||
| 6 | Gobo wheel | 070 ó 079 080 ó 089 | Gobo 8 Gobo 9 |
| 090 ó 099 | Gobo 10 | ||
| 100 ó 109 | Gobo 11 | ||
| 110 ó 119 | Gobo 12 | ||
| 120 ó 129 | Gobo 13 | ||
| 130 ó 139 | Gobo 14 | ||
| 140 ó 197 | Clockwise scroll, fast to slow | ||
| 198 ó 255 | Counterclockwise scroll, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 001 ó 042 | Stop | ||
| 043 ó 086 | Counterclockwise rotation, slow to fast | ||
| 087 ó 129 | Stop | ||
| 7 | Barrel rotation | 130 ó 173 | Clockwise rotation, slow to fast |
| 174 ó 217 | Stop | ||
| 218 ó 255 | Alternating clockwise-counterclockwise rotation, slow to fast |
| Channel | Function | Value | Percent/Setting |
| 1 | Auto programs | 001 ó 127 128 ó 255 | Auto mode Sound mode |
| 2 | Auto speed | 000 ó 255 | Slow to fast (activates when Channel 1 is on auto mode) |
| Sound sensitivity | 000 ó 255 | 0–100% (activates when Channel 1 is on sound mode) |

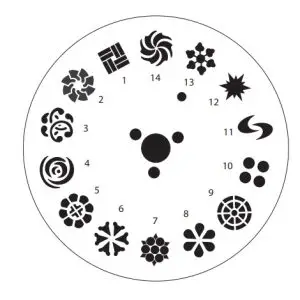

Gobos
