Chauvet Dj 0020111105 Intimidator Spot 160 Moving Head User Manual

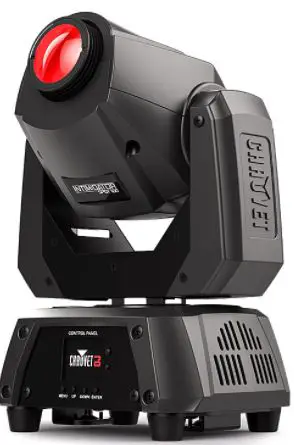

CHAUVET DJ 0020111105 Intimidator Spot 160 Moving Head

Before You Begin

What Is Included

• Intimidator Spot 160
• Power cord
• Hanging bracket
• Quick Reference Guide

Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident, or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com.

Intellectual Property

The works of authorship contained in this manual, including, but not limited to, all design, text, and images are owned by Chauvet. © Copyright 2021 Chauvet & Sons, LLC. All rights reserved. Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Intimidator Spot 160 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

Safety Notes

• This product is not intended for permanent installation.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the handles.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Do not open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. Keep this User Manual for future use. If the product is sold to someone else, be sure that they receive this document.

Introduction

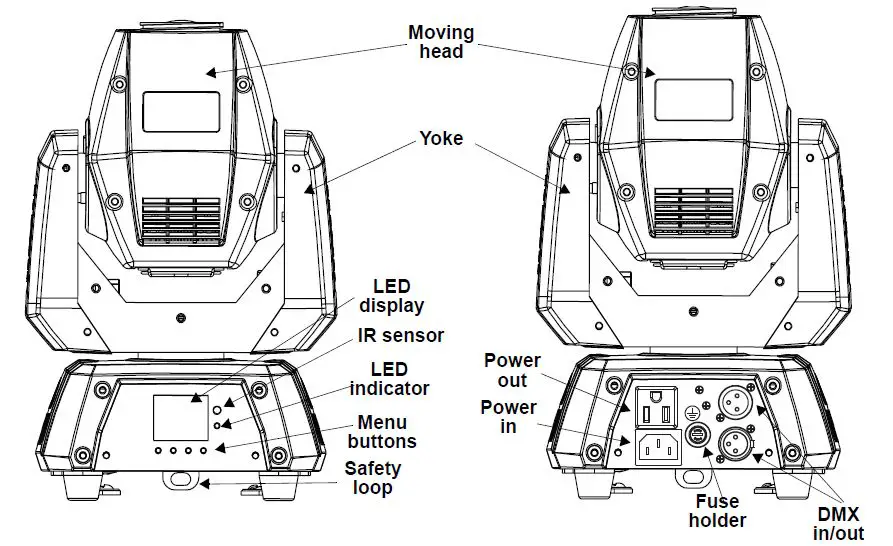

Product Overview

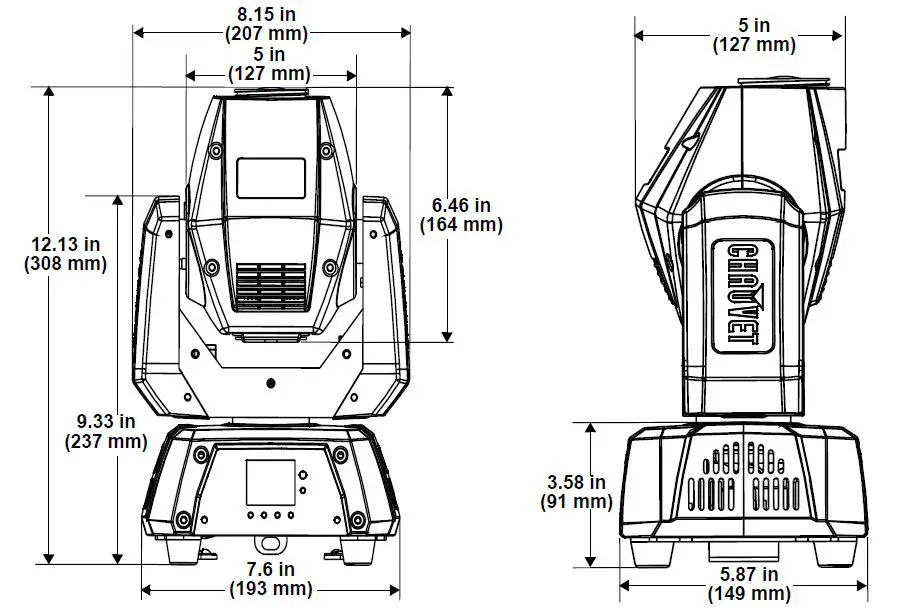

Product Dimensions

Setup

AC Power

The Intimidator Spot 160 has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current draw under normal conditions.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use, completely disconnect the product from power via breaker or by unplugging it.
  Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0–100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. Screw the fuse holder cap back in place and reconnect power.
   Disconnect the product from the power outlet before replacing the fuse.

Power Linking
The product provides power linking via the outlet located in the back of the product. See the diagram below for further explanation.

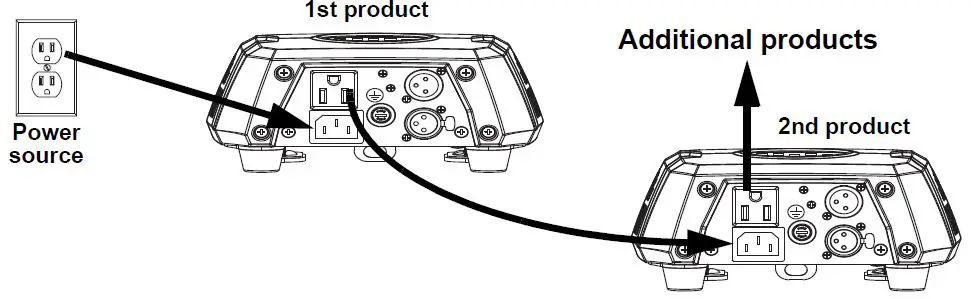

Power-Linking Diagram

You can power link up to 9 Intimidator Spot 160 products on 120 VAC or up to 16 Intimidator Spot 160 products on 230 VAC.

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.

Orientation
The Intimidator Spot 160 may be mounted in any position; however, make sure adequate ventilation is provided around the product.

Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight. (see the Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power-linking cables to reach.
• The rubber feet also serve as floor supports and allow for surface mounting. When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.

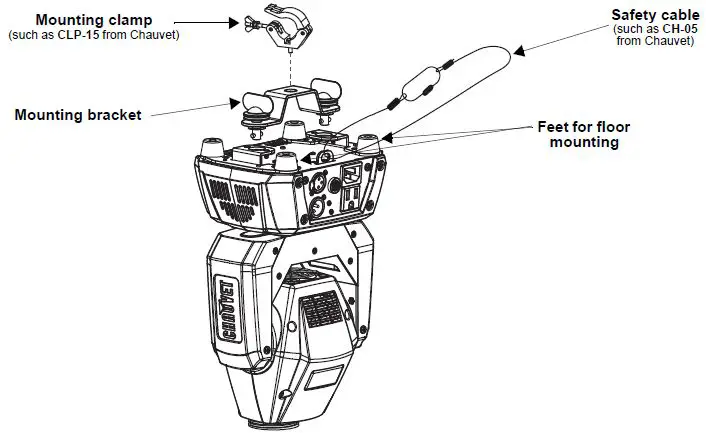

Mounting Diagram

When using one mounting clamp with this fixture, use a clamp with a captive bolt to prevent accidental loosening.

Operation

Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel.

Menu Map
Refer to the Intimidator Spot 160 product page on www.chauvetdj.com for the latest menu map.

Configuration (DMX)

The Intimidator Spot 160 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website:
http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

Starting Address

When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. If the starting address is set too high, access to some of the product’s channels could be restricted. The Intimidator Spot 160 uses up to 11 DMX channels, which defines the highest configurable address to 502. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com.

To select the starting address, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Address.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select the starting address, from 001–512.
5. Press <ENTER>.

DMX Personalities

The Intimidator Spot 160 has two DMX personalities: an 11-channel personality and a 5-channel personality.

To select a DMX personality, follow the instructions below.

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select DMX.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select the DMX personality, from 11CH or 05CH.
7. Press <ENTER>.

DMX Channel Assignments and Values

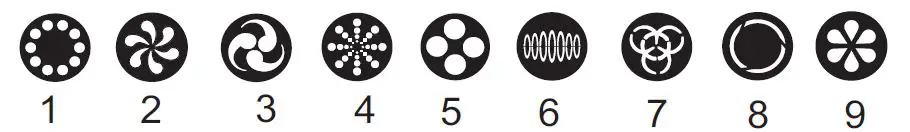

Gobos

11CH

05CH

Configuration (Standalone)

Set the product in one of the standalone modes to control without a DMX controller.
Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

Automatic Programs

To run the Intimidator Spot 160 in automatic mode, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Auto.
5. Press <ENTER>.

Sound-Active Mode

To run the Intimidator Spot 160 in sound-active mode, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sound.
5. Press <ENTER>.

Sound Sensitivity
To set the sound sensitivity on the Intimidator Spot 160, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sensitivity.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to increase or decrease the sound sensitivity, from 001–100.
7. Press <ENTER>.
   The product will only respond to low frequencies of music (bass and drums).

Manual Mode

To operate the Intimidator Spot 160 manually through the menu, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Manual.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Pan, Tilt, Color, Gobo, Dimmer, or Shutter.
7. Press <ENTER>.
8. Use <UP> or <DOWN> to increase or decrease the value of the selected function, from 000–255.
9. Press <ENTER>.
10. Repeat steps 6-9 until the product is set as desired.

Configuration (Settings) Pan Reverse

To set the pan orientation on the Intimidator Spot 160, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal pan orientation) or ON (reverse pan orientation).
7. Press <ENTER>.

Tilt Reverse
To set the tilt orientation on the Intimidator Spot 160, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal tilt orientation) or ON (reverse tilt orientation).
7. Press <ENTER>.

Screen Reverse
To set the display orientation on the Intimidator Spot 160, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Screen Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal display orientation) or ON (reverse display orientation).
7. Press <ENTER>.

Pan Angle
To set the pan angle range on the Intimidator Spot 160, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°).
7. Press <ENTER>.

Tilt Angle
To set the tilt angle range on the Intimidator Spot 160, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 270 (270°), 180 (180°), or 90 (90°).
7. Press <ENTER>.

Totem Mode
To activate the Totem mode, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Totem Mode.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal range of motion), UP (restricts the pan and tilt motion for overhead mounting), or DOWN (restricts the pan and tilt motion for surface/floor mounting).
7. Press <ENTER>.

Indicator
To enable or disable the LED indicator, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Indicator.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (disabled) or ON (enabled).
7. Press <ENTER>.

Flash if DMX
To enable or disable the LED indicator flashing to indicate DMX, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Flash if DMX.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (will not indicate DMX) or ON (Will indicate DMX).
7. Press <ENTER>.

Reset
To reset all functions on the Intimidator Spot 160, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Reset.
5. Press <ENTER>.

System Information
To view the system information on the Intimidator Spot 160, do the following:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Sys Info.
3. Press <ENTER>.

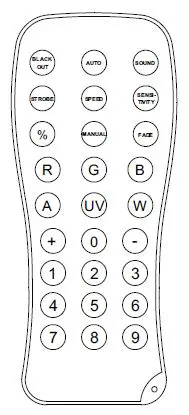

IRC-6 Infrared Remote Control

The Intimidator Spot 160 is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 160 to IR mode, follow the instructions below:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Press <UP> or <DOWN> to select IR.
5. Press <ENTER>.

IRC-6 Operation

The list below describes which features each button controls:

• <BLACKOUT> – Keeps shutter closed.
• <AUTO> – Activates Auto mode. Use <+>, <->, or <0>–<9> to select an auto program.
• <SOUND> – Activates Sound mode.
• <STROBE> – Activates Strobe control. Use <+> or <-> to increase or decrease the strobe speed from 00 (off) to 13, or from 14–20 for a pulse strobe.
• <SPEED> – Sets Pan/Tilt Speed. Use <+> or <-> to increase or decrease the pan/tilt speed from 000 (fastest) to 255 (slowest)
• <SENSITIVITY> – Sets Sound Sensitivity. Use <+> or <-> to increase or decrease the sensitivity from 001 (lowest) to 100 (highest)
• <%> – Sets Dimmer value. Use <+> or <-> to widen or narrow the shutter.
• <MANUAL> – Cycles through static gobos.
• <FADE> – Cycles through static colors.
• <R> – Sets color wheel rotation speed. Use <+> or <-> to increase or decrease the speed from 000 (slowest) to 100 (fastest). Press <R> to toggle direction.
• <G> – Sets gobo wheel rotation speed. Use <+> or <-> to increase or decrease the speed from 000 (slowest) to 100 (fastest). Press <G> to toggle direction.
• <B> – Activates Auto Color/Gobo mode.
• <A> – Sets manual Pan/Tilt values. Press <A> to toggle between pan and tilt. Use <+> or <-> to increase or decrease the pan/tilt value, from 000–255.
• <UV>/<P> – sets manual Zoom and Focus values. Press <UV>/<P> to toggle between zoom and focus. Use <+> or <-> to increase or decrease the zoom/ focus value, from 000–255.
• <W> – Sets manual Prism values. Use <+> or <-> to increase or decrease the prism value, from 000–255.
• <+> – Increases a value when in a function.
• <-> – Decreases a value when in a function.
• <0>–<9> – Selects Auto programs 0–9.

Master/Slave Mode

The Master/Slave mode allows a single Intimidator Spot 160 product (the “master”) to control the actions of one or more Intimidator Spot 160 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, whereas the slave products will be set to operate in slave mode. Once set and connected, the slave products will operate in unison with the master product. Configure the products as indicated below.

Slave products:

1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Slave.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Slave1, Slave2, Slave3, or Slave4.
   • Select Slave1 for 100% synchronized actions.
   • Select Slave2, Slave3, and/or Slave4 for delayed actions, creating a wave effect.
7. Press <ENTER>.
8. Connect the DMX input of the first slave product to the DMX output of the master product.
9. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
10. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode or with the IRC-6.
2. Make the master product the first product in the DMX daisy chain.
   • Configure all the slave products before connecting the master to the daisy chain.
   • Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.
   • Do not connect more than 31 slaves to the master.

Maintenance

Product Maintenance

Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

To clean the product, follow the instructions below:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
   • Always dry the transparent surfaces carefully after cleaning them.
   • Do not spin the cooling fans using compressed air because they could be damaged.

Technical Specifications

Dimensions and Weight

• Length: 8.2 in (207 mm)
• Width: 5.9 in (149 mm)
• Height: 12 in (308 mm)
• Weight:  8.8 lb (4.0 kg)

Note: Dimensions in inches rounded to the nearest decimal digit.

Power

Returns
In case you need to get support or return a product:

• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in France, contact Chauvet France.
• If you are located in Germany, contact Chauvet Germany.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetdj.com for distributors outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico.

If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website www.chauvetdj.com for contact details.

Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return. To submit a service request online, go to www.chauvetdj.com/service-request. Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

Before sending the product, clearly write the following information on a piece of paper and place it inside the box:

• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
  Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended.
  Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

Chauvet World Headquarters

Address: 5200 NW 108th Ave.
Voice: (844) 393-7575 Sunrise, FL 33351
Fax: (954) 756-8015
Voice: (954) 577-4455
Email: [email protected]
Fax: (954) 929-5560
Toll Free: (800) 762-1084
Website: www.chauvetdj.co

Chauvet Europe Ltd

Address: Unit 1C
Email: [email protected]
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
Website: www.chauvetdj.euNG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110

Chauvet Europe BVBA

Address: Stokstraat 18
9770 Kruishoutem
Belgium
Voice: +32 9 388 93 97
Email: [email protected]
Website: www.chauvetdj.eu

Chauvet France

Address: 3, Rue Ampère
91380 Chilly-Mazarin France
Voice: +33 1 78 85 33 59
Email: [email protected]
Website: www.chauvetdj.eu

Chauvet Germany

Address: Bruno-Bürgel-Str. 11
28759 Bremen Germany
Voice: +49 421 62 60 20
Email: [email protected]
Website: www.chauvetdj.eu

Chauvet Mexico

Address: Av. de las Partidas 34 – 3B
(Entrance by Calle 2)
Zona Industrial Lerma
Lerma, Edo. de México, CP 52000
Voice: +52 (728) 690-2010
Email: [email protected]
Website: www.chauvetdj.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
