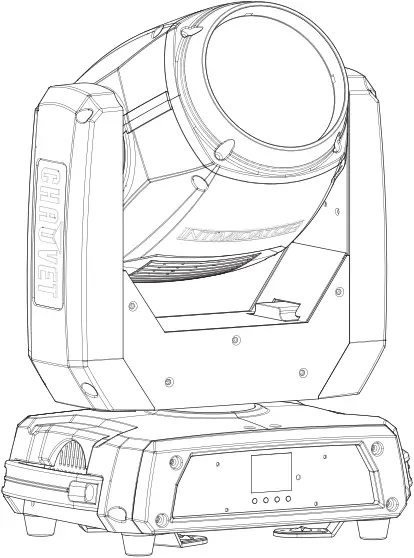

CHAUVET DJ Intimidator Beam 360X Moving Head 1

CHAUVET DJ Intimidator Beam 360X Moving Head

CHAUVET DJ logo1

Contents hide

1 QUICK REFERENCE GUIDE

1.5 Control Panel Description

2 Documents / Resources

2.1 References

3 Related Posts

QUICK REFERENCE GUIDE

About This Guide

The Intimidator Beam 360X Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

ONLY connect this product to a grounded and protected circuit.
DISCONNECT from power before cleaning or replacing the fuse.
DO NOT look at the light source when the product is on.
Make sure the power cord is not crimped or damaged.
Never disconnect this product from power by pulling on the cord.
When mounting this product overhead, ALWAYS use a safety cable.
DO NOT allow flammable materials close to the product when it is operating.
DO NOT touch the product’s housing when it is on because it will be hot.
The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

Be sure that no ventilation slots on the unit’s housing are blocked.
Never connect this product to a dimmer or rheostat.
Replace the fuse with the same type and rating.
Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
In the event of a serious operating problem, stop using immediately.
DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

Intimidator Beam 360X
Power cable
Hanging bracket
Quick Reference Guide

To Begin
Unpack your Intimidator Beam 360X and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking
It is possible to power link up to 9 Intimidator Beam 360X products on 120 V or 15 products on 230 V. Never exceed this number. Power-linking cables can be purchased separately.

Fuse Replacement

Disconnect the product from power.
Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

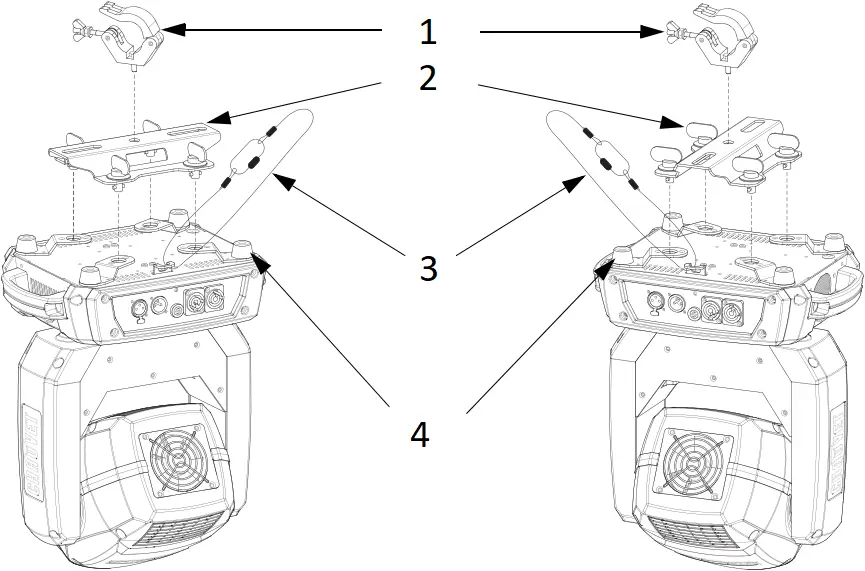

Mounting Diagram

CHAUVET DJ Intimidator Beam 360X Moving Head - Mounting

Mounting clamp
(such as CLP-15 from Chauvet)
Hanging bracket
Safety cable
(such as CH-05 from Chauvet)
Feet for surface mounting (x4)

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<UP>	Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Intimidator Beam 360X product page on www.chauvetdj.com for the latest menu map.

Main Level	Programming Levels			Description
Address	001–512			Sets the DMX starting address
Run Mode	DMX	14CH		Selects DMX mode
		8CH
	Slave	Slave1–4		Selects Slave mode 1, 2, 3, or 4
	Auto			Selects Auto mode
	Sound			Selects Sound-Active mode
	RF	RF 1–4		Sets the product to work with the RFC-XL remote in group 1, 2, 3, or 4. (RF remote must be bound to the product first)
		RFP		Sets the product to work with public RF signal
	Manual	Pan	000–255	Manual pan control
		Tilt		Manual tilt control
		Color		Manual color control
		Gobo		Manual gobo control
		Prism		Manual prism control
		Focus		Manual focus control
		Frost		Manual frost control
		Dimmer		Manual dimmer control
		Shutter		Manual shutter control
Setup	Pan Reverse		OFF	Normal pan operation
			ON	Reverse pan operation
	Tilt Reverse		OFF	Normal tilt operation
			ON	Reverse tilt operation
	Screen Reverse		OFF	Normal display
			ON	Reverse display
	Pan Angle		540	Selects the 540° pan angle range
			360	Selects the 360° pan angle range
			180	Selects the 180° pan angle range
	Tilt Angle		270	Selects the 270° tilt angle range
			180	Selects the 180° tilt angle range
			90	Selects the 90° tilt angle range
	Totem Mode		OFF	Does not restrict the pan and tilt motion
			UP	Restricts the pan and tilt motion for overhead mounting
			DOWN	Restricts the pan and tilt motion for surface/floor mounting
	Sensitivity		001–100	Sets sound sensitivity
	DMX Loss		Hold	Holds the last setting when signal is lost
			Black	Blacks out the product when signal is lost
			Auto	Sets the unit to Auto mode when signal is lost
			Sound	Sets the unit to Sound mode when signal is lost
	Indicator		ON	Enables/disables LED Indicator
			OFF
	Flash if DMX		ON	Sets whether the LED indicator flashes when the fixture is connected to or disconnected from the DMX
			OFF
	RF		Bind	Shows instructions on how to bind the RF remote to the product
	Reset			Resets the product
	Factory Set			Loads factory defaults
Sys Info	Ver:		V_	Displays the firmware version
	Running Mode		_ _ _ _ _ _ _	Displays the current running mode
	DMX Address		_ _ _	Displays the current DMX address
	Temperature		_ _ _	Displays the current product temperature

DMX Linking

The Intimidator Beam 360X can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 499.

Master/Slave Connection
The Intimidator Beam 360X uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Beam 360X for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

RF Remote
The Intimidator Beam 360X can be operated with the CHAUVET RFC or RFC-XL remotes. For more information about the RF Remote, download instructions for the Intimidator Beam 360X User Manual from www.chauvetdj.com.

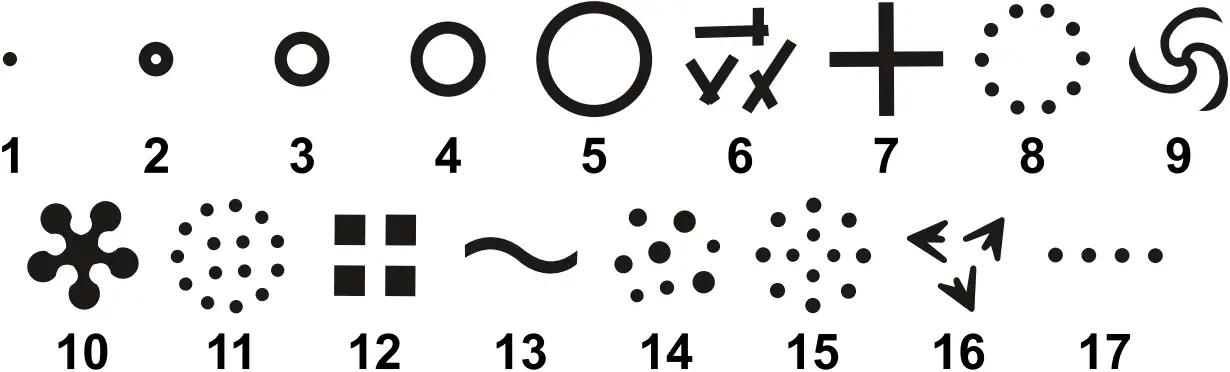

Gobos

CHAUVET DJ Intimidator Beam 360X Moving Head - Gobos

DMX Values

8Ch	14Ch	Function	Value	Percent/Setting
1	1	Pan	000 255	0–540°
–	2	Pan fine	000 255	Fine control of panning
2	3	Tilt	000 255	0–234°
–	4	Tilt fine	000 255	Fine control of tilting
–	5	Pan/tilt speed	000 255	Pan/Tilt speed, fast to slow
3	6	Color wheel	000 003	White
			004 007	Red
			008 011	Orange
			012 015	Yellow
			016 019	Green
			020 023	Blue
			024 027	CTO
			028 031	Cyan
			032 035	Magenta
			036 039	Lime
			040 043	Purple
			044 047	Dark yellow
			048 051	Pink
			052 055	CTB
			056 063	UV
			064 067	White/red
			068 071	Red/orange
			072 075	Orange/yellow
			076 079	Yellow/green
			080 083	Green/blue
			084 087	Blue/CTO
			088 091	CTO/cyan
			092 095	Cyan/magenta
			096 099	Magenta/lime
			100 103	Lime/purple
			104 107	Purple/dark yellow
			108 111	Dark yellow/pink
			112 115	Pink/CTB
			116 119	CTB/UV
			120 127	UV/White
			128 191	Color cycling rainbow, slow to fast
			192 255	Reverse color cycling rainbow, slow to fast
4	7	Gobo wheel (see Gobos)	000 003	Open
			004 007	Gobo 1
			008 011	Gobo 2
			012 015	Gobo 3
			016 019	Gobo 4
			020 023	Gobo 5
			024 027	Gobo 6
			028 031	Gobo 7
			032 035	Gobo 8
			036 039	Gobo 9
			040 043	Gobo 10
			044 047	Gobo 11
			048 051	Gobo 12
			052 055	Gobo 13
			056 059	Gobo 14
			060 063	Gobo 15
			064 067	Gobo 16
			068 071	Gobo 17
			072 075	Gobo 17 shake, slow to fast
			076 079	Gobo 16 shake, slow to fast
			080 083	Gobo 15 shake, slow to fast
			084 087	Gobo 14 shake, slow to fast
			088 091	Gobo 13 shake, slow to fast
			092 095	Gobo 12 shake, slow to fast
			096 099	Gobo 11 shake, slow to fast
			100 103	Gobo 10 shake, slow to fast
			104 107	Gobo 9 shake, slow to fast
			108 111	Gobo 8 shake, slow to fast
			112 115	Gobo 7 shake, slow to fast
			116 119	Gobo 6 shake, slow to fast
			120 123	Gobo 5 shake, slow to fast
			124 127	Gobo 4 shake, slow to fast
			128 131	Gobo 3 shake, slow to fast
			132 135	Gobo 2 shake, slow to fast
			136 139	Gobo 1 shake, slow to fast
			140 143	Open
			144 199	Cycle effect, slow to fast
			200 255	Reverse cycle effect, slow to fast
5	8	Prism	000 007	No function
			008 015	16-facet prism
			016 130	Prism rotation, slow to fast
			131 247	Reverse prism rotation, slow to fast
			248 255	16-facet prism
6	9	Focus	000 255	Focus
–	10	Dimmer	000 255	0–100%
7	11	Strobe	000 003	Off
			004 007	On
			008 076	Strobe, slow to fast
			077 145	Pulse strobe, slow to fast
			146 215	Random strobe, slow to fast
			216 255	On
8	12	Frost	000 255	0–100%
–	13	Function	000 007	No function
			008 015	Blackout on pan/tilt movement
			016 023	Blackout on color wheel movement
			024 031	Blackout on gobo wheel movement
			032 039	Blackout on pan/tilt/color wheel movement
			040 047	Blackout on pan/tilt/gobo wheel movement
			048 055	Blackout on pan/tilt/color wheel/gobo wheel movement
			056 095	No function
			096 103	Pan reset
			104 111	Tilt reset
			112 119	Color wheel reset
			120 127	Gobo wheel reset
			128 135	Frost reset
			136 143	Prism reset
			144 151	Focus reset
			152 159	All reset
			160 255	No function
–	14	Movement macros	000 007	No function
			008 023	Movement macro 1
			024 039	Movement macro 2
			040 055	Movement macro 3
			056 071	Movement macro 4
			072 087	Movement macro 5
			088 103	Movement macro 6
			104 119	Movement macro 7
			120 135	Movement macro 8
			136 151	Sound-active movement macro 1
			152 167	Sound-active movement macro 2
			168 183	Sound-active movement macro 3
			184 199	Sound-active movement macro 4
			200 215	Sound-active movement macro 5
			216 231	Sound-active movement macro 6
			232 247	Sound-active movement macro 7
			248 255	Sound-active movement macro 8
