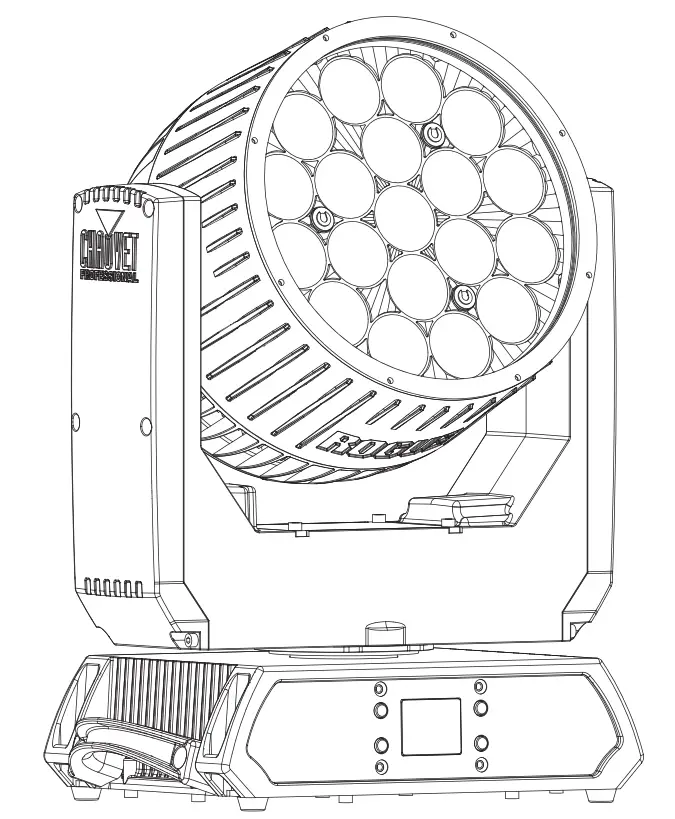

CHAUVET PROFESSIONAL Rogue Outcast 2X Wash Moving Head Light

About This Guide

The Rogue Outcast 2X Wash Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 6.56 ft (2 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.
DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
DO NOT look at the light source when the product is on.
CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces
DO NOT leave any flammable material within 20 cm of this product while operating or connected to power.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
USE a safety cable when mounting this product overhead.
DO NOT submerge this product (IP65). Regular outdoor operation is fine.
Not for permanent outdoor installation in locations with extreme environmental conditions.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket to carry this product.
In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

Rogue Outcast 2X Wash
Seetronic Powerkon IP65 power cord
2 omega brackets with mounting hardware
Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100240 VAC, 50/60 Hz.

Power Linking

It is possible to link up to 4 Rogue Outcast 2X Wash products at 100 V, 5 products at 120 V, 9 products at 208 V, 10 products at 230 V, or 11 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking

The Rogue Outcast 2X Wash will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue Outcast 2X Wash uses a 5-pin DMX data connection for its DMX personalities: 15CH, 17CH, 22CH, 33CH, 33MS, 54CH, 54MS, and 56CH. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue Outcast 2X Wash supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least 2 mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to
http://trusst.com/productcategory/truss-clamps.

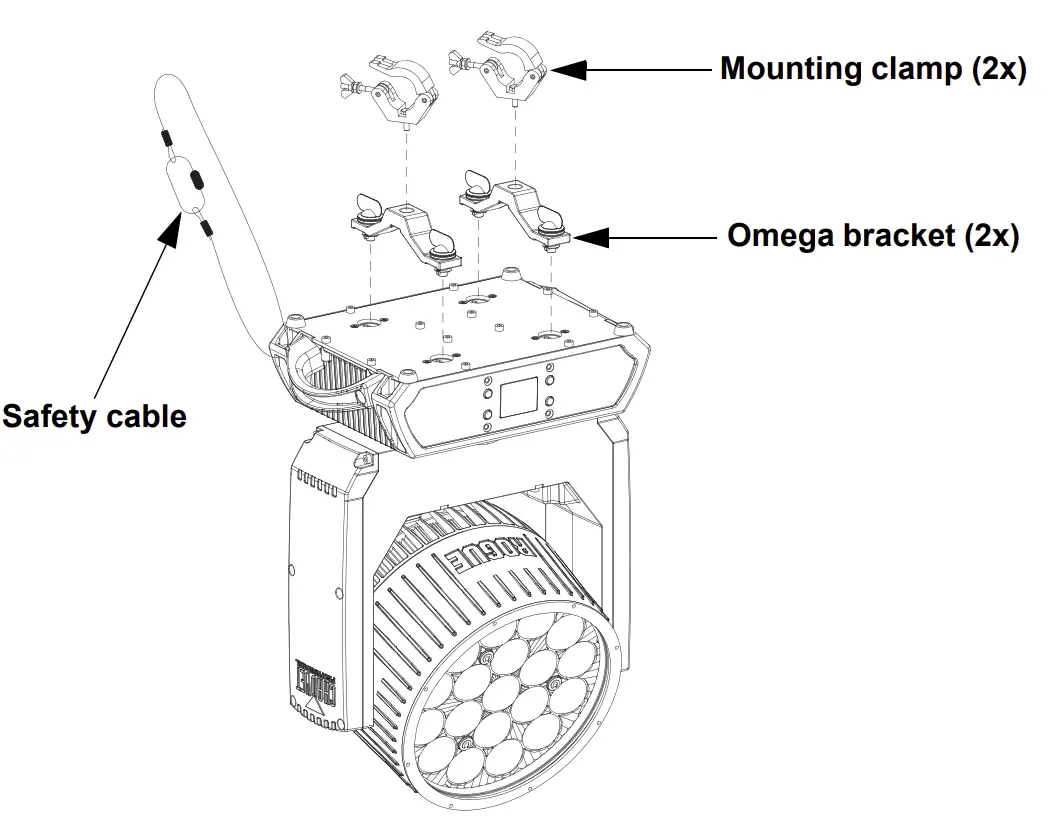

Mounting Diagram

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Refer to the Rogue Outcast 2X Wash product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels			Description
Address	001–512			Sets the starting address
Run Mode	DMX	56CH	(Advanced Modes)	Selects the DMX personality
		54CH
		33CH
		22CH	(Basic Modes)
		17CH
		15CH
		54MS	(MS Modes)
		33MS
	Auto Test			Auto test all functions
	Manual Test	Pan Tilt Dimmer Shutter Red1 Green1 Blue1 White1 Red2 Green2 Blue2 White2 Red3 Green3 Blue3 White3 Red4 Green4 Blue4 White4 Red5 Green5 Blue5 White5 Zoom	0–255	Manually control and test all settings through the control panel
Setup	Pan Reverse	OFF		Normal pan
		ON		Reversed pan
	Tilt Reverse	OFF		Normal tilt
		ON		Reversed tilt

Main Level	Programming Levels			Description
Setup (cont.)	Pan Angle	540		540° pan range
		360		360° pan range
		180		180° pan range
	Tilt Angle	260		260° tilt range
		180		180° tilt range
		90		90° tilt range
		230		230° tilt range
	Fans	Auto		Fan speed according to product temperature
		ECO		Quiet mode
		Full		Fan speed set on high
	Display	OFF		Display turns off
		ON		Display stays on
	Screen Reverse	OFF		Normal screen display
		ON		Inverted screen display
	Dimmer Curver	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth		Smooth dimmer speed
		Fast		Fast dimmer speed
	PWM Option	600Hz		Sets the PWM frequency
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	LED R POWER	50–100		Sets red LED power
	LED G POWER	50–100		Sets green LED power
	LED B POWER	50–100		Sets blue LED power
	LED W POWER	50–100		Sets white LED power
	White Mode	On		Calibrates white to 7500K
		Off		Uses maximum output values
		Custom	RED 000–255	Sets red LED maximum value
			GREEN 000–255	Sets green LED maximum value
			BLUE 000–255	Sets blue LED maximum value
			WHITE 000–255	Sets white LED maximum value
	Color calibration	On		Uses factory default white setting
		Off		Uses maximum output values
		Custom	RED 100–255	Sets red LED maximum value
			GREEN 100–255	Sets green LED maximum value
			BLUE 100–255	Sets blue LED maximum value
	USB Update	NO		Update firmware via USB C
		YES
	Reset Function	Pan/Tilt	NO YES	Reset individual functions or all functions from start-up
		Zoom
		All
	Factory Settings	NO		Reset to factory default settings

Main Level	Programming Levels		Description
Sys Info	Ver	V_._ _ _ _ _ _	Shows firmware version
	Running Mode	_ _ _	Shows current running mode
	DMX Address	_ _ _	Shows current DMX address
	Temperature	_ _ _	Shows the product’s temperature in °C
	Fixture Time	_ _ _ _	Shows time product has been on
	UID	_ _ _ _ _ _ _ _	Shows product UID
	Head Fan1–2	_ _ _ _ _	Shows speed of each fan
	Base Fan1–2	_ _ _ _ _	Shows speed of each fan

DMX Values Advanced Modes

33CH	54CH	56CH	Function	Value	Percent/Setting
1	1	1	Pan	000 ó 255	0–100%
2	2	2	Fine pan	000 ó 255	Fine control (16-bit)
3	3	3	Tilt	000 ó 255	0–100%
4	4	4	Fine tilt	000 ó 255	Fine control (16-bit)
5	5	5	Pan/tilt speed	000 ó 255	Fast to slow
6	6	6	Dimmer	000 ó 255	0–100%
–	7	7	Fine dimmer	000 ó 255	Fine control (16-bit)
7	8	8	Strobe	000 ó 255	See Strobe Chart
8	9	9	Red 1	000 ó 255	0–100%
–	10	10	Fine red 1	000 ó 255	Fine control (16-bit)
9	11	11	Green 1	000 ó 255	0–100%
–	12	12	Fine green 1	000 ó 255	Fine control (16-bit)
10	13	13	Blue 1	000 ó 255	0–100%
–	14	14	Fine blue 1	000 ó 255	Fine control (16-bit)
11	15	15	White 1	000 ó 255	0–100%
–	16	16	Fine white 1	000 ó 255	Fine control (16-bit)
12	17	17	Red 2	000 ó 255	0–100%
–	18	18	Fine red 2	000 ó 255	Fine control (16-bit)
13	19	19	Green 2	000 ó 255	0–100%
–	20	20	Fine green 2	000 ó 255	Fine control (16-bit)
14	21	21	Blue 2	000 ó 255	0–100%
–	22	22	Fine blue 2	000 ó 255	Fine control (16-bit)
15	23	23	White 2	000 ó 255	0–100%
–	24	24	Fine white 2	000 ó 255	Fine control (16-bit)
16	25	25	Red 3	000 ó 255	0–100%
–	26	26	Fine red 3	000 ó 255	Fine control (16-bit)
17	27	27	Green 3	000 ó 255	0–100%
–	28	28	Fine green 3	000 ó 255	Fine control (16-bit)
18	29	29	Blue 3	000 ó 255	0–100%
–	30	30	Fine blue 3	000 ó 255	Fine control (16-bit)
19	31	31	White 3	000 ó 255	0–100%
–	32	32	Fine white 3	000 ó 255	Fine control (16-bit)
20	33	33	Red 4	000 ó 255	0–100%
–	34	34	Fine red 4	000 ó 255	Fine control (16-bit)
21	35	35	Green 4	000 ó 255	0–100%
–	36	36	Fine green 4	000 ó 255	Fine control (16-bit)

33CH	54CH	56CH	Function	Value	Percent/Setting
22	37	37	Blue 4	000 ó 255	0–100%
–	38	38	Fine blue 4	000 ó 255	Fine control (16-bit)
23	39	39	White 4	000 ó 255	0–100%
–	40	40	Fine white 4	000 ó 255	Fine control (16-bit)
24	41	41	Red 5	000 ó 255	0–100%
–	42	42	Fine red 5	000 ó 255	Fine control (16-bit)
25	43	43	Green 5	000 ó 255	0–100%
–	44	44	Fine green 5	000 ó 255	Fine control (16-bit)
26	45	45	Blue 5	000 ó 255	0–100%
–	46	46	Fine blue 5	000 ó 255	Fine control (16-bit)
27	47	47	White 5	000 ó 255	0–100%
–	48	48	Fine white 5	000 ó 255	Fine control (16-bit)
28	49	49	Color	000 ó 255	See Color Chart
29	50	50	Zone Selection	000 ó 255	See Zone Selection Chart
30	51	51	Programs	000 ó 255	See Programs Chart
31	52	52	Program Speed	000 ó 255	0–100%
				000 ó 007	No function
				008 ó 023	Movement macro 1
				024 ó 039	Movement macro 2
				040 ó 055	Movement macro 3
				056 ó 071	Movement macro 4
				072 ó 087	Movement macro 5
				088 ó 103	Movement macro 6
				104 ó 119	Movement macro 7
–	–	53	Movement macros	120 ó 135	Movement macro 8
				136 ó 151	Movement macro 9
				152 ó 167	Movement macro 10
				168 ó 183	Movement macro 11
				184 ó 199	Movement macro 12
				200 ó 215	Movement macro 13
				216 ó 231	Movement macro 14
				232 ó 247	Movement macro 15
				248 ó 255	Movement macro 16
–	–	54	Movement macro speed	000 ó 255	Fast to slow
32	53	55	Zoom	000 ó 255	0–100%
33	54	56	Control	000 ó 255	See Control Chart

Basic Modes

15CH	17CH	22CH	Function	Value	Percent/Setting
1	1	1	Pan	000 ó 255	0–100%
2	2	2	Fine pan	000 ó 255	Fine control (16-bit)
3	3	3	Tilt	000 ó 255	0–100%
4	4	4	Fine tilt	000 ó 255	Fine control (16-bit)
5	5	5	Pan/tilt speed	000 ó 255	Fast to slow
6	6	6	Dimmer	000 ó 255	0–100%
7	–	7	Fine dimmer	000 ó 255	Fine control (16-bit)
8	7	8	Strobe	000 ó 255	See Strobe Chart
9	8	9	Red	000 ó 255	0–100%
–	–	10	Fine red	000 ó 255	Fine control (16-bit)

15CH	17CH	22CH	Function	Value	Percent/Setting
10	9	11	Green	000 ó 255	0–100%
–	–	12	Fine green	000 ó 255	Fine control (16-bit)
11	10	13	Blue	000 ó 255	0–100%
–	–	14	Fine blue	000 ó 255	Fine control (16-bit)
12	11	15	White	000 ó 255	0–100%
–	–	16	Fine white	000 ó 255	Fine control (16-bit)
13	12	17	Color	000 ó 255	See Color Chart
–	13	18	Zone Selection	000 ó 255	See Zone Selection Chart
–	14	19	Programs	000 ó 255	See Programs Chart
–	15	20	Program Speed	000 ó 255	0–100%
14	16	21	Zoom	000 ó 255	0–100%
15	17	22	Control	000 ó 255	See Control Chart

MS Modes

33MS	54MS	Function	Value	Percent/Setting
1	1	Pan	000 ó 255	0–100%
2	2	Fine pan	000 ó 255	Fine control (16-bit)
3	3	Tilt	000 ó 255	0–100%
4	4	Fine tilt	000 ó 255	Fine control (16-bit)
5	5	Pan/tilt speed	000 ó 255	Fast to slow
6	6	Dimmer	000 ó 255	0–100%
–	7	Fine dimmer	000 ó 255	Fine control (16-bit)
7	8	Strobe	000 ó 255	See Strobe Chart
8	9	Color	000 ó 255	See Color Chart
9	10	Zone Selection	000 ó 255	See Zone Selection Chart
10	11	Programs	000 ó 255	See Programs Chart
11	12	Program Speed	000 ó 255	0–100%
12	13	Zoom	000 ó 255	0–100%
13	14	Control	000 ó 255	See Control Chart
14	15	Red 1	000 ó 255	0–100%
–	16	Fine red 1	000 ó 255	Fine control (16-bit)
15	17	Green 1	000 ó 255	0–100%
–	18	Fine green 1	000 ó 255	Fine control (16-bit)
16	19	Blue 1	000 ó 255	0–100%
–	20	Fine blue 1	000 ó 255	Fine control (16-bit)
17	21	White 1	000 ó 255	0–100%
–	22	Fine white 1	000 ó 255	Fine control (16-bit)
18	23	Red 2	000 ó 255	0–100%
–	24	Fine red 2	000 ó 255	Fine control (16-bit)
19	25	Green 2	000 ó 255	0–100%
–	26	Fine green 2	000 ó 255	Fine control (16-bit)
20	27	Blue 2	000 ó 255	0–100%
–	28	Fine blue 2	000 ó 255	Fine control (16-bit)
21	29	White 2	000 ó 255	0–100%
–	30	Fine white 2	000 ó 255	Fine control (16-bit)
22	31	Red 3	000 ó 255	0–100%
–	32	Fine red 3	000 ó 255	Fine control (16-bit)
23	33	Green 3	000 ó 255	0–100%
–	34	Fine green 3	000 ó 255	Fine control (16-bit)

33MS	54MS	Function	Value	Percent/Setting
24	35	Blue 3	000 ó 255	0–100%
–	36	Fine blue 3	000 ó 255	Fine control (16-bit)
25	37	White 3	000 ó 255	0–100%
–	38	Fine white 3	000 ó 255	Fine control (16-bit)
26	39	Red 4	000 ó 255	0–100%
–	40	Fine red 4	000 ó 255	Fine control (16-bit)
27	41	Green 4	000 ó 255	0–100%
–	42	Fine green 4	000 ó 255	Fine control (16-bit)
28	43	Blue 4	000 ó 255	0–100%
–	44	Fine blue 4	000 ó 255	Fine control (16-bit)
29	45	White 4	000 ó 255	0–100%
–	46	Fine white 4	000 ó 255	Fine control (16-bit)
30	47	Red 5	000 ó 255	0–100%
–	48	Fine red 5	000 ó 255	Fine control (16-bit)
31	49	Green 5	000 ó 255	0–100%
–	50	Fine green 5	000 ó 255	Fine control (16-bit)
32	51	Blue 5	000 ó 255	0–100%
–	52	Fine blue 5	000 ó 255	Fine control (16-bit)
33	53	White 5	000 ó 255	0–100%
–	54	Fine white 5	000 ó 255	Fine control (16-bit)

Zones for DMX Control

Strobe Chart

Value	Percent/Setting	Value	Percent/Setting
000 ó 019	Off	145 ó 149	On
020 ó 024	On	150 ó 164	Random strobe 0-100%, fast to slow
025 ó 064	Strobe, fast to slow	165 ó 169	On
065 ó 069	On	170 ó 184	Pulse strobe, fast to slow
070 ó 084	Strobe 100-0%, fast to slow	185 ó 189	On
085 ó 089	On	190 ó 204	Random pulse strobe, fast to slow
090 ó 104	Strobe 0-100%, fast to slow	205 ó 209	On
105 ó 109	On	210 ó 224	Strobe 100-0-100%, fast to slow
110 ó 124	Random strobe, fast to slow	225 ó 229	On
125 ó 129	On	230 ó 244	Random inverse pulse strobe, fast to slow
130 ó 144	Random strobe 100-0%, fast to slow	245 ó 255	On

Value	Percent/Setting	Value	Percent/Setting
000 ó 004	No function	105 ó 109	Color 21
005 ó 009	Color 1	110 ó 114	Color 22
010 ó 014	Color 2	115 ó 119	Color 23
015 ó 019	Color 3	120 ó 124	Color 24
020 ó 024	Color 4	125 ó 129	Color 25
025 ó 029	Color 5	130 ó 134	Color 26
030 ó 034	Color 6	135 ó 139	Color 27
035 ó 039	Color 7	140 ó 144	Color 28
040 ó 044	Color 8	145 ó 149	Color 29
045 ó 049	Color 9	150 ó 154	Color 30
050 ó 054	Color 10	155 ó 159	Color 31
055 ó 059	Color 11	160 ó 164	Color 32
060 ó 064	Color 12	165 ó 169	Color 33
065 ó 069	Color 13	170 ó 174	Color 34
070 ó 074	Color 14	175 ó 179	No function
075 ó 079	Color 15	180 ó 201	Color scroll, fast to slow
080 ó 084	Color 16	202 ó 207	Hold
085 ó 089	Color 17	208 ó 229	Reverse color scroll, fast to slow
090 ó 094	Color 18	230 ó 234	No function
095 ó 099	Color 19	235 ó 249	Color snap, fast to slow
100 ó 104	Color 20	250 ó 255	No function

Zone Selection Chart

Value	Percent/Setting	Value	Percent/Setting
000 ó 007	Zone 1, 2, 3, 4, 5	128 ó 135	Zone 4, 5
008 ó 015	Zone 1, 2, 3, 4	136 ó 143	Zone 3, 4
016 ó 023	Zone 1, 2, 3	144 ó 151	Zone 2, 3
024 ó 031	Zone 1, 2	152 ó 159	Zone 1, 2
032 ó 039	Zone 1	160 ó 167	Zone 1, 5
040 ó 047	No zones	168 ó 175	Zone 3, 4, 5
048 ó 055	Zone 5	176 ó 183	Zone 2, 3, 4
056 ó 063	Zone 4, 5	184 ó 191	Zone 1, 2, 3
064 ó 071	Zone 3, 4, 5	192 ó 199	Zone 1, 2, 5
072 ó 079	Zone 2, 3, 4, 5	200 ó 207	Zone 1, 4, 5
080 ó 087	Zone 1, 2, 3, 4, 5	208 ó 215	Zone 2, 3, 4, 5
088 ó 095	Zone 5	216 ó 223	Zone 1, 2, 3, 4
096 ó 103	Zone 4	224 ó 231	Zone 1, 2, 3, 5
104 ó 111	Zone 3	232 ó 239	Zone 1, 2, 4, 5
112 ó 119	Zone 2	240 ó 247	Zone 1, 3, 4, 5
120 ó 127	Zone 1	248 ó 255	Zone 1, 2, 3, 4, 5

Program Chart

Value	Percent/Setting	Value	Percent/Setting
000 ó 015	No function
016 ó 020	Zone program 1	136 ó 140	Color program 1
021 ó 025	Zone program 2	141 ó 145	Color program 2
026 ó 030	Zone program 3	146 ó 150	Color program 3
031 ó 035	Zone program 4	151 ó 155	Color program 4
036 ó 040	Zone program 5	156 ó 160	Color program 5
041 ó 045	Zone program 6	161 ó 165	Color program 6
046 ó 050	Zone program 7	166 ó 170	Color program 7
051 ó 055	Zone program 8	171 ó 175	Color program 8
056 ó 060	Zone program 9	176 ó 180	Color program 9
061 ó 065	Zone program 10	181 ó 185	Color program 10
066 ó 070	Zone program 11	186 ó 190	Color program 11
071 ó 075	Zone program 12	191 ó 195	Color program 12
076 ó 080	Zone program 13	196 ó 200	Color program 13
081 ó 085	Zone program 14	201 ó 205	Color program 14
086 ó 090	Zone program 15	206 ó 210	Color program 15
091 ó 095	Zone program 16	211 ó 215	Color program 16
096 ó 100	Zone program 17	216 ó 220	Color program 17
101 ó 105	Zone program 18	221 ó 225	Color program 18
106 ó 110	Zone program 19	226 ó 230	Color program 19
111 ó 115	Zone program 20	231 ó 235	Color program 20
116 ó 120	Zone program 21	236 ó 240	Color program 21
121 ó 125	Zone program 22	241 ó 245	Color program 22
126 ó 130	Zone program 23	246 ó 250	Color program 23
131 ó 135	Zone program 24	251 ó 255	Color program 24

Control Chart

Value	Percent/Setting	Value	Percent/Setting
000 ó 009	No function
010 ó 014	Blackout on pan/tilt	130 ó 134	Fan mode Auto
015 ó 049	Reserved for future use	135 ó 139	Fast dimmer
050 ó 054	Reset pan	140 ó 144	Smooth dimmer
055 ó 059	Reset tilt	145 ó 149	Linear dimmer curve
060 ó 064	Reset zoom	150 ó 154	Square dimmer curve
065 ó 069	Reserved for future use	155 ó 159	Inverse square dimmer curve
070 ó 074	Reset all	160 ó 164	S-curve dimmer curve
075 ó 099	Reserved for future use	165 ó 169	White mode
100 ó 104	Tilt range 260°	170 ó 174	Full mode
105 ó 109	Tilt range 180°	175 ó 179	Color calibration off when single color
110 ó 114	Tilt range 90°	180 ó 184	Color calibration on when single color
115 ó 119	Tilt range 230°	185 ó 239	No function
120 ó 124	Fan mode ECO	240 ó 247	Color calibration on
125 ó 129	Fan mode Full	248 ó 255	Color calibration off

Contact Us

General Information	Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Ave. Address: 5200 NW 108th Ave. Voice: (954) 577-4455 Fax: (954) 929-5560 Toll Free: (800) 762-1084	Voice: (844) 393-7575 Fax: (954) 756-8015 Email: [email protected] Website: www.chauvetprofessional.com

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
