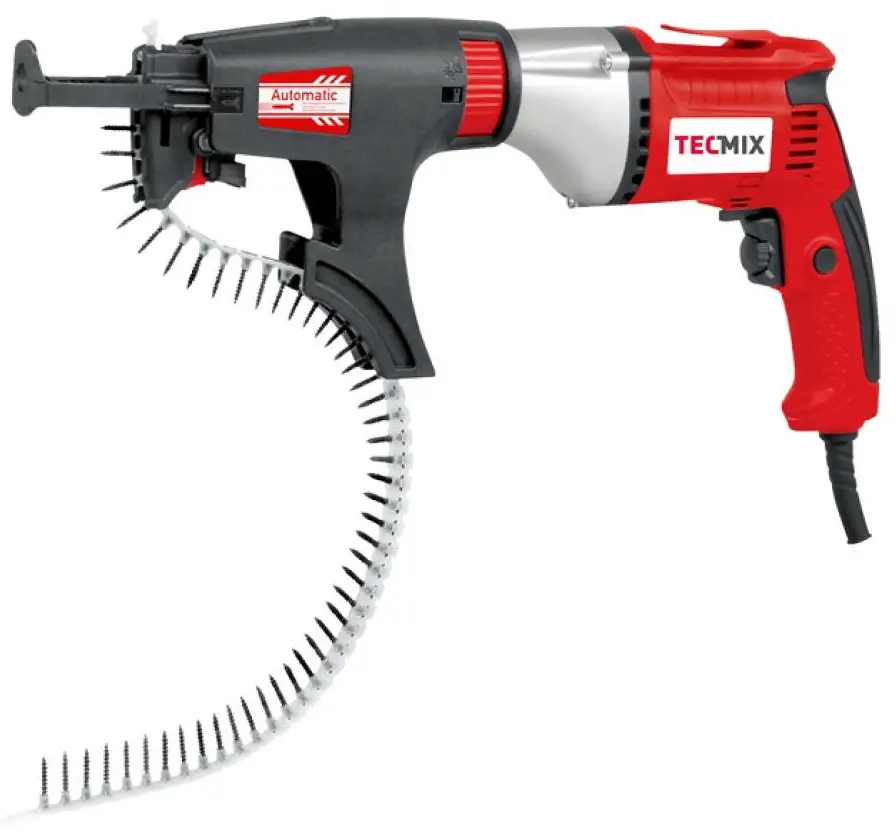

Tecmix Tmx Tbs 550 Automatic Screwdriver Instruction Manual

TECMIX TMX TBS 550 Automatic Screwdriver Instruction Manual

WARNING:

For your personal safety. READ and UNDERSTAND before using. Save these instructions for future reference.

TECHNICAL DATA

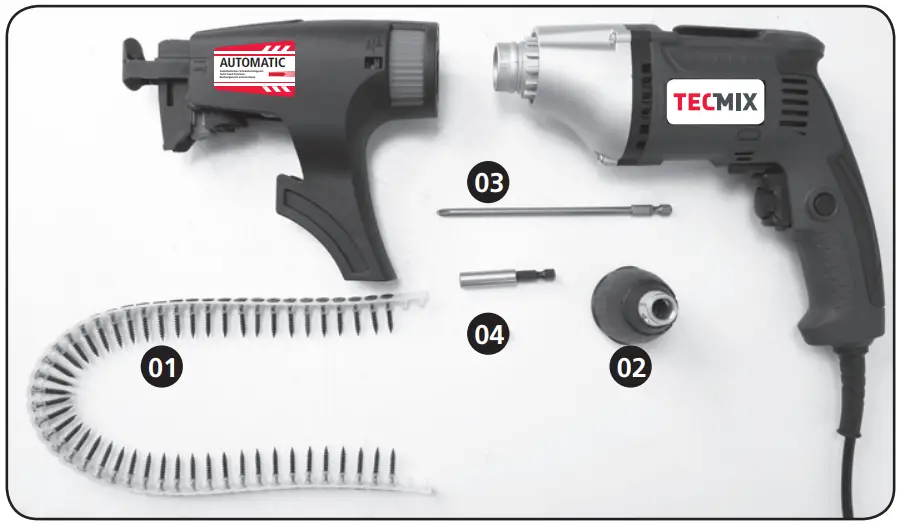

Contents of the box

Instructions

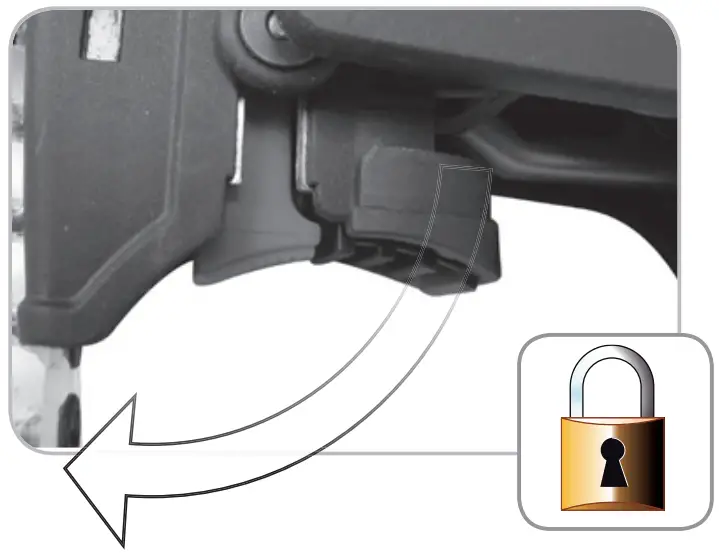

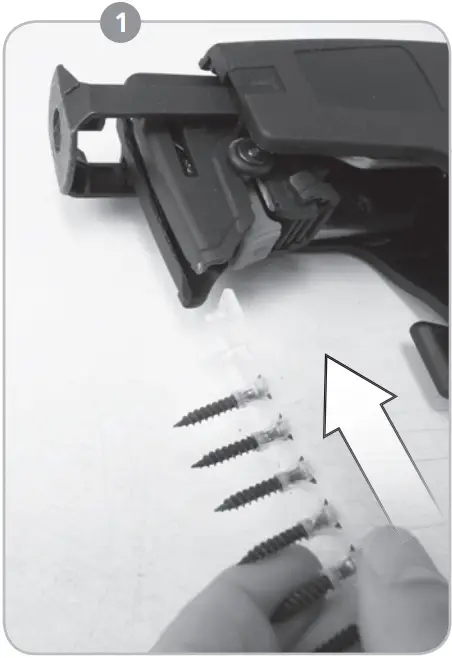

Unlocking of the loading system of the Screwstrip

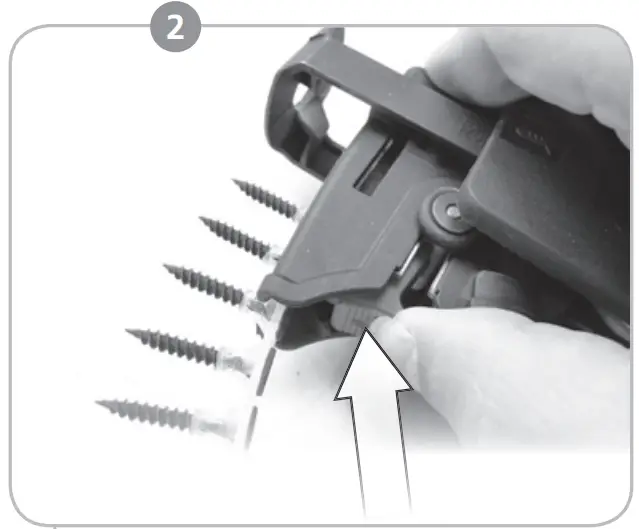

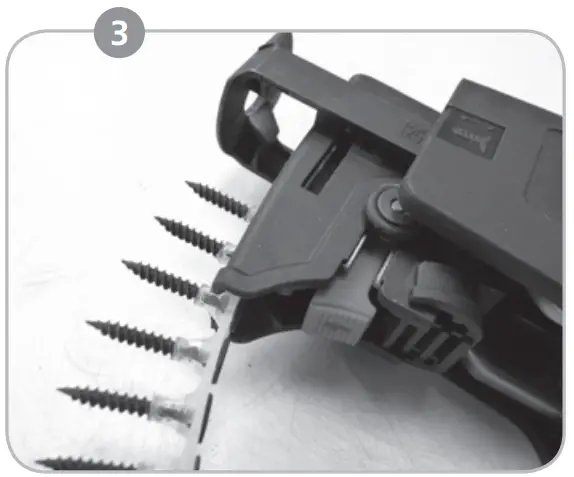

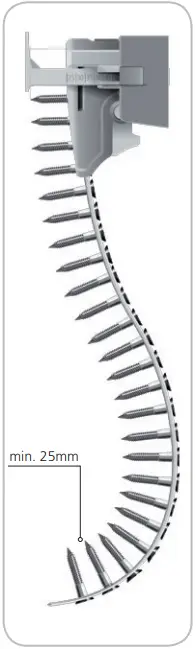

Engaging the screw Strip in the notch

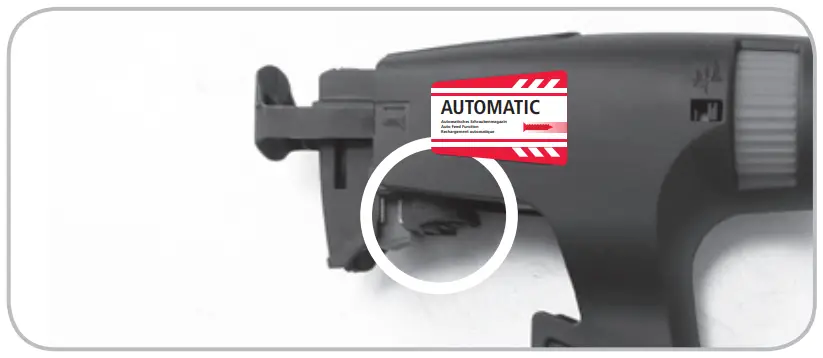

Press the red latch to release the mechanism

Relock the lever – the machine is ready to operate

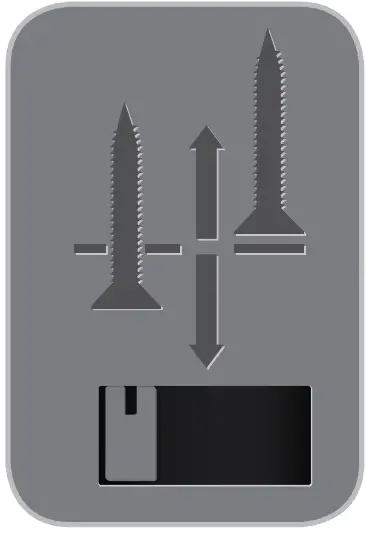

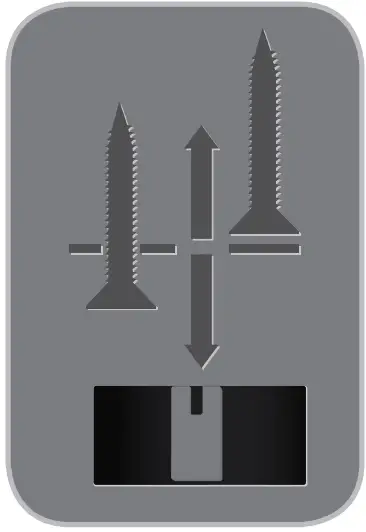

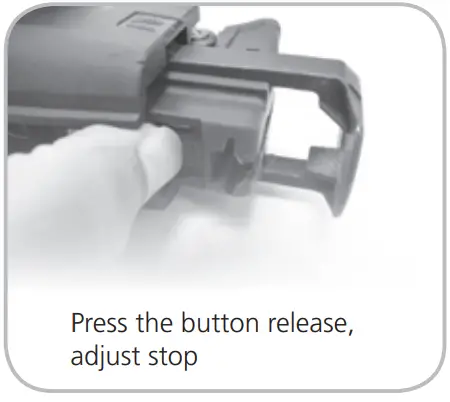

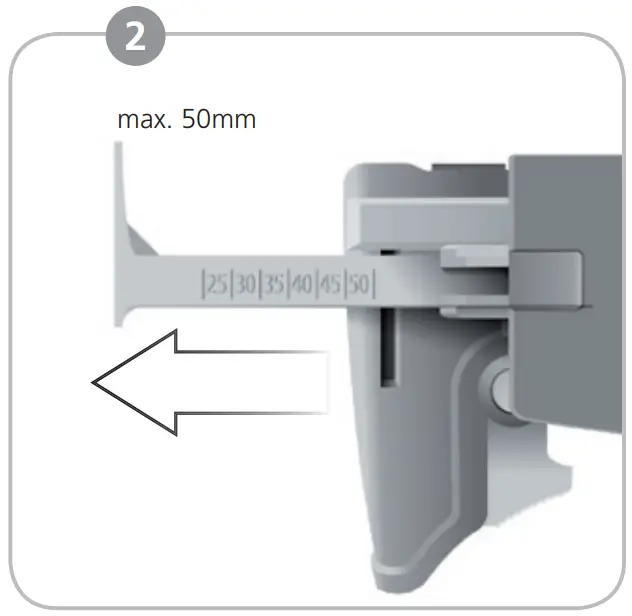

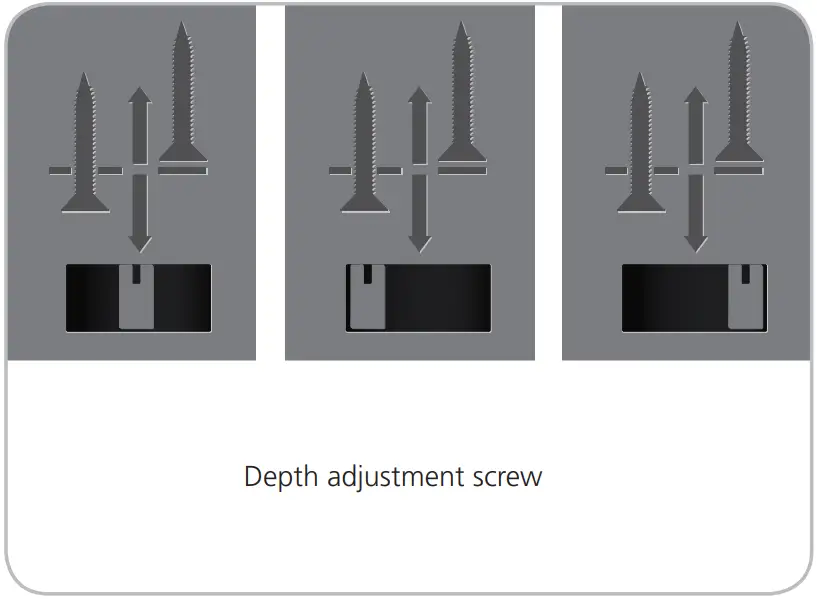

Stop adjustment screw. This one allows you to set your machine depending on the screw length

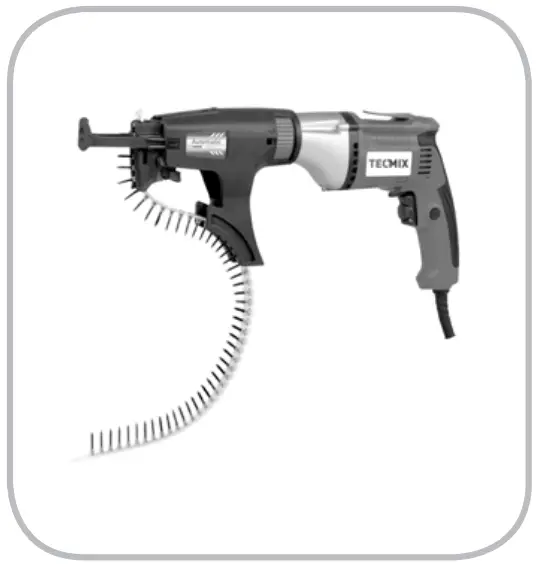

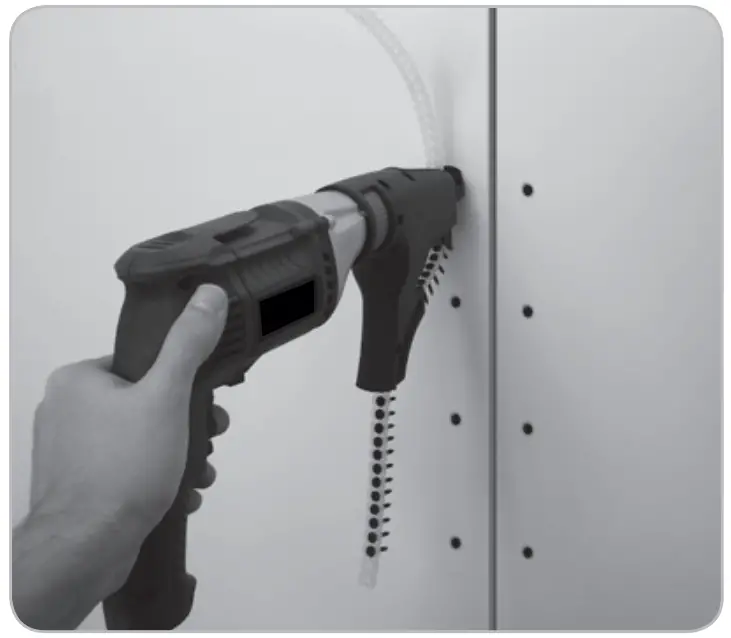

The TMX TBS 550 drywall screwdriver allows fast rythm, screws recharge after each screw, no manipulation required.

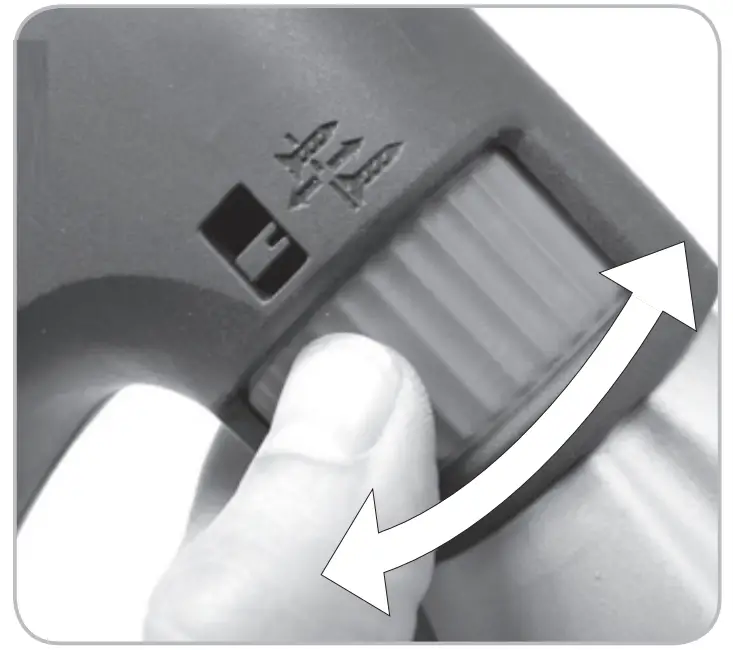

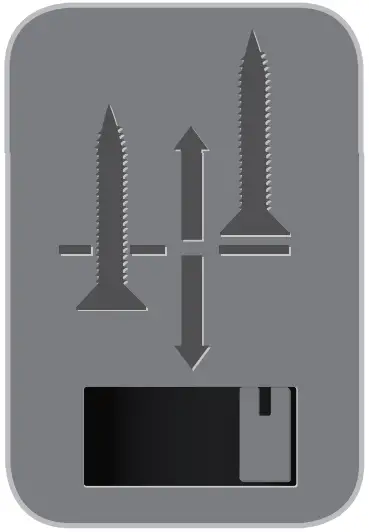

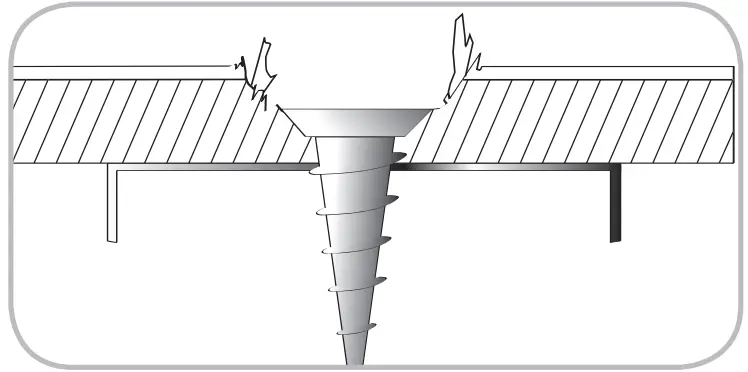

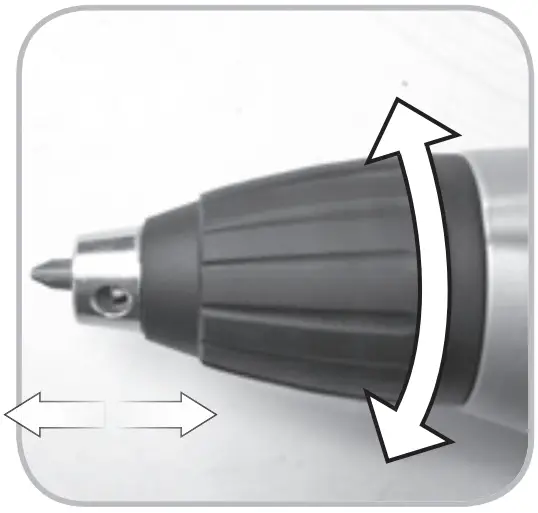

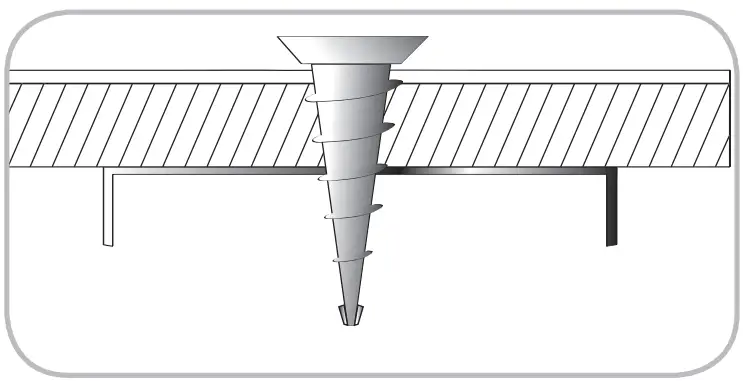

If your first screw gives the following cases, set the ring to drive more or less the screw at the next screwing

Adjust like this:

Adjust like this:

Adjust like this:

Switching from automatic to manual mode

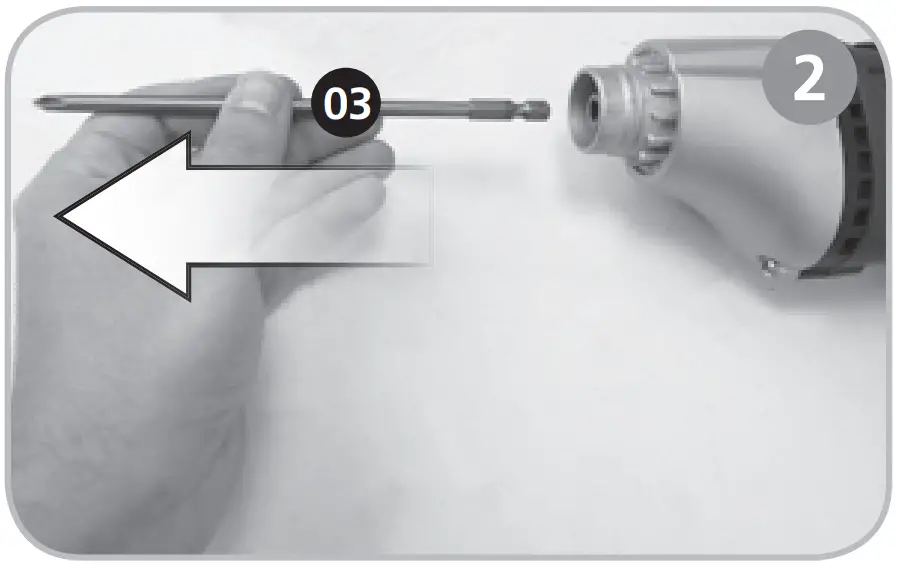

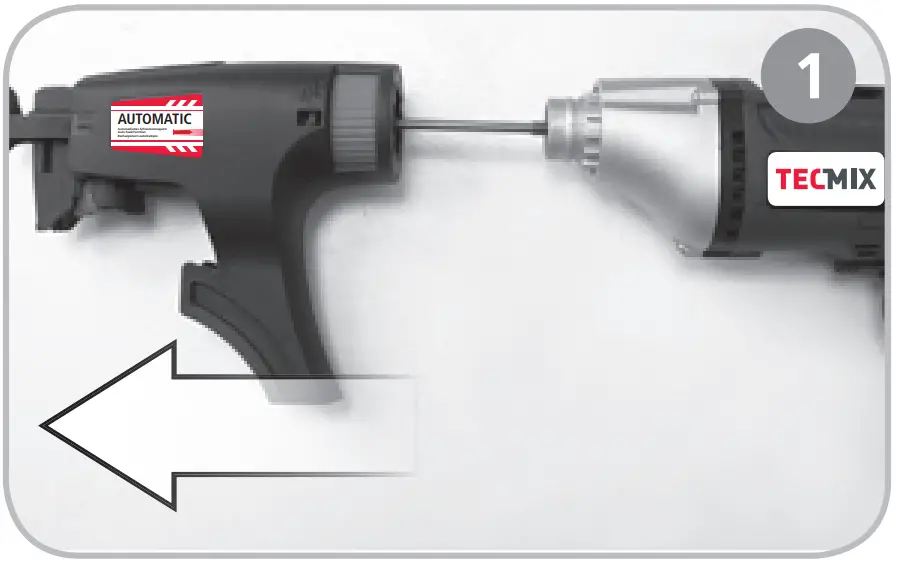

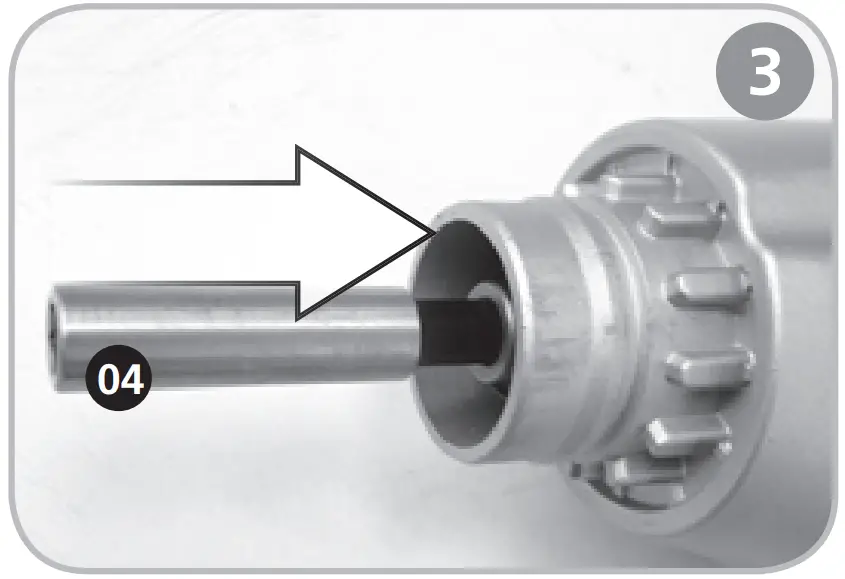

Remove the head by simply pulling it, same for the screwdriver

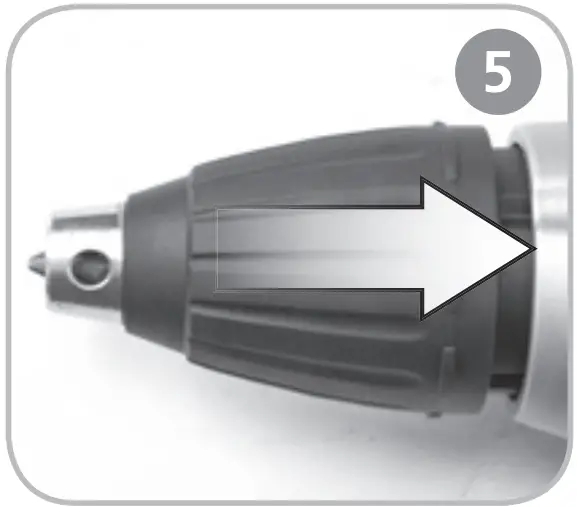

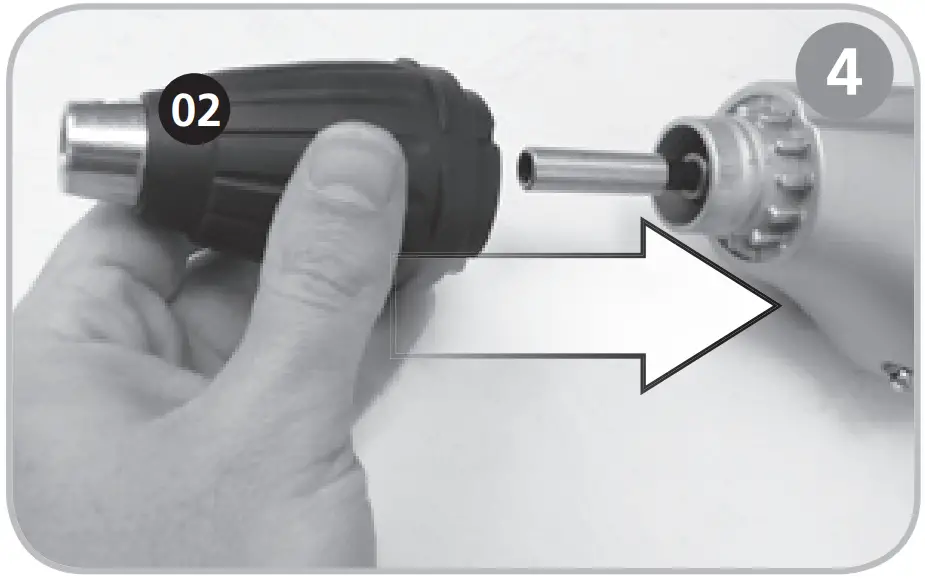

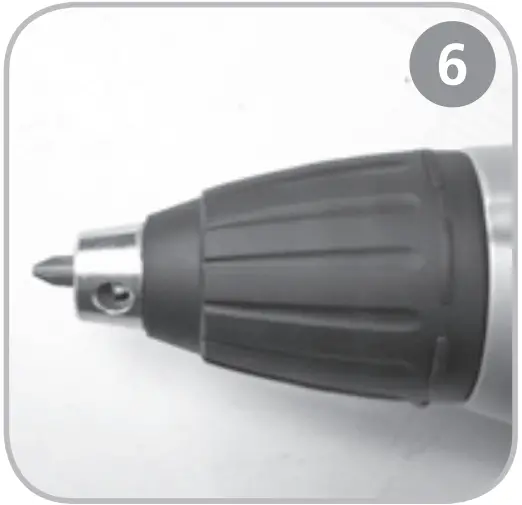

Clip the screwdriver bit holder and the mandrel

CE DECLARATION OF CONFORMITY

B ERG TECTOOL GMBH, Cologne, declares under its full responsibility that the power tool is in conformity with directives of the European Parliament Directive 98/37/EC – 2006/42/EC, Directive 2006/95/EC and Directive 2004/108/EC and complies with the requirements of the following standards
EN 60745-1, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3.

Fabian Berg

BERG TECTOOL GmbH
Hermann-Heinrich-Gossen-Str. 3
50858 Köln
Germany

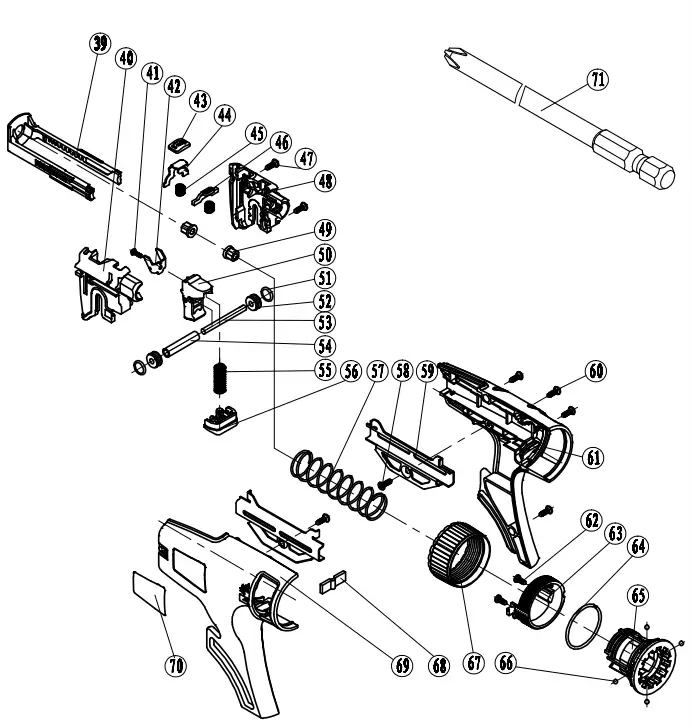

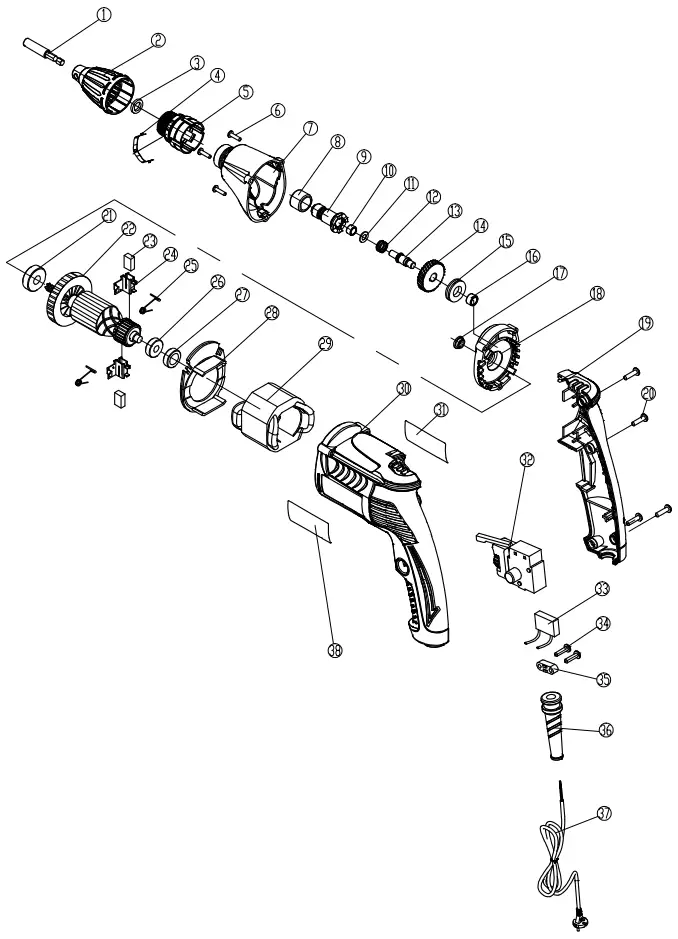

Exploded View
