Chauvet Dj 4bar Quad Ils Wash Lighting Solution Fitted User Guide

DJ 4BAR Quad ILS Wash Lighting Solution Fitted
User Guide

About This Guide

The 4BAR Quad ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values.

Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cable is not crimped or damaged.
• Never disconnect this product from power by pulling on the cable.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• Never carry the product by the power cable.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

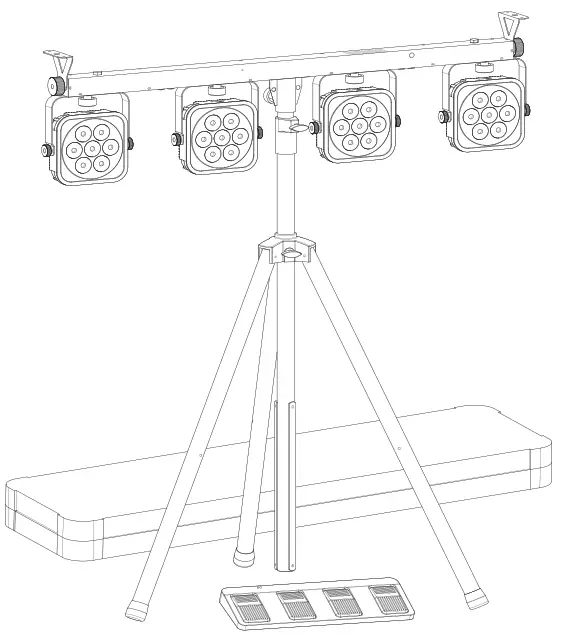

What is Included

• 4BAR Quad ILS
•  Power cable
• Tripod
• Carrying bag
• Wireless footswitch
• Tripod carrying bag
• Quick Reference Guide

To Begin
Unpack the 4BAR Quad ILS and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting
Before mounting this product, read the Safety Notes.

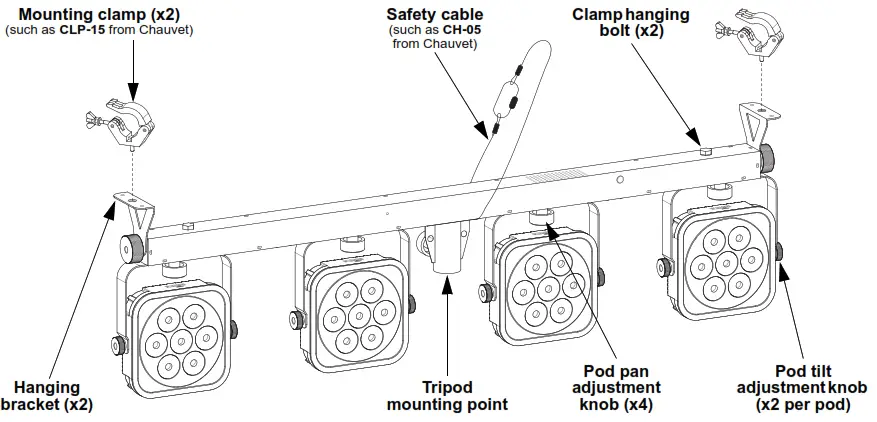

Mounting Diagram

Control Panel Description

Menu Map

Refer to the 4BAR Quad ILS product page on www.chauvetdj.com for the latest menu map.

DMX Linking
The 4BAR Quad ILS can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 494.
Master/Slave Connection
The 4BAR Quad ILS uses the DMX data connection for its Master/Slave mode.
IRC-6 (Infrared Remote Control)
The 4BAR Quad ILS can be operated with the CHAUVET IRC-6.

D-Fi USB Connectivity
The 4BAR Quad ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product’s DMX Personality and DMX Address.
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.
Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

Master/Slave Mode (D-Fi USB)
The D-Fi USB allows a single 4BAR Quad ILS product (the “master”) to control the actions of one or more 4BAR Quad ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:

1. Press <MENU> repeatedly until 9-Ch shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to set the starting address to d 1.
4. Press <ENTER>.
5. Set the D-Fi USB to receive on a specific channel, 1–16.
6. Plug in the D-Fi USB.
7. Finish setting and connecting all the slave products.

Master product

1. Set the master product to operate in standalone mode.
2. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
3. Plug in the D-Fi USB.
   • All products must be set to the same DMX personality, DMX address, and D-Fi channel.
   • Configure all the slave products before configuring the master to transmit.
   • Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode
ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR  MOVE+ILS:
Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.
This product will synchronize with the par effects of the GigBAR MOVE+ILS, regardless of ILS mode.
To set the 4BAR Quad ILS to respond to an ILS signal:

1. Press <MENU> repeatedly until iLS_ shows on the display.
2. Use <UP> or <DOWN> to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press <ENTER>.

Wireless Footswitch Operation

The included wireless footswitch provides quick access to preset colors, color-change programs, and sound-activation through the 4BAR Quad ILS microphone.
To use the footswitch:

1. Connect the 4BAR Quad ILS to power. Turn the wireless footswitch on.
2. Press <MENU> repeatedly until SEt shows on the display, and press <ENTER>.
3. Use <UP> or <DOWN> to select ir, and press <ENTER>.
4. Use <UP> or <DOWN> to select on, and press <ENTER>.
5. Press <MENU> repeatedly until P– shows on the display, and press <ENTER>.
6. Press pedal #3 to activate static color controls. When working, all the lights will begin in a static color and FOOt will appear on the Menu display.
7. Use the chart below to activate the desired function.

The 4BAR Quad ILS footswitch will work properly in any mode, with a maximum unobstructed distance of 100 ft (30.5 m). You must turn on the ir setting from the 4BAR Quad ILS and navigate to Auto mode before using the footswitch.

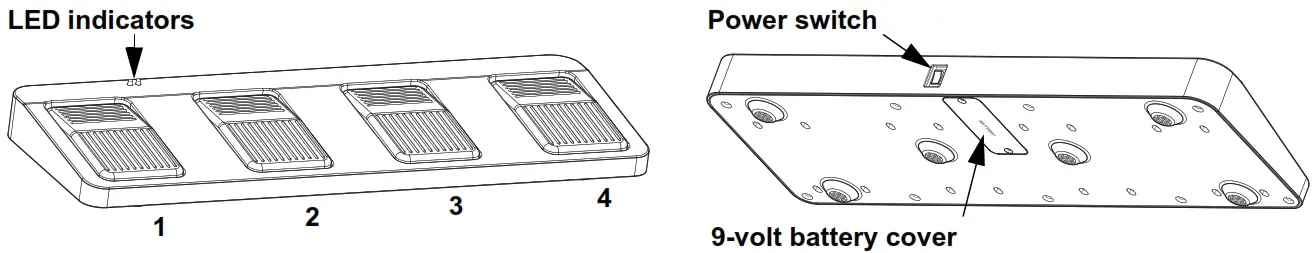

Footswitch Battery
The wireless footswitch uses a 9-volt battery located under the battery cover on the bottom of the product, which can be replaced when necessary.

Battery Replacement

To replace the battery in the wireless footswitch:

1. Turn the power switch to the Off position.
2. Remove the battery cover by removing 2 screws with a Phillips-head screwdriver.
3. Remove the old battery from the housing and unplug it from the leads.
4. Replace with a new 9-volt battery, ensuring that the positive (+) and negative (-) leads correspond to the correct electrodes on the battery.
5. Place the battery into the housing and cover with the battery cover.
6. Secure the battery cover with the 2 Phillips-head screws.

Do NOT over-tighten the screws!
DMX Values
4Ch/6Ch/19Ch

4Ch	6Ch	19Ch	Function	Value	Percent/Setting
–	–	1	Automatic Programs	000 009	No function
				010  029	Auto program 1
				030  049	Auto program 2
				050 069	Auto program 3
				070  089	Auto program 4
				090 109	Auto program 5
				110 129	Auto program 6
				130 149	Auto program 7
				150  169	Auto program 8
				170  189	Auto program 9
				190  209	Auto program 10
				210 229	Auto program 11
				230 249	Auto program 12
				250  255	Sound-active program
–	–	2	Dimmer	000  255	0–100%
–	–	3	Strobe (when Ch. 1 is 000ó 009)	000  009	No function
				010 255	Strobe, slow to fast
			Program speed (when Ch. 1 is 010ó 249)	000 255	Program speed, slow to fast
			Sound sensitivity (when Ch. 1 is 250ó 255)	000 010	Sound sensitivity off
				011  255	Sound sensitivity, low to high
1	1	4	Red 1	000  255	0–100%
2	2	5	Green 1	000  255	0–100%
3	3	6	Blue 1	000  255	0–100%
4	4	7	Amber 1	000  255	0–100%
–	–	8	Red 2	000 255	0–100%
–	–	9	Green 2	000  255	0–100%
–	–	10	Blue 2	000 255	0–100%
–	–	11	Amber 2	000  255	0–100%
–	–	12	Red 3	000 255	0–100%
–	–	13	Green 3	000 255	0–100%
–	–	14	Blue 3	000 255	0–100%
–	–	15	Amber 3	000 255	0–100%
–	–	16	Red 4	000 255	0–100%
–	–	17	Green 4	000 255	0–100%
–	–	18	Blue 4	000 255	0–100%
–	–	19	Amber 4	000  255	0–100%
–	5	–	Dimmer	000 255	0–100%
–	6	–	Strobe	000  009	No function
				010 255	Strobe, slow to fast

Contact Us

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

4BAR Quad ILS QRG ML6 Rev. 3
© Copyright 2022 Chauvet
All rights reserved
4BAR Quad ILS QRG Rev. 3
