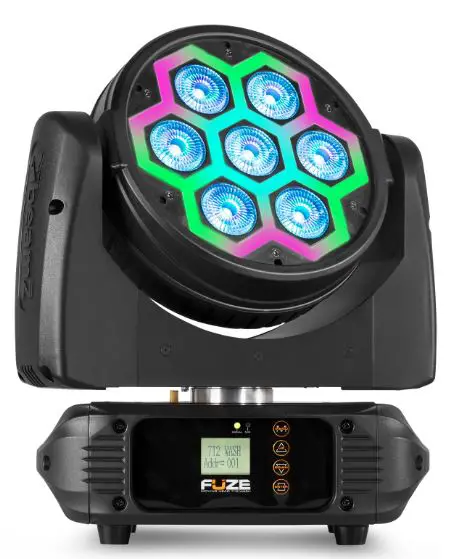

beamZ FUZE712 Moving Head Wash Light

DMX CHANNELS
28CH 23CH FUNCTION VALUE DESCRIPTION
| 1 | 1 | Dimmer | 000-255 | Intensity 0–100% |
| 2 | 2 | Shutter | 000-031 | No function |
| 032-063 | Open | |||
| 064-095 | Strobe, slow to fast | |||
| 096-127 | Open | |||
| 128-159 | Pulse effect in sequences slow to fast | |||
| 160–191 | Open | |||
| 192–223 | Random strobe effect slow to fast | |||
| 224-255 | Open | |||
| 3 | 3 | Pan | 000-255 | Movement 0°- 540° |
| 4 | 4 | Pan Fine | 000-255 | |
| 5 | 5 | Tilt | 000-255 | Movement 0°- 270° |
| 6 | 6 | Tilt Fine | 000-255 | |
| 7 | 7 | P/T Speed | 000-225 | Fast to slow |
| 226-235 | Blackout by movement | |||
| 236-255 | No function | |||
| 8 | 8 | Colour | 000-255 | Red 0–100% dimmer, from dark to bright |
| 9 | 9 | 000-255 | Green 0–100% dimmer, from dark to bright | |
| 10 | 10 | 000-255 | Blue 0–100% dimmer, from dark to bright | |
| 11 | 11 | 000-255 | White 0–100% dimmer, from dark to bright | |
| 12 | Macro colour | 000-015 | No function | |
| 016–031 | Red | |||
| 032-047 | Green | |||
| 048-063 | Blue | |||
| 064-079 | White | |||
| 080-095 | Red + green | |||
| 096–111 | Red + blue | |||
| 112–127 | Red + white | |||
| 128–143 | Green + blue | |||
| 144–159 | Green + white | |||
| 160–175 | Blue + white | |||
| 176–191 | Red + green + blue | |||
| 192–207 | Red + green + blue + white | |||
| 208–212 | 2700K | |||
| ….. | ….. | |||
| 248-255 | 8000K | |||
| 13 | Colour temperature | 000-015 | No function | |
| 016-045 | Below 3200K | |||
| 046-075 | 3200K – 3500K | |||
| ….. | ….. | |||
| 226-255 | 7000K – 8000K | |||
| 14 | 12 | Macro run | 000-015 | No function |
| 016–031 | Macro run 1 | |||
| ….. | ….. | |||
| 128–143 | Macro run 8 | |||
| 144–159 | Macro sound 1 | |||
| ….. | ….. | |||
| 240-255 | Macro sound 7 |
28CH 23CH FUNCTION VALUE DESCRIPTION
| 15 | 13 | Macro speed | 000-255 | Macro speed from slow to fast |
| 16 | 14 | Pixel dimmer | 000-255 | Intensity 0–100% |
| 17 | 15 | Pixel strobe | 000-255 | Strobe, from slow to fast |
| 18 | Pixel colour | 000-255 | Red intensity 0–100% | |
| 19 | 000-255 | Green intensity 0–100% | ||
| 20 | 000-255 | Blue intensity 0–100% | ||
| 21 | 16 | Pixel colour | 000-000 | No function |
| 001-015 | Red | |||
| 016–031 | Green | |||
| 032-047 | Blue | |||
| 048-063 | Red + blue | |||
| 064-079 | Red + green | |||
| 080-095 | Green + blue | |||
| 096–111 | Red + blue + green | |||
| 112–127 | 2700K | |||
| ….. | ….. | |||
| 240-255 | 8000K | |||
| 22 | 17 | Pixel macro | 000-015 | No function |
| 016-029 | Pixel dynamic scene 1 | |||
| …… | ……. | |||
| 240-255 | Pixel dynamic scene 17 | |||
| 23 | 18 | Pixel macro speed | 000-255 | Slow to fast |
| 24 | 19 | Pixel expand patterns | 000-015 | No function |
| 016-029 | Pixel dynamic scene 1 | |||
| ….. | ….. | |||
| 240-255 | Pixel dynamic scene 17 | |||
| 25 | 20 | Pixel foreground | 000-255 | Pixel expand patterns foreground dimmer 0 – 100% |
| 26 | 21 | Pixel background | 000-255 | Pixel expand patterns background dimmer 0 – 100% |
| 27 | 22 | Pixel background | 000-000 | No function |
| colour | 001-015 | Red | ||
| 016–031 | Green | |||
| 032-047 | Blue | |||
| 048-063 | Red + blue | |||
| 064-079 | Red + green | |||
| 080-095 | Green + blue | |||
| 096–111 | Red + blue + green | |||
| 112–127 | 2700K | |||
| ….. | ….. | |||
| 240-255 | 8000K | |||
| 28 | 23 | Special | 000-079 | No function |
| 080-094 | Motor reset | |||
| 095-099 | No function | |||
| 100–119 | Internal program 1 | |||
| ….. | ….. | |||
| 220-239 | Internal program 7 | |||
| 240-255 | Internal sound program 1 |
