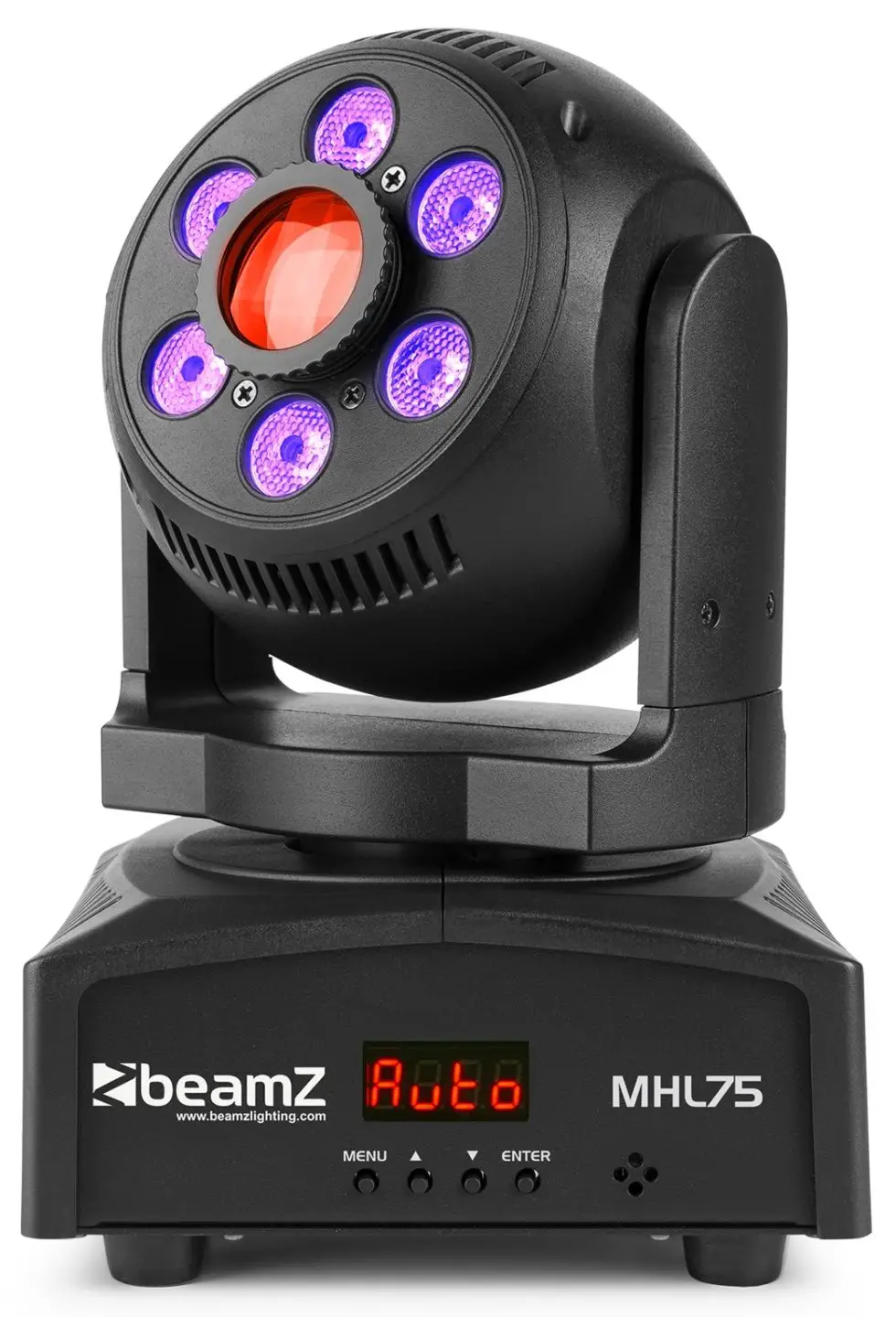

beamZ MHL75 Hybrid Moving Head Spot/Wash User Guide
RIGGING

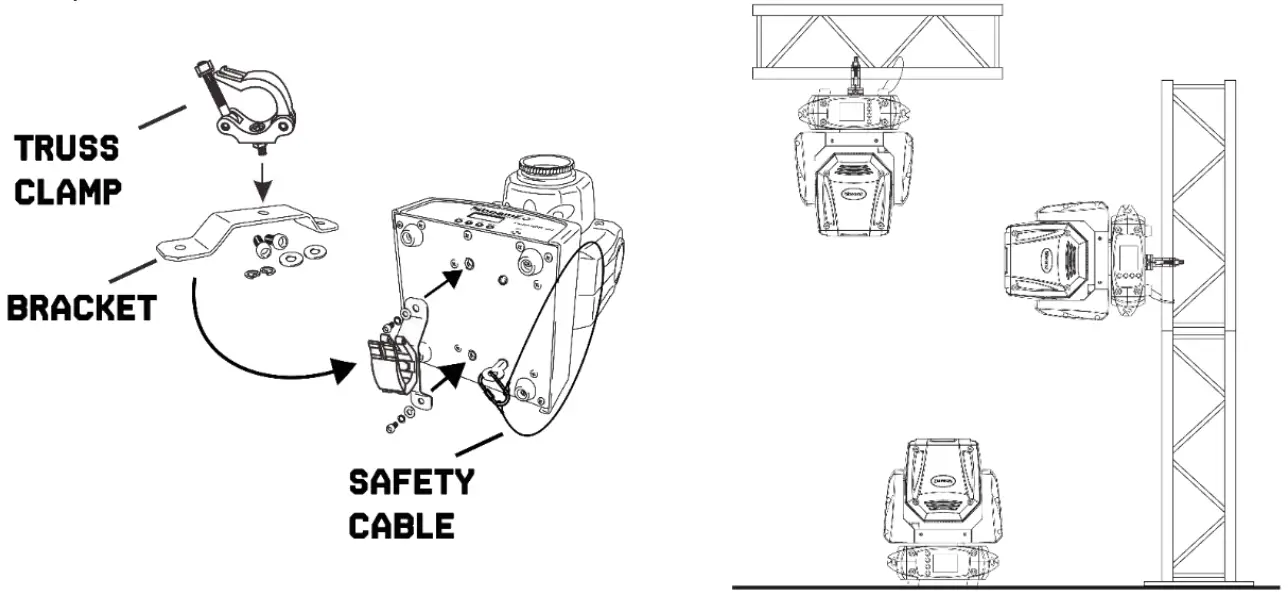

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit’s weight. Secure the unit with a safety cable so that it cannot fall down.
When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer !
DMX512 CONTROL

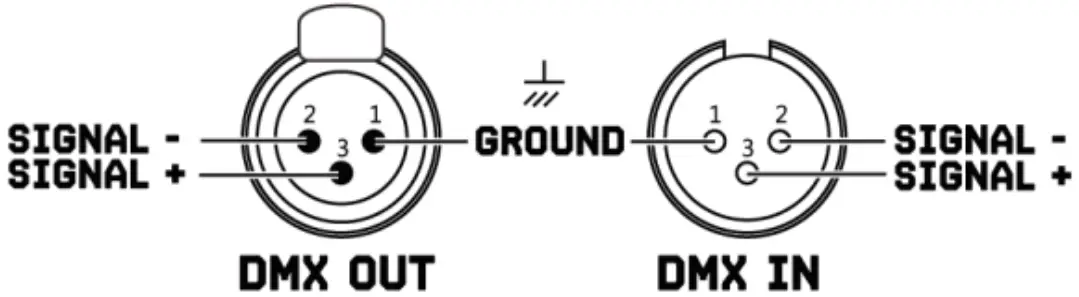

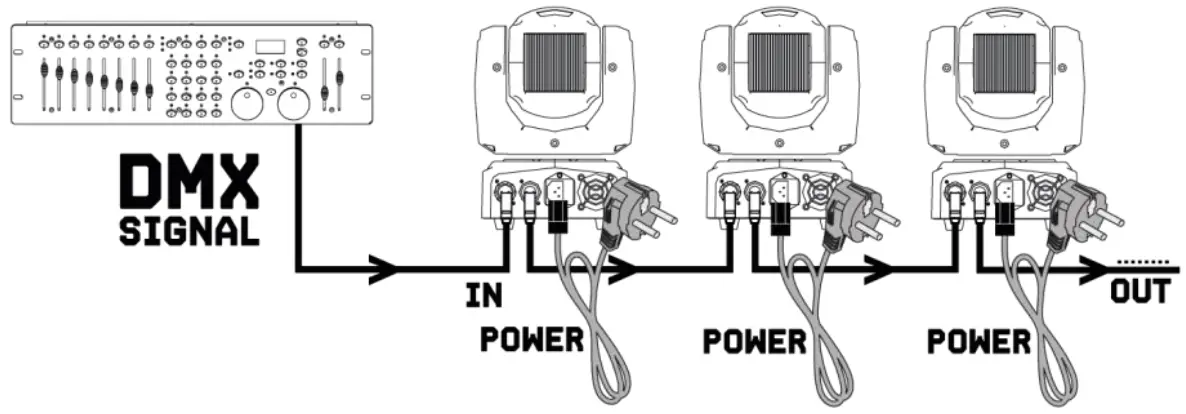

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain.
Always connect the output of one unit with the input of the next unit until all units are connected.
CAUTION:

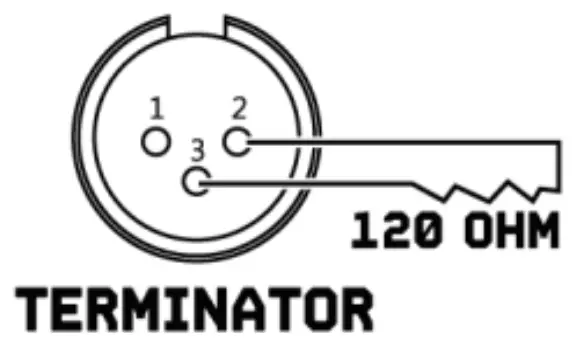

At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.
| MENU | DESCRIPTION | |
| ADDR | A000-A512 | DMX address setting |
| RPAN | Yes | Revers Pan movements |
| No | ||
| RTIL | Yes | Revers Tilt movements |
| No | ||
| AUTX | AUTO-AUT3 | Select auto program |
| SP00-SP99 | Select speed | |
| SOUX | SOU1-SOU2 | Select sound program |
| SE00-5E99 | Select speed | |
| RESET | Reset |
DMX CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | PAN | 000-255 | Movement 0°-540° |
| 2 | 000-255 | Fine movement | |
| 3 | TILT | 000-255 | Movement 0°-270° |
| 4 | 000-255 | Fine movement | |
| 5 | Speed | 000-255 | Fast to slow |
| 6 | Master dimmer | 000-255 | Dimmer 0-100% |
| 7 | Spot dimmer | 000-255 | Dimmer 0-100% |
| 8 | Spot strobe | 000-255 | Slow to fast |
| 9 | Colourwhee | 000-015 | White |
| 016-023 | White / Red | ||
| 024-031 | Red | ||
| 032-039 | Red / Green | ||
| 040-047 | Green | ||
| 048-055 | Green / Blue | ||
| 056-063 | Blue | ||
| 064-071 | Blue / Yellow | ||
| 072-079 | Yellow | ||
| 080-087 | Yellow / Magenta | ||
| 088-095 | Magenta | ||
| 096-103 | Magenta / Orange | ||
| 104-111 | Orange | ||
| 112-127 | Orange / White | ||
| 28-255 | Colour rotation slow to fast | ||
| 10 | Gobo | 000-015 | Open |
| 016-031 | Gobo 1 | ||
| 032-047 | Gobo 2 | ||
| 048-063 | Gobo 3 | ||
| 064-079 | Gobo 4 | ||
| 080-095 | Gobo 5 | ||
| 096-111 | Gobo 6 | ||
| 112-127 | Gobo 7 | ||
| 128-255 | Gobo rotation slow to fast | ||
| 11 | Wash colour | 000-255 | Red 0-100% |
| 12 | 000-255 | Green 0-100% | |
| 13 | 000-255 | Blue 0-100% | |
| 14 | 000-255 | White 0-100% | |
| 15 | Wash strobe | 000-255 | Slow to fast |
| 16 | SpeciaL | 000-009 | No function |
| 010-199 | Spot strobe, wash colour change (Ch4 on 255) | ||
| 200-239 | Stop | ||
| 240-255 | Auto program |
