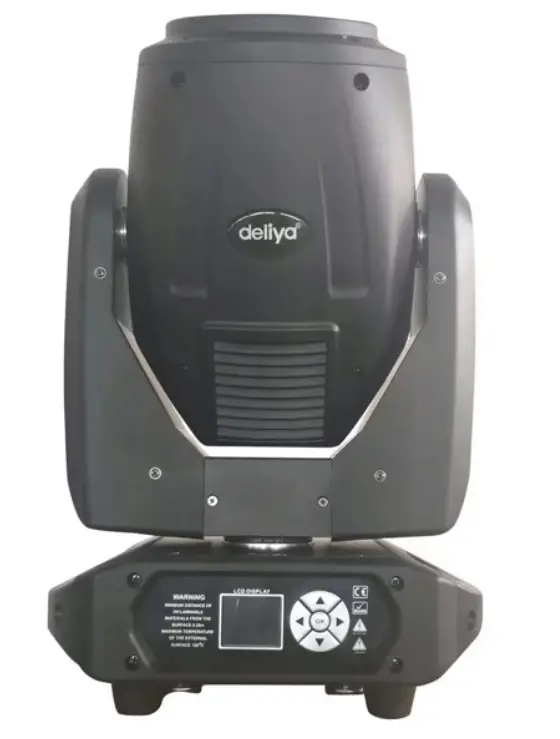

deliya BEAM 260 Moving Head Light
Attention: This manual includes the important information of how to installation and use the machine safely. Please operate as the requirements after read the manual carefully. At the same time please keep it properly in case one day you needed.
Firstly thank you for your appreciation of our professional lighting product.
This manual includes the important information of how to installation and use this light safely. Please operate as the requirements after read the manual carefully. At the same time please keep it properly in case one day you needed.
This kind of moving head light is the perfect combination of humanity and industrial design with beautiful modeling. The body of the light use aluminum alloy and high temperature durable engineering plastic material with wonderful cooling effect. Transmission mechanism adopts electronic positioning technology. This product fully meets the CE standard using the international standard control signal DMX512.It is widely used in television, disco, dance hall, night club and other indoor outdoor performance.
This product is performance and packed well when they are sale.
All users should strictly follow the stated warning and instructions. Any damage caused by misuse not related with us. It’s not our responsibility that the fault and problem for ignore the operation manual.
Note: Please connect ground safely when use this equipment.
Technology change of this manual we would not to inform.
The beam250/260 weight 13 kg which send out parallel beams that similar to the laser. It makes incredible output and with groundbreaking purity white light.
The beam 250/260 provides 13 different colors, 11 gobos, can quickly changes the shape of beam and shows a spectacular half empty effect. With light weight, low power, fashion design, powerful function, high brightness, it can easily installed in any place, such as moving stage, TV activities, exhibition hall or meeting room.
Technical parameters
- Lamp: GODN MSD 280R10
- Channel mode: 18CH.
- Level scanning: 540 ° (16bit precision scan) electronic error correction.
- Vertical scanning: 250 ° (16bit precision scan) electronic error correction.
- Color Wheel: 13 colors with white, with rotating rainbow effect.
- Gobo Wheel: 11 gobos with rotating gradually change effect and pattern swing effect.
- Shut: up to 13 times per second with automatic pulse effect.
- Dimmer: 0%-100% linear dimmer.
- Focus: 5 meters to infinity.
- Prism: 24prisms and 8 prisms can be Colour prisms.
- Frost: 0%-100% linear frost.
- Control table reset function and lamp.
- Control table switch bubble function (Switch on or off bulb can choose when with power.
- Power supply: AC110V-240V, 50/60HZ.
The light body size: 300X245X500mm.
Signal connection:
The connection of lights and the connection of light and controller must used two core shielding wire with its diameter not less than 0.5 mm. We should pay special attention that the connection of three core of XLR plugs and socket cannot contact with inner shell and between core and core also cannot contact.
When use XLR-XLR control line, connect the DMX outlet of controller with the DMX input of the first machine, and connect the DMX outlet of the first machine with DMX input the second machine. Repeating the process until all machines connected. At last connect the loop plug with the last lamp’s signal output the connection of controller mode is completed.
This menu of control display board specifically designs for the various types of moving light equipped with various function control mode, operate easy. For some operation that some type of light without it is invalid corresponding menu options setting.

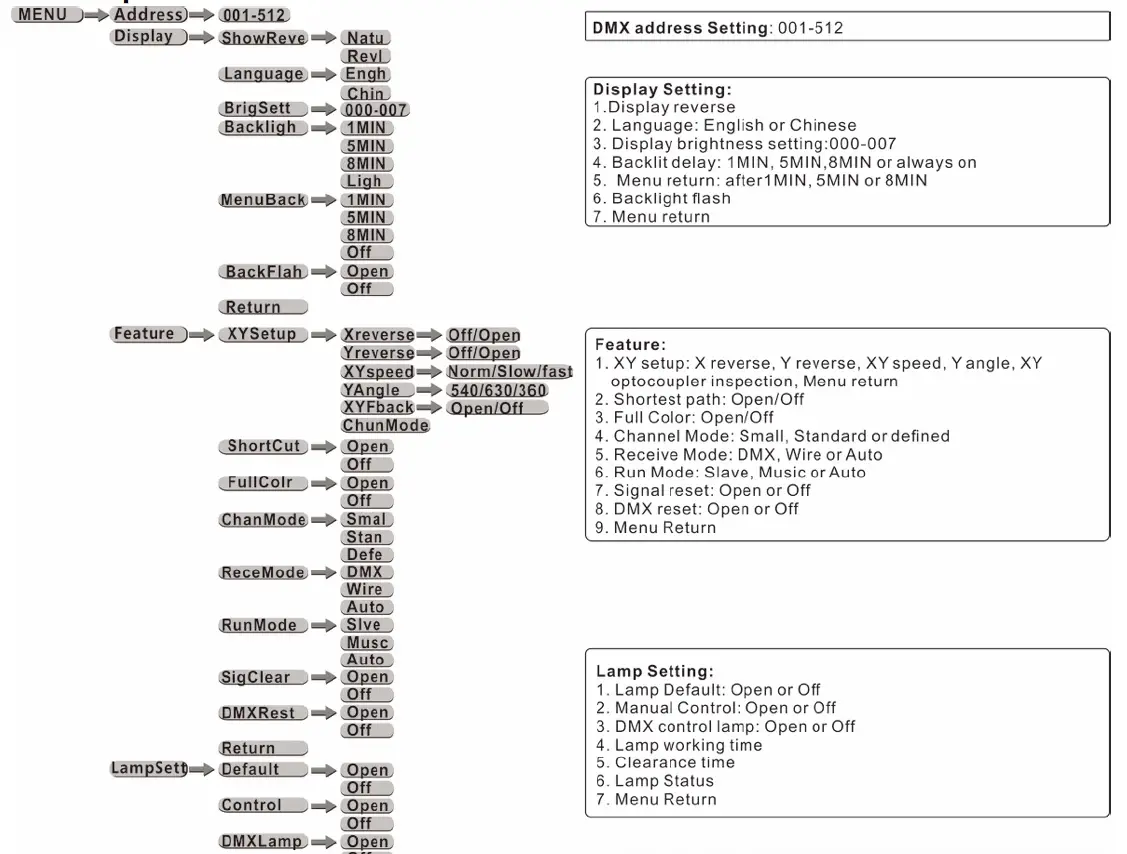

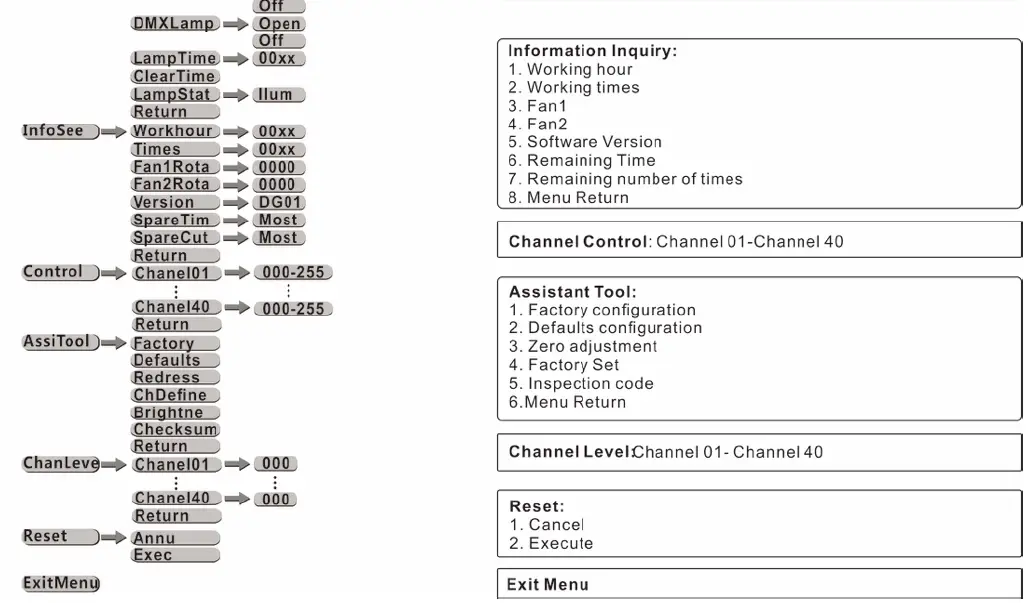

Menu Operation of Moving Head Light:
There are several features are offered in the base of control panel. Such as setting the DMX address, switch on or off the bulb, run the program and the selection of work mode.
DMX Channel
| CH | Simplfy Mode | Subdivs | Notes |
|
Color |
1 | 0-4 | White |
| 5-8 | White/Red | ||
| 9-12 | Red | ||
| 13-17 | Red/Dark yellow | ||
| 18-21 | Dark yellow | ||
| 22-25 | Dark yellow/Pale blue | ||
| 26-29 | Pale blue | ||
| 30-34 | Pale blue/Green | ||
| 35-38 | Green | ||
| 39-42 | Green/Yellow | ||
| 43-46 | Yellow | ||
| 47-51 | Yellow/Rose red |
| 52-55 | Rose red | ||
| 56-59 | Rose red/Orange | ||
| 60-63 | Orange | ||
| 64-68 | Orange/Light green | ||
| 69-72 | Light green | ||
| 73-76 | Light green/blue | ||
| 77-81 | blue | ||
| 82-85 | blue/Fluorescence | ||
| 86-89 | Fluorescence | ||
| 90-93 | Fluorescence/CTO1 | ||
| 94-98 | CTO1 | ||
| 99-102 | CTO1/CTO2 | ||
| 103-106 | CTO2 | ||
| 107-110 | CTO2/Dark blue | ||
| 111-115 | Dark blue | ||
| 116-119 | Dark blue/White | ||
| 120-123 | White | ||
| 124-127 | White/red | ||
| 129-191 | Clockwise: from fast to slow | ||
| 192-255 | Anticlockwise: from slow to fast | ||
|
Shut |
2 | 0-3 | Off |
| 4-103 | from slow to fast | ||
| 104-107 | Light turn ON | ||
| 108-207 | from slow to fast | ||
| 208-212 | Light turn ON | ||
| 213-251 | Random | ||
| 252-255 | open | ||
| Dimmer | 3 | 0-255 | 0%-100% linear dimmer |
|
Gobos |
4 | 0-3 | White light |
| 4-7 | gobo1 | ||
| 8-11 | gobo2 | ||
| 12-15 | gobo3 | ||
| 16-19 | gobo4 | ||
| 20-23 | gobo5 | ||
| 24-27 | gobo6 | ||
| 28-31 | gobo7 | ||
| 32-35 | gobo8 | ||
| 36-39 | gobo9 | ||
| 40-47 | gobo10 | ||
| 48-71 | Effect： from slow to fast | ||
| 72-112 | Gobos： from slow to fast | ||
| 113-117 | White light | ||
| 118-159 | Gobos：from fast to slow | ||
| 160-166 | Gobo11 swing from fast to slow | ||
| 167-172 | Gobo10 swing from fast to slow | ||
| 173-179 | Gobo9 swing from fast to slow | ||
| 180-185 | Gobo8 swing from fast to slow | ||
| 186-191 | Gobo7 swing from fast to slow | ||
| 192-198 | Gobo6 swing from fast to slow | ||
| 199-204 | Gobo5 swing from fast to slow | ||
| 205-211 | Gobo4 swing from fast to slow | ||
| 212-217 | Gobo3 swing from fast to slow | ||
| 218-223 | Gobo2 swing from fast to slow | ||
| 224-255 | Gobo1 swing from fast to slow | ||
| Prism | 5 | 0-127 | White light |
| 128-255 | 24 Prism | ||
| Prism Rotation | 6 | 0-127 | Prism fine |
| 128-189 | Anticlockwise: from fast to slow | ||
| 190-255 | Clockwise: from slow to fast | ||
| Prism 2 | 7 | 0-127 | White light |
| 128-255 | 8 Prism | ||
| Prism 2 Rotation | 8 | 0-127 | Prism fine |
| 128-189 | Anticlockwise: from fast to slow | ||
| 190-255 | Clockwise: from slow to fast | ||
| Focus | 9 | 0-255 | Linear focus |
| Pan | 10 | 0-255 | 0-540° horizontal scanning |
| Pan Fine | 11 | 0-255 | Pan fine |
| Tilt | 12 | 0-255 | 0-270° vertical scanning |
| Tilt Fine | 13 | 0-255 | Tilt fine |
| Combination | 14 | 0-255 | Combination |
| Frost | 15 | 0-127 | Absent |
| 128-255 | Frost | ||
| All colour | 16 | 0-127 | Absent |
| 128-255 | All colour | ||
| Electronic Lighting | 17 | 0-99 | Absent |
| 100-105 | Control table light turn OFF | ||
| 200-205 | Control table light turn ON | ||
| Reset | 18 | 0-249 | Absent |
| 250-255 | Reset |
Light Protection and Maintenance
You should exchange the lens timely when you find the damage. You should also instant replacement the bulb when you find the deformation damage. The aging bulb has a danger of blowout. Please check the power fuse of light when the light unable to start. Install the corresponding specification fuse 5X20 T10A/250V when burning. Light has overheating protection device, Protection device will automatically cut off power supply when overheating. Please check the fan’s operation, dirt jam between fan and fan nets when the situation happened. Find the reason and repair then restarting light. Attention only qualified technical personnel can repair it.
Light cleaning
It is necessary to keep the light cleaning to ensure its reliable use. The fan should clean every 15 days. It needed to clean periodically of the internal and external optical lens, mirror and coating color filter in order to optimize the efficacy output.
Do not use any chemical solvents containing to clean color filter.
The frequency of cleaning is according to the operation of light and the environment of operation.With soft cloth and general glass clean products clean the light. Suggest clean outside optical system every 20 days. Clean internal optical system at least every 30/60 days.
Note: Don’t use alcohol and organic solvent wipe to clean the shell of light lest in order to avoid damage.
