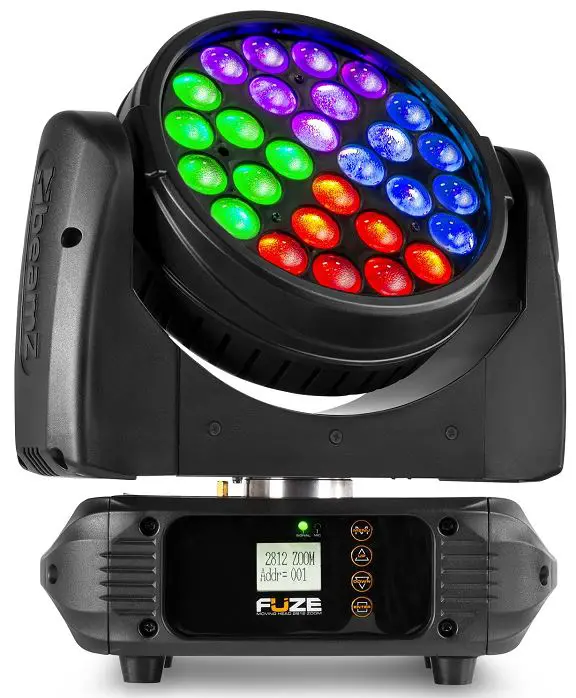

beamZ FUZE 2812 Wash Moving Head with Zoom
| MENU | DESCRIPTION | ||
| DMX ADDR | A000-Axxx | DMX address setting | |
| AUTO-PLAY | Auto run | Internal program 1-9 | Auto program |
| RESET | Music Run | Internal program 1-9 | Sound control |
| ALL | On / Off | Reset all | |
| Pan /Tilt | On / Off | Reset Pan /Tilt | |
| Zoom | On / Off | Reset zoom | |
| REVERS PAN | On / Off | Reverse Pan | |
| REVERSE TILT | On / Off | Reverse Tilt | |
| SPECIAL | Reset default | On / Off | Reset default |
| Calibrate | Access for Beamz authorised dealer only | ||
| Temperature | xxx °C / F | Current temperature | |
| Manual Ctrl | PAN = xxx | Manual control | |
| Mic SET | 0-99% | Sensitivity of mic | |
| Work time | xxxh | Work time | |
| DMX MODE | CH 45 | Standard mode | |
| CH 21 | Basic mode | ||
| SCAN DEGREE | PAN | 630° / 540° / 360° | Select TILT Degree, default is 540° |
| TILT | 270° / 180° / 90° | Select PAN Degree, default is 270° | |
| VERSION | Vx.xx | Software version |
DMX CHANNELS
| 21CH | 4SCH | FUNCTION | UALUE | DESCRIPTION |
| 1 | 1 | Dimmer | 000-255 | Intensity 0-100% |
| 2 | 2 | Shutter | 000-031 | No function |
| 032-063 | Open | |||
| 064-095 | Strobe, slow to fast | |||
| 096-127 | Open | |||
| 128-159 | Pulse effect in sequences slow to fast | |||
| 160-191 | Open | |||
| 192-223 | Random strobe effect slow to fast | |||
| 224-255 | Open | |||
| 3 | 3 | Pan | 000-255 | Movement 0°-540° |
| 4 | 4 | Pan Fine | 000-255 | |
| 5 | 5 | Tilt | 000-255 | Movement 0°-270° |
| 6 | 6 | Tilt Fine | 000-255 | |
| 7 | 7 | P/T Speed | 000-225 | Fast to slow |
| 226-235 | Blackout by movement | |||
| 236-255 | No function | |||
| 8 | 8 | Colour | 000-255 | Red 0-100% dimmer, from dark to bright |
| 9 | 9 | 000-255 | Green 0-100% dimmer, from dark to bright | |
| 10 | 10 | 000-255 | Blue 0-100% dimmer, from dark to bright | |
| 11 | 11 | 000-255 | White 0-100% dimmer, from dark to bright | |
| 12 | 12 | 000-255 | Amber 0-100% dimmer, from dark to bright | |
| 13 | 13 | 000-255 | UV 0-100% dimmer, from dark to bright | |
| 14 | 14 | Zoom | 000-255 | In(near) to out(far) |
| 15 / 20 | Section 1 | 000-255 | Colour of each section see “Colour”channels | |
| 21 / 26 | Section 2 | 000-255 | ||
| 27 / 32 | Section 3 | 000-255 | ||
| 33 / 38 | Section 4 | 000-255 |
| 21CH | 4SCH | FUNCTION | VALUE | DESCRIPTION |
| 15 | 39 | Macro colour | 000-015 | No function |
| 016-031 | Red | |||
| 032-047 | Green | |||
| 048-063 | Blue | |||
| 064-079 | White | |||
| 080-095 | Red + green | |||
| 096-111 | Red + blue | |||
| 112-127 | Red + white | |||
| 128-143 | Green + blue | |||
| 144-159 | Green + white | |||
| 160-175 | Blue + white | |||
| 176-191 | Red + green + blue | |||
| 192-207 | Red + green + blue + white | |||
| 208-212 | 2700K | |||
| 213-217 | 3200K | |||
| 218-222 | 3500K | |||
| 223-227 | 5000K | |||
| 228-232 | 5500K | |||
| 233-237 | 6000K | |||
| 238-242 | 6500K | |||
| 243-247 | 7000K | |||
| 248-255 | 8000K | |||
| 16 | 40 | Colour temperature | 000-015 | No function |
| 016-045 | Below 3200K | |||
| 046-075 | 3200K – 3500K | |||
| 076-105 | 3500K – 5000K | |||
| 106-135 | 5000K – 5500K | |||
| 136-165 | 5500K – 6000K | |||
| 166-195 | 6000K – 6500K | |||
| 196-225 | 6500K – 7000K | |||
| 226-255 | 7000K – 8000K | |||
| 17 | 41 | Macro run | 000-015 | No function |
| 016-031 | Macro run 1 | |||
| ….. | ….. | |||
| 128-143 | Macro run 8 | |||
| 144-159 | Macro sound 1 | |||
| ….. | ….. | |||
| 240-255 | Macro sound 7 | |||
| 18 | 42 | Macro Speed | 000-255 | Macro speed from slow to fast |
| 19 | 43 | Dynamic Rotate | 000-015 | No function |
| 016-031 | Dynamic rotate 1 | |||
| ….. | ….. | |||
| 240-255 | Dynamic rotate 15 | |||
| 20 | 44 | Dynamic rotate Speed | 000-255 | From slow to fast |
| 21 | 45 | Special | 000-079 | No function |
| 080-084 | Motor reset | |||
| 095-099 | Zoom motor reset | |||
| 100-119 | Internal program 1 | |||
| ….. | ….. | |||
| 220-239 | Internal program 7 | |||
| 240-255 | Internal Sound program 1 |
