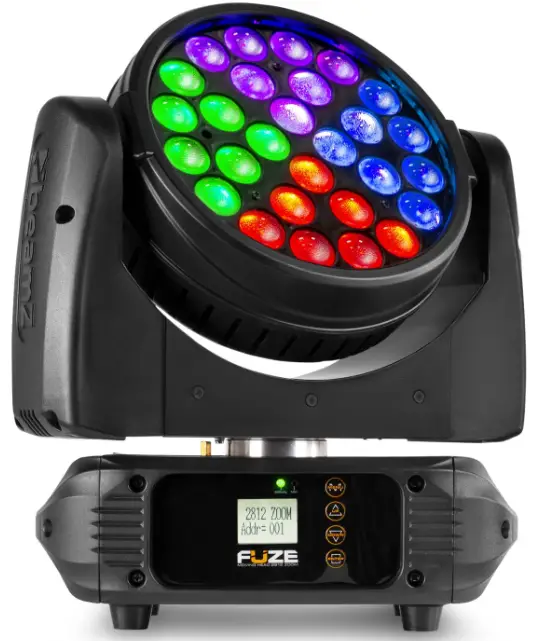

MHL1912Z Moving Head Wash with Zoom
| MENU | FUNCTION | VALUE | DESCRIPTION |
| Setting | DMX Addr | 001-512 | DMX address setting |
| Encpder | Yes/No | Autocorrect | |
| PanREV | Yes/No | Reverse Pan | |
| TiltREV | Yes/No | Reverse Tilt | |
| Runmode | Runmode | DMX/AUTO/SOUND | Auto program |
| Channel | 1SCH or 23CH | Channel mode | |
| Display | Language | EN/ LP Z | Set language |
| Reverse | Yes /No | Reverse Display | |
| Screensavers | Off/1SS/30S/60S | Dark display mode | |
| Factory | Pan | 128 | Set value |
| Tilt | 128 | Set value | |
| Focus | 128 | Set value | |
| Red | 220 | Set value | |
| Green | 220 | Set value | |
| Blue | 220 | Set value | |
| White | 220 | Set value | |
| Logo | No function |
DMX CHANNELS
15 Channel mode
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Pan | 000-255 | Adjust Pan function |
| 2 | Pan Fine | 000-255 | Adjust Fine Pan function |
| 3 | Tilt | 000-255 | Adjust Tilt function |
| 4 | Tilt Fine | 000-255 | Adjust Fine Tilt function |
| 5 | P/T Speed | 000-255 | Adjust the P/T speed |
| 6 | Zoom | 000-255 | Adjust the Zoom from wide to narrow |
| 7 | Dimmer | 000-255 | Adjust the dimmer funtion |
| 8 | Strobe | 000-255 | Adjust strobe function |
| 9 | Red | 000-255 | Adjust red colour |
| 10 | Green | 000-255 | Adjust green colour |
| 11 | Blue | 000-255 | Adjust blue colour |
| 12 | White | 000-255 | Adjust white colour |
| 13 | Function Mode | 000-029 | No Function |
| 030-039 | Red | ||
| 040-049 | Green | ||
| 050-059 | Blue | ||
| 060-069 | Red+Green | ||
| 070-079 | Red+Blue | ||
| 080-089 | Green+Blue | ||
| 090 -139 | RGBW | ||
| 140 – 169 | Color pulse change | ||
| 170 -199 | Color gradual change | ||
| 200-208 | Color jump change | ||
| 209- 218 | Auto running effect 1 | ||
| 219 – 228 | Auto running effect 2 | ||
| 229 -238 | Auto running effect 3 | ||
| 239 -255 | Auto running effect 4 | ||
| 14 | Function Mode Speed | 000-255 | Adjust macro function |
| 15 | Reset (255) | 000-255 | Reset function |
23 Channel Mode
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Pan | 000-255 | Adjust Pan function |
| 2 | Pan Fine | 000-255 | Adjust Fine Pan function |
| 3 | Tilt | 000-255 | Adjust Tilt function |
| 4 | Tilt Fine | 000-255 | Adjust Fine Tilt function |
| 5 | P/T Speed | 000-255 | Adjust the P/T speed |
| 6 | Zoom | 000-255 | Adjust the Zoom from wide to narrow |
| 7 | Dimmer (0-100%) | 000-255 | Adjust the dimmer funtion |
| 8 | Strobe | 000-255 | Adjust strobe function |
| 9 | Red | 000-255 | first Section |
| 10 | Green | 000-255 | first Section |
| 11 | Blue | 000-255 | First Section |
| 12 | White | 000-255 | First Section |
| 13 | Red | 000-255 | Second section |
| 14 | Green | 000-255 | Second section |
| 15 | Blue | 000-255 | Second section |
| 16 | White | 000-255 | Second section |
| 17 | Red | 000-255 | Third Section |
| 18 | Green | 000-255 | Third Section |
| 19 | Blue | 000-255 | Third Section |
| 20 | White | 000-255 | Third Section |
| 21 | Function Mode | 000-029 | No Function |
| 030-039 | Red | ||
| 040-049 | Green | ||
| 050-059 | Blue | ||
| 060-069 | Red+Green | ||
| 070-079 | Red+Blue | ||
| 080-089 | Green+Blue | ||
| 090 -139 | RGBW | ||
| 140 – 169 | Color pulse change | ||
| 170 – 199 | Color gradual change | ||
| 200-208 | Color jump change | ||
| 209- 218 | Auto running effect 1 | ||
| 219 – 228 | Auto running effect 2 | ||
| 229 -238 | Auto running effect 3 | ||
| 239 -255 | Auto running effect 4 | ||
| 22 | Function Mode Speed | 000-255 | Select one of the macro func:ions |
| 23 | Reset (255) | 000-255 | Reset function |
