BEAMZ MADE EAZY
153.689 VI
DJ BANK 244
QUICK START GUIDE
MENU | DESCRIPTION
| |
| 19CH | ||
| 16CH | ||
| 7CH | ||
| 4CH | ||
| STAT | S01-19 | Static colors |
| AUTO | Au 1-4 | Auto program |
| SOUND | So 1-4 | Sound Program |
| SPED | SP 1-9 | Speed |
| SENS | SE 1-9 | MIC sensitivity |
| COLO | r000-255 | Red (0-100%) |
| g000-255 | Green (0-100%) | |
| b000-255 | Blue (0-100%) | |
| U000-255 | White (0-100%) | |
| DIMM | dI 1- dI 9 | Master dimming |
| SILE | on/oFF | Silent scene by Sound program |
| SLAV | Slave | Slave |
| INFO | on/oFF | Enable or Disenable IR remote |
DMX CHANNELS
16 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | PAR 1 | 000-255 | Red (0-100%) |
| 2 | 000-255 | Green (0-100%) | |
| 3 | 000-255 | Blue (0-100%) | |
| 4 | 000-255 | White (0-100%) | |
| 5 | PAR 2 | 000-255 | Red (0-100%) |
| 6 | 000-255 | Green (0-100%) | |
| 7 | 000-255 | Blue (0-100%) | |
| 8 | 000-255 | White (0-100%) | |
| 9 | PAR 3 | 000-255 | Red (0-100%) |
| 10 | 000-255 | Green (0-100%) | |
| 11 | 000-255 | Blue (0-100%) | |
| 12 | 000-255 | White (0-100%) | |
| 13 | PAR 2 | 000-255 | Red (0-100%) |
| 14 | 000-255 | Green (0-100%) | |
| 15 | 000-255 | Blue (0-100%) | |
| 16 | 000-255 | White (0-100%) |
4 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Dimmer | 000-255 | Master dimming (0-100%) |
| 2 | Strobe | 000-255 | PAR Stroboscope (Rate 0-100%) |
| 3 | Colors | 000-009 | No function |
| 010-019 | Red | ||
| 020-029 | Green | ||
| 030-039 | Blue | ||
| 040-049 | White | ||
| 050-059 | Yellow | ||
| 060-069 | Magenta | ||
| 070-079 | Cyan | ||
| 080-089 | Dark orange | ||
| 090-099 | Green-yellow | ||
| 100-109 | Salmon | ||
| 110-119 | Turquoise | ||
| 120-129 | Light Green | ||
| 130-139 | Orange | ||
| 140-149 | Straw | ||
| 150-159 | Lavender | ||
| 160-169 | Light blue | ||
| 170-179 | Dark blue | ||
| 180-189 | Pink | ||
| 190-255 | All on | ||
| 4 | Mode | 000-009 | No function |
| 010-039 | Auto program’ Crate) | ||
| 040-069 | Auto program2 Crate) | ||
| 070-099 | Auto program3 Crate) | ||
| 100-129 | Auto program4 (rate) | ||
| 130-159 | Sound program (rate) | ||
| 160-189 | Sound program2 (rate) | ||
| 190-219 | Sound program3 (rate) | ||
| 220-255 | Sound program4 Grate) | ||

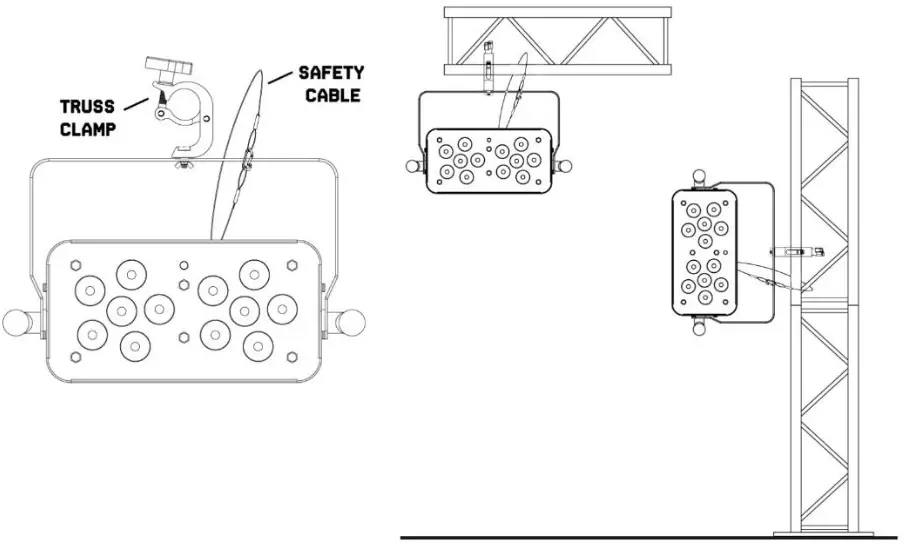

RIGGING
BEAMZ
YOUR FUTURE
YOUR SKILLS
TOUR PLATFORM
YOUR PARTY
YOUR EVENT
is a leading developer of lighting products, including intelligent DMX moving heads, wireless battery operated DMX effects, static washes, sound-activated club effects, strobes & blacklights, LED lighting, fog and special effects machines, lasers, and indoor and outdoor architectural lighting, as well as lighting controllers and protective bags.
BEAMZLIGHTING.COM
