Starcolor 540Z Outdoor LED Wash Light
User Manual

Contents hide

1 SAFETY INSTRUCTIONS

2 UNPACKING INSTRUCTION

3 MAINTENACE

4 TROUBLE SHOOTING

5 CONTROL MENU

6 TECHNICAL SPECIFICATIONS

7 Documents / Resources

8 Related Posts

SAFETY INSTRUCTIONS

Warning: Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

Unpack and check carefully that there is no transportation damage before using the unit
Please read these instructions carefully and follow the instructions.
Observe all safety warnings. Never remove safety warnings or other information from the equipment.
Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

Warning: Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
Do not switch the unit on and off in short intervals.
Do not connect the unit to a dimmerpack.
Install the unit in a well ventilated place.
Never place any material over the lens.
Never let the sunlight lights directly to the front lens , even when the unit is not working.
Always allow free air space of at least 50 cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only.
The safety-rope must never be fixed at the transport handles!
Never look directly at the light beam. Please note that fast changes in lighting, e. g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

Warning: If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground.
Never deactivate the protective ground of a power cord.

Make sure that the unit is not exposed to extreme heat or dust.
Clean the unit using a dry cloth.
Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
Never attempt to bypass the thermostatic switch or fuses.
Do not dismantle or modify the unit.
For replacement use fuses/bulb of same type and rating only.
Repairs, servicing and electric connection must be carried out by a qualified technician.
The ambient temperature must always be between -5° C and +45° C.
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
Plastic bags must be kept out of reach of children.
Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

Caution Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
POWERSUPPLY
The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5 mm². The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!
Warning: Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

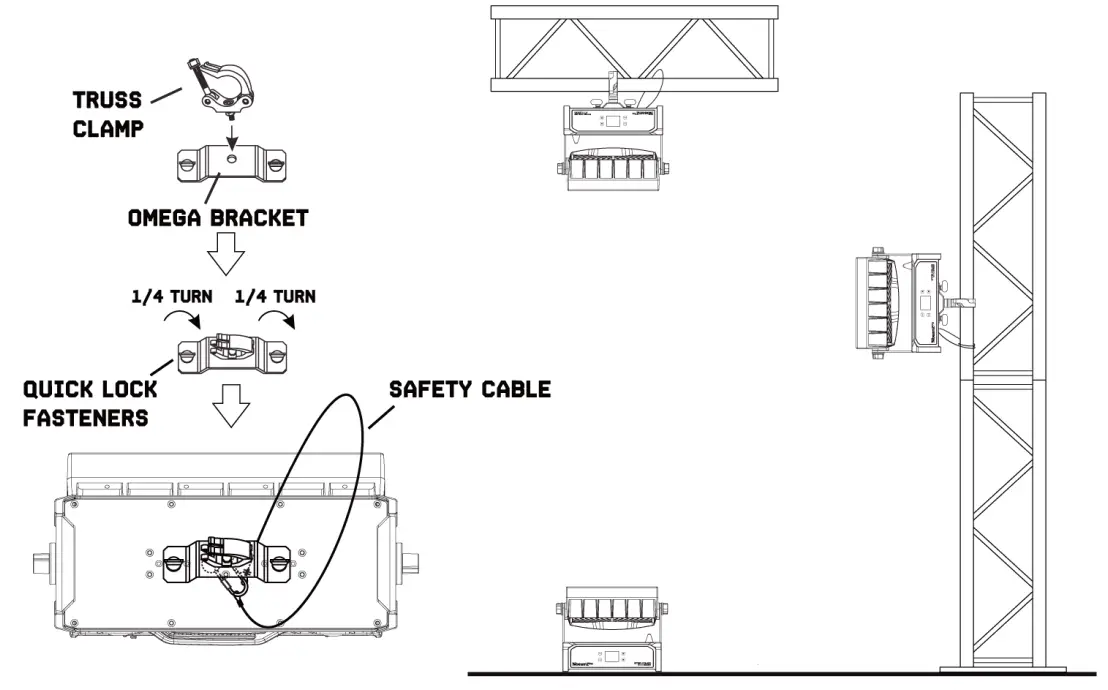

RIGGING
The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit’s weight. Secure the unit with a safety cable so that it cannot fall down.
When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer !

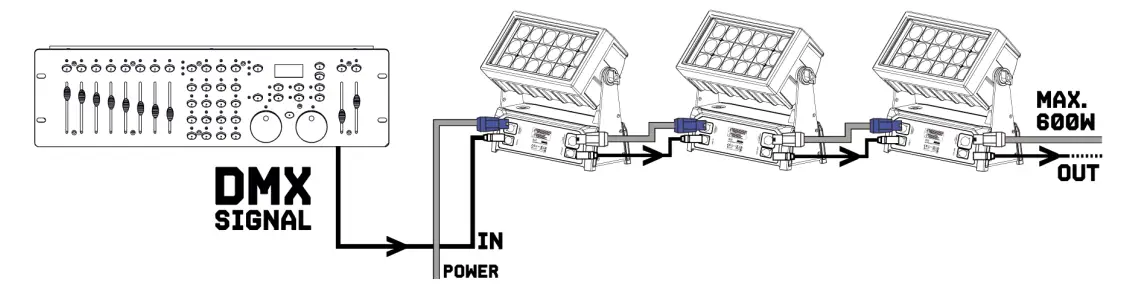

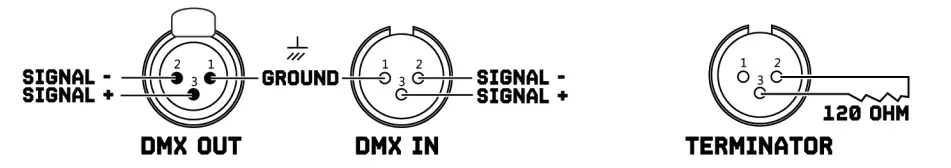

DMX512 CONTROL
you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected. Caution At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

ROM CONTROL
This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512 control systems, it is the open standard for DMX512 configuration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller or special RDM controller to send and receive commands from specific fixtures.
The RDM function allows you, for example to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an inaccessible location. Each unit has an RDM UID (unique identification number).
PROTECTION CLASS IP65
Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out‐ doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENACE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.
Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
Check the mechanically moving parts, these must not show any signs of wear or fatigue.
Check the electrical power and signal cables, they must not show any damage or fatigue.
Do not use solvents, abrasives or other aggressive products to clean the unit.
Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit. Fuse blown or internal fault.	Check that power is turned on. Check cables and connections. Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected. Bad DMX-line. DMX-line has no end resistance. Incorrect unit addressing. A unit is defective and is disturbing data transmission on the DMX-line. Pin 2 and 3 are reversed in XLR connection.	Connect controller. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. Insert DMX terminator plug in DMX output socket of last unit on DMX-line. Check unit address and DMX mode settings. Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Have defective unit serviced by an authorized technician. Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit’s software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot. LEDs damaged. The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary. Disconnect unit and contact Beamz support or Beamz authorized service partner. Disconnect unit. Check settings and correct if necessary.

CONTROL MENU

MENU		DESCRIPTION
DMX ADDRESS	Set address	DMX address setting C001-512)
MODE	DMX Mode	DMX
MODE	DMX Mode	Wireless DMX
	Dmx Channel	8/1G/19/21/29/35/38CH
	Slave
	Auto	Auto program 1- 20
	Auto	Auto speed
	Static	Zoom
		Dimmer
		Strobe
		Red
		Green
		Blue
		White
	Color Macro	Zoom
		Red
		Amber
		Yellow Warm
		Yellow
		Green
		Turquois
		Cyan
		Blue
		Lavender
		Mauve
		Magenta
		Pink
		Warm White
		White
		Cold White

SETTINGS	Display Rev	Display reverse (Display Rev) On/off
	Display	Display Backlight on/off
	Dmx Fail	Hold / Blackout
	Dimmercurce	Choose between 4 Dimmercurves
	Dimmer speed	Choose between Normal or Smooth
	Led Power	Choose between High, Normal or Theater
	Led Frequency	Choose between 600/1200/2400/4800HZ
	White Balance	Red	Individual white balance. Cross-operating mode setting of the 4 RGBW LED groups
		Green
		Blue
		White
	Calibrate	Password , 033 °Zoom 000- Calibrate the min/max angle of the zoom (150.150
	Fan Set	Choose between Auto, High, Silent. Silent 70%, Silent40%, Silent20%
	Wireless DMX	Reset Wireless DMX
	Test	Choose between All. LED or Zoom
	Demolition	Password , 033 Push the lens, Easy to maintenance (150.150 only)
	Autolock	60 Seconds		Key lock closure, As the key lock opens, display screen backlight 60 seconds out. button is locked, need operation buttons, first to ENTER a password to unlock ENTER the password to operation display panel buttons UP. DOWM. UP, DOWN, press ENTER to unlock
		No Lock

	Reset	Reset Now?	Reset zoom motor (only on the 150150)
	Factory reset	Reset Now?	Reset to factory set

SYSTEM INFO	Firmware	Software Version	Shows the last version of
	Temperature	xx°C	show LED Temperature
		Temp Unit	Fahrenheit / Celsius
	Time info	Power on Hours	XXX Hours
		Last run Hours	XXX Hours

DAX CHANNELS
8 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Zoom	000-255	Zoom, in or out 0-100%
2	Colour	000-255	LED Red, Intensity 0-100%
3		000-255	LED Green, Intensity 0-100%
4		000-255	LED Blue, Intensity 0-100%
5		000-255	LED White, Intensity 0-100%
6	Background	000-255	LED Red, Intensity 0-100%
7		000-255	LED Green, Intensity 0-100%
8		000-255	LED Blue, Intensity 0-100%

16 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Zoom	000-255	Zoom, in or out 0-100%
2	Shutter	000 – 019	Shutter closed
		020 – 024	Shutter open
		025 – 064	Strobe 1 Strobe slow -> fast <1Hz – 20Hz
		065 -0 69	Shutter open
		070 -0 84	Strobe 2: Ramp up/down, slow -> fast
		085 – 089	Shutter open
		090 – 104	Strobe 3: Ramp up/down random, slow->fast
		105 -109	Shutter open
		110 -124	Strobe 4: Ramp up, slow -> fast
		125 -129	Shutter open
		130 -144	Strobe 5: Ramp up random, slow -> fast
		145 -149	Shutter open
		150 -164	Strobe 6:random Ramp down, slow -> fast
		165 -169	Shutter open
		170 -184	Strobe 7: Ramp down random, slow -> fast
		185 -189	Shutter open
		190 – 204	Strobe 8: Random Strobe effect, slow -> fast
		205 – 209	Shutter open
		210 – 224	Strobe 9: Strobe Break effect, 5s is (Short burst with break)
		225 – 229	Shutter open
		230 – 244	Strobe 10: burst (fast -> slow)
		245 – 255	Shutter open

3	Dimmer	000 – 255	0 -100%
4	Fixture control settings	000 – 039	No function
		040 – 044	SILENT MODE (level 1)-70% fan speed *
		045 – 049	SILENT MODE (level 2)-40% fan speed *
		050 – 054	SILENT MODE (level 3)-20% fan speed *
		055 – 059	No function
		060 – 064	Fan mode FULL *
		085 – 089	Fan mode REGULATED *
		070 – 074	Fan mode SILENT *
		075 – 089	No function
		090 – 094	Linear Dimmer Curve *
		095 – 099	Exponential Dimmer Curve *
		100 -104	Logarithmic Dimmer Curve *
		105 -109	S-Dimmer Curve *

110 -114	Normal dimming, speed of changes unrestricted *
115 -119	No function
120 -124	Smooth dimming, speed of changes restricted slightly *
125 -129	No function
130 -134	600 Hz Refresh rate *
135 -139	1200Hz Refresh rate *
140 -144	2400Hz Refresh rate *
145 -149	4800Hz Refresh rate *
150 -154	No Function
155 -159	WDMX – ON *
160 -164	No Function
165 -169	WDMX – OFF*
170 -174	No Function
175 -179	WDMX – RESET*
180 -184	No Function
185 -189	Led power(Normal mode) *
190 -194	Led power(Theater mode) *
195 -199	Led power(High mode) *
200 – 249	Reset zoom*
250 – 255	illuminate display*

5 Macro Color		000 – 005	No Function
		008 – 013	Red
		014 – 021	Amber
		022 -029	Yellow Amber
		030-037	Yellow
		038-045	Green
		046-053	Turquoise
		054-061	Cyan
		062-069	Blue
		070-077	Lavender
		078-085	Mauve
		086-093	Magenta
		094-101	Pink
		102-109	Warm White
		110-117	White
		118-125	Cold White
		126-127	Colour jumping stop
		128-191	Colour jumping Speed slow->fast/Colourl->12
		192-255	Colour fading Speed slow->fast/Colourl->12
6	Colour	000 – 255	LED Red. Intensity 0-100%
7		000 – 255	LED Green, Intensity 0-100%
8		000 – 255	LED Blue, Intensity 0-100%
9		000 – 255	LED White, Intensity 0-100%
10 CCT		000 – 009	No Function
		010 – 029	10000K
		030 – 049	8000K
		050 – 069	7200K
		070 – 089	6500K
		090 -109	6000K
		110 -129	5600K
		130 -149	4900K
		150 -169	4200K

		170 -189	3500K
		190 – 209	3200K
		210 – 229	2700K
		230 – 255	2500K
11	Bckground Dimmer	200 – 255	LED Dimmer Background. Intensity 0-100%
12	Background Strobe	000-255	Strobe Effect intensity 0-100%
13	Background color	000 – 255	LED Red. Intensity 0-100%
14		000 – 255	LED Green, Intensity 0-100%
15		000 – 255	LED Blue, Intensity 0-100%
16	Background Color Makro	000 – 005	No Function
		ON – 013	Red
		014 – 021	Amber
		022 -029	Yellow Amber
		030-037	Yellow
		038-045	Green
		046-053	Turquoise
		054-061	Cyan
		062-069	Blue
		070-077	Lavender
		078-085	Mauve
		086-093	Magenta
		094-101	Pink
		102-109	Warm White
		110-117	White
		118-125	Cold White
		126-127	Colour jumping stop
		128-191	Colour jumping Speed slow->fast/Colourl->12
		192-255	Colour fading Speed slow->fast/Colourl->12

*Value must be held for 5 seconds to activate
19 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Zoom	000-255	Zoom, in or out 0-100%
2	Zoom Fine	000-255	Zoom Fine 0-100%
3	Shutter	000 – 019	Shutter closed
		020 – 024	Shutter open
		025 – 064	Strobe 1 Strobe slow -> fast <1Hz – 20Hz
		065 -0 89	Shutter open
		070 -0 84	Strobe 2: Ramp up/down, slow -> fast
		085 – 089	Shutter open
		090 -104	Strobe 3: Ramp up/down random, slow->fast
		105 -109	Shutter open
		110 -124	Strobe 4: Ramp up. slow -> fast
		125 -129	Shutter open
		130 -144	Strobe 5: Ramp up random, slow -> fast
		145 -149	Shutter open
		150 -164	Strobe 6:random Ramp down, slow -> fast
		165 -169	Shutter open
		170 -184	Strobe 7: Ramp down random, slow -> fast
		185 -189	Shutter open

	190 – 204	Strobe 8: Random Strobe effect slow -) fast
	205 – 209	Shutter open
	210 – 224	Strobe 9: Strobe Break effect 5s……ls (Short burst with break)
	225 – 229	Shutter open
	230 – 244	Strobe 10: burst (fast • slow)
	245 – 255	Shutter open
4 Dimmer	000 – 255	0-100.
5 Fixture control settings	000 – 039	No function
	040 – 044	SILENT MODE (level 0-70% fan speed •
	045 – 049	SILENT MODE (level 2)-40% fan speed •
	050 – 054	SILENT MODE (level 3)-20% fan speed •
	055 – 059	No function
	060 – 064	Fan mode FULL •
	065 – 069	Fan mode REGULATED *
	070 – 074	Fan mode SILENT *
	075 – 089	No function
	090 – 094	Linear Dimmer Curve*
	095 – 099	Exponential Dimmer Curve •
	100 -104	Logarithmic Dimmer Curve *
	105 -109	S-Dimmer Curve •
	110 -114	Normal dimming. speed of changes unrestricted*
	115 -119	No function
	120 -124	Smooth dimming, speed of changes restricted slightly •
	125 -129	No function
	GO -134	600 Hz Refresh rate*
	135 -139	1200Hz Refresh rate •
	140 -144	2400Hz Refresh rate *
	145 -149	4800Hz Refresh rate •
	150 -154	No Function
	155 -159	WCIMX – ON*
	160 -164	No Function
	165 -169	WDMX – OFF •
	170 – V4	No Function
	175 -179	MINX – RESET*
	180 -184	No Function
	185 -189	Led power(Normal mode) *
	190 -194	Led power(Theater mode) *
	195 -199	Led power(High mode) *
	200 – 249	Reset zoom`
	250 – 255	illuminate display*

6 Macro Color	000 – 005	No Function
	006 – 013	Red
	014 – 021	Amber
	022 -029	Yellow Amber
	030-037	Yellow
	038-045	Green
	046-053	Turquoise
	054-061	Cyan
	062-069	Blue
	070-077	Lavender
	078-085	Mauve
	086-093	Magenta

	094-101	Pink
	102-109	Warm White
	110-117	White
	118-125	Cold White
	126-127	Colour jumping stop
	128-191	Colour jumping Speed slow->fast/Cofourl->12
	192-255	Colour fading Speed slow-)fast/Colourl-)12
7 Colour	000 – 255	LEO Red. Intensity 0-100%
8	000 – 255	LEO Green. Intensity 0-100%
9	000 – 255	LEO BLUE Intensity 0-100%
10	000 – 255	LED WHITE. Intensity 0-100%
11 CCT	000 – 009	No Function
	010 – 029	10000K
	030 – 049	8000K
	050 – 069	7200K
	070 – 089	6500K
	090 -109	6000K
	110 -129	5600K
	130 -149	4900K
	150 -169	4200K
	170 -189	3500K
	190 – 209	3200K
	210 – 229	2700K
	230 – 255	2500K

12	Auto Program	000 – 009	No function
		010 – 019	Auto program 1
		020 – 029	Auto program 2
		030 – 039	Auto program 3
		040 – 049	Auto program 4
		050 – 059	Auto program 5
		060 – 069	Auto program 6
		070 – 079	Auto program 7
		080 – 089	Auto program 8
		090 – 099	Auto program 9
		100 – 109	Auto program 10
		110 – 119	Auto program 11
		120 -129	Auto program 12
		130 -139	Auto program 13
		140 -149	Auto program 14
		150 -159	Auto program 15
		160 -169	Auto program 16
		170 – T79	Auto program 17
		180 -189	Auto program 18
		190 -199	Auto program 19
		200 – 255	Auto program 20 (Auto program 1-19 cycle)
13	Speed Program	000 – 000	No Function
		001- 255	AUTO Speed or Dimmer Speed
14	Bckground Dimmer	200 – 255	LED Dimmer Background, Intensity 0-100%
15	Background Strobe	000-255	Strobe Effect intensity 0-100%
16	Background color	000 – 255	LED Red, Intensity 0-100%
17		000 – 255	LED Green, Intensity 0-100%
18		000 – 255	LED Blue, Intensity 0-100%

19	Background Color Ma	000 – 005	No Function
		006-013	Red
		014-021	Amber
		022-029	Yellow Amber
		030-037	Yellow
		038-045	Green
		046-053	Turquoise
		054-061	Cyan
		082-069	Blue
		070-077	Lavender
		078-085	Mauve
		088-093	Magenta
		094-101	Pink
		102-109	Warm White
		110-117	White
		118-125	Cold White
		126-127	Colour jumping stop
		128-191	Colour jumping Speed slow->fast/Colourl->12
		192-255	Colour fading Speed slow->fast/Colourl->12

*Value must be held for 5 seconds to activate
21 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	Zoom	000-255	Zoom, in or out 0-100%
2	Zoom Fine	000-255	LED Red, Intensity 0-100%
3	Shutter	000 – 255	LED Green, Intensity 0-100%
		000-255	LED Blue, Intensity 0-100%
		000-255	LED White, Intensity 0-100%
		000 – 255	LED Red, Intensity 0-100%
		000-255	LED Green, Intensity 0-100%
		000-255	LED Blue, Intensity 0-100%
		000 – 255	LED White, Intensity 0-100%
		000-255	LED Red, Intensity 0-100%
		000-255	LED Green, Intensity 0-100%
		000 – 255	LED Blue, Intensity 0-100%
		000-255	LED White, Intensity 0-100%
		000-255	LED Red, Intensity 0-100%
		000 – 255	LED Green, Intensity 0-100%
		000-255	LED Blue, Intensity 0-100%
		000-255	LED White, Intensity 0-100%
		000 – 255	LED Red, Intensity 0-100%
		000-255	LED Green, Intensity 0-100%
		000-255	LED Blue, Intensity 0-100%

4 Dimmer	000-255	0 -100
5 Fixture control settings	000-039	No function
	040 – 044	SILENT MODE (level 1)-70% fan speed *
	045 – 049	SILENT MODE (level 2)-40% fan speed *
	050 – 054	SILENT MODE (level 3)-20% fan speed *
	055 – 059	No function
	OGO – 064	Fan mode FULL *
	085 – 069	Fan mode REGULATED *
	070 – 074	Fan mode SILENT *
	075 – 089	No function
	090 – 094	Linear Dimmer Curve *
	095 – 099	Exponential Dimmer Curve *
	100 -104	Logarithmic Dimmer Curve *
	105 -109	S-Dimmer Curve *
	110 -114	Normal dimming, speed of changes unrestricted *
	115 -119	No function
	120 -124	Smooth dimming, speed of changes restricted slightly *
	125 -129	No function
	130 -134	600 Hz Refresh rate *
	135 -139	1200Hz Refresh rate *
	140 -144	2400Hz Refresh rate *
	145 -149	4800Hz Refresh rate *
	150 -154	No Function
	155 -159	WDMX – ON*
	160 -164	No Function

		165 -169	WDMX – OFF*
		170 -174	No Function
		175 -179	WDMX – RESET*
		180 -184	No Function
		185 -189	Led power(Normal mode) *
		190 -194	Led power(Theater mode) *
		195 -199	Led power(High mode) *
		200 – 249	Reset zoom*
		250 – 255	illuminate display*
6	LED block 1	000-255	LED Red, Intensity 0-100%
7		000 – 255	LED Green, Intensity 0-100%
8		000-255	LED Blue, Intensity 0-100%
9		000-255	LED White, Intensity 0-100%
10	LED block 2	000 – 255	LED Red, Intensity 0-100%
11		000-255	LED Green, Intensity 0-100%
12		000-255	LED Blue, Intensity 0-100%
13		000 – 255	LED White, Intensity 0-100%
14	LED block 3	000-255	LED Red, Intensity 0-100%
15		000-255	LED Green, Intensity 0-100%
16		000 – 255	LED Blue, Intensity 0-100%
17		000-255	LED White, Intensity 0-100%
18	LED block 4	000-255	LED Red, Intensity 0-100%
19		000 – 255	LED Green, Intensity 0-100%
20		000-255	LED Blue, Intensity 0-100%
21		000-255	LED White, Intensity 0-100%
22	Auto Program	000 – 009	No function

		010 – 019	Auto program 1
		020 – 029	Auto program 2
		030 – 039	Auto program 3
		040 – 049	Auto program 4
		050 – 059	Auto program 5
		060 – 069	Auto program 6
		070 – 079	Auto program 7
		080 – 089	Auto program 8
		090 – 099	Auto program 9
		100 -109	Auto program 10
		110 – 119	Auto program 11
		120 -129	Auto program 12
		130 -139	Auto program 13
		140 – 149	Auto program 14
		150 -159	Auto program 15
		160 -169	Auto program 16
		170 -179	Auto program 17
		180 -189	Auto program 18
		190 -199	Auto program 19
		200 – 255	Auto program 20 (Auto program 1-19 cycle)
23	Speed Program	000 – 000	No Function
23	Speed Program	001- 255	AUTO Speed or Dimmer Speed
24	Background Dimmer	200 – 255	LED Dimmer Background, Intensity 0-100%
25	Background Strobe	000-255	Strobe Effect intensity 0-100%
26	Background color	000 – 255	LED Red, Intensity 0-100%
27	Background color	000 – 255	LED Green, Intensity 0-100%

28	000 – 255	LED Blue, Intensity 0-100%
29 Background Color Ma	000 – 005	No Function
	006 – 013	Red
	014 – 021	Amber
	022 -029	Yellow Amber
	030-037	Yellow
	038-045	Green
	046-053	Turquoise
	054-061	Cyan
	062-069	Blue
	070-077	Lavender
	078-085	Mauve
	088-093	Magenta
	094-101	Pink
	102-109	Warm White
	110-117	White
	118-125	Cold White
	126-127	Colour jumping stop
	128-191	Colour jumping Speed slow->fast/Colourl->12
	192-255	Colour fading Speed slow->fast/Colourl->12

*Value must be held for 5 seconds to activate
35 CHANNELS

TECHNICAL SPECIFICATIONS

Rated voltage
LED
Zoom angle
Illuminance
DMX Channels
Functions
Dimensions per unit
Weight (per unit)

: 100-240VAC, 50-60Hz, 3,7- 1,76A
: 36×15 Watt
: 7 – 58°
: 76.689lx @1m
: 8,16,19,21,29,35,38
: DMX, Automatic programs, Master-Slave.
: 510 x 370 x 120 mm
: 14,35 kg

Design and product specifications are subject to change without prior notice.
The products referred to in this manual conform to the European Community Directives to which they are subject:

Low Voltage (LVD) 2014/35/EU
Electromagnetic Compatibility (EMC) 2014/30/EU
Restriction of Hazardous Substances (RoHS) 2011/65/EU

Offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!

BEAMZLIGHTNG.COM
