CHANNEL USER MANUAL
PROFESSIONAL SHOW LIGHTING LED
TX1910 WASH
AC100~240V 50/60Hz
www.lightsky.com.cn
www.lightsky-china.com
FLY DRAGON LIGHTING EQUIPMENT CO., LTD

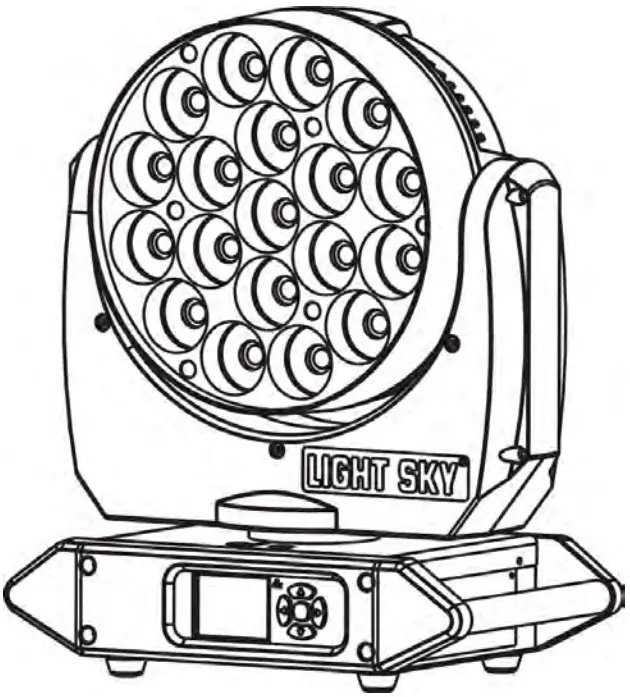

TX1910 Wash Professional Show Lighting
10、DMX TRAITS
| Channel | DMX values | % | Effect |
| 1. Dimmer | 0-255 | 0-100 | |
| 2. Dimmer fine | 0-255 | 0-100 | |
| 3. Shutter | 0-9 | 0-3 | No function |
| 10-49 | 4-19 | Slow closing,Fast opening，slow → fast | |
| 50-89 | 20-34 | Fast closing,Slow opening，Slow → Fast | |
| 90-119 | 35-46 | Slow closing,Slow open，Slow → Fast | |
| 120-179 | 47-70 | Random strobe,Slow → Fast | |
| 180-249 | 71-98 | Synchronous strobe,slow → fast | |
| 250-255 | 99-100 | No function | |
| 4. Red-1 | 0-255 | 0-100 | |
| 5.Green-1 | 0-255 | 0-100 | |
| 6. Blue-1 | 0-255 | 0-100 | |
| 7.White-1 | 0-255 | 0-100 | |
| 8.Red-2 | 0-255 | 0-100 | |
| 9.Green-2 | 0-255 | 0-100 | |
| 10. Blue-2 | 0-255 | 0-100 | |
| 11.White-2 | 0-255 | 0-100 | |
| 12.Red-3 | 0-255 | 0-100 | |
| 13.Green-3 | 0-255 | 0-100 | |
| 14. Blue-3 | 0-255 | 0-100 | |
| 15.White-3 | 0-255 | 0-100 | |
| 16.Red-4 | 0-255 | 0-100 | |
| 17.Green-4 | 0-255 | 0-100 | |
| 18. Blue-4 | 0-255 | 0-100 | |
| 19.White-4 | 0-255 | 0-100 |
| Channel | DMX values | % | Effect |
| 20. Macro colour | 0-1 | 0-1 | No function |
| 2-225 | 1-88 | Colour gradient change | |
| 226-230 | 89-90 | 2700K | |
| 231-235 | 91-92 | 3200K | |
| 236-240 | 93-94 | 4200K | |
| 241-245 | 95-96 | 5600K | |
| 246-250 | 97-98 | 6500K | |
| 251-255 | 99-100 | 8000K | |
| 21. Pan | 0-255 | 0-100 | |
| 22. Pan fine | 0-255 | 0-100 | |
| 23. Tilt | 0-255 | 0-100 | |
| 24. Tilt fine | 0-255 | 0-100 | |
| 25. Fixture control | 0-9 | 0-3 | No function |
| 10-14 | 4-5 | System Reset | |
| 15-19 | 5-7 | Open | |
| 20-24 | 7-9 | Close | |
| 25-29 | 10-11 | Quick open | |
| 30-34 | 12-13 | Quick close | |
| 35-128 | 14-50 | No function | |
| 129-133 | 51-52 | Simple(9CH) | |
| 134-138 | 53-54 | Standard(15CH) | |
| 139-143 | 55-56 | Extended1(23CH) | |
| 144-148 | 57-58 | Extended2(27CH) | |
| 149-239 | 59-93 | No function | |
| 240-244 | 94-95 | Pan Calibration | |
| 245-249 | 96-97 | Tilt Calibration | |
| 250-255 | 98-100 | No function | |
| 26. Calibration | 0-255 | 0-100 |
| Channel | DMX values | % | Effect |
| 27. Slave ID | 0-2 | 0 | All IDs are efficient lighting its own ID to 0, the channel set to any value is valid |
| 3-5 | 1-2 | ID:1 effective | |
| 6-8 | 2-3 | ID:2 effective | |
| … | … | ||
| 192-194 | 75-76 | ID:64 effective | |
| 195-197 | 76-77 | ID is(2*n)+1 effective,(n=0-31) 1、3、5、7、9…63 | |
| 198-200 | 77-78 | ID is(2*n)+2 effective,(n=0-31) 2、4、6、8、10…64 | |
| 201-203 | 78-79 | ID is(3*n)+1 effective,(n=0-21) 1、4、7、10、13…64 | |
| 204-206 | 80-81 | ID is(3*n)+2 effective,(n=0-20) 2、5、8、11、14…62 | |
| 207-209 | 81-82 | ID is(3*n)+3 effective,(n=0-20) 3、6、9、12、15…63 | |
| 210-212 | 82-83 | ID is(4*n)+1 effective,(n=0-15) 1、5、9、13、17…61 | |
| 213-215 | 83-84 | ID is(4*n)+2 effective,(n=0-15) 2、6、10、14、18…62 | |
| 216-218 | 84-85 | ID is(4*n)+3 effective,(n=0-15) 3、7、11、15、19…63 | |
| 219-221 | 85-86 | ID is(4*n)+4 effective,(n=0-15) 4、8、12、16、20…64 |
| Channel | DMX values | % | Effect |
| 27. Slave ID | 222-224 | 87-88 | ID is(5*n)+1 effective,(n=0-12) 1、6、11、16、21…61 |
| 225-227 | 88-89 | ID is(5*n)+2 effective,(n=0-12) 2、7、12、17、22…62 | |
| 228-230 | 89-90 | ID is(5*n)+3 effective,(n=0-12) 3、8、13、18、23…63 | |
| 231-233 | 90-91 | ID is(5*n)+4 effective,(n=0-12) 4、9、14、19、24…64 | |
| 234-236 | 91-92 | ID is(5*n)+5 effective,(n=0-11) 5、10、15、20、25…60 | |
| 237-239 | 93-94 | ID is(6*n)+1 effective,(n=0-10) 1、7、13、19、25…61 | |
| 240-242 | 94-95 | ID is(6*n)+2 effective,(n=0-10) 2、8、14、20、26…62 | |
| 243-245 | 95-96 | ID is(6*n)+3 effective,(n=0-10) 3、9、15、21、27…63 | |
| 246-248 | 96-97 | ID is(6*n)+4 effective,(n=0-10) 4、10、16、22、28…64 | |
| 249-251 | 97-98 | ID is(6*n)+5 effective,(n=0-9) 5、11、17、23、29…59 | |
| 252-254 | 98-99 | ID is(6*n)+6 effective,(n=0-9) 6、12、18、24、30…60 | |
| 255 | 100 | All IDs are valid |
| Simple | Standard | Extended1 | Extended2 | Function |
| 1 | 1 | 1 | 1 | Dimmer |
| — | 2 | 2 | 2 | Dimmer fine |
| 2 | 3 | 3 | 3 | Shutter |
| 3 | 4 | 4 | 4 | Red /Red-1 |
| 4 | 5 | 5 | 5 | Green /Green-1 |
| 5 | 6 | 6 | 6 | Blue /Blue-1 |
| 6 | 7 | 7 | 7 | White/White-1 |
| — | — | 8 | 8 | Red-2 |
| — | — | 9 | 9 | Green-2 |
| — | — | 10 | 10 | Blue-2 |
| — | — | 11 | 11 | White-2 |
| — | — | 12 | 12 | Red-3 |
| — | — | 13 | 13 | Green-3 |
| — | — | 14 | 14 | Blue-3 |
| — | — | 15 | 15 | White-3 |
| — | — | — | 16 | Red-4 |
| — | — | — | 17 | Green-4 |
| — | — | — | 18 | Blue-4 |
| — | — | — | 19 | White-4 |
| — | 8 | 16 | 20 | Macro colour |
| 7 | 9 | 17 | 21 | Pan |
| — | 10 | 18 | 22 | Pan fine |
| 8 | 11 | 19 | 23 | Tilt |
| — | 12 | 20 | 24 | Tilt fine |
| 9 | 13 | 21 | 25 | Fixture control |
| — | 14 | 22 | 26 | Calibration |
| — | 15 | 23 | 27 | Slave ID |
