FLASH PROFESSIONAL P7200151 Vintage LED Washer User Manual

INTRODUCTION

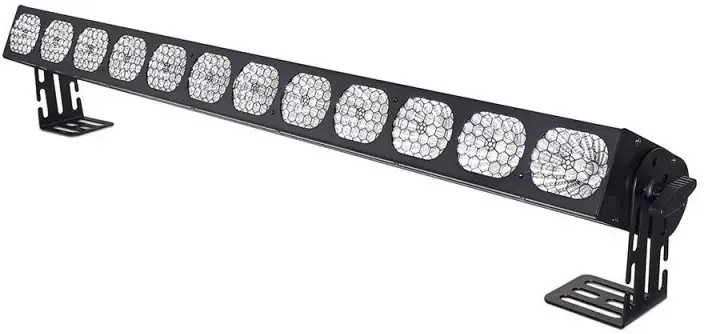

Thank you for purchasing Vintage LED WASHER 12x30W COB 12 SEKCJI – SHORT Mk2. For safety reasons and to ensure the trouble-free operation, carefully read the instructions.

SAFETY INFORMATION

1. Installation should be done by qualified personnel in order to minimize the risk of accidental electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you notice any signs of damage you should contact your dealer immediately. Do not connect the device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
6. Always use steel security cable to attach the device to a stable structure
7. Do not connect power supply to more than 4 devices in series.

PRODUCT INFORMATION

Features

• 12 sections controlled separately by DMX
• 16-bit dimming resolution
• Various dimming curves for smooth dimming in 8-bit mode
• Dim delay (light bulb simulation)
• Full DMX signal regeneration
• Electronic protection against overheating
• THEATRE or DISCO cooling volume modes.
• Permanent color correction
• Native support for optional wireless DMX module

Specification

• Power consumption: 400W
• Power supply voltage: 100 – 245V
• Voltage frequency: 50/60Hz
• Fuse: F7AL
• Diode type: COB
• Number of diodes: 12
• Diode power: 30W
• Display: Color LCD
• Color: RGBW
• Beam angle: 50°
• Dimming: Linear: 0 – 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
• Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration, Electronic protection against overheating
• AC IN: powerCON
• AC OUT: powerCON
• DMX IN: XLR – 3 pin
• DMX OUT: XLR – 3 pin
• IP Rating: IP20
• Housing made: Aluminum
• Cooling: Active
• Height [cm]: 8 [with packaging 16]
• Width [cm]: 97 [with packaging 107]
• Depth [cm]: 19 [with packaging 22]
• Weight [kg]: 5,2 [with packaging 6,4]

INSTALLATION

After removing the packaging, check if the device was not damaged during transport. Before connecting to the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage caused by unstable mounting.

CAUTION! Always use steel security cable to attach the device to a stable structure. Ensure proper connection to the mains and proper grounding. Make sure that the electrical parameters are consistent with device requirements. All activities, including connecting the device to the mains must be performed by qualified personnel

CONNECTIONS

The device is equipped with the following interfaces:

1. DMX (in/out): XLR 3-pin socket
2. Power (in/out): powerCON socket

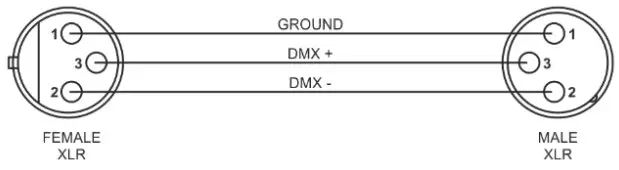

Connecting DMX signal

The connection is performed using cable with XLR-female -> XLR-Male plugs

Voltage specification

Connecting power supply

The connection is performed using power cable with PowerCon connector (included). The device must be operated by qualified personnel. Make sure that the power grid supply parameters are consistent with device parameters and limitations are not exceeded.

CAUTION! In the case of cable damage do not attempt to repair. Replacement or repair can be made only on the manufacturer or by a person with appropriate permissions.

Maximum number of devices connected in series: 4

OPERATION MANUAL

Control panel

The control panel is equipped with LCD display and 4 control buttons with the following functions:

1. ESC – go back from the selected options, go to upper menu, cancel changes
2. DOWN – choose option, edit parameter
3. UP – choose option, edit parameter
4. ENTER edit selected option, confirm changes

DMX channel list
