IMPORTANT INSTRUCTIONS

	Never Nail or use Staples
	Only power with 24VDC Class 2 Power Source
	Never apply weights or walk on strips
	Apply to surface at room temperature. Keep away from flammable materials. Surface temperature MAX 40°C (104°F). Don’t install under, above or near heat sources (i.e. stoves, fireplaces) etc.

SAFETY & WARNINGS

Please read instructions before using product and SAVE THESE INSTRUCTIONS. Before using this product make sure you have right color, product (item number) and voltage (printed on product). Check for possibility of damage during shipping. If damaged, or wrong product, do not use. Disconnect power before installing or using.
Use only with Class 2 Type power supply. Using with any other type of power supply will void the limited warranty.

Use only with LED World’s Class 2 Type power supply.
Disconnect power before installing or servicing (at breaker point).
This product is intended to be installed and serviced by a qualified licensed electrician. Install in accordance with the National Electric Code, and local regulations. Only power with a (listed) constant voltage Class 2 power supply (24V DC).
Never plug into 120V AC. The product requires a optional class 2 Transformer.

Do not power when rolled. Lighting must be installed in a straight line on a flat surface. Do not curl or twist and roll out completely straight before applying power.
Only install on smooth flat surfaces free of burrows that are fire retardant.
Product has an adhesive tape an back. Adhesion can only be made once and the LED strip must fully adhere to surface (flush). Failure to do this step will damage product. Rigidly
support wires with wire clamps.
During installation, do not damage the printed ci rcuit. Exposed wires can cause short circuit damaging product and creating a serious hazard. Do not mount in a manner or
support LED Strip light in a manner that can damage the outer jacket or cord insulation . Do not insta ll this lighting system where the exposed bare conductors can be shorted or
contact any conductive materials. Carefully check thatthere is no wire cross-over or possibility in the future in area of insta llation.
To reduce the risk offire and overheating, make sure all connections are tight.
Product is sold in the maximum length. Do not exceed or extend the length of the roll.
Only qualified electrician or engineer can perform installation familiar with low voltage wiring techniques. Correct polarity is imperative (+ / – is marked on printed circuit). Parallel
connection only.
DO NOT insta ll on flammable material or possibility of in the future. Do not install any luminaire closer than 6 inches (15.25 cm) from any curtain, or similar combustible
materials.
The light and all its components cannot be mechanically pressed. Never apply to surface above 40c (104F).
Voltage must not exceed 24VDC and must be regulated. The Voltage Is printed every 7 LEDS. Check that it is the carrectvoltage before applying power.
This is not a toy. Keep out of children’s reach.
Keep Flex strip spaced¾” apart if placing next to each other.

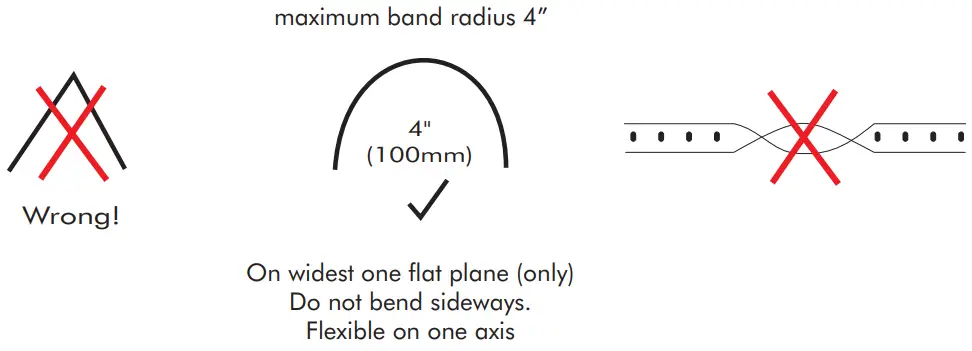

LED Flex Strip is bendable on one flat widest plane. Maximum bend radius is 7 inches (180mm) on one plane (flat).
Not for use in mission critical, aircraft, emergency signs or lifesaving equipment.
Static electricity can damage LED(s). Handle with care.
Inspect installation after one hour and thereafter reg ularly.
For stationary use only and not subjected to possible pressure or movement (or in the future).
Max. Soldering temperature cannot exceed 250°C (482°F) for a max of 4 seconds. Use 22-20 AWG wire to connect.
Use correct wiring as required by local electrical code. Use a 20 gauge wire to attach to strip by solder (2464 type of wire).
Connection to power source may use Wago™ 222-413
in hardwire applications.
Conductors of extra-low-voltage circuits be rigidly supported.
Conductors not be installed in contact with combustible materials and not run through walls, cei lings, floors or partitions, and; Uninsulated conductors not be installed less than 2.2 m (86″) from the floor.
Do not stare directly into the LED Light. Insta ll LED lighting out of direct sight.

LED WORLD INC. warranties this product for five year (some exceptions may apply) from the date of shipping unless otherwise noted in writing. This warranty is expressly in lieu of all other warranties expressed or implied. Under this Limited Warranty, the obligation of the company is limited to replacing on a prorated basis, at its option, any component found to be defective. This Limited Warranty does not apply to damage caused by buyer or alteration to the product or incorrect power supply. Factory warrantees are covered by the original manufacturer and claims must be submitted to them. This product must be used with LED World’s class 2 power supply. Failure to do so will void limited warranty.

LED World Inc. And its providers will never be liable to you or any other person for any indirect, incidental, consequential, special, punitive or exemplary loss or damage arising from, connected with, the purchase of products, including but not limited to loss of data, business, markets, cost of labour, savings, income, profits, use, production, reputation or goodwill, anticipated or otherwise, or economic loss, under any theory of liability (whether in contract, tort, strict liability or any other theory or law or equity), regardless of any negligence or other fault or wrongdoing (including without limitation gross negligence and fundamental breach) by led world inc or any person for whom led world inc is responsible, and even if led world inc has been advised of the possibility of such loss or damage being incurred.

If a product is defective, we will replace the product with similar or identical product or at our option a credit towards a future purchase. To make a claim under this warranty, obtain a return authorization number.

INSTALLATION PLANNING

LED Flexstrip is a versatile lighting product that can provide a superior lighting solution in a variety of applications.
Recommend design steps before starting the installation process:
General questions based on lighting requirements:

Where will your power supply be located
How will you switch your LED lighting ON and OFF?
What is the best layout configuration for your installation with wiring consideration?
How will you run your wiring to your LED strip lighting?

FLEX STRIP CONNECTION

Solder Connection Points

Solder connection points are at marked intervals.
Cut points are at every 6 LEDs (24VDC)

MOUNTING NOTE

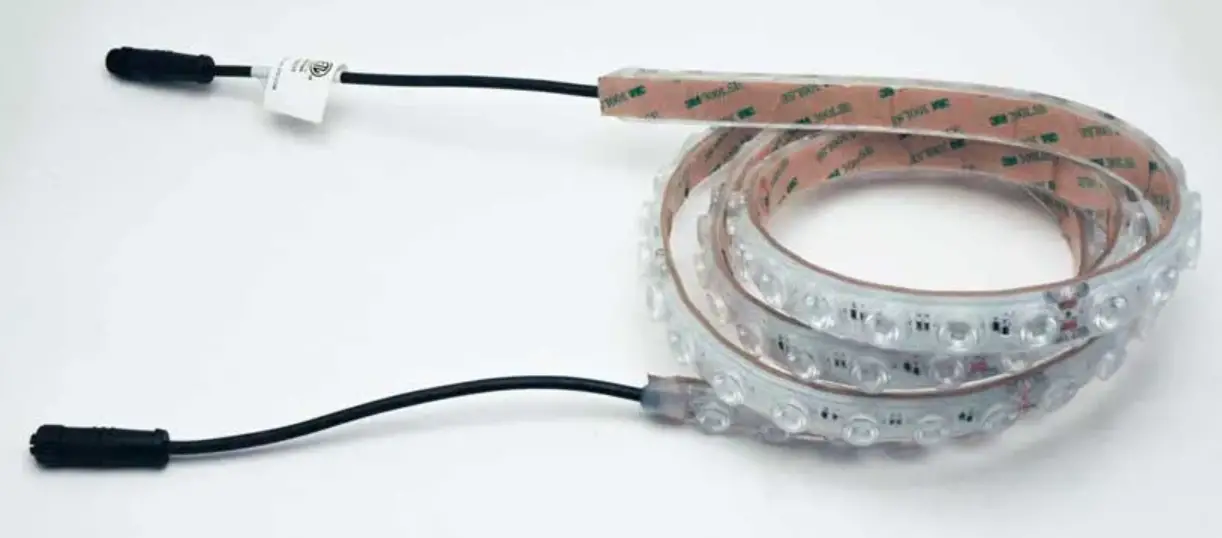

LED Wall Washer Strip is equipped with 3M self-adhesive tape. Mount strips on clean (no wax/oil), dry, smooth, burrows free surface. Adhesion can be made once and LED Strip must fully adhere to surface.

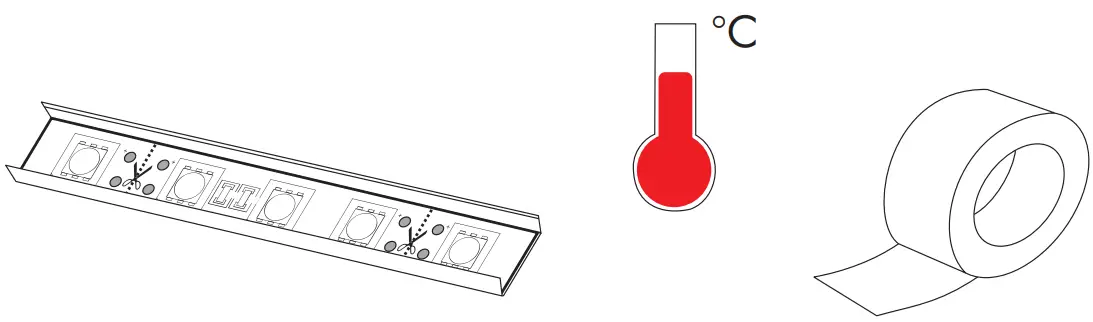

Use Aluminum profile or aluminum heat sink tape to avoid overheating , ensure proper heat dissipation and extend the life of the LED

WIRING FOR VOLTAGE DROP

Voltage drop is normal loss of voltage that occurs as power flows along a wire connection in a low voltage systems, and increases as the length of a wire connection is increased. Wire length and thickness as well as total light wattage influence the amount of voltage drop.

Recommended maximum wire lengths – 24VDC
Wire Guage (AWG)	20W	30W	50W	60W	90W	100W
20 AWG	27 FEET	18 FEET	11 FEET	9 FEET	6 FEET	5 FEET
18 AWG	42 FEET	28 FEET	17 FEET	14 FEET	9 FEET	8 FEET
16 AWG	67 FEET	45 FEET	27 FEET	22 FEET	15 FEET	13 FEET

Download Magnitude app for voltage drop calculations:

Android App

IOS App

WATTAGE CALCULATION

The LED Flex Strips have a label on each roll that indicates the voltage and wattage. You must have the correct Class 2 Power Supply (Transformer) for LED Strip model. To calculate the wattage, measure the total length of LED Strip in your run multiplied by the wattage of the LED Strip. Remember that a power source should only operate at a maximum 80% of it rated capacity.

For example : 10 feet of FP06(SP)-V2410790 x 5.8W = 58 Watts

Never Extend the Length of rolls. Rolls are sold in there max length.

LAYOUT OPTIONS

Note: Always check the Wattage of your LED Strip or Fixture.
Power Supply Wattage x 0.8 = Available Wattage

STRIP CUTTING

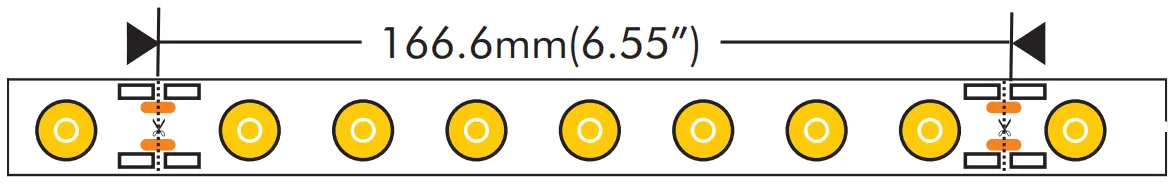

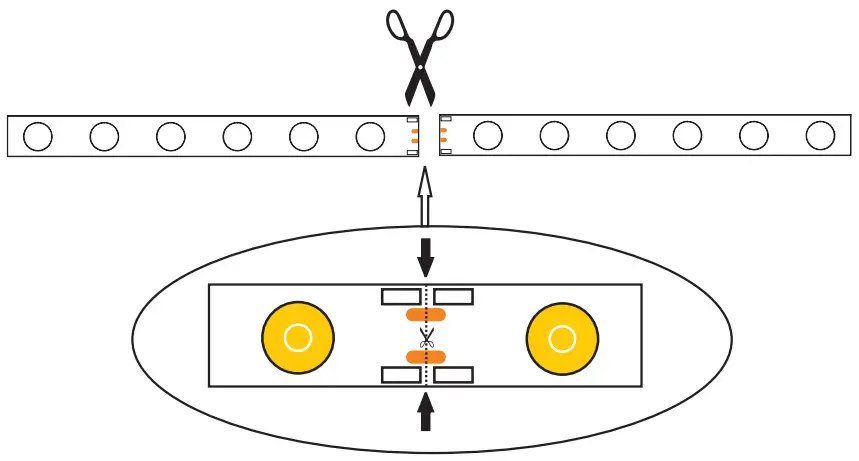

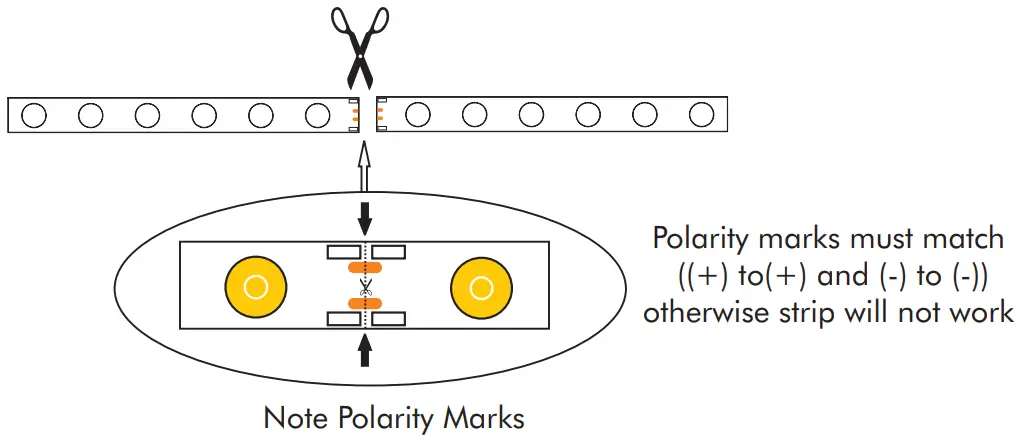

Wall Washer strips comes with cut mark sign. Strips are be cuttable at each 7 LEDs. Cut marks lying between set of soldering points.

CONNECT WITH SOLDERING

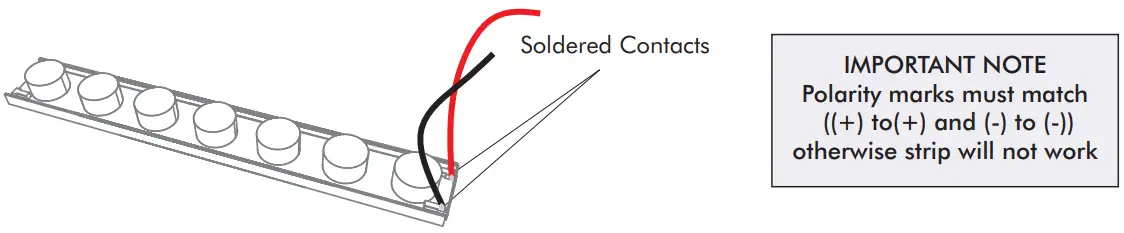

Wall Washer Strip comes with protective Silicon cover. It is strongly recommended to solder the connection.

TROUBLESHOOTING

Tape light strip does not light

Make sure your power supply is turned on and has the correct voltage.
Make sure your power supply is turned on and has the correct voltage.
Have a electrician check all connections and any switch or dimmer connections from the power supply to the LED Light Strips.
Consider testing with a multimeter to ensure light strip is receiving 24V power.
LED Flex Strip lights blink on, then go off
The power supply is not adequate for the length of LED Light Strips you are powering. Install a adequate Class 2 power supply.
LEDs farthest from the power supply are noticeably dimmer
This is the result of voltage drop. Decrease the length of the 24V power feed or use thicker power feed wires between the 24V power supply and the lighting strips.

IMPORTANT !

The following task requires personnel experienced with soldering and low voltage DC wiring techniques.
Note : If product is cut, it is no longer water resistant (IP-22)

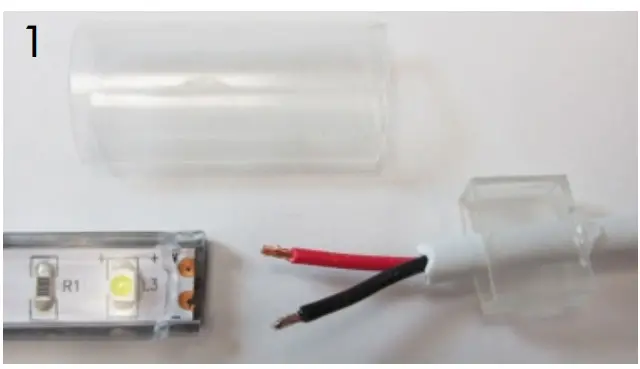

1 ½”long, 3/8” Wide electrical heat shrink. RTV Electronics grade silicone glue over connections to seal.

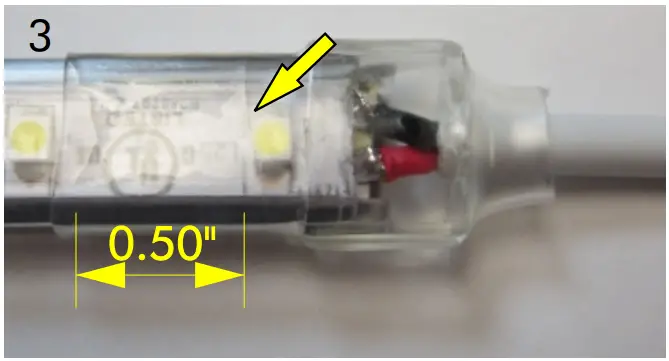

Solder wires and place end cap over wire as in Fig.2. End cap must also be sealed with heat shrink.
Apply heat with heat gun to seal connection.
Wire jacket must be covered by Heat shrink (1/4″”) and PVC cover must be 1/2″. RTV Electronics grade silicone glue to seal.

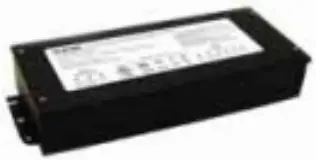

MAXIMUM FLEXSTRIP LENGTH SUPPORTED BY LED WORLD’s CLASS 2 POWER SUPPLY

Power Supply	Max Feet of LED Flexstrips	Power Supply	Max Feet of LED Flexstrips
MD-024-096VTDHV2	13.27 Feet (Continuous 77 Watts)	MD-024-060VTDHV2	8.27 Feet (Continuous 48 Watts)
MD-024-192VTHD52JV2	2 X 13.27 Feet (Continuous 77 Watts each channel)	MD-024-288VTHD52JV2	3 X 13.27 Feet (Continuous 77 Watts each channel)
